air conditioner not working

2006 KIA SEDONA
100 MILES
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
scan for codes then see if there are any dtc's.
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
BUBS58
  • MEMBER
  • 2 POSTS
AC stopped working abruptly. No AC indicator light when pressing switch, no fan/blower, no compressor
Not fuses
Sep 5, 2019 at 4:44 PM (Merged)
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
If you're absolutely sure there are no blown fuses anywhere, then it's probably the main control head itself.
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
BUBS58
  • MEMBER
  • 2 POSTS
Hi Wrenchtech. Thank you for such a quick response. I only saw one fuse that I thought had anything to do with a/c and that was in the engine fuseblock. There was also an a/c compressor relay. Are there other fuses that I should check that would not be marked obviously(to me anyway) that they are related to this problem? What is a climate control head and how is it designated as a part to purchase at an auto parts store?
Thank you,
Dana
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
You need to test every single fuse using a test light with the key on.

The control head is the unit where the controls are. That will most likely be a dealer only part.
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
BNAB
  • MEMBER
  • 1 POST
Hello,
My A/C wouldn't work and I was told it was the compressor. We put a new compressor on and a/c still don't work unless we jump it. We checked the fuses under the hood and relays but nothing unless i use a piece of wire where the a/c fuse suppose to be to jump/bypass it that way. How can I fix this issue? I did put a/c oil and freon in it that it allowed me to do but had to bypass it to get it to take it in.
Do you have any other suggestions.
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Have you checked the wiring between the switch and the compressor for continunity? Also, have you checked the cycle switch?
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
COSTONE
  • MEMBER
  • 1 POST
My AC was working fine in the morning then when I was heading home in the afternoon it just started blowing hot air. I had the freon levels checked and they are fine. Any ideas?

Thank You
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
When you turn the a/c on do you hear the clutch engage the compressor,if so-check if the air blend door is stuck on the heat position.
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
LILLIAN WEEKS
  • MEMBER
  • 1 POST
Cooling fans and A/C fan not working. A/C blowing hot air. Have checked the fuses and moved every relay that was possible, still no luck.
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

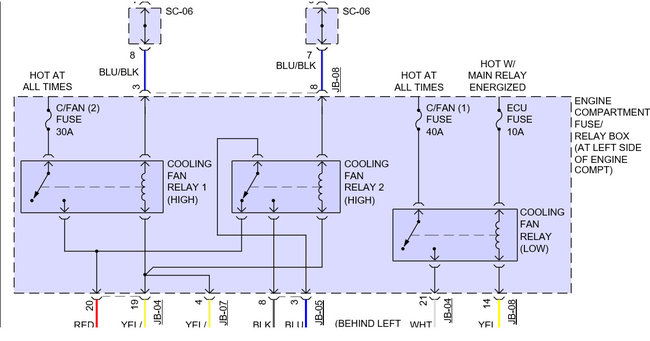

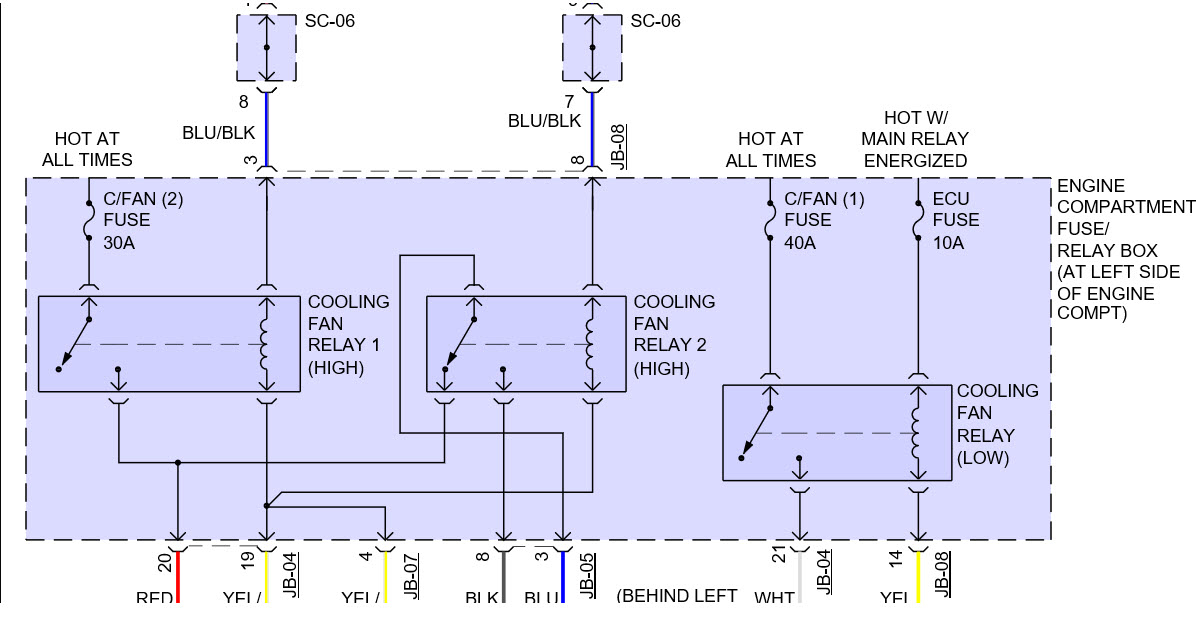

see picture of cooling fan relays under hood. if relays are good then it may be fans are bad or ect for one fan or a wiring issue try putting twelve volts to fans to see if they work . it can be those as well then have it scanned for codes by a mechanic.
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
Sep 5, 2019 at 4:44 PM (Merged)
