air conditioner not working

2006 KIA SEDONA
100 MILES
Avatar
WILDRICHIE69
  • MEMBER
  • 3 POSTS
Manual climate control not working at all. Manual climate control not working,no resp once from A/c , heater, fan, lights, checked fuses n relays all seem to be good,getting power to the circuit board, please help
Apr 7, 2013 at 4:08 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
If the fan is not working, you need to check it and power supply to it. Try applying power directly to one terminal and grounding the other to test if it works.

Here is a guide to help us fix the problem

https://www.2carpros.com/articles/car-air-conditioner-not-working-or-is-weak

Please run down this guide and report back.
Apr 7, 2013 at 4:32 PM
Avatar
WILDRICHIE69
  • MEMBER
  • 3 POSTS
Been using trouble 12 volt tester checked all fuzes n the circuit board on manual controlled appeared to have power going to it but not working, fan,lights.
Apr 7, 2013 at 4:43 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
If the fan don't work, nothing is going to work. Test the fan first.
Apr 7, 2013 at 4:49 PM
Avatar
WILDRICHIE69
  • MEMBER
  • 3 POSTS
Thank you, disconnected the battery for a minute n when I connected it again the manual climate control worked again.all most like a cell phone that's having problems,take the battery out for a minute n put it back in.. lol
Apr 7, 2013 at 5:05 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
This is an indication the control panel might be on its way out.
Apr 7, 2013 at 5:08 PM
Avatar
J4DEPUTY
  • MEMBER
  • 1 POST
I know I don't have a leak. But the a/c air is not getting cold. The engine is not overheating.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
BILLYMAC
  • CERTIFIED EXPERT
  • 2,204 POSTS
Hi if the air is not cold check the pressures low side should be between 30 and 40 high between 150 and 200. if the pressure is right and not cold then you have either a blend air door prob as in the heat is mixing with the a/c check and see if the line outside under the hood is cold when on if yes check the blend doors
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
DAYCARE_98
  • MEMBER
  • 1 POST
I took my van in because the air was cooling, then blowing hot air then cooling again. They replaced under warranty the compressor. The receipt said it was shorting out. I picked up my van and it appeared to blow cold air but it was at 7:30pm. The next day during the day, it was cool air but we had it on full blast and still sweating. I returned it to the dealer and they said the machine that pushed the freon in malfunctioned and the purge the system and refilled with freon. It is still not cooling to my satisfation. I did a reading with a air conditioning meter. I placed the thermometer end into the air vent and the coldest it got after driving 10 miles was 58 degrees. I came home and drove my parents car, did the same thing and within 5 miles the temp was already at 46 degrees. What should the temp be for a properly working system? We are bringing it back today.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi daycare_98,

Thank you for the donation.

Most AC operates at about 46 degrees at the vents.

Hope you get the problem reolved soon.

Good luck.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
TCSKAGGS
  • MEMBER
  • 7 POSTS
Air conditioning blows hot air one day it was idling running warmer than usual and then all of a sudden it blows hot air
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Does the a/c compressor turn on when you turn the a/c on?Are your electric cooling fans working under the hood?Have you ever cleaned the fins of your radiator and a/c condensor out?
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
TCSKAGGS
  • MEMBER
  • 7 POSTS
Cooling fans are working. One of them wasnt working but found out it was just a connection issue. The compressor does not come on when I turn the a/c on. Everything is cleaned though.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
With the compressor not coming on first thing you need to check is the a/c pressures.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
TCSKAGGS
  • MEMBER
  • 7 POSTS
High pressure was good and the low pressure is retarded.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
If the a/c compressor is off the high and low pressures should be equal what were the pressure readings?
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
TCSKAGGS
  • MEMBER
  • 7 POSTS
High pressure was 130 psi and the low pressure was retard
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
2CP-ARCHIVES
  • MEMBER
  • 4,540 POSTS
I have a few problems all started at the same time. A/C does not blow cold air, when car is cold it makes a loud screeching sound when the defrost fan is turned up. Power steering is sometimes very hard (tough to turn steering wheel). Can any of this be related? Someone suggested the serpentine belt needed replacing? Also, I replaced my windshield recently and now the intermittent sensor doesn't work. I have the sensored wipers and have been through this before where the technician doesn't recalibrate the sensor. Is this why the intermittent setting isn't working now?
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Are these readings coming from a a/c machine that recovers and charges the a/c?
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS
You have several possible isssues going on. The hot A/C could be from an improper level of r-134a refrigerant. You need to have that checked by a repair shop and have the refrigerent pressure checked or just get it flushed and filled.
The loud screedhing could be the air door for the defrost not clsoing all they way and creating a small gap that squeals when air passes by. It might also be the blower motor going bad.
The power steering pump sounds like it is going bad. Check the fluid level and then grab the pulley and check for play. If there is play you need to replace the pump or if the fluid looks or smells burnt.
The intermitant snesor is generally set by a control board. You may have a problem with the control board or the multi-funtion switch for the wipers.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
TCSKAGGS
  • MEMBER
  • 7 POSTS
It was just an a/c gauge
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
GENE SHERMAN
  • MEMBER
  • 1 POST
You didn't indicate one problem it might be happening if the AC is turning on and off and that was the original problem. Then it gets hot and cold, then all of a sudden the power steering doesn't work as good and here's a big screech it sounds like some bearing is seizing up intermittently and causing the accessory belt to start slipping and that would create the screaching sound. What do think?
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
So when you say the low side reads retard do you mean its reading as a vacuum instead of pressure?This is with the compressor off correct?
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
Hi Gene,

Thanks for the contribution. However, this was from 2012 so I doubt they will get back to you.

Please let us know if there is anything we can help with by posting a new question and one of us will help get your issue resolved.

If not, enjoy the site. Thanks
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
TCSKAGGS
  • MEMBER
  • 7 POSTS
The retard is meaning too much pressure on the low side. And yes this is when the compressor is off.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
When the compressor is off its going to read higher then it should when the a/c on it should 130psi like the high side.Your low side gauge must one of gauges that just reads blue yellow red.My gauge set reads actual pressure of both the high and low side.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Have you added any charge yet?
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
TCSKAGGS
  • MEMBER
  • 7 POSTS
no not yet
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
It sounds like you have enough pressure to turn the compressor on.Have you checked to see if your getting power ground etc to the compressor when turn the a/c on?
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SPARKSAUTO
  • MEMBER
  • 1 POST
I have a kia Sedona 2012 there is a/c in the system, a/c only comes on when engaged manually
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
If you could please start your own question we would be more then happy to help you.Its way too confusing for everyone involved to answer more then one question per question.
Sep 5, 2019 at 4:40 PM (Merged)
Avatar
ELI224
  • MEMBER
  • 1 POST
My air conditioner stopped working and I noticed the the cooling fan (the one listed by the passnger side of the engine) does not work when you turn on the air. The A/C blows hot air. Also, I'm not sure if this is related but there is a humming sound when I drive. Could it be the compressor, or could this be two different things.
Sep 5, 2019 at 4:43 PM (Merged)
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
Lack of cooling fan can lead to a compressor failure. It needs to be checked with a set of pressure gauges by a professional so nothing gets overlooked.
Sep 5, 2019 at 4:43 PM (Merged)
Avatar
LARRYSTIRE
  • MEMBER
  • 1 POST
air not blowing cold. we replaced a c compressor, dry7er, fully charged freon, control panel in dash
Sep 5, 2019 at 4:43 PM (Merged)
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Check the air blend door if its stuck in the heat position
Sep 5, 2019 at 4:43 PM (Merged)
Avatar
ROBBY REED
  • MEMBER
  • 1 POST
I have a 2007 kia rio that the ac will not blow cold air. It is full of freon the compressor works and the fans work. Can not figure out what's causing it not to get cold. Any suggestions. Thanks
Sep 5, 2019 at 4:43 PM (Merged)
Avatar
NEILL JONES
  • MEMBER
  • 3 POSTS
the A/C worked perfect until recently. I have tried to add a re-chill kit and nothing. The compressor and or condenser will not cycle on. Any suggestions?
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
check fuses in car and under hood and relay pull out memory fuse with car running first though that may be it if you replaced battery.
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
NEILL JONES
  • MEMBER
  • 3 POSTS
All fuses are good.
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

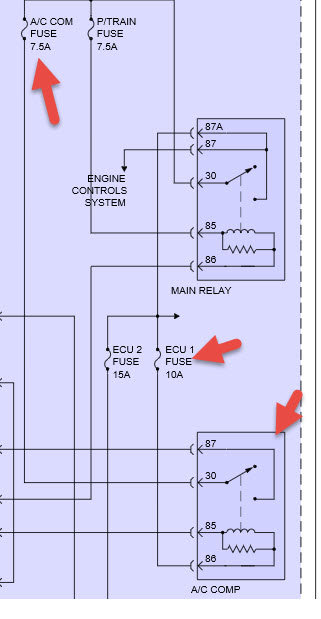

if the relay does not work it will not turn on compressor so have it scanned for codes it may be some type of control problem.you can either switch relay with another to test or do this to test relay. also, if system was low on Freon it would not start either and I do not know if you have auto or manual A/C if it is auto A/C you have to have it scanned as there are too many sensors that can go bad causing your problem.
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
Sep 5, 2019 at 4:44 PM (Merged)
Avatar
NEILL JONES
  • MEMBER
  • 3 POSTS
Okay, so I added Freon and checked the relay witch is good also checked memory fuse and etc. Still nothing.
Sep 5, 2019 at 4:44 PM (Merged)
