Door locks stopped working?

2006 CHEVROLET MALIBU
110,000 MILES
Advertisement
Avatar
GTAYLOR1823
  • MEMBER
  • 19 POSTS
[quote:09466ac53a="rhall77"]its usually caused by a bad blower resistor[/quote:09466ac53a]

Is it difficult to change or swap out a blower resistor?
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
There is a relay that would control the locks I will look up where it is. But if the doors are making a grinding noise when trying to lock then sounds like you have some bad door lock actuators in the doors. It is pretty common for them to fail.The plastic gears in them wear out/strip and they become inoperable or grind. Or the actuators become weak and will unlock but wont/cannot lock. I wish I was there to hear what was going on.
Feb 8, 2021 at 2:12 PM (Merged)
Advertisement
Avatar
RHALL77
  • CERTIFIED EXPERT
  • 3,361 POSTS
no there not bad. it is located under the passenger side dash. you will see the blower motor. it is right next to it towards the fire wall. there is about 4-5 wires going to it. remove it and see if it is burned.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
The door lock relays are in the left side inside fuse box.There is a lock and unlock relay they should be reversible so you can try trading places with the lock and unlock ones to see what happens.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
GTAYLOR1823
  • MEMBER
  • 19 POSTS
[quote:15340e9aef="gtaylor1823"][quote:15340e9aef="rhall77"]its usually caused by a bad blower resistor[/quote:15340e9aef]

Is it difficult to change or swap out a blower resistor?[/quote:15340e9aef]

Ok thank you, how will I be able to tell if it is burned?
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
CAUSTIN59
  • MEMBER
  • 6 POSTS
The relay makes the most sense. tomorrow I will upload exactly what happens visually and verbally with cell. Thanks all.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
RHALL77
  • CERTIFIED EXPERT
  • 3,361 POSTS
it will be either full of green corrision or brown from over heating
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
CAUSTIN59
  • MEMBER
  • 6 POSTS

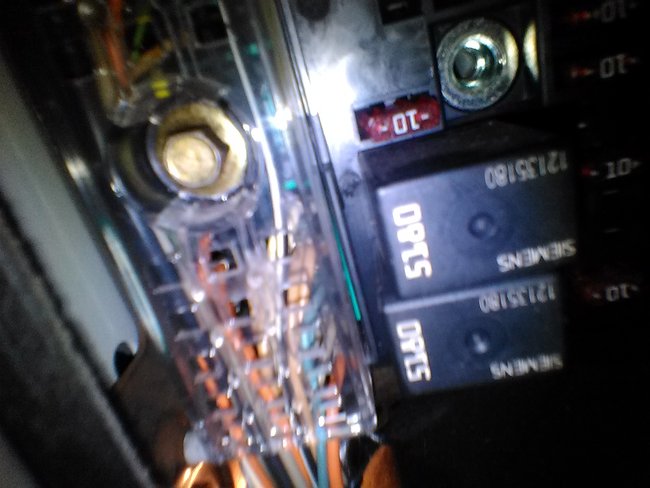

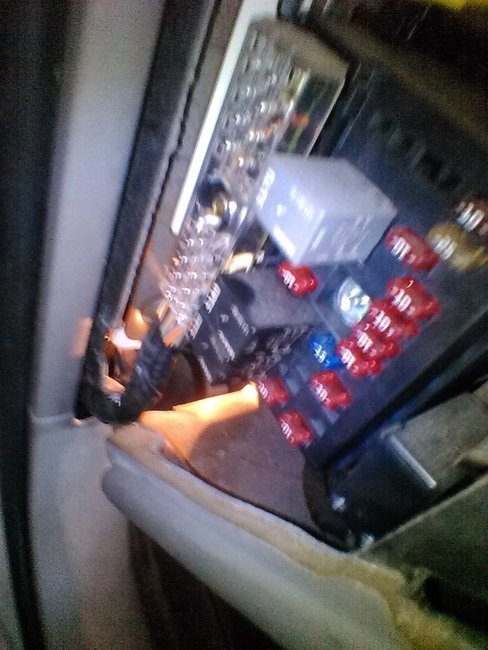

okay, I went out and re-examined the facts . no doubt the relays got wet one works but will fall apart if I attempt to remove it they both have 5180 written on them so I think best to replace both. Passenger door is dead either way the drivers door is the one making the noise not the relays . I also noticed the open and close switch is shot on drivers door. this is from the left corner dash fuse box.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
GTAYLOR1823
  • MEMBER
  • 19 POSTS
[quote:5babf64401="rhall77"]it will be either full of green corrision or brown from over heating[/quote:5babf64401]

When I put my highbeams on in my car the service engine light pops on and won't turn off until the car shuts off. Nothing happens when the light comes on but it gets annoying looking at it when it does it. What could be the problem?
Thank you
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
If the drivers door is making the noise most likely it has a bad door lock actuator.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
RHALL77
  • CERTIFIED EXPERT
  • 3,361 POSTS
have it scanned for trouble codes and let me know what in the computer
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
You might as replace both relays keep me posted on how it goes.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
GTAYLOR1823
  • MEMBER
  • 19 POSTS
[quote:964e494543="rhall77"]have it scanned for trouble codes and let me know what in the computer[/quote:964e494543]

I tried to find the blower motor resistor, I removed the glovebox and I believe found the blower motor but I can't locate the resistor. I didn't see any wires leading anywhere. Would I need to remove the center of the console where the cd player is to find it?
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Sounds like you have a water leak somewhere do you have a aftermarket alarm?
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
GTAYLOR1823
  • MEMBER
  • 19 POSTS
My trunk button by the steering wheel won't pop the trunk open. I checked the connection to the button and its good. If the bcm is faulty would that be a factor to it not opening?
Thank you for everything
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
CAUSTIN59
  • MEMBER
  • 6 POSTS

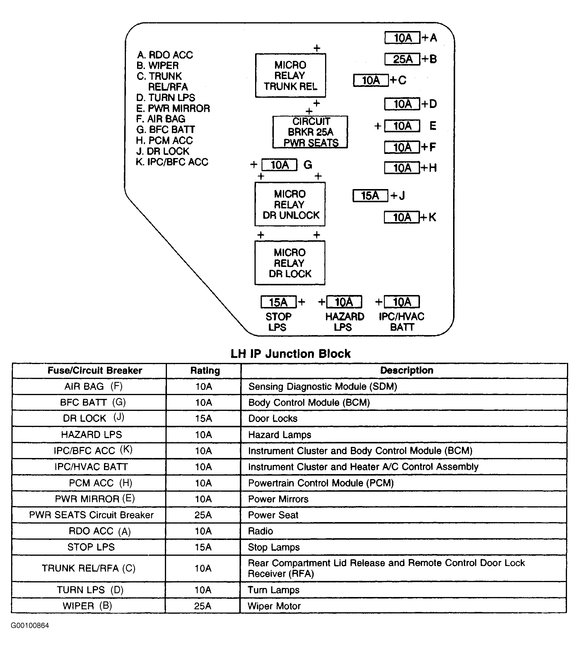

Cant find relays local matching those numbers and whats on ebay are used garbage. fixed the door switch it was a panel issue preventing the switch from going up and down correctly but no fuses blown and the relays are corroded in place. Thanks for the schematic. all four doors will open but two front ones are probably relays and one actuator I never got a alarm with the car just two keys neither with resistors.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
RHALL77
  • CERTIFIED EXPERT
  • 3,361 POSTS
the resistor is under the glove box. you dont have to remove the glove box. just remove the panel under it. check and see if your fuses are ok for your trunk release button
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
That one probably has a pass lock sensor in ignition housings rather then a chip in the key.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
GTAYLOR1823
  • MEMBER
  • 19 POSTS
[quote:2d1feec0ba="rhall77"]the resistor is under the glove box. you dont have to remove the glove box. just remove the panel under it. check and see if your fuses are ok for your trunk release button[/quote:2d1feec0ba]

In the fuse box on the D.S door that houses a big fuse for the power doors, if its blown would it be a reason why the doors won't lock and unlock with the door switch?
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Take a look at rock auto dot com they have them.Let me know what you find.
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
CAUSTIN59
  • MEMBER
  • 6 POSTS
will do this thing never had an alarm or a remote both keys are naked
Feb 8, 2021 at 2:12 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
They still can do the pass lock with naked keys and no remotes.Did you check rock auto dot com for those relays ?I have order a lot of parts from them over the years.
Feb 8, 2021 at 2:13 PM (Merged)
