Roy
Jan 14, 2022 at 1:40 PM
No electrical?
2006 CADILLAC STS
Advertisement
How old?
Roy
Roy
The battery was 1/22. I put a starter in. I tried to start the car and it sounded like a screwdriver in engine bouncing around. Harmonic balancer doesn't turn, or the Fly Wheel.
Jan 16, 2022 at 6:26 PM
Advertisement
Okay, it sounds like the flywheel may be broken at the back of the motor where the starter engages to turn the engine.

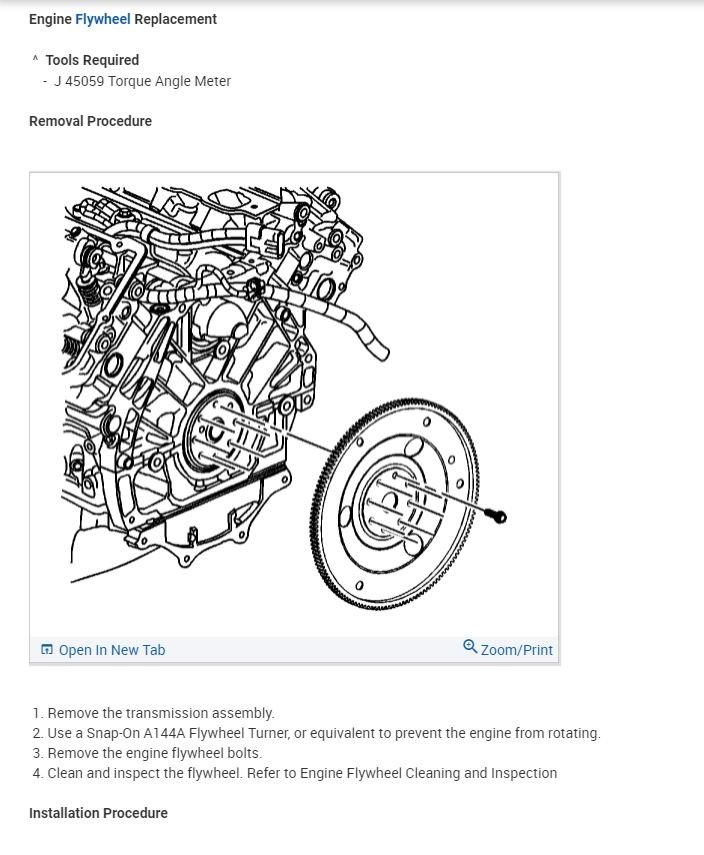

The transmission has to be removed to gain access to the flywheel. I attached the procedure below for you.
https://www.2carpros.com/articles/how-to-remove-an-automatic-transmission-rwd

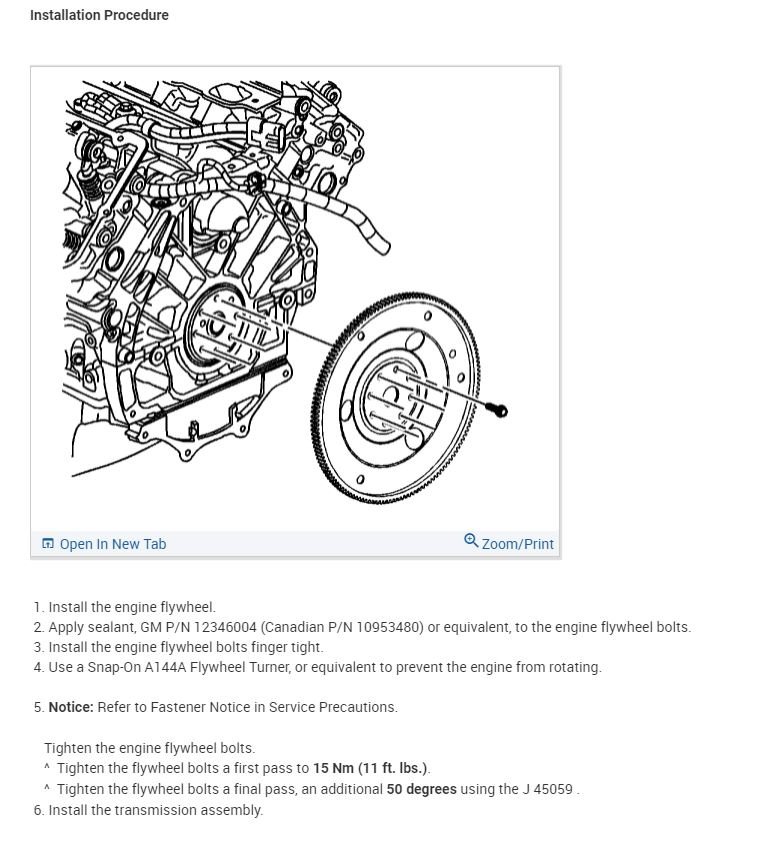

Make sure you replace the bolts that attach the flywheel to the crank. They are TTY or toque to yield. That means you use them once and throw them away.
Roy
The transmission has to be removed to gain access to the flywheel. I attached the procedure below for you.
https://www.2carpros.com/articles/how-to-remove-an-automatic-transmission-rwd
Make sure you replace the bolts that attach the flywheel to the crank. They are TTY or toque to yield. That means you use them once and throw them away.
Roy
Images (Click to enlarge)
Jan 16, 2022 at 6:49 PM
Locked up.
Jan 17, 2022 at 9:19 AM
Sounds like you need a motor.
Roy
Roy
Jan 17, 2022 at 10:46 AM
I have 2 2006 STS. V6 and V8. Both Motors went out. They're for sale if anybody needs them for parts.
Jan 17, 2022 at 3:33 PM
We will advise you if anyone reaches out to us.
Roy
Roy
Jan 17, 2022 at 3:36 PM
