Gauges Not Working

1998 HONDA ACCORD
156,000 MILES • AUTOMATIC
Avatar
STACY1161
  • MEMBER
  • 1 POST
I have a 98 Honda Accord & none of my dashes gauges are working. I noticed it about 4 days ago as I was driving but when I got into my car to go home later that evening they were once again working but then the next day they were back to not working nor have they worked since or now :( I am not sure of the problem. My car does not have a place for a gauge fuse in either of the 2 fuse boxes on either side of the dashes panel. I have a book on my car but it doesn't have much about the dashes gauges in it nor does it state what it could be if it stops working. I can't afford to take it to the Honda dealer at this time cause that can be pretty expensive. Please Help!

(The dashes light is still working & so does everything else including the srs light that has been on for months prior to this gauges outing & it still is on. The only things that are no longer working is the gas gauge, temp gauge, mph gauge, rpm gauge & miles driven which is all of my dashes gauges & my check engine light was also on prior to this outing but it no longer is on.)
Feb 16, 2011 at 7:59 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hello,

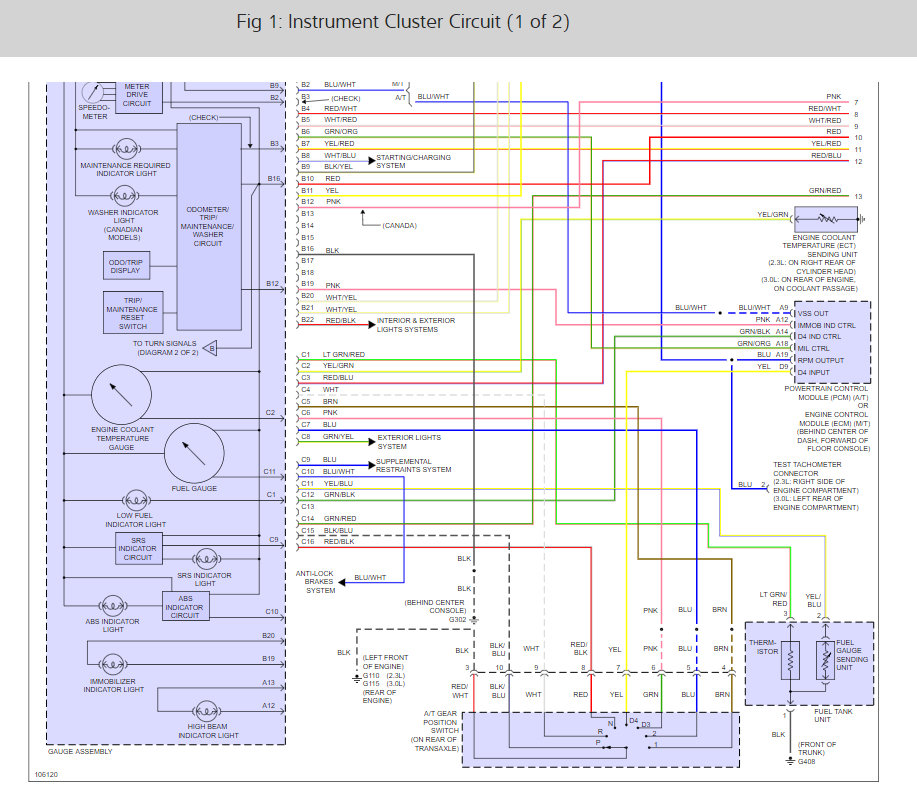

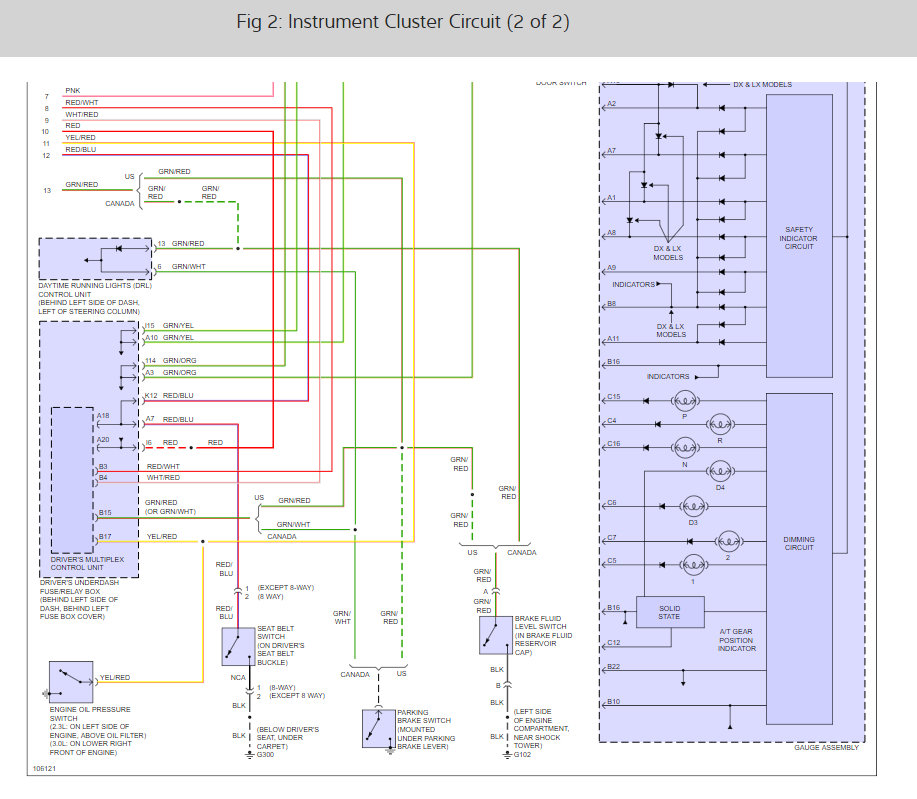

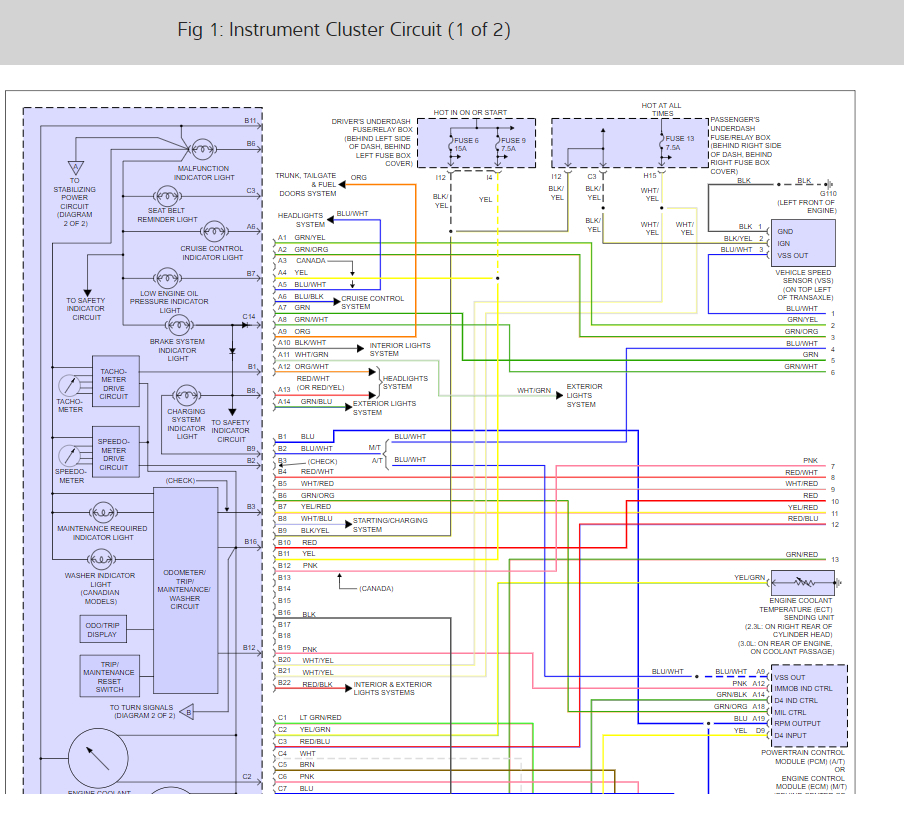

It sounds like the cluster is going out or you have a bad fuse connection here is a guide to help you test for power at the fuses #6, 9 and 13 with the wiring diagrams so you can see how it works with eh fuse locations as well below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

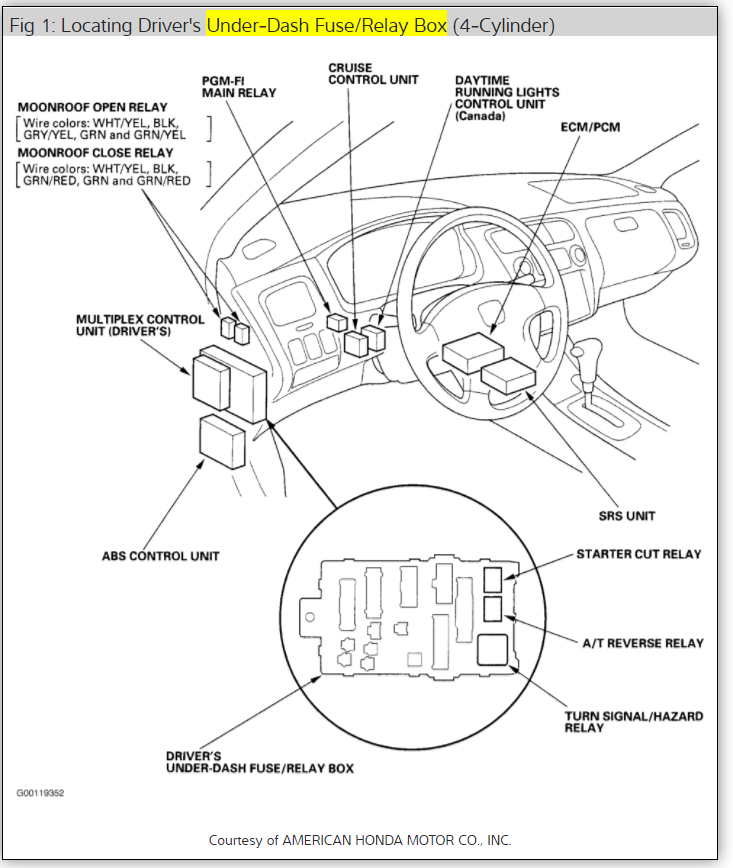

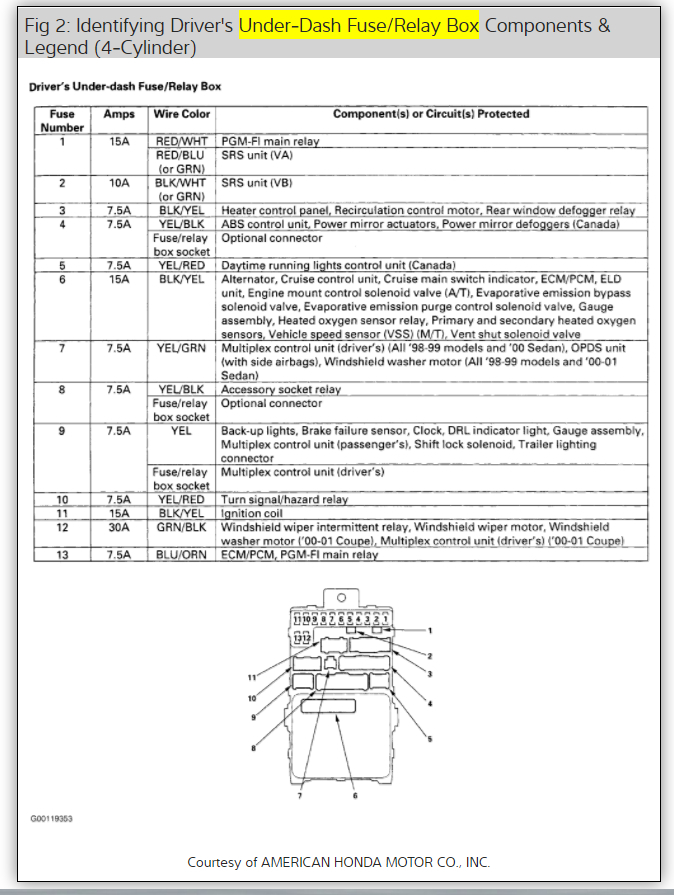

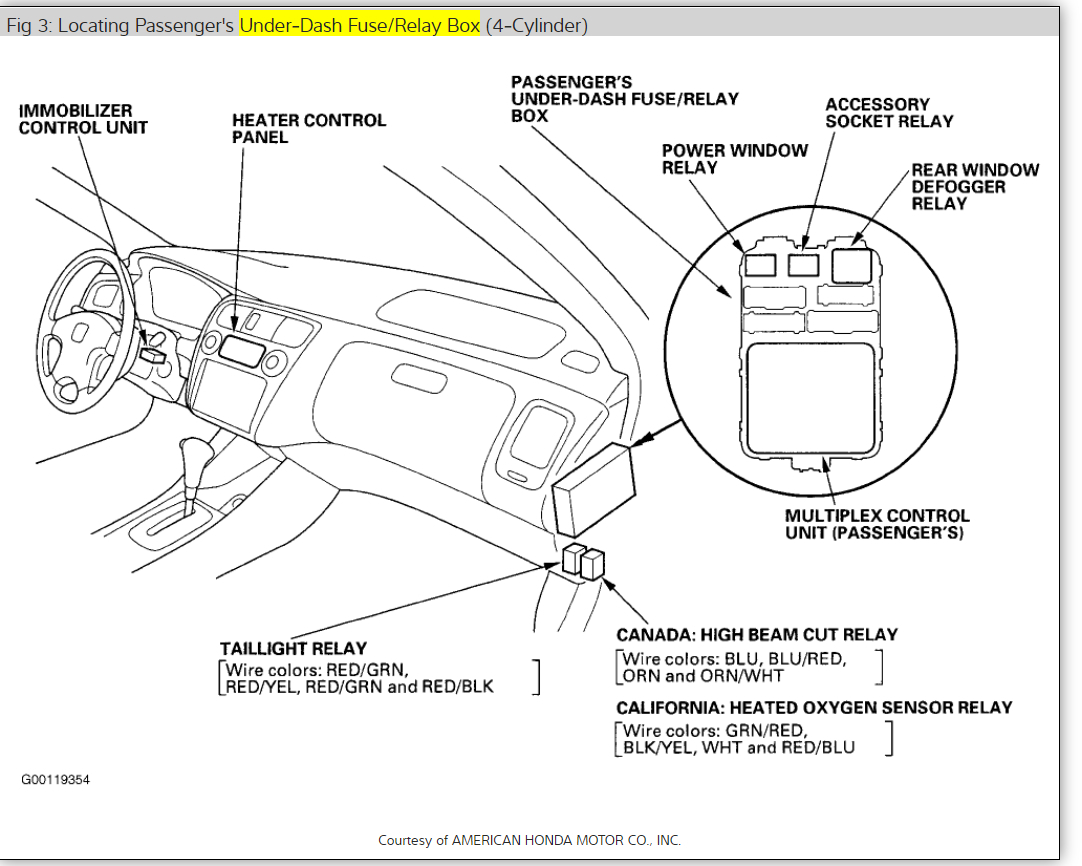

Check for blown fuse No. 9 (7.5-amp), located in driver's under dash

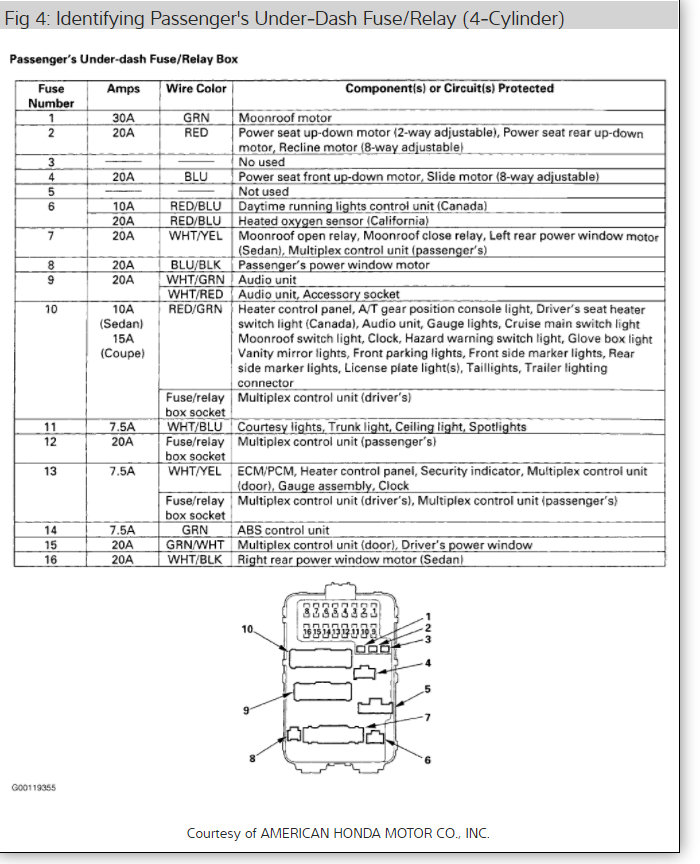

fuse/relay box, and fuse No. 13 (7.5-amp), located in passenger under dash fuse/relay box. If problem exists, replace fuse(s).

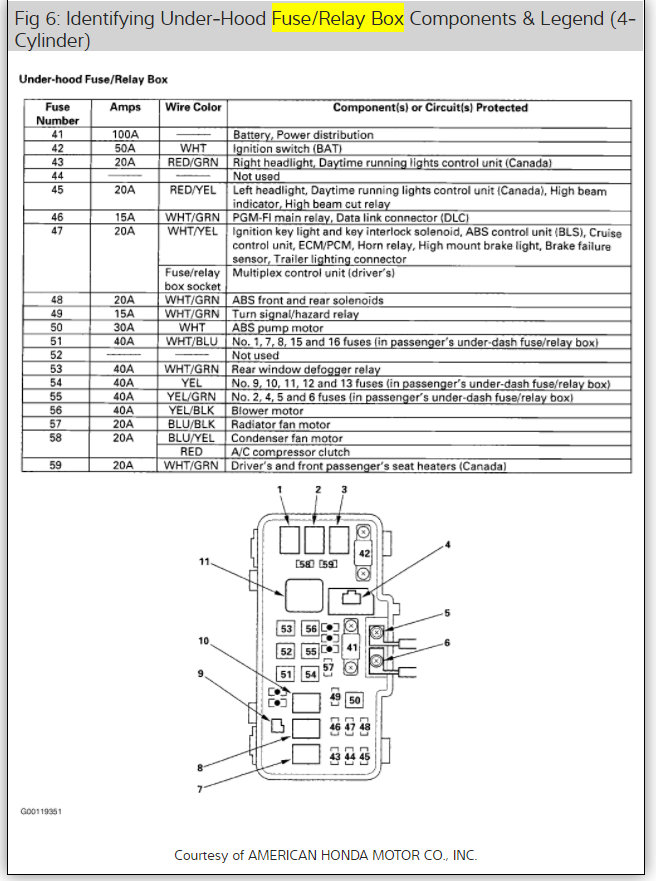

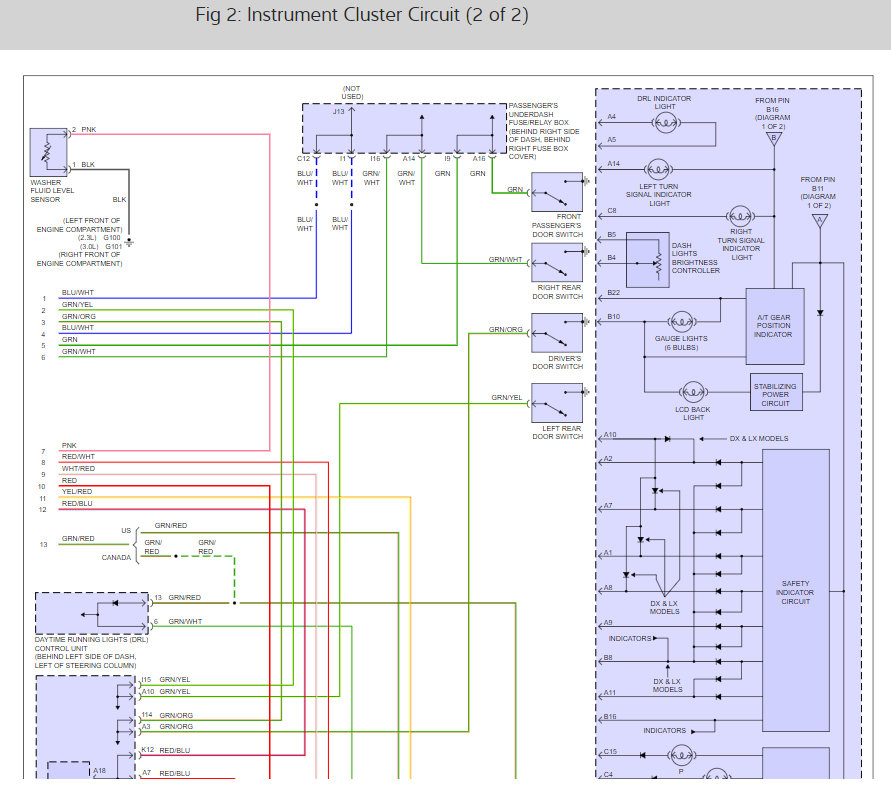

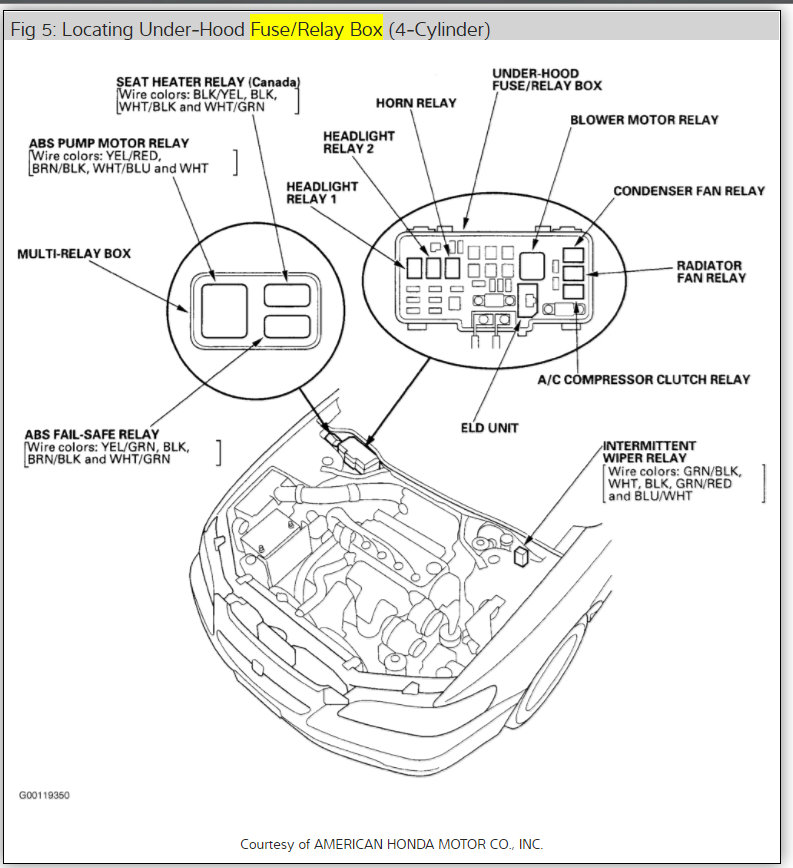

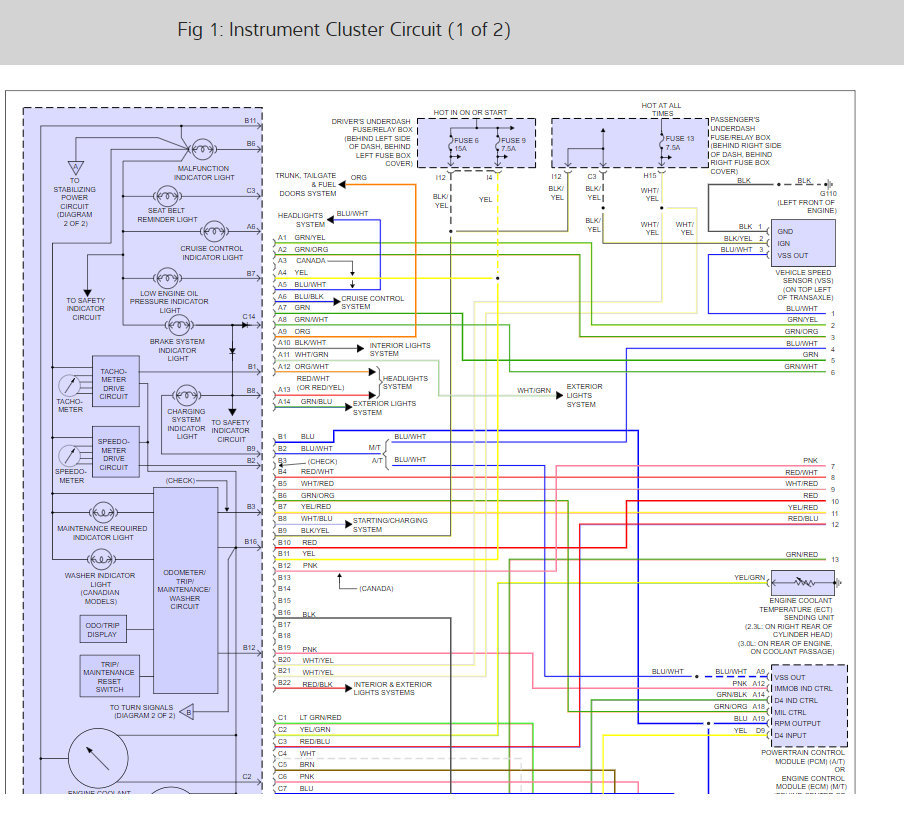

Check out the diagrams (Below). Please run this test and get back to us.

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Feb 16, 2011 at 2:32 PM
Avatar
ZANYJB
  • MEMBER
  • 1 POST
Thanks for this post I had to get a used cluster for $80.00 to fix it.
Dec 15, 2018 at 12:13 PM
Advertisement
Avatar
BRYANTJAMESW
  • MEMBER
  • 1 POST
needle gauges will not work, engine runs good
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
HOMER1967
  • CERTIFIED EXPERT
  • 875 POSTS
start by checking the fuses in the fuse boxes,under hood and interior.the fuse location may say,instrument panel,gauges,cluster or dash.
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
LANGHAAR
  • MEMBER
  • 1 POST
hi just replaced the tcu in my 92 accord and shifts ok now but the rpm gauge won't work and the temp. gauge reads hot instantly, coolant level is fine. any ideas why?

thanks!! .
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi langhaar,

Seems you have a bad ground or problem with the meter cluster.
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
SHANNON MARIE ROSSON
  • MEMBER
  • 2 POSTS
My windows and dash gauges stopped working can anybody help me?
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
SHANNON MARIE ROSSON
  • MEMBER
  • 2 POSTS
Ok
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

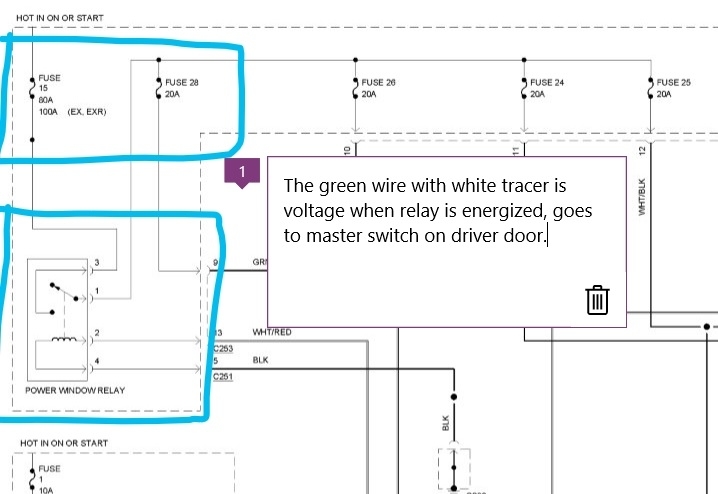

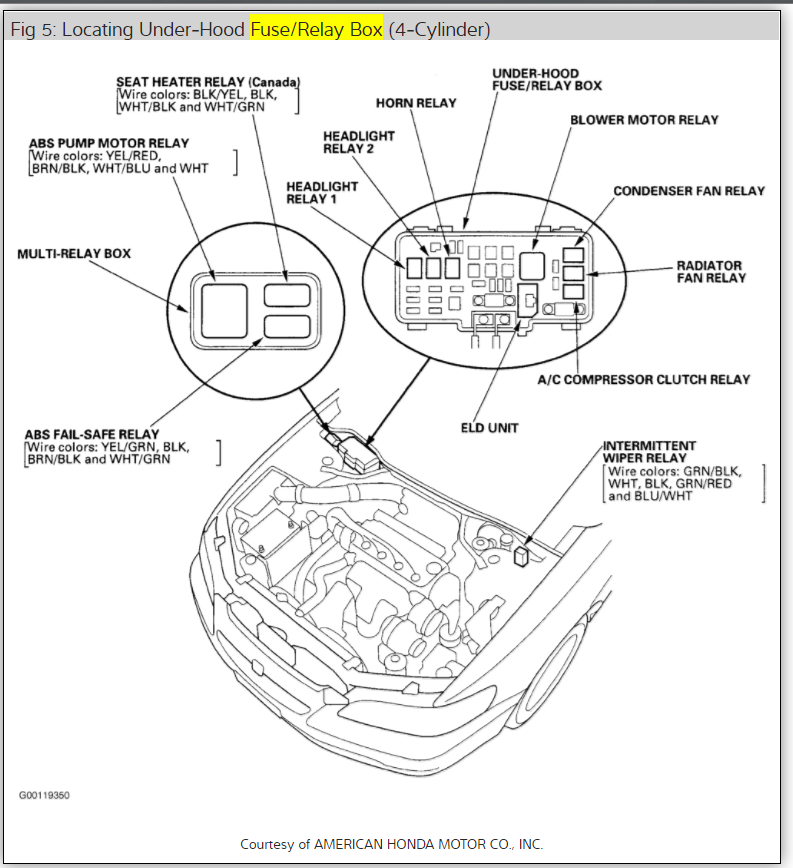

For the power windows, check those fuses in the box, also check that relay, in under-hood fuse box. Not only check the fuses, check for voltage on the fuse circuit, use a test-lite or something. My drawing is not very good. On the hinge side of driver door, should be a wiring harness. May have protective rubber boor covering, pull boot back far enough to check proper wire colors, green wire with white tracer is voltage for power windows. Black wire is ground. Check them both. You open and shut the driver door so much, sometimes those wires break. There could be other issues.
Image (Click to enlarge)
Attached Media
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
SOUTHERNPRIDECJ7
  • MEMBER
  • 1 POST
car will crank and run but gauges will not work. after about four times of cranking it, it will just turn over and not crank at all
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
CJ MEDEVAC
  • CERTIFIED EXPERT
  • 11,004 POSTS
Check fuses and fusible links?

Was the alternator charging before and after the battery installation?

Be better off in the cj 7

Your turn

The medic
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Have you checked the fuses?
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
NIKESTER44
  • MEMBER
  • 5 POSTS
Hi, I was putting in a new radio and my ignition turn on wire wasnt working, i didnt know there was 2 fuse panels in my car, and all the fuses were fine in the one, well i took my dash apart to find where the wire went. I found another igntion turn on wire going into my guages and plugged a wire from that one to my stereo and it worked but than shorted out my dash gauges. When i figured out there was another fuse panel i replaced a blown fuse and my stereo works now but my gauges still dont. I know its not a ground wire becuase the lights work to the same cluster when i put a light tester to the battery wire, but the ignition turn on wire wont. I checked all the fuses and they are all good. help me please
thanks
nick
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi Nick,

After trying a few times I gave up trying to understand what you were trying to explain.

1. Is it the gauges that were not working or the dash lights?
2. You applied power to the meter cluster lights or gauges?
3. Are the taillights working?
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
NIKESTER44
  • MEMBER
  • 5 POSTS
to answer your questions
1. Is it the gauges that were not working or the dash lights?
2. You applied power to the meter cluster lights or gauges?
3. Are the taillights working?
1. The dash lights work fine but none of the gauges do. (speed, tach, odometer, gas and temp gauges)
2. i applied power to one of the clusters going into the gauges. It was the cluster that is at the bottom left of my gauges. Obviously that cluster affects whats now shorted im guessing.
3. My tailights and brake lights work.
sorry for being unclear again, and thanks for responding. still cant figure it out.
nick
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi nikester44, Check # 1 (10A) fuse underdash.


https://www.2carpros.com/forum/automotive_pictures/192750_Accord90FuseBoxDash_1.jpg

Dec 15, 2018 at 12:14 PM (Merged)
Avatar
NIKESTER44
  • MEMBER
  • 5 POSTS
o my goodness that worked! the fuse didnt even looked blown, that must have been my problem, i looked at them all like 3 times and they all looked fine but it is working now, thank you so much, you are awesome. saved me alot of money and time!
nick
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi nikester44,

You are welcomed.

The best way to test fuses are with a test lamp, looks can be deceiving.

Have a nice day. :)
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
RAY RODRIGUEZ
  • MEMBER
  • 2 POSTS
My 1997 Honda Accord has 234,000 miles.I have 2 problems with it.
First: None of the gauges work,the power windows don`t work and the transmission will not unlock from park and shift when I start it.The transmission will shift if the engine is turned off and I put the key on the console key hole and push down on it with the car key and I hold it down,then I can shift the transmission to neutral and the start the car and it will run o.k.

Second:The engine will act as if it is running out of gas every now and then.It will idle fine,but sometimes it will do this.If I press on the gas pedal the engine will slow down more.If I pump the pedal it will eventually run smooth again.It doesn`t do this all the time,just every now and then.Can you tell me what is causing this problems.

Thanks,

Ray
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi Ray,

The gauges not functioning should be due to a blown fuse.
The trans interlock system is not functioning locking the gearshift in park.
Check if the brake lights are working. If not, check the brake fuse and brake switch on top of brake pedal.

The bogging down could be due to a faulty O2 senaor. It might not show up on the CHECK engine light but a diagnostic data reading would show.
Dec 15, 2018 at 12:14 PM (Merged)
Avatar
JOSH_HESTER
  • MEMBER
  • 1 POST
my speedometer gauges, gas and cooling gauges not working. clock went out at same time
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi josh_hester, Thank you for the donation. Problem indicates a power supply interruprion and these items are serviced by the # 1 fuse in under dash fuse box. Check if fuse is blown.


https://www.2carpros.com/forum/automotive_pictures/192750_FuseDash92Accord_1.jpg

Dec 15, 2018 at 12:15 PM (Merged)
Avatar
TAYLORKLEIN
  • MEMBER
  • 2 POSTS
Recently the radio and gauges on the dash stopped working suddenly and the car started to sputter. Then a few miles down the road, the car completely died.. We took the battery to O'Reilly's and they tested it and told us that it was bad. So we went and purchased a new one. It's a day and a half later and the car started to do the same thing: radio stopped working, gauges stopped working and the car started to sputter. Had a mobile mechanic come out to replace the alternator but they said it was working fine. Possibly something draining the batter. Where can we start looking? Terminals hooking up to the battery? Bad wiring?
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
TAYLORKLEIN
  • MEMBER
  • 2 POSTS
Sorry, meant to put that it has 153,000 miles!
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Was the charging tested? When it sputtered the second time, was the battery tested? How did you mange to start the engine then?
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
SYEDSHARIFF
  • MEMBER
  • 2 POSTS
my car not passing the state inspection becouse the engine light on and d4 is blinking they code saying that speedo meter isnt working but we already change it and still engine light is on and d4 is blinking
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
STEVEW84
  • CERTIFIED EXPERT
  • 673 POSTS
What is the code? Find out what the code is for then repost.
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
SYEDSHARIFF
  • MEMBER
  • 2 POSTS
code is po700
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
STEVEW84
  • CERTIFIED EXPERT
  • 673 POSTS
that is a generic transmission code. you need to be able to scan to the transmission module and find out what the code is. a generic scanner(autozone scanner) won't do it. you need to get an enhanced scanner or take it to a shop that will do it. HTH.
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
ARLO36360
  • MEMBER
  • 1 POST
% own a '92 Accord. Apparently I had some sort of "control module" fail. All dash guages stopped working, along with all power windows. Fuses controlling these items have been replaced. What module do I need to replace ? Any help will be greatly appreciated.
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
It's not going to be a module problem. It's going to be a fuse, fusible link, ignition switch or related wiring problem. You will need to trace the problem systematically using a test light.
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
KEVIN45
  • MEMBER
  • 1 POST
gauges don't work
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi kevin45,

If all the gauges do not work, check the gauge fuse.
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
GREGSAUTO
  • MEMBER
  • 1 POST
how can I solve this problem I replaced the cluster because the old one stopped working now this problem with 130-84 instead of 0-80 its working backward along with the tempeture guage not working now
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi GREGSAUTO,

Recheck the meter cluster, the replacement could be faulty.
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
JOELY
  • MEMBER
  • 1 POST
Electrical problem
1994 Honda Accord 4 cyl Automatic 124421 miles
----------------------------------------------------------------
we bought a used car, and the same day we drove it off all of the gauges quit working. We took it back to the auto broker place we bought it from and they replaced the dash cluster. Why would the mileage be different on the new cluster than on the one that was in the car to begin with??? HELP! i am afraid I have been scammed!
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi joely,

If they had replaced the meter cluster without recalibrating the mileage readings, they definitely would not match.
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
TIMETHIAW
  • MEMBER
  • 3 POSTS
I have a 1991 Honda Accord Lx and my windows don't roll down, I have to put my car in neutral to move, and none of the gauges work, what could be causing this?
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Have you check the alternator yet?
Dec 15, 2018 at 12:15 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Have you checked the fuses?
Seems a power supply is missing somewhere.
Dec 15, 2018 at 12:15 PM (Merged)
