Wiring diagram needed for a power window cluster swap

2001 CHEVROLET TAHOE

176,000 MILES

JUNKYARDWEREWOLF

MEMBER
1 POST
FOLLOW

Trying to swap my vehicle listed above power window cluster to a 2003, but they use different connectors and different wire colors. Is there a diagram available for which colors swap and to where?

Dec 15, 2021 at 2:11 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

Good morning,

The 2001 was a simple system setup.

The 2003 is different. There is a door driver module, and the body control module is part of the system.

https://www.2carpros.com/articles/how-to-check-wiring

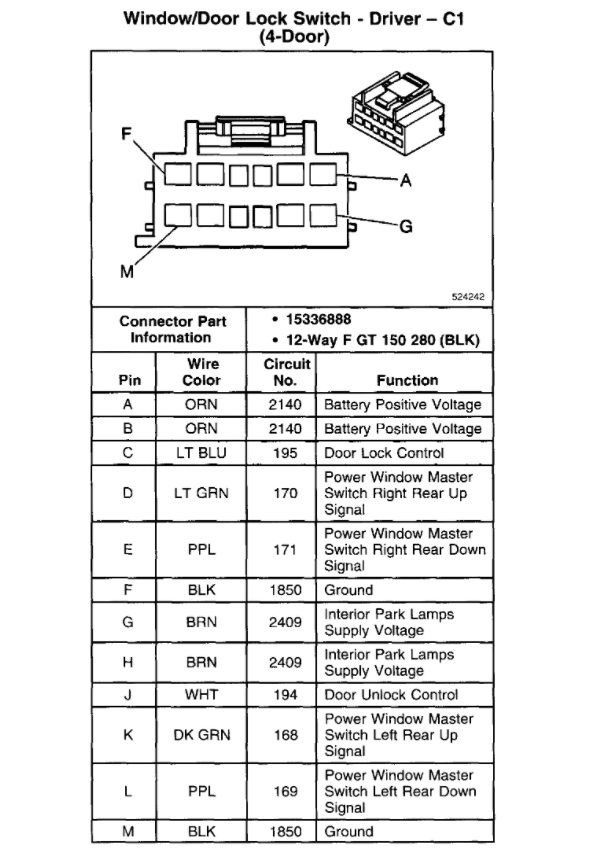

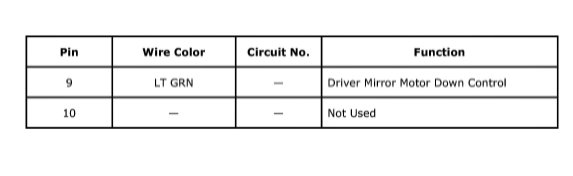

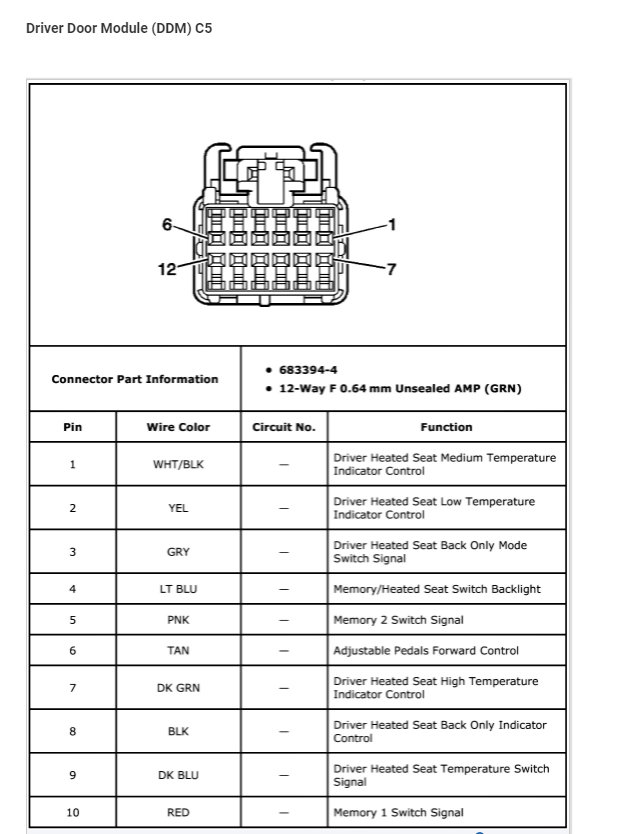

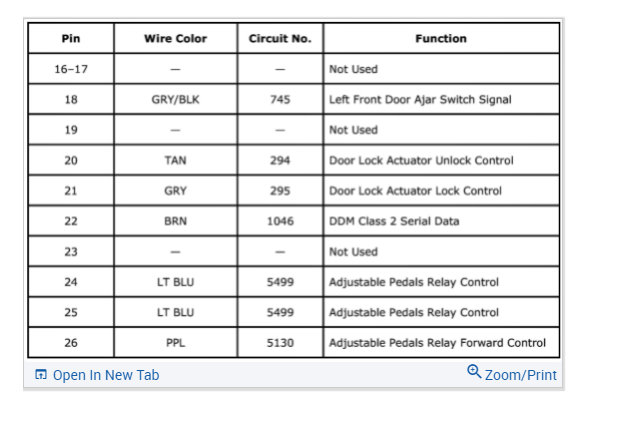

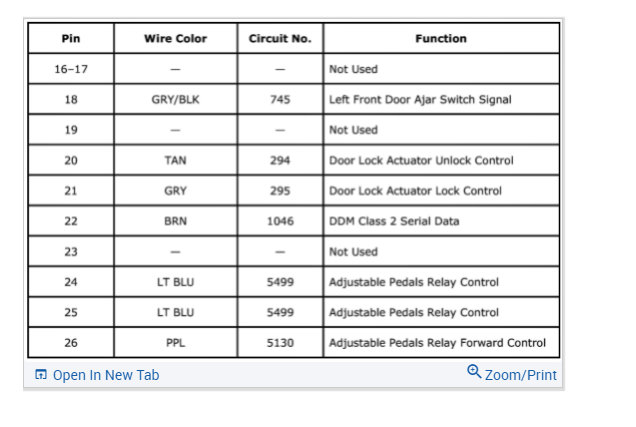

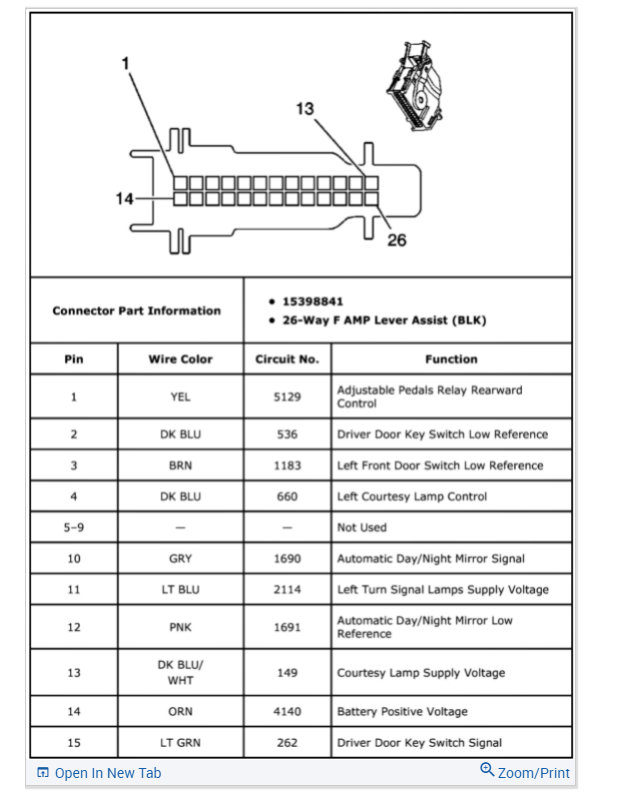

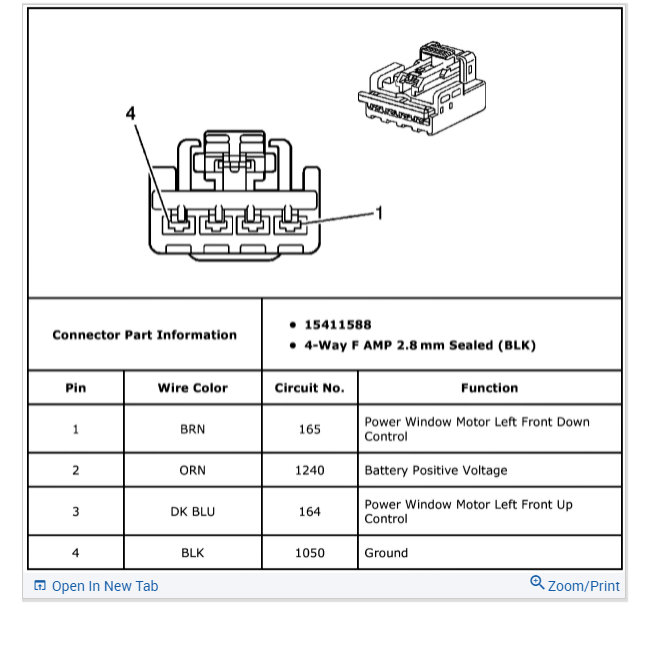

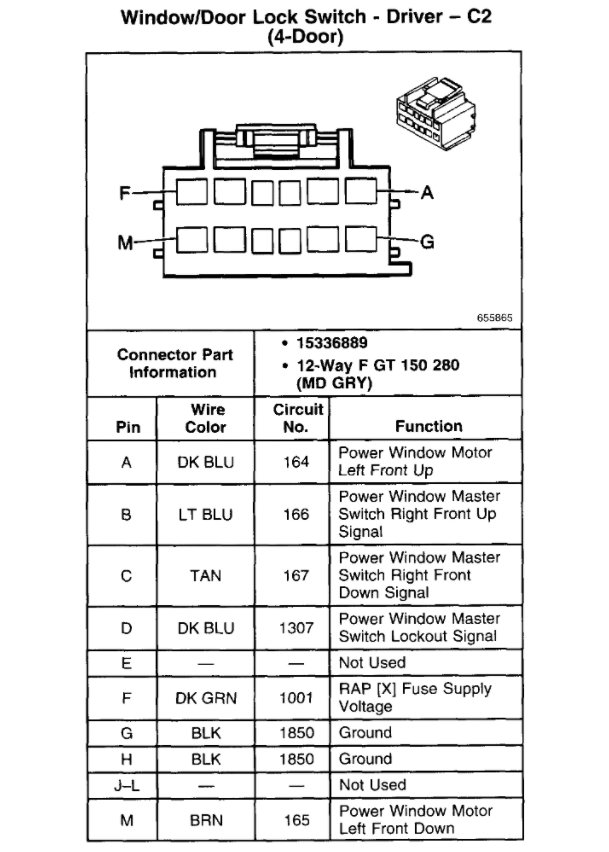

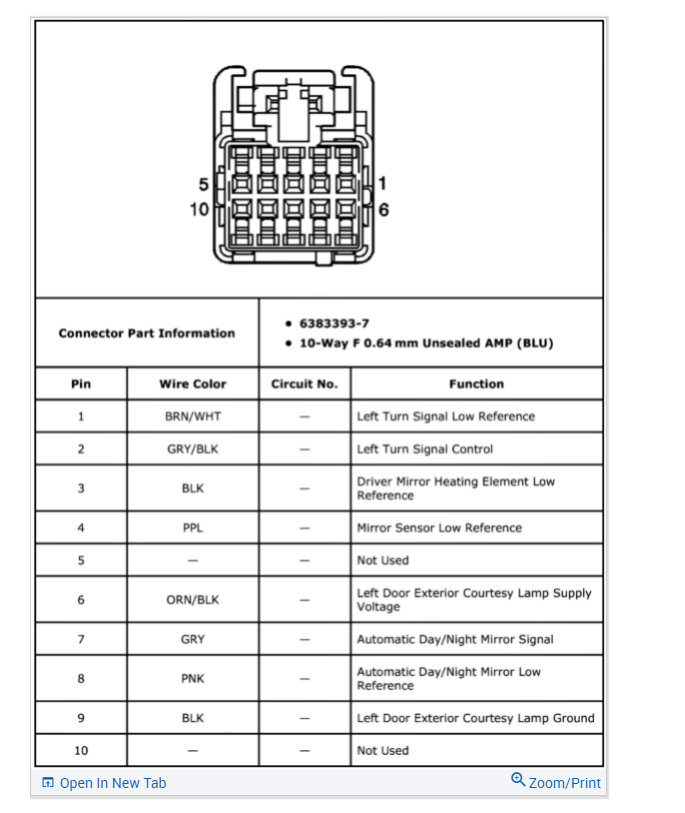

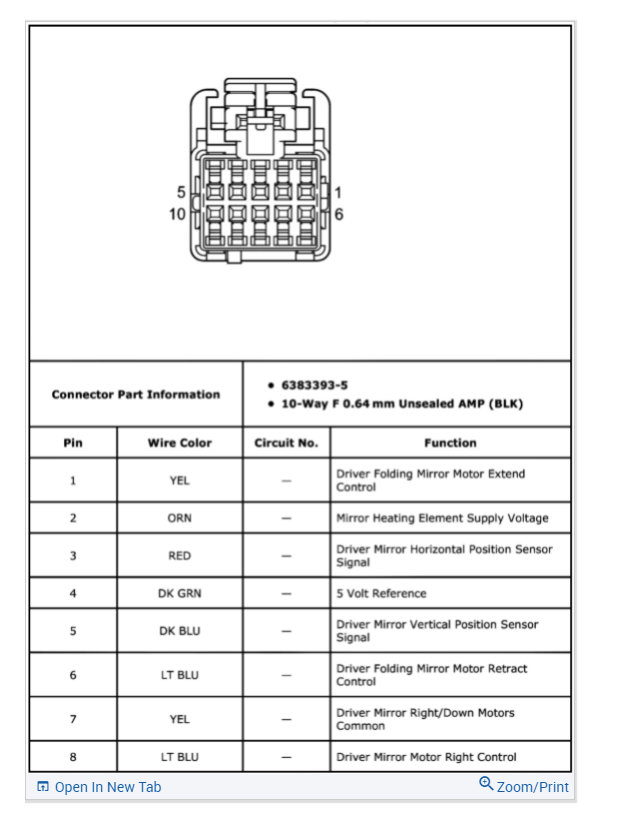

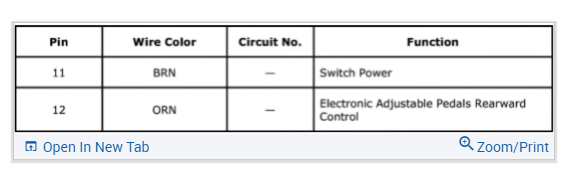

I attached the connectors with locations and wire colors for you to view.

Roy
