wiring of the cam angle sensor

2002 ALFA ROMEO 147
19,999 MILES • 2.0L • MANUAL
Avatar
JANCACOLLINS
  • MEMBER
  • 3 POSTS
hey, i have the car listed above, TS model. my cam angle sensor yellow wire g got loose somehow i have a red, white and yellow wire where does the yellow wire go to?
Mar 21, 2022 at 12:24 AM
Advertisement
Avatar
BORIS K
  • CERTIFIED EXPERT
  • 836 POSTS
Hello,

The yellow wire should go in cavity three at the connector, see image below.

Pin 1, red wire.
Pin 2, white wire.
Pin 3, yellow wire.

Let us know how you get along.

Cheers, Boris
Image (Click to enlarge)
Attached Media
Mar 21, 2022 at 4:15 AM
Avatar
JANCACOLLINS
  • MEMBER
  • 3 POSTS
Hey, thanks for your answer, but what i need is from the connector to where should the yellow wire go? It's connected on the connector so I only need to know where it needs to go please, thank a lot.
Mar 21, 2022 at 4:50 AM
Advertisement
Avatar
BORIS K
  • CERTIFIED EXPERT
  • 836 POSTS
Hello,

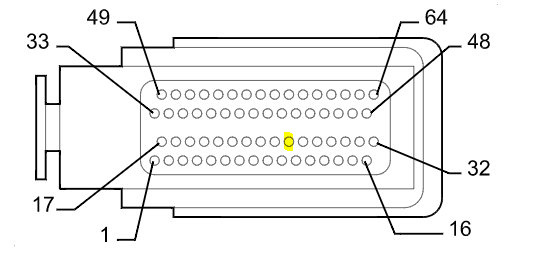

The yellow wire will go to the engine control unit at pin 26 of the 64 pin connector.

Please see image below, pin 26 marked with yellow dot.

Cheers, Boris
Image (Click to enlarge)
Attached Media
Mar 22, 2022 at 1:51 AM
Avatar
JANCACOLLINS
  • MEMBER
  • 3 POSTS
Hey, I'm going to do it now. thanks a lot for all your help.
