Wiring harness, rear speed sensor was severed?

2020 TOYOTA TACOMA
35,000 MILES • 3.4L • 6 CYL • 4WD • AUTOMATIC
Avatar
[email protected]
  • MEMBER
  • 1 POST
The rear speed sensor was severed. I bought a replacement, and I am preparing to replace it. Any informational videos out there?
Feb 5, 2024 at 8:42 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

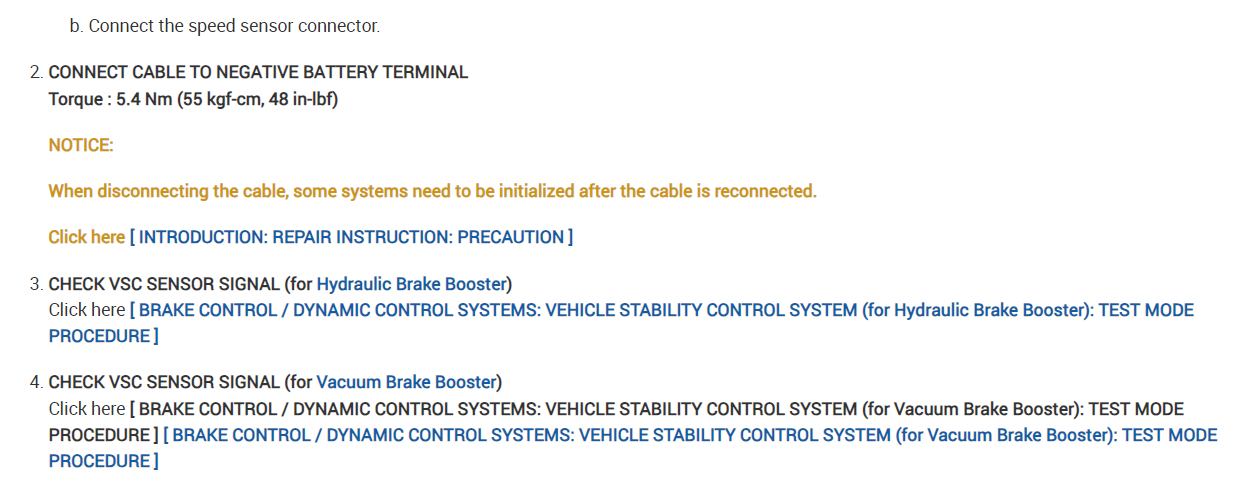

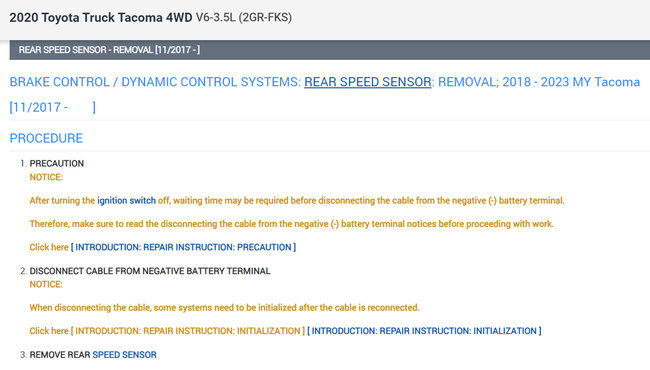

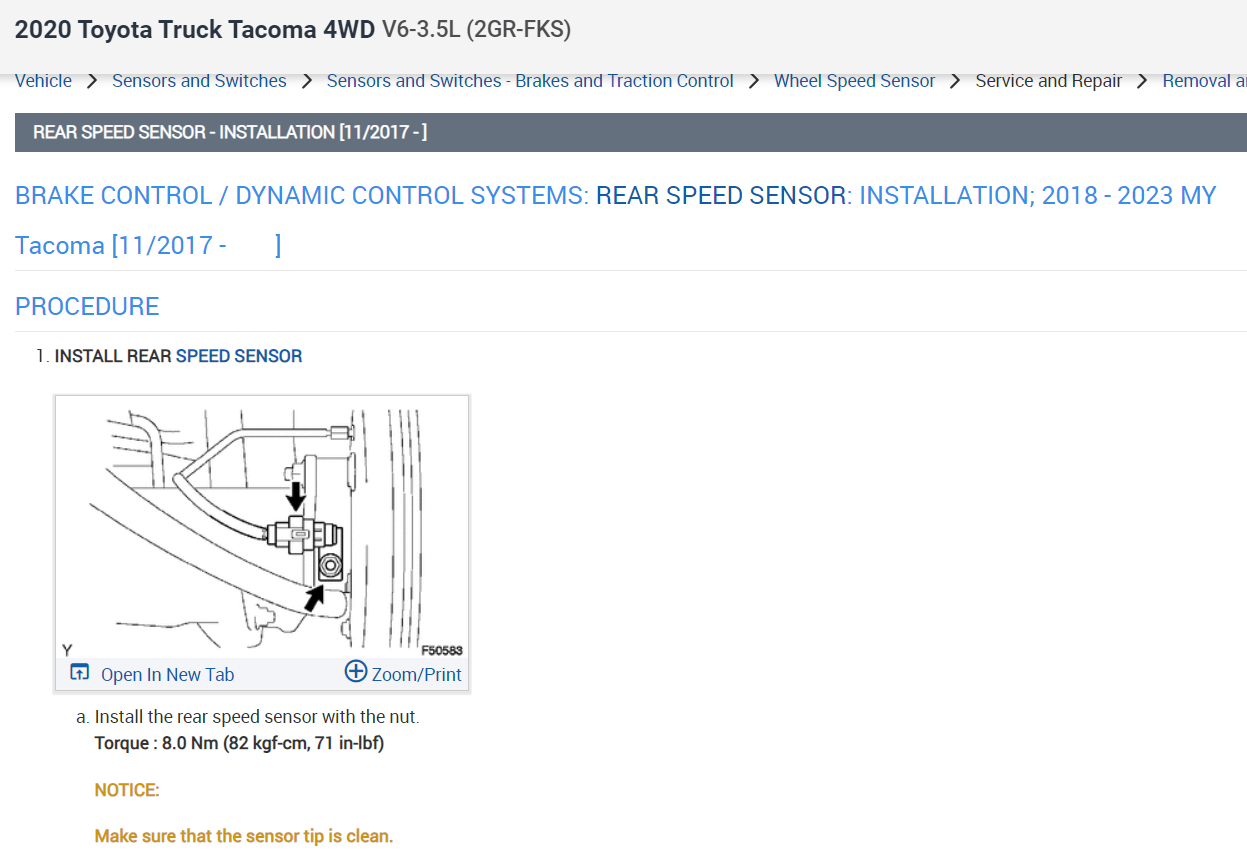

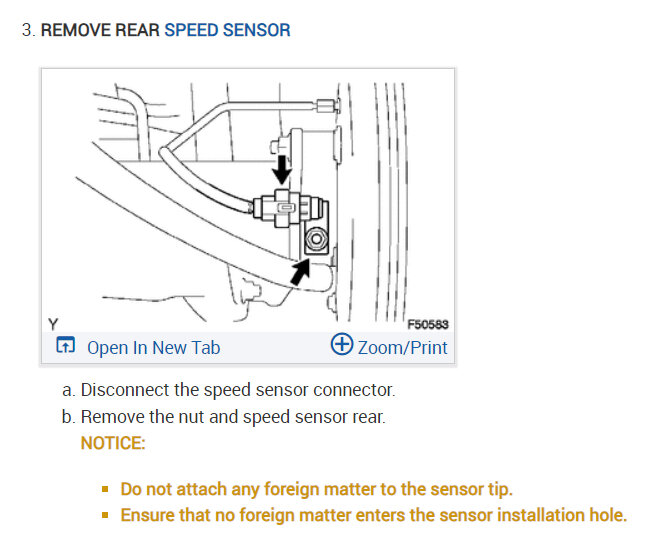

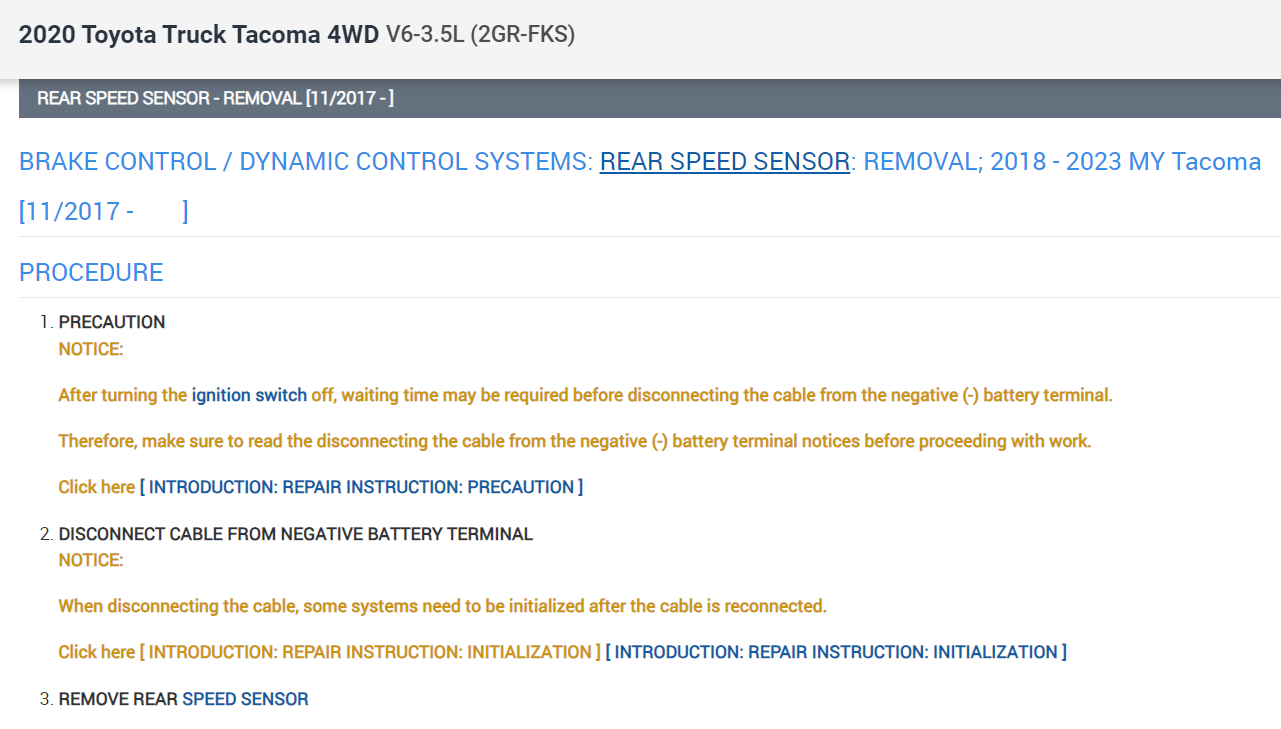

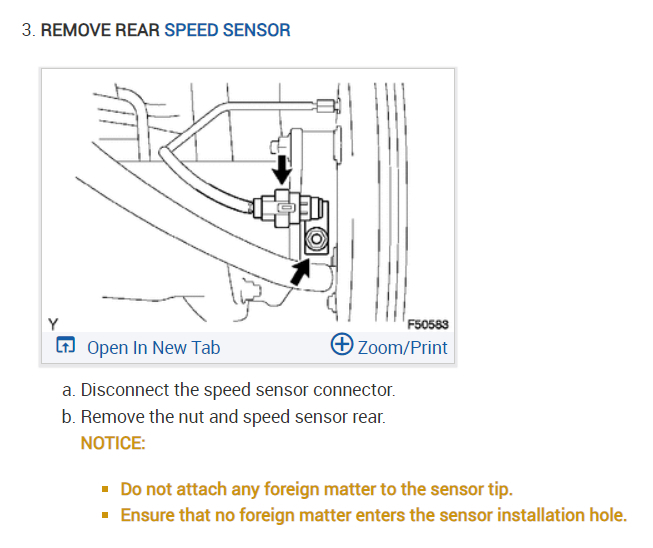

No videos but I have the instructions and location of the rear wheel speed sensors in the images below for you. Check out the images (below). Let us know if you need anything else.

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Feb 5, 2024 at 12:35 PM
Avatar
[email protected]
  • MEMBER
  • 1 POST
Whoops my bad, meant to describe it as the ABS speed sensor wiring harness.
Feb 5, 2024 at 5:39 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

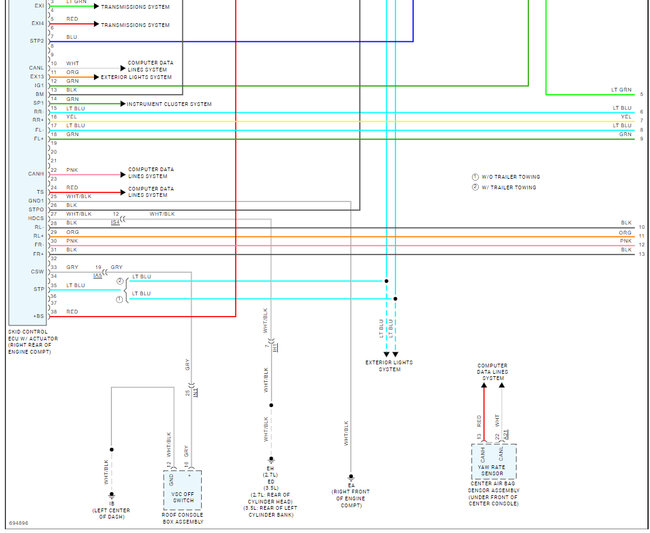

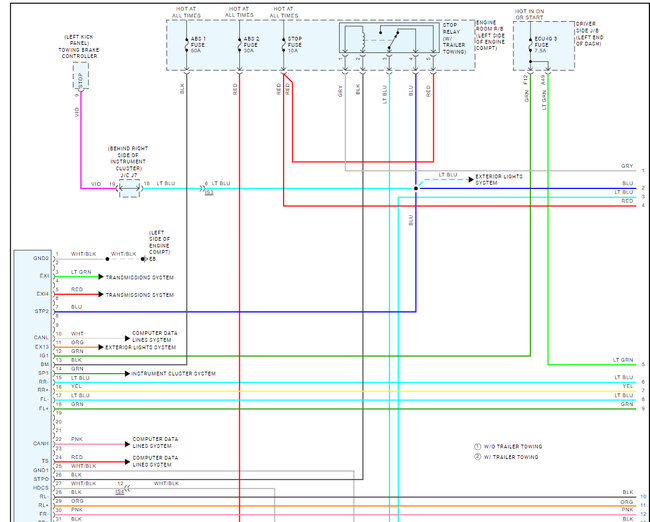

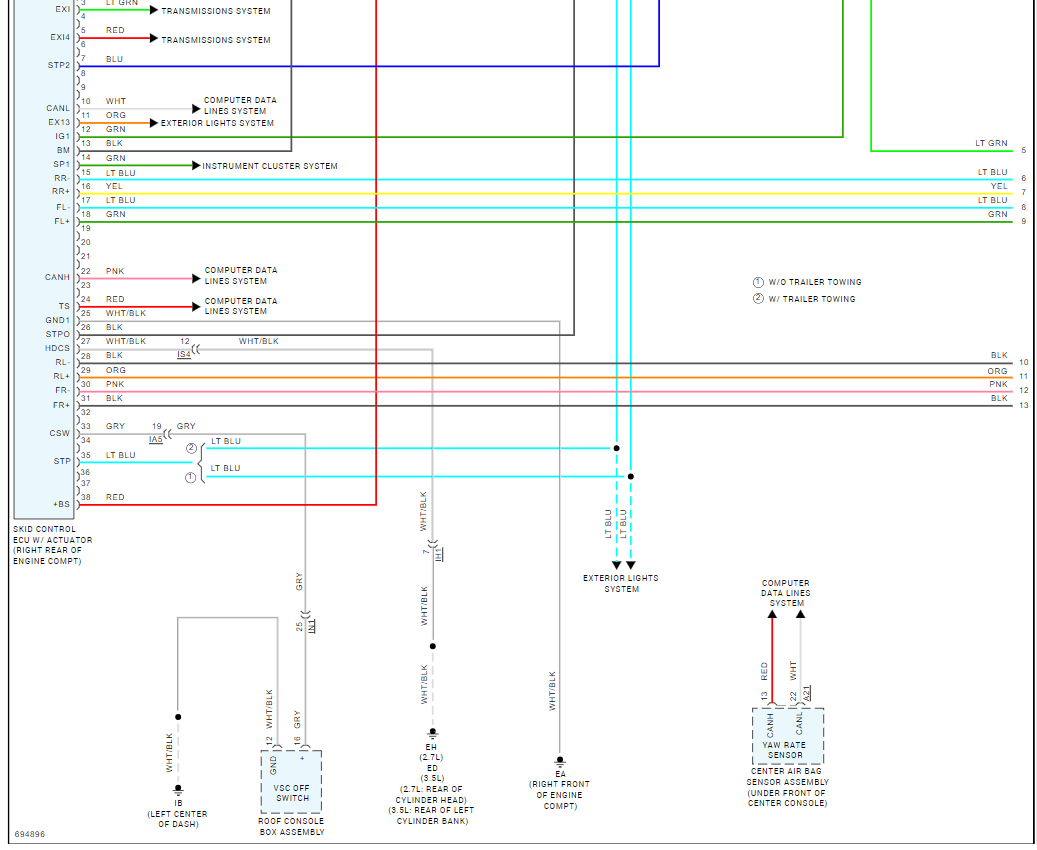

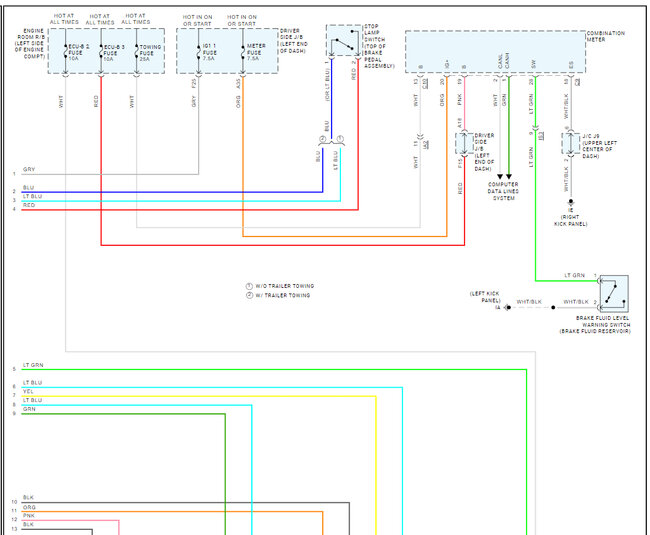

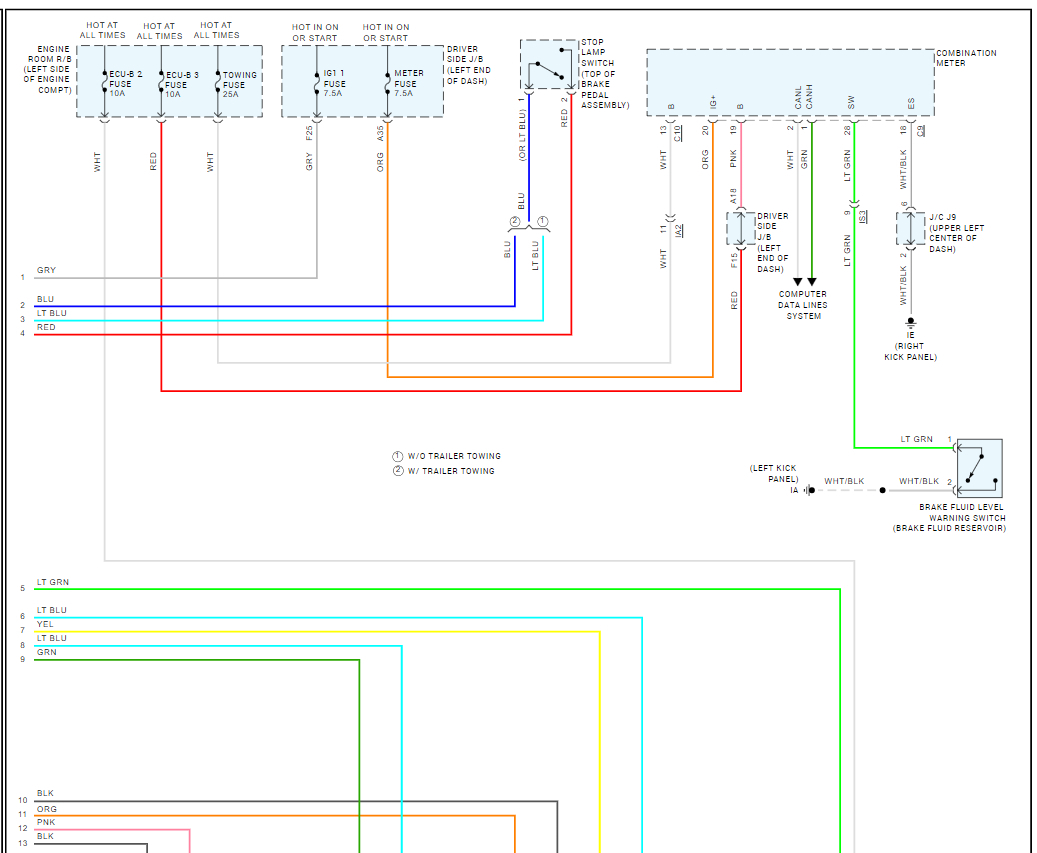

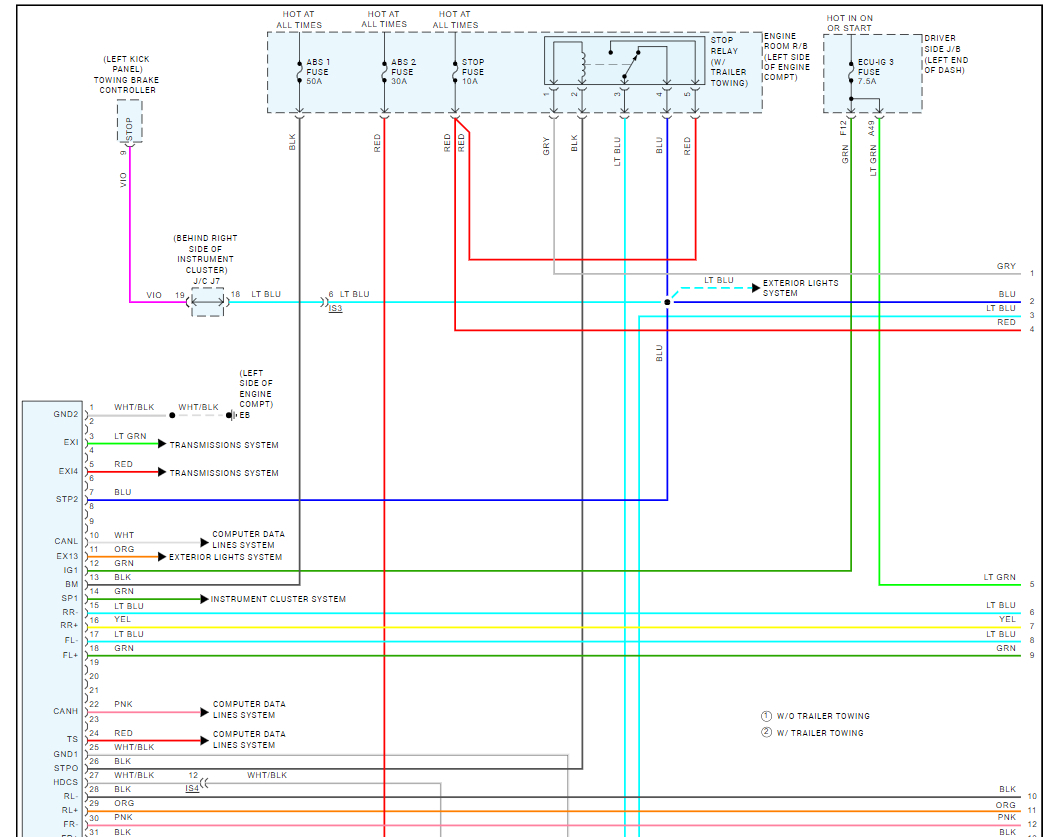

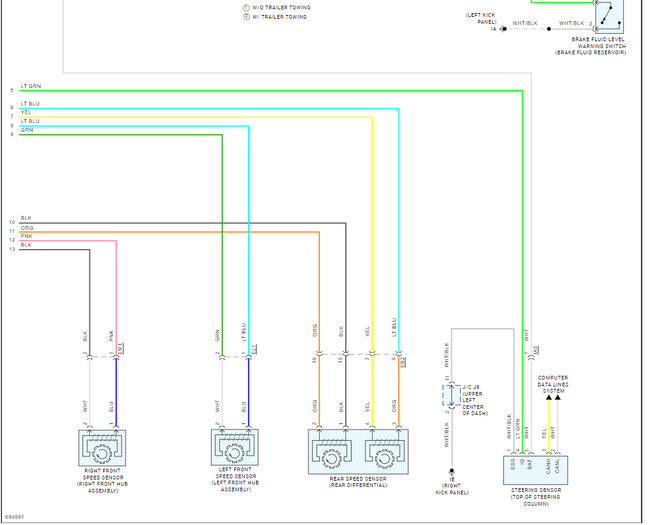

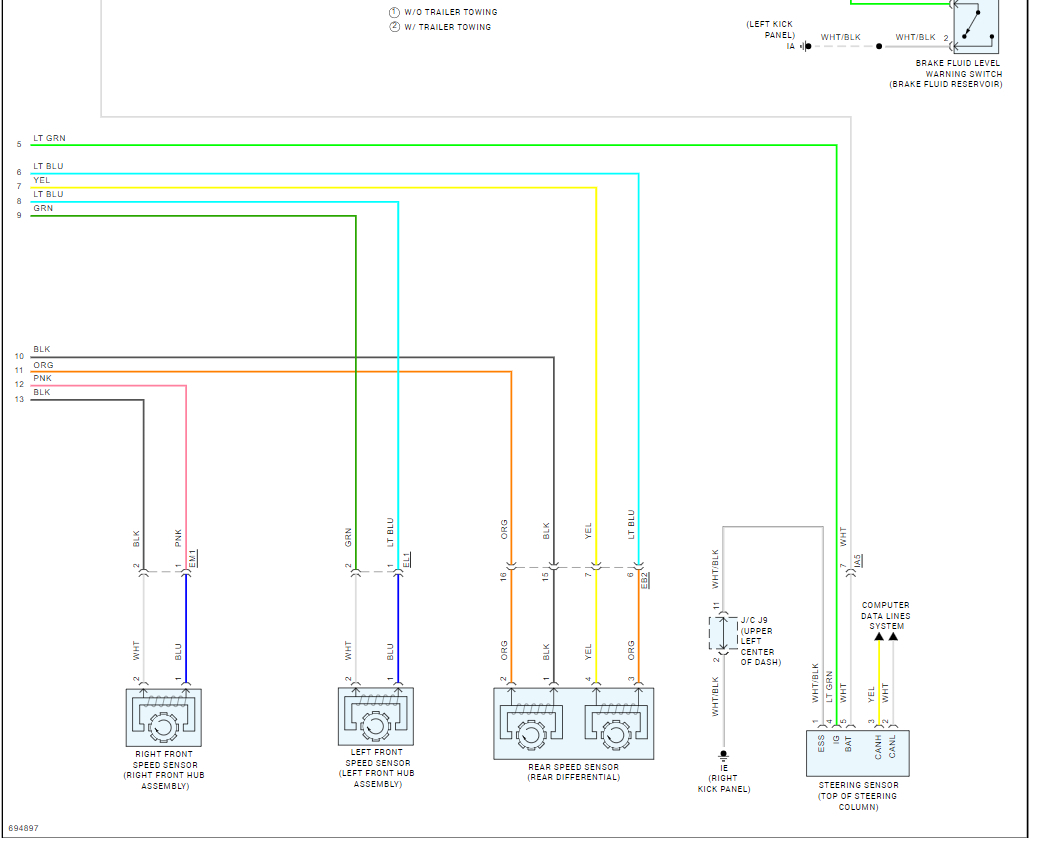

Do you need the wiring harness diagrams? I am not sure what you are saying, can you upload an image or short video? Here are the ABS rear wheel speed sensor wiring diagrams so you can see how the system works and how the wires are connected to the rear speed sensor. Check out the images (below). Let us know how it goes.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Feb 6, 2024 at 10:00 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
anything?
