Wiring for fuel pump circuit from start to end

1994 PLYMOUTH VOYAGER
189,000 MILES • 3.0L • V6 • 2WD • AUTOMATIC
Avatar
FLOYD LUSK
  • MEMBER
  • 1 POST
Fuel pump will work. I need pump wiring diagram so I can see were all wires go and what they do no power to rear at tank. I have made a jumper wire to check pump that is the only way it runs. Thanks
Jun 25, 2018 at 1:01 AM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS

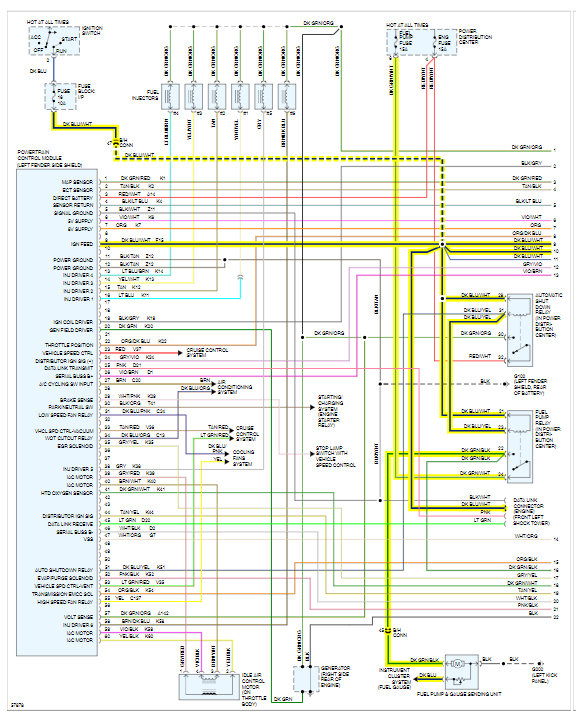

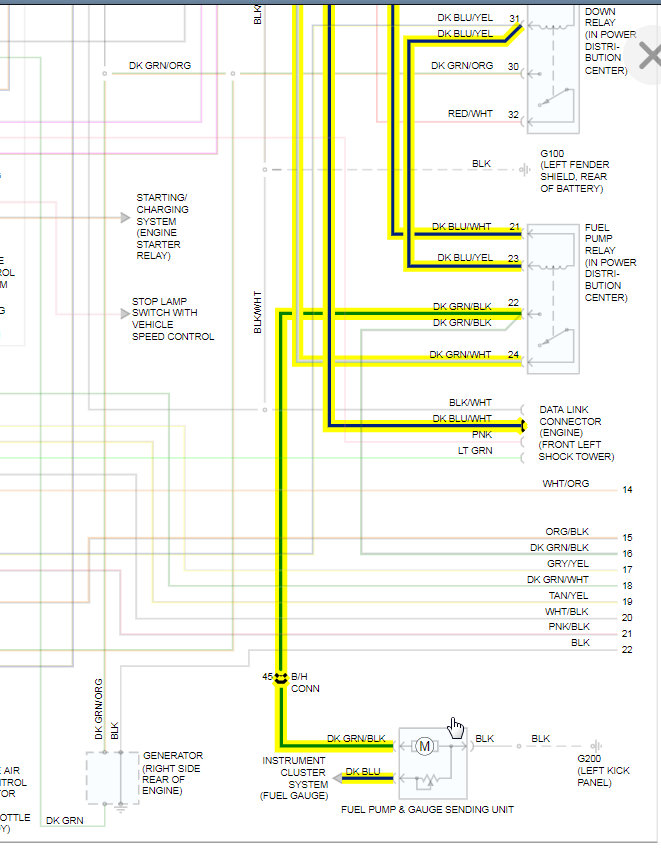

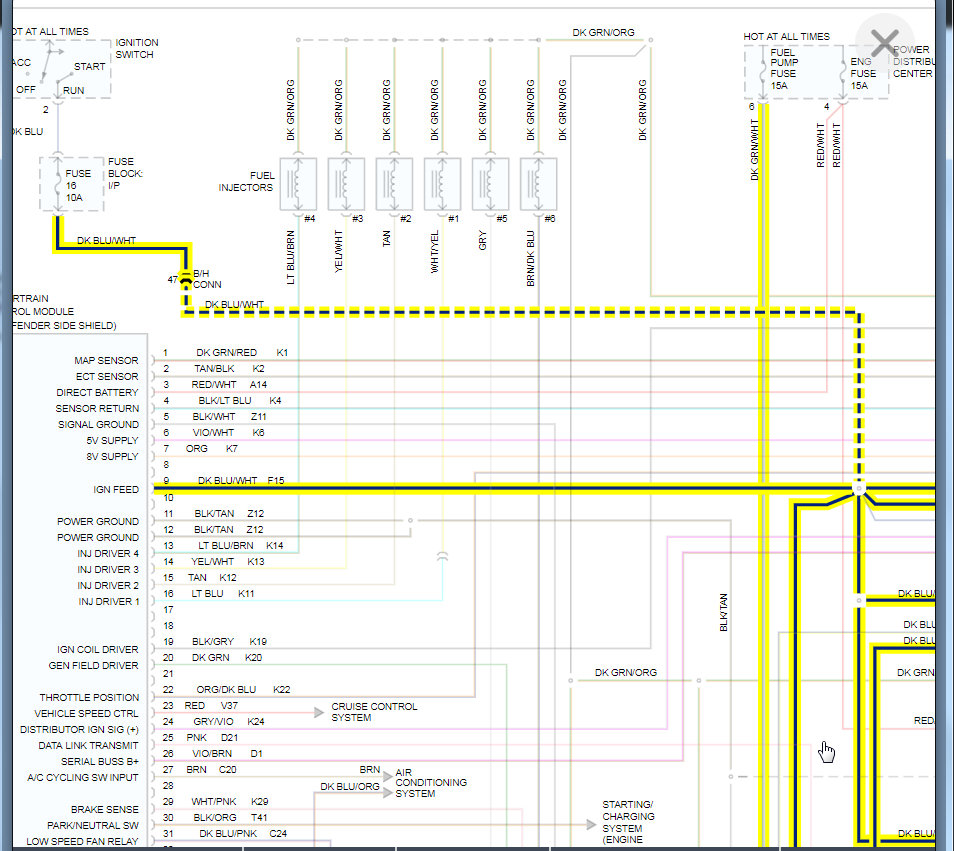

More then likely the fuel pump fuse in the PDC has failed. Take a look at the wiring diagrams I attached below and you can follow power back through the system. If the fuse is ok, then the relay is most likely the next issues.

Here are some guides that will help with this:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Run through this material and let me know what questions you have. Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Dec 19, 2020 at 11:59 AM
