Engine Wiring Diagrams Please?

2000 MITSUBISHI L200
344,500 MILES • 3.0L • V6 • 4WD • AUTOMATIC
Avatar
CORFRED123
  • MEMBER
  • 2 POSTS
i need the same diagram as this one but only for the 6g72.
Nov 29, 2023 at 8:03 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

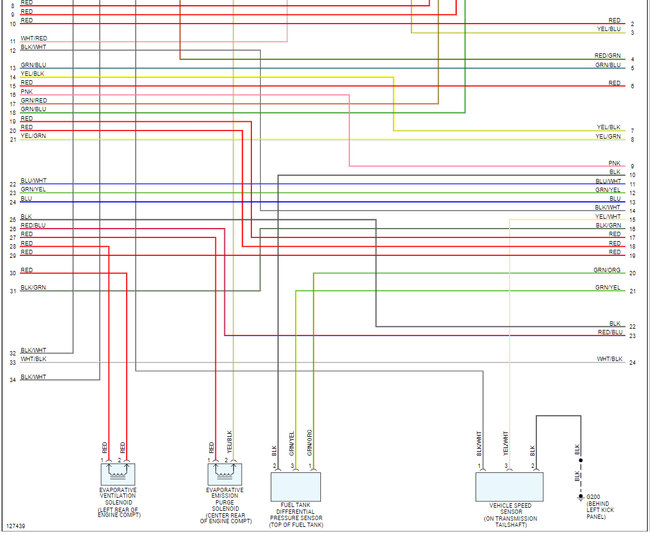

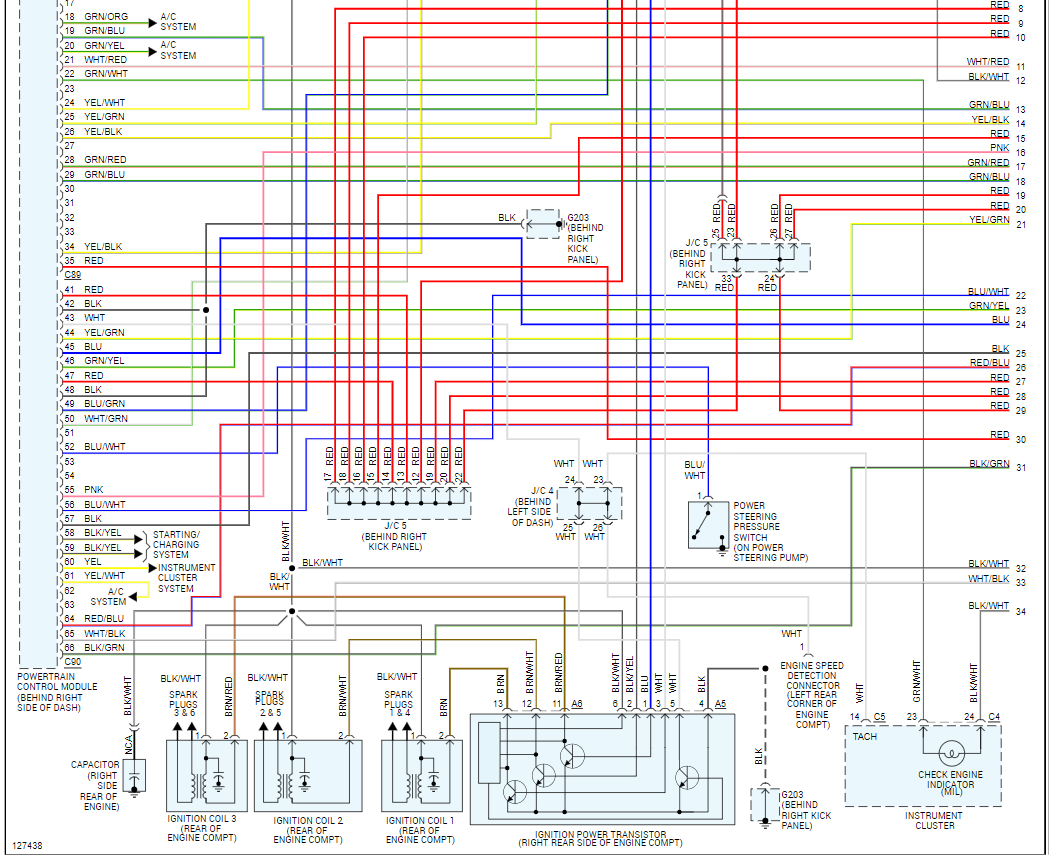

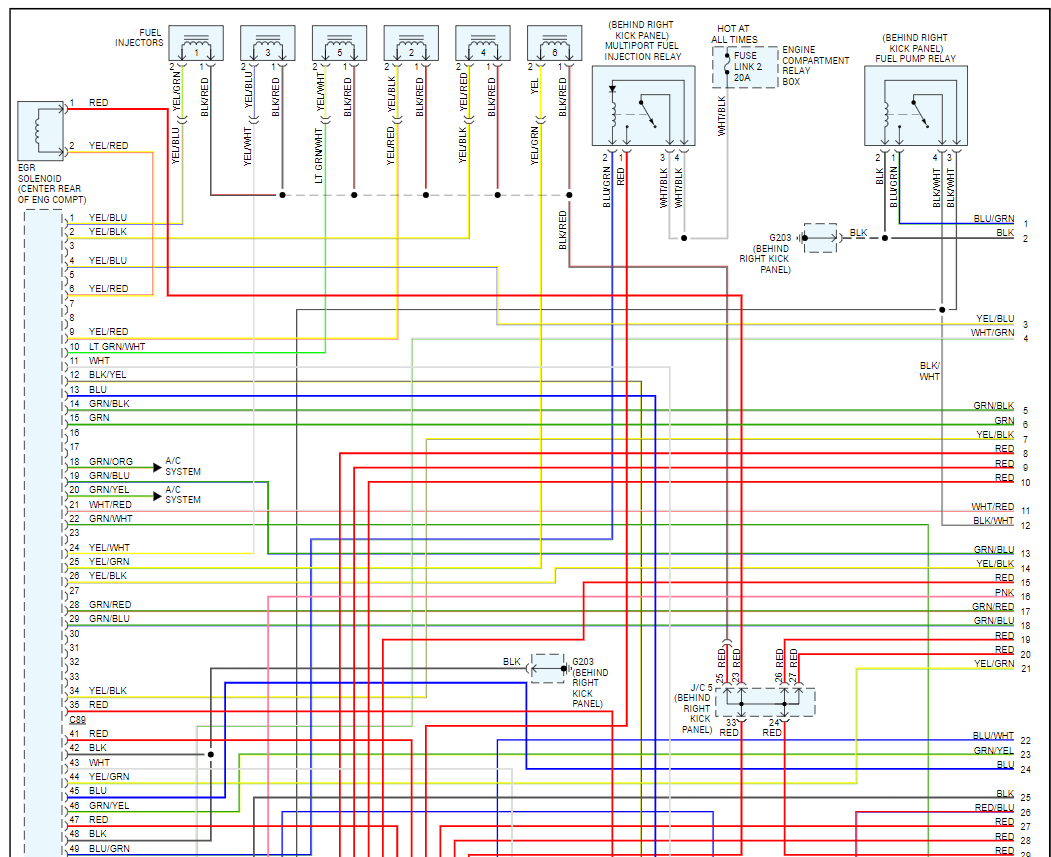

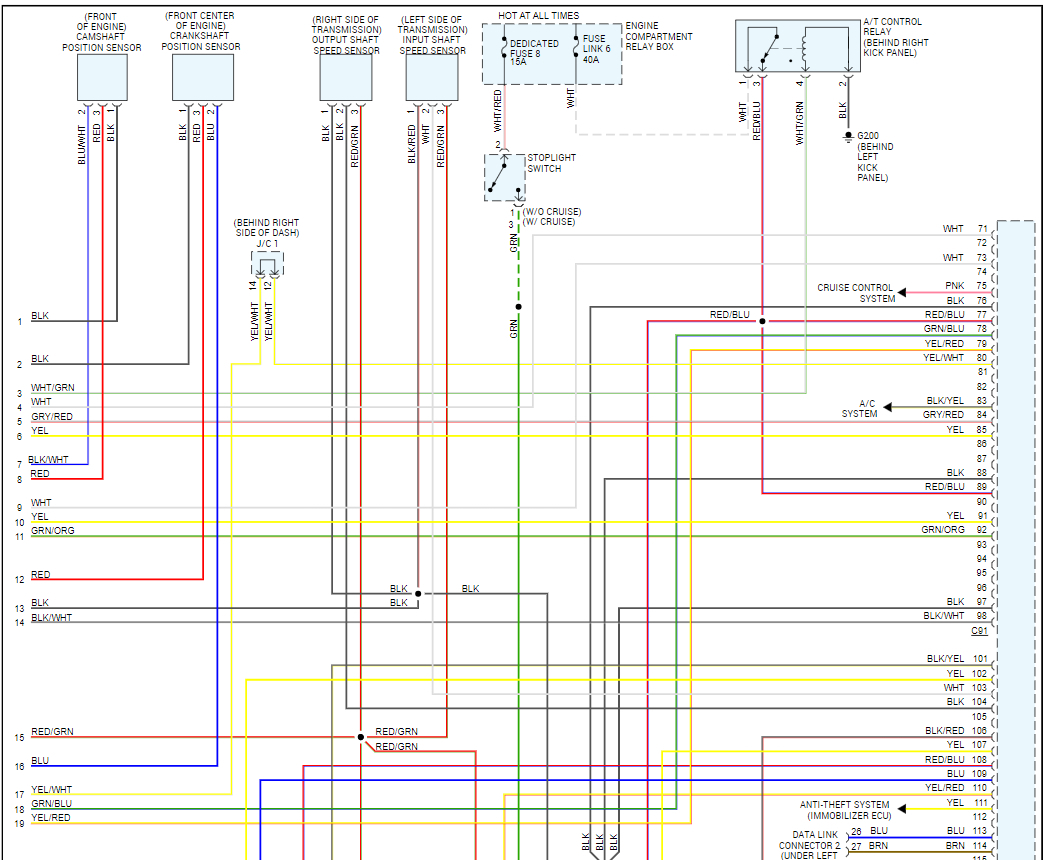

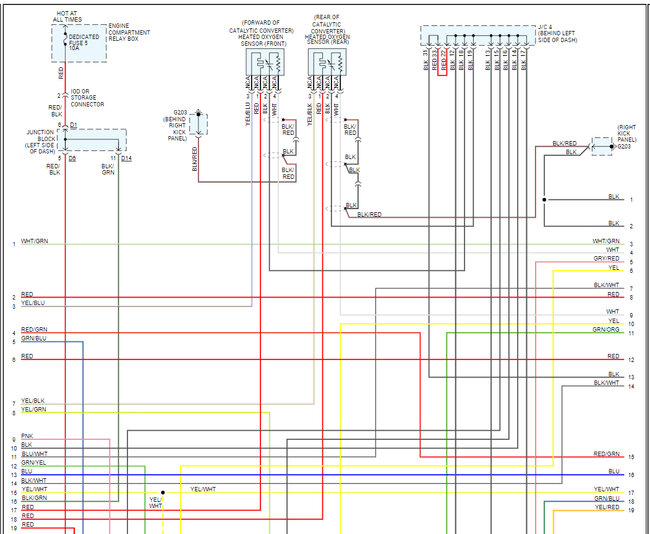

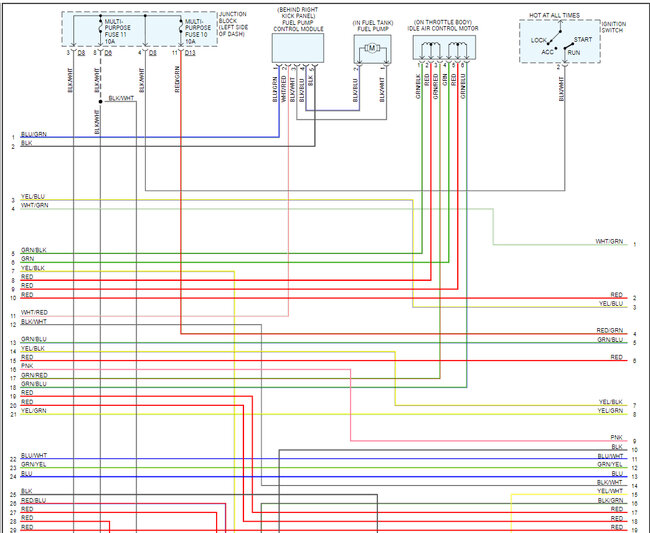

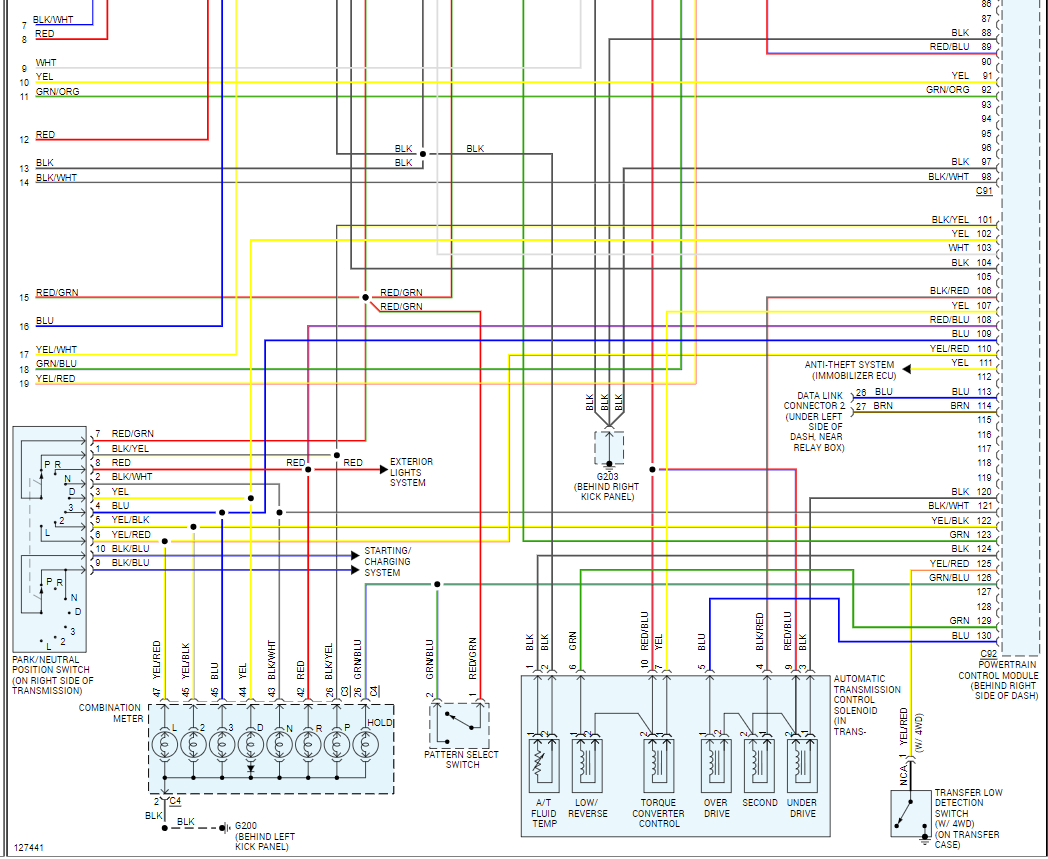

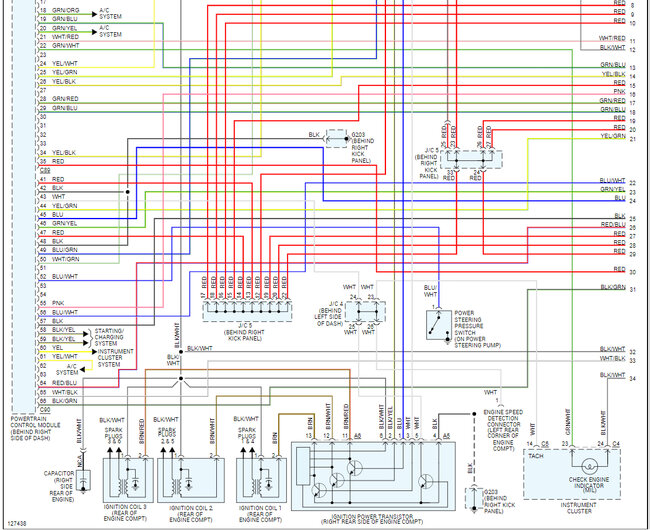

Here is a guide to help you with the continuity test and the engine wiring diagrams below:

https://www.2carpros.com/articles/how-to-check-wiring

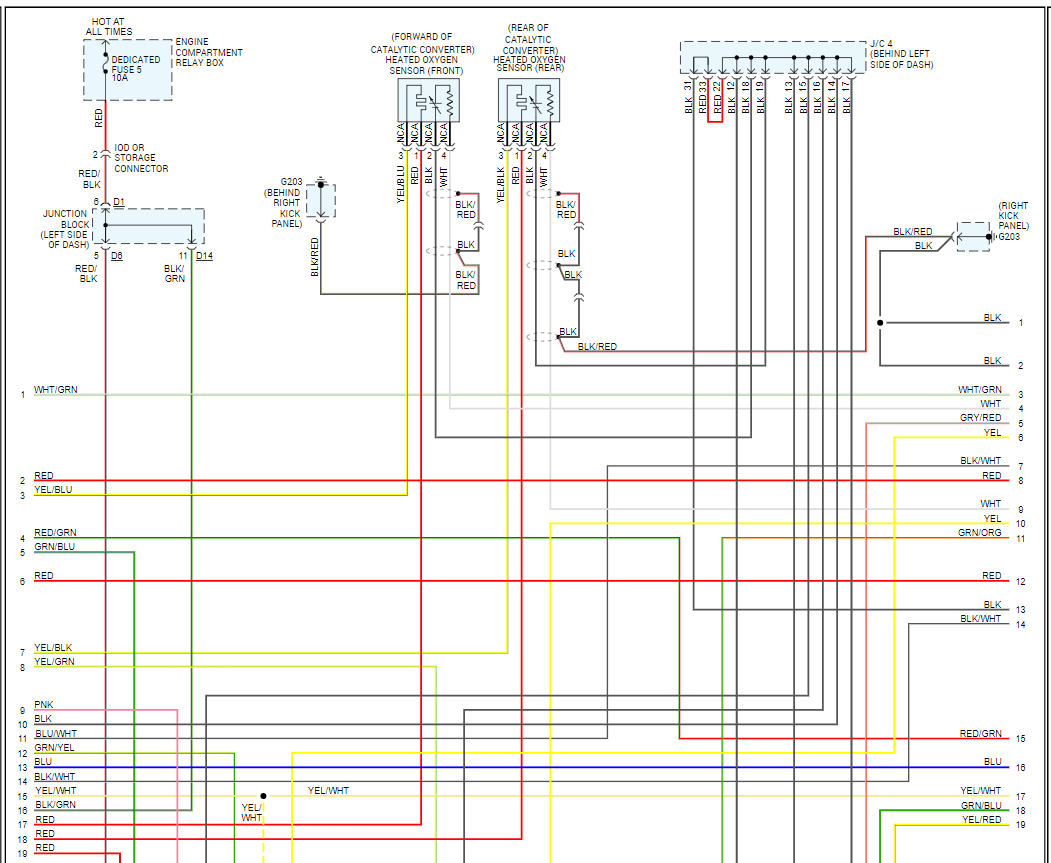

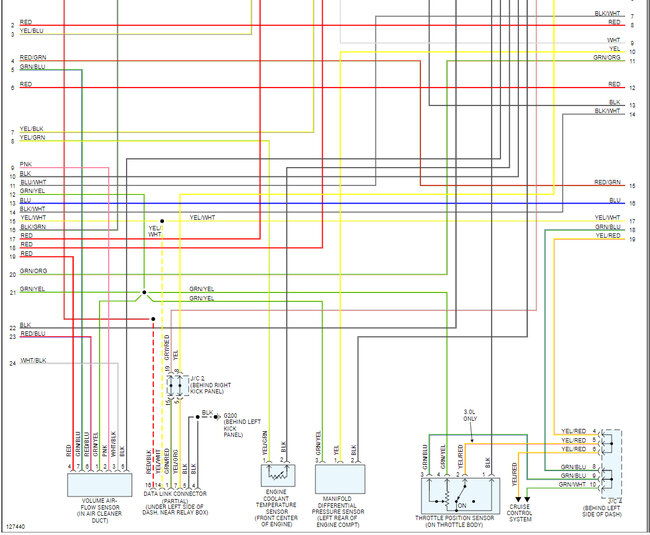

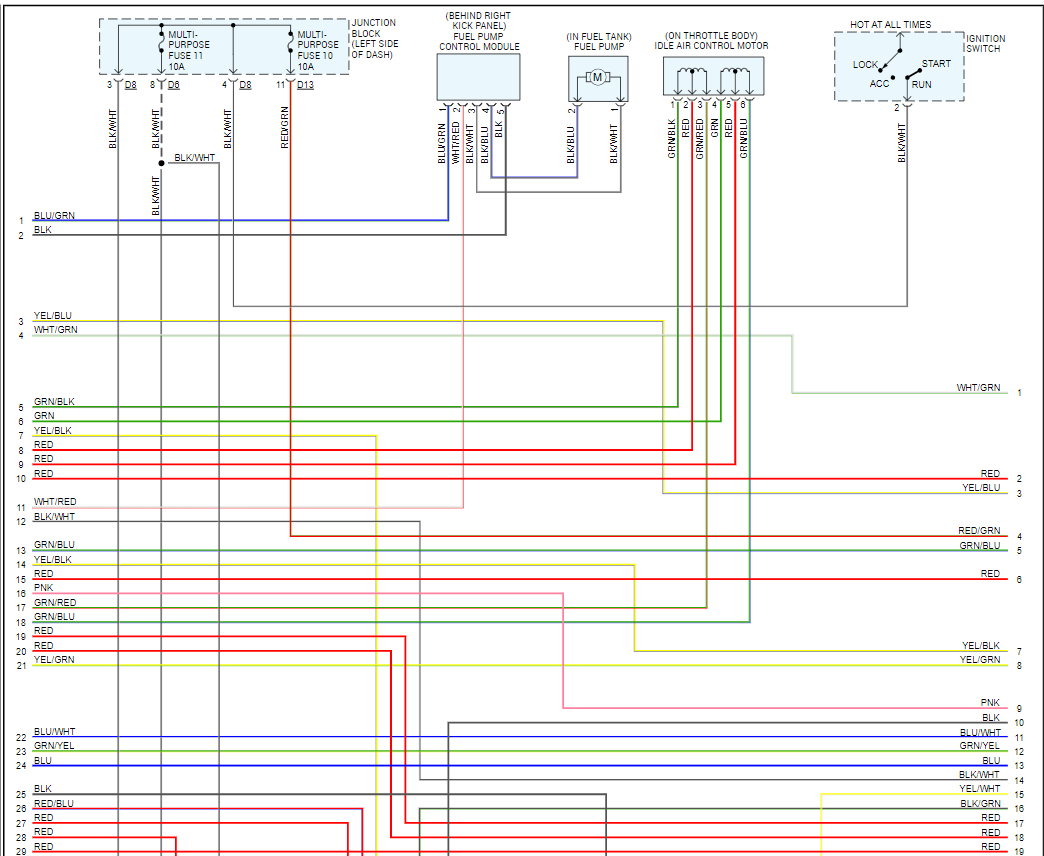

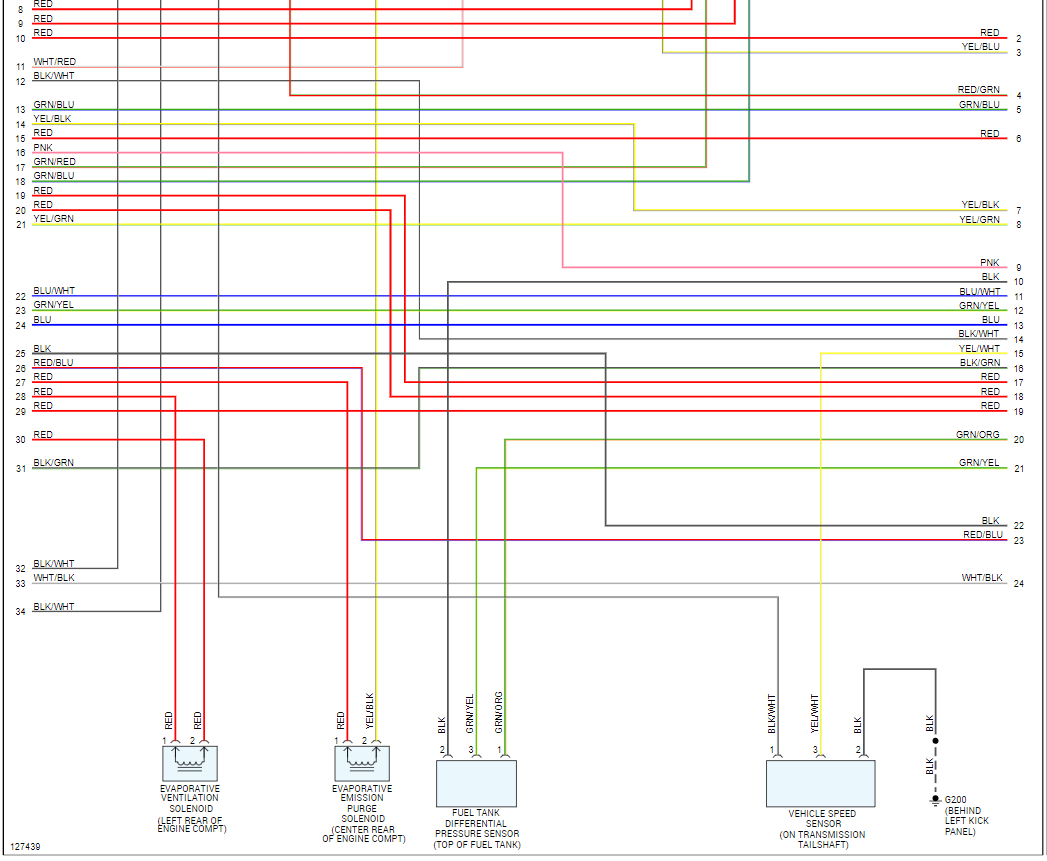

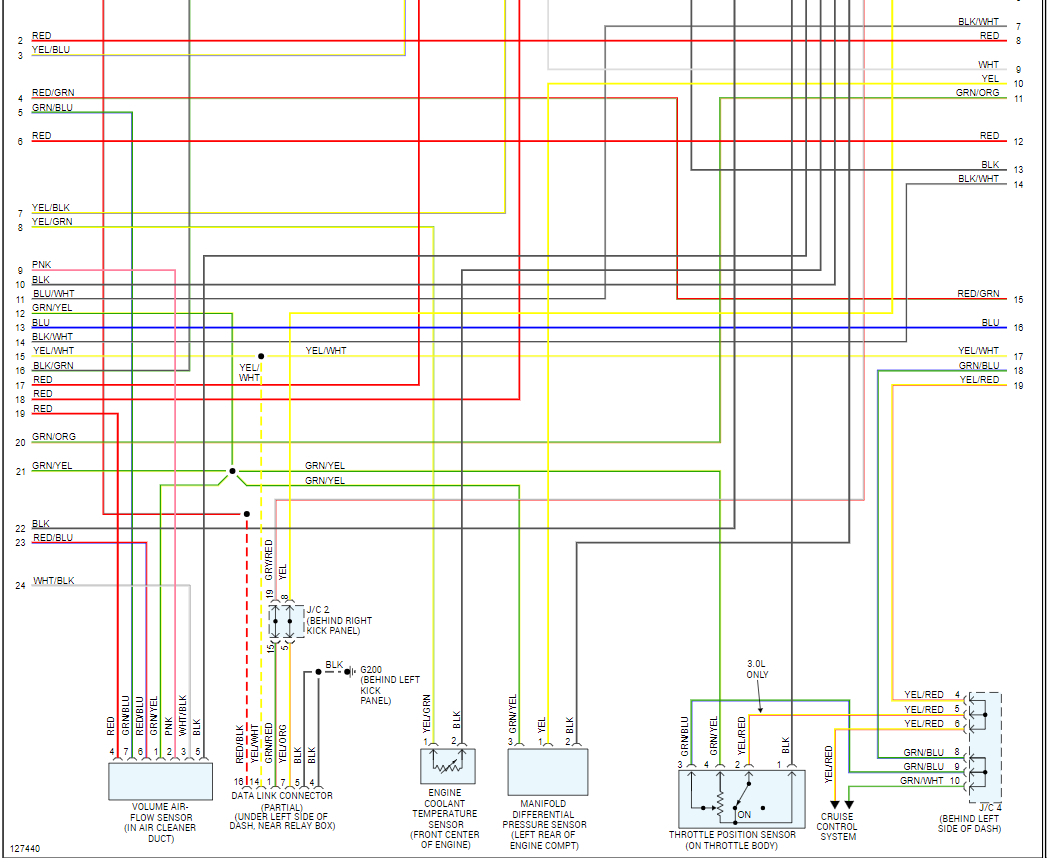

Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Nov 30, 2023 at 1:09 PM
Avatar
CORFRED123
  • MEMBER
  • 2 POSTS
Thank you very much, it was just what i needed.

Regards,
Corrie Strydom
Nov 30, 2023 at 1:57 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
You are welcome Corrie, please use 2CarPros anytime we are here to help.
Dec 1, 2023 at 9:13 AM
