Window Wiring diagrams Please

2011 RAM 3500
85,000 MILES • 6.5L • 6 CYL • 4WD • AUTOMATIC
Avatar
JVB1
  • MEMBER
  • 2 POSTS
I am installing a rear power slider in my truck which did not have a factory installed one. The window is in an connected to the harness coming from the headliner. Lowering the front of the headliner there is no harness for the overhead console.

I think that the harness goes to a relay connection and is dead ended there. I want to complete the harness so I can use the same factory harness but need a wire diagram for this.

Can you help?
Mar 17, 2019 at 1:26 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

Here is a guide to help you test the wiring and the window wiring diagrams so you can see how the system works below:

https://www.2carpros.com/articles/how-to-check-wiring

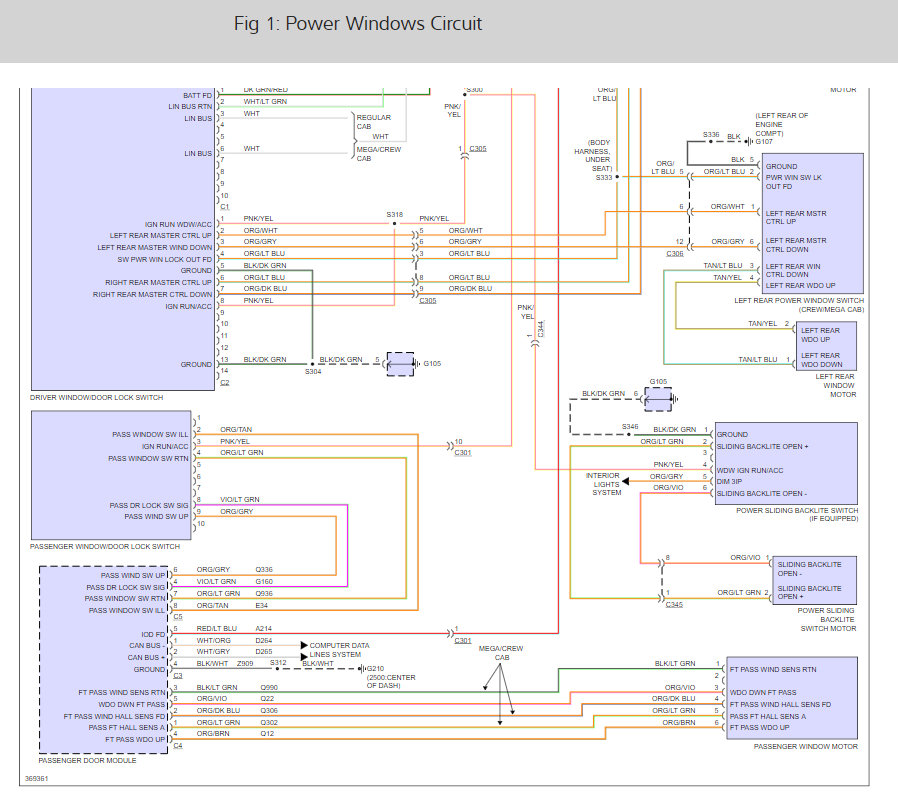

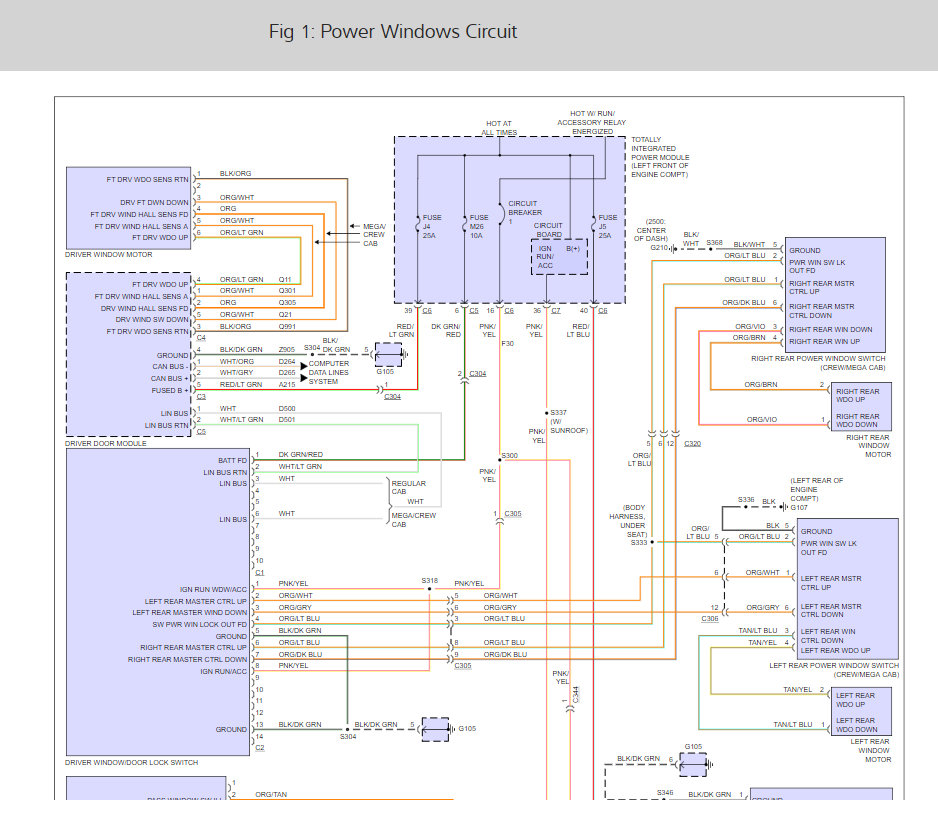

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Mar 18, 2019 at 2:36 PM
