Wiring diagram needed for the 60pin ECU receiver?

2009 TOYOTA CAMRY
188,000 MILES • 2.4L • V6 • 2WD • AUTOMATIC
Avatar
DAVIN DAZ DILLY FLORES
  • MEMBER
  • 1 POST
I need a wiring diagram for my 09 Camry le of the 60pin ECU receiver and it's functions due to the fact that after changing the wire harness the plug from harness to ECU wasn't a match. The120 pin plug matched but not the 60 pin.
Apr 17, 2025 at 3:19 AM
Advertisement
Avatar
AL514
  • CERTIFIED EXPERT
  • 5,465 POSTS
Hello, what's the VIN for the vehicle? We can look it up that way to verify we have the correct service information for you.
Apr 18, 2025 at 10:12 AM
Avatar
AL514
  • CERTIFIED EXPERT
  • 5,465 POSTS
This is the ECM connector service info is showing, I will include the pinouts as well.
Image (Click to enlarge)
Attached Media
Apr 18, 2025 at 10:16 AM
Advertisement
Avatar
AL514
  • CERTIFIED EXPERT
  • 5,465 POSTS

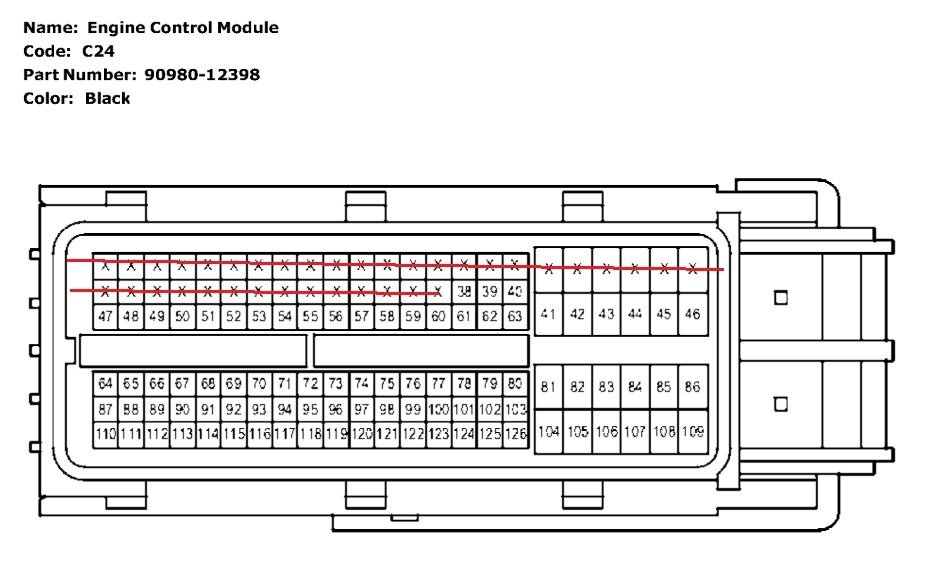

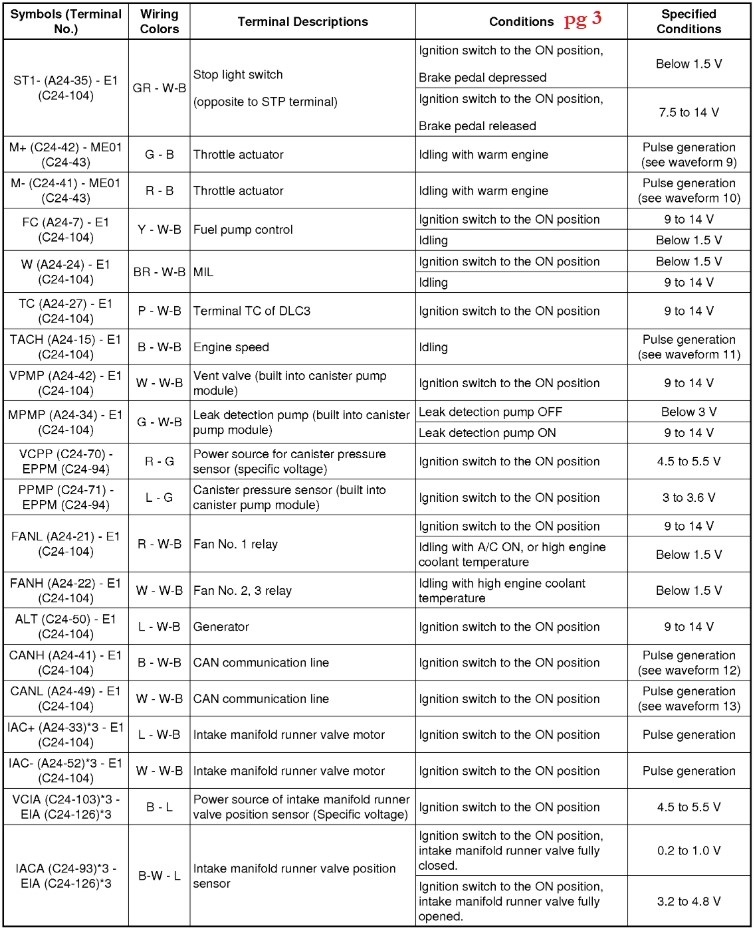

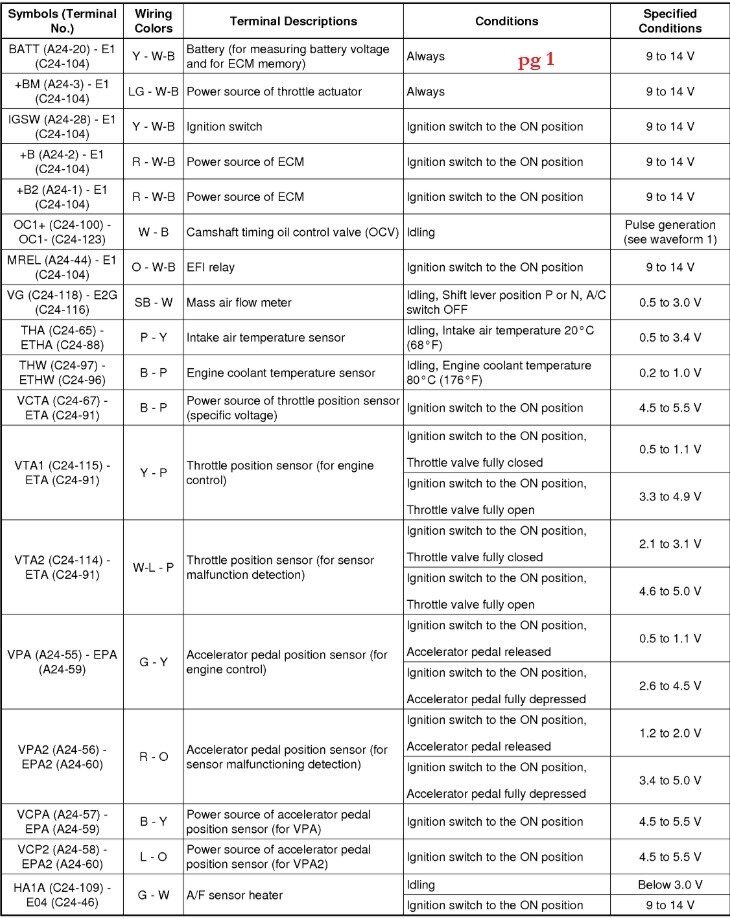

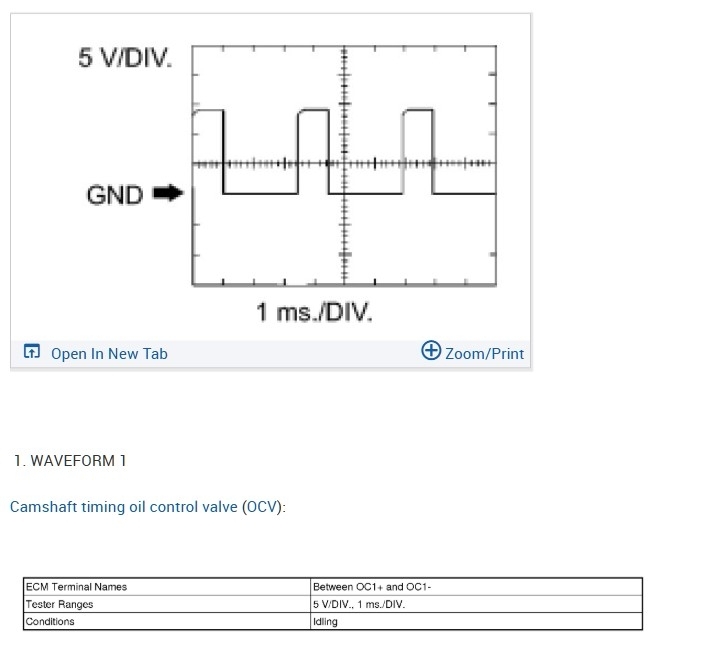

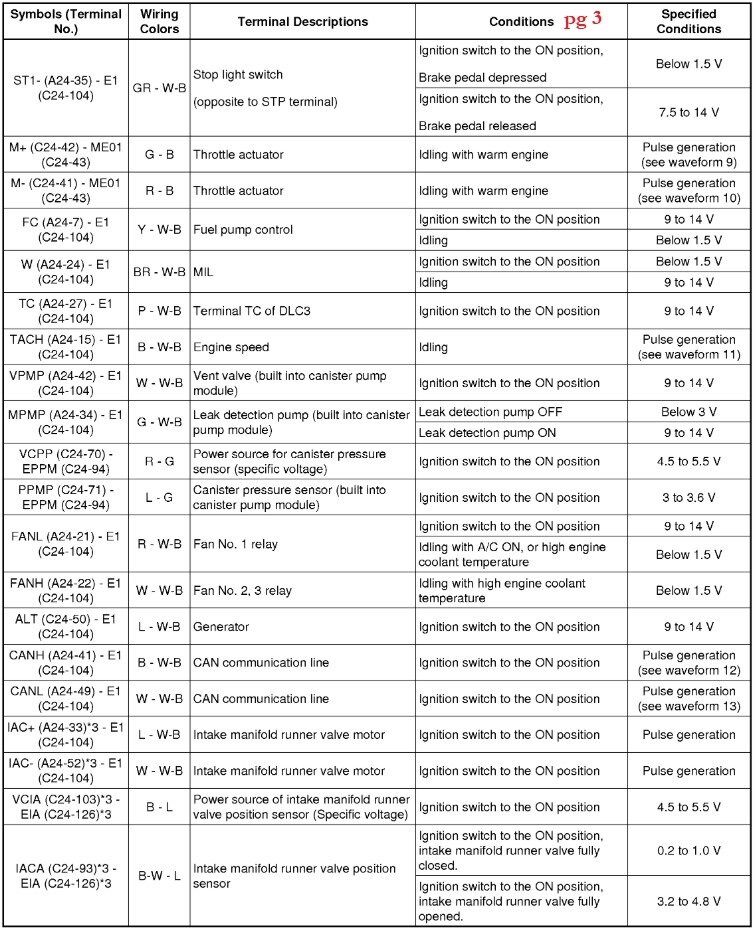

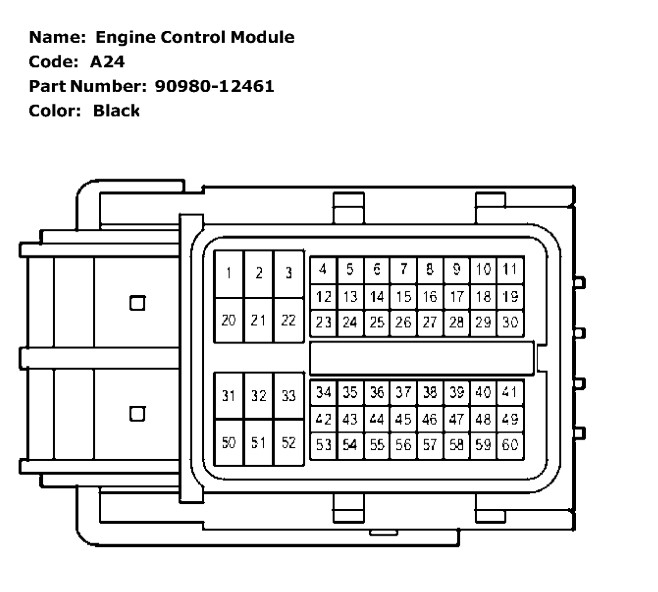

Diagrams 1-3 are the pinouts for the ECM connectors, and service info also includes some oscilloscope waveforms for sensors and actuators if that would be helpful, such as the one in diagram 4 for the camshaft timing oil control solenoid.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Apr 18, 2025 at 10:25 AM
Avatar
AL514
  • CERTIFIED EXPERT
  • 5,465 POSTS

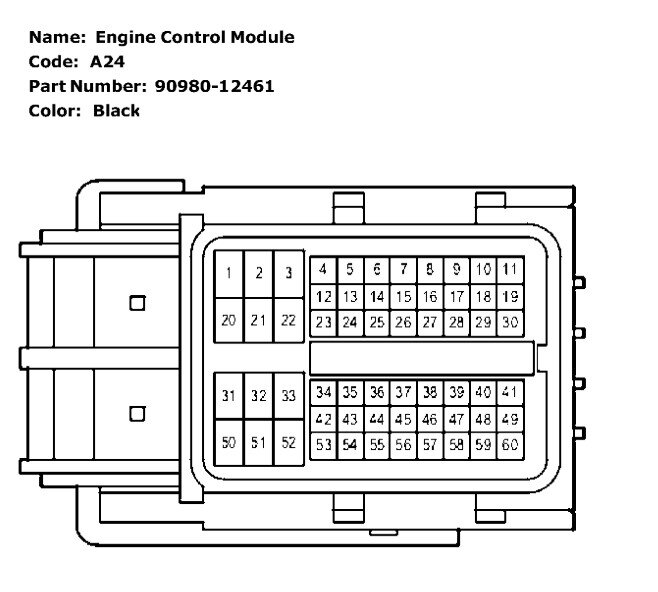

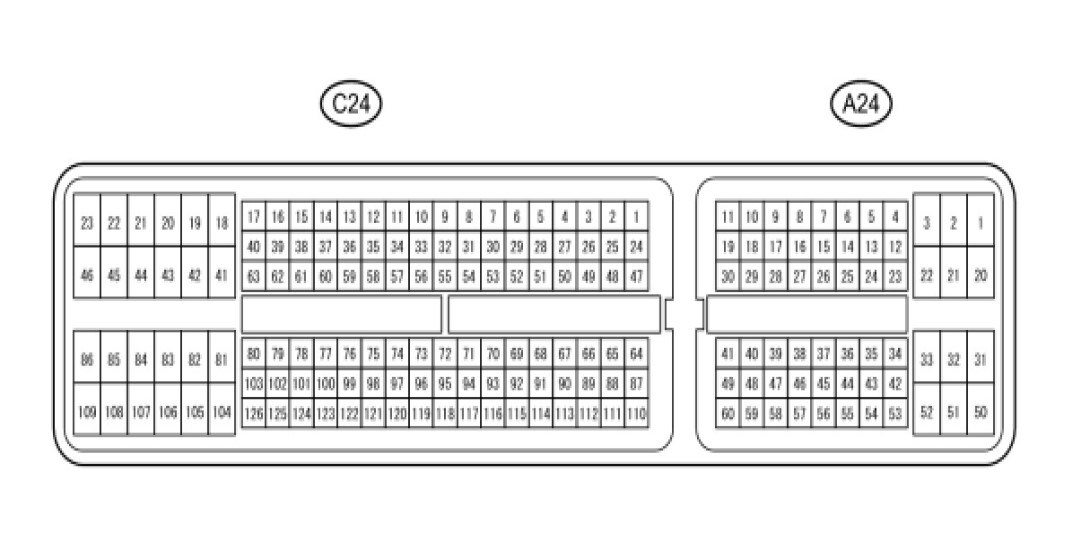

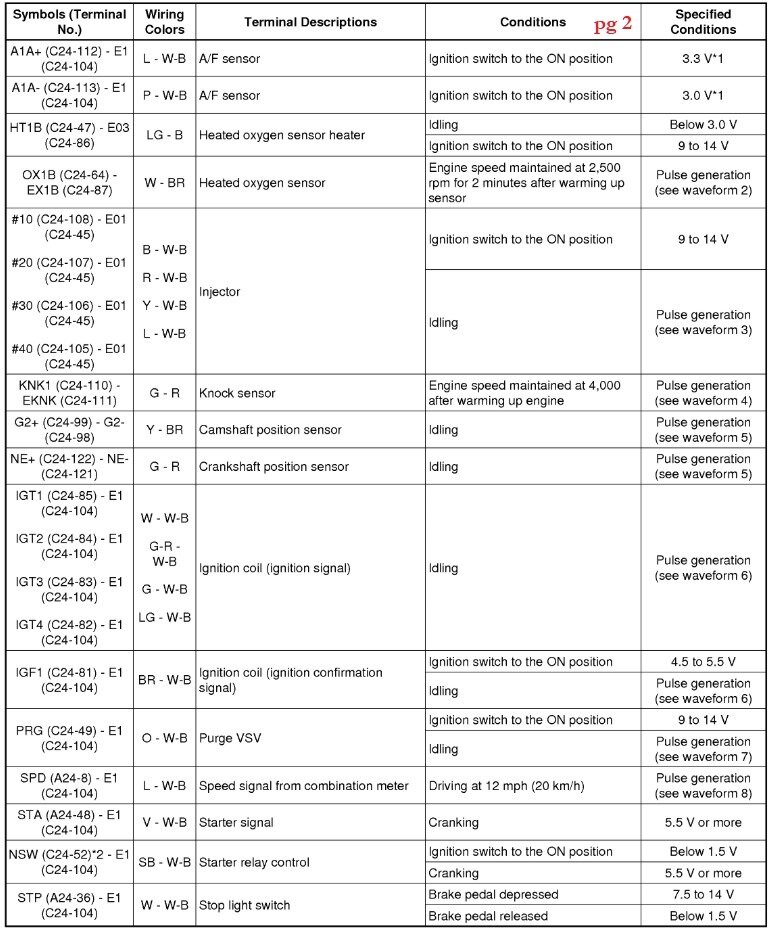

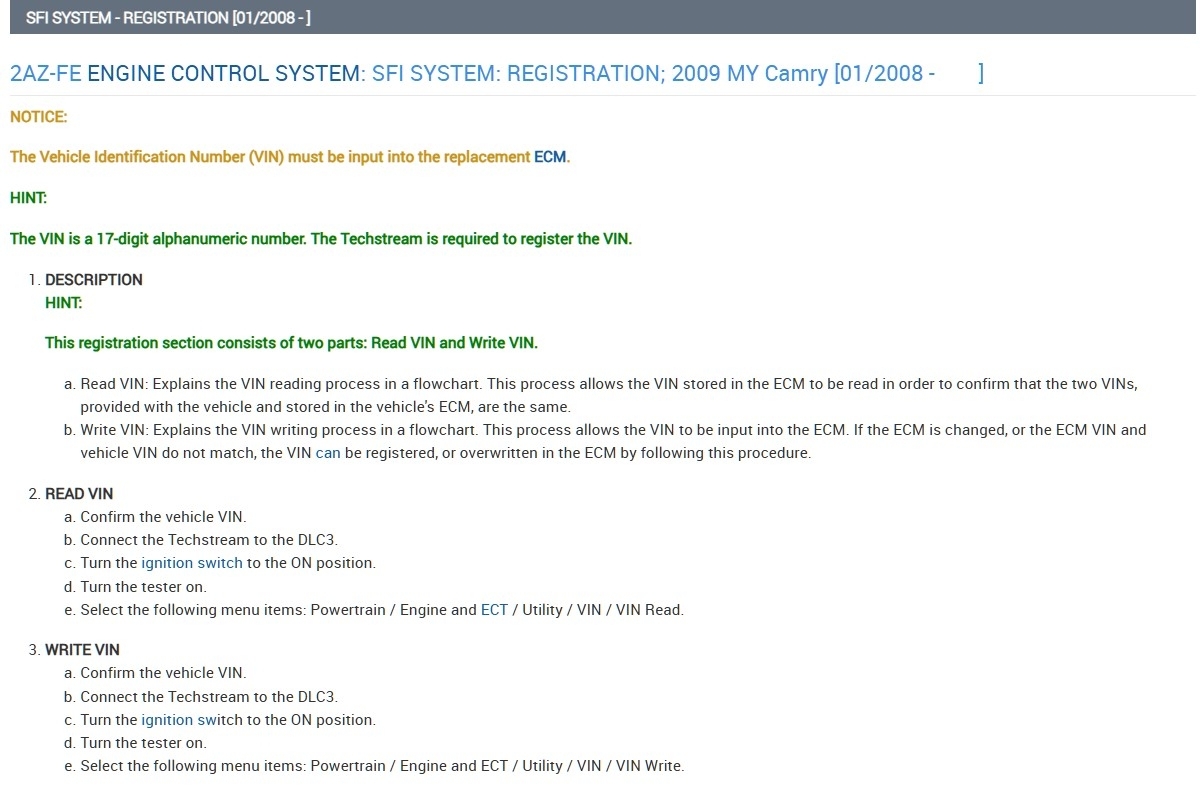

It looks like they include a front view of the connectors as well, along with programming instructions for the VIN into the ECM.
