Wiring a new plug for the cam sensor it has three wires

2002 HYUNDAI SANTA FE
80,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
TS1ART
  • MEMBER
  • 2 POSTS
The following color are: black , orange, and blue. I need to know the order they go in on the new pigtail; 1, 2, and 3. Can you tell me the order please? thank you
Mar 28, 2019 at 7:48 AM
Advertisement
Avatar
JOETECHPRO
  • CERTIFIED EXPERT
  • 705 POSTS
Hey TS1ART,

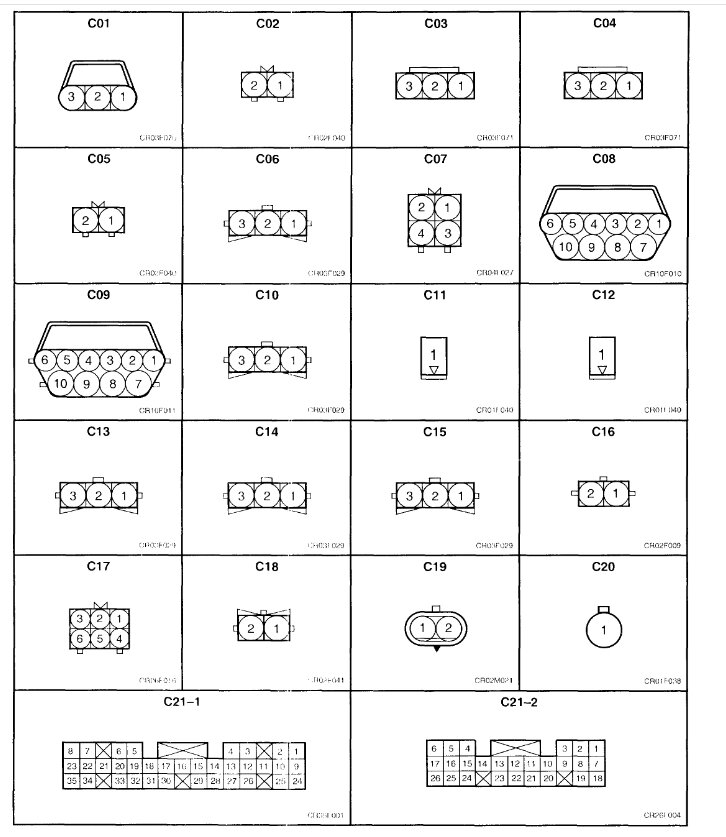

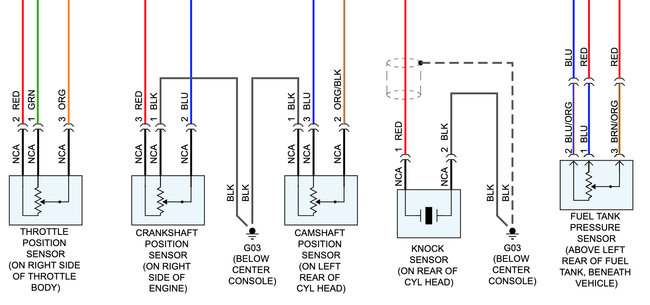

I have attached the wiring diagram which shows the colours and pins.

Hope that helps, let me know if you need any clarification. Check out the images (below). Please let us know what happens.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Mar 28, 2019 at 3:34 PM
Avatar
TS1ART
  • MEMBER
  • 2 POSTS
My cam is up front on the driver side. the three colors are black, orange and blue. there is no numbers on the new pigtail.
Mar 29, 2019 at 9:46 AM
Advertisement
Avatar
JOETECHPRO
  • CERTIFIED EXPERT
  • 705 POSTS
Hey TS1ART,

You are replacing the connector on the harness side right?

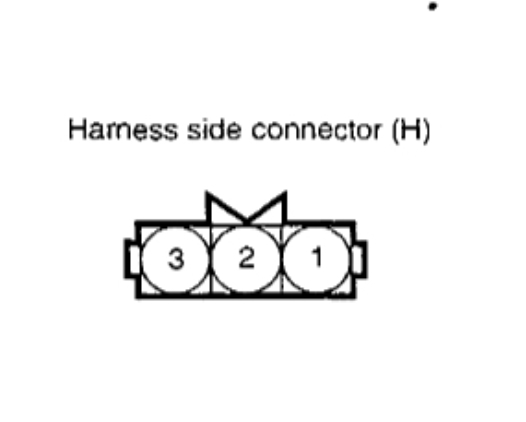

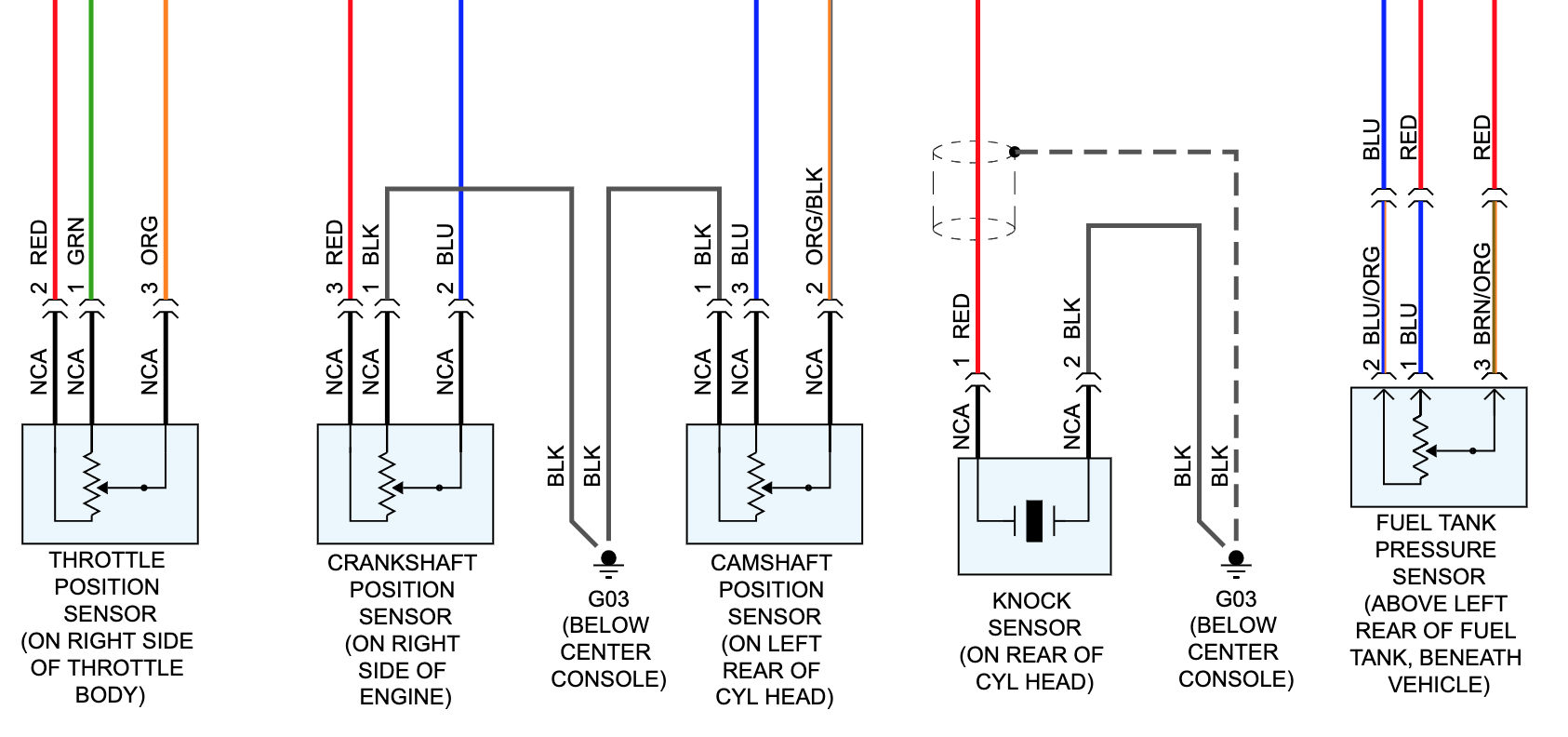

There may not be numbers on the pigtail but as you can see on the second diagram it shows the harness side that you are replacing with the pigtail. On the picture of the harness side connector you can tell the pin numbers by the latch on the connector and its orientation. I have cut just the bit you need below.

From the wiring diagram -

pin 1 is black
pin 2 is orange/black (orange with a black trace)
pin 3 is blue

Hope that helps, let me know if that still isn't clear and i'll try and word it another way.

Regards,

Joe

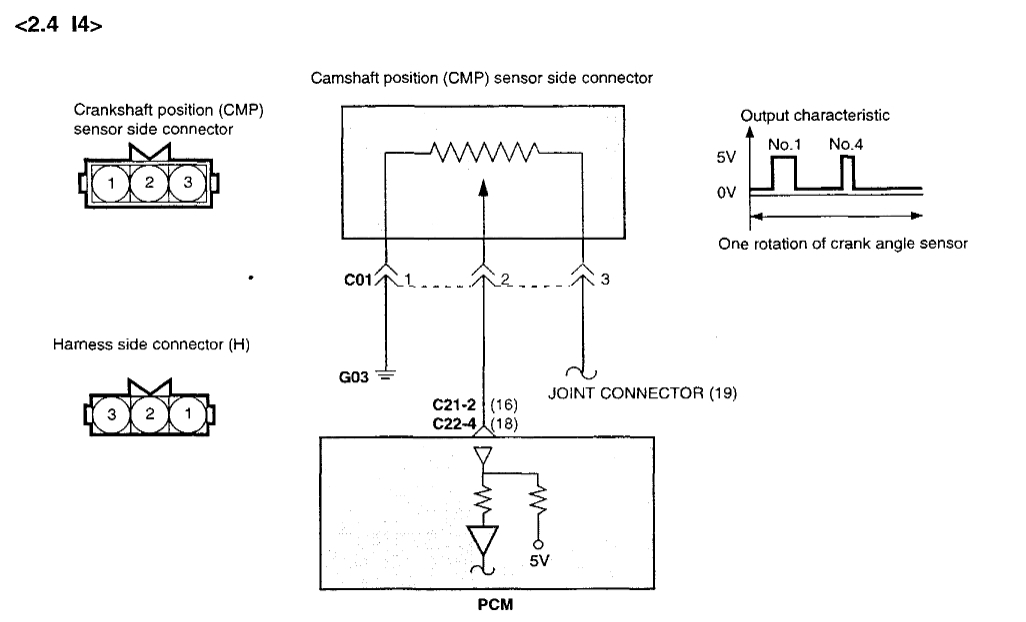

Image (Click to enlarge)
Attached Media
Mar 29, 2019 at 9:55 AM
