Color of wires including fusible links on solenoid and where they lead to. A diagram would be a great help. .
Dec 23, 2018 at 1:04 PM
Diagram fusible links on solenoid
1993 BUICK CENTURY
MECHANICNOONE
- MEMBER
- 7 POSTS
- FOLLOW
Advertisement
Hi and thanks for using 2CarPros.

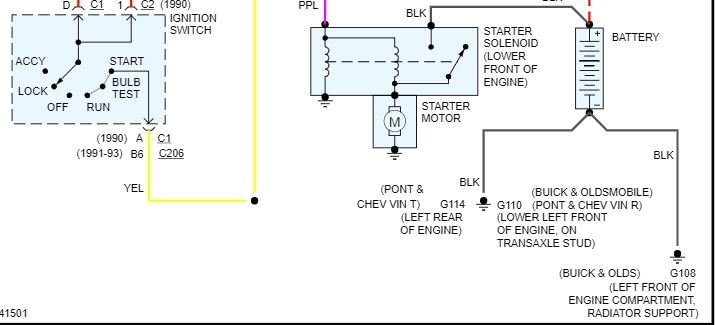

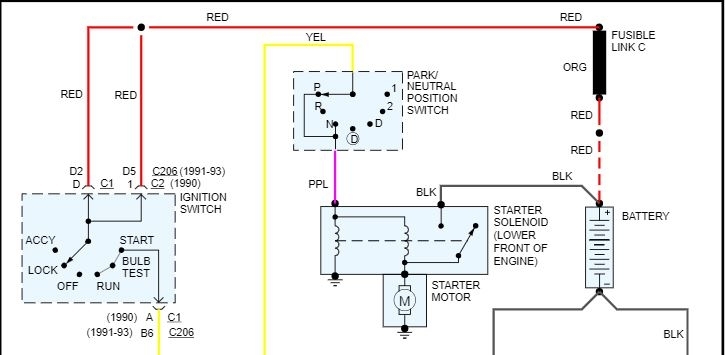

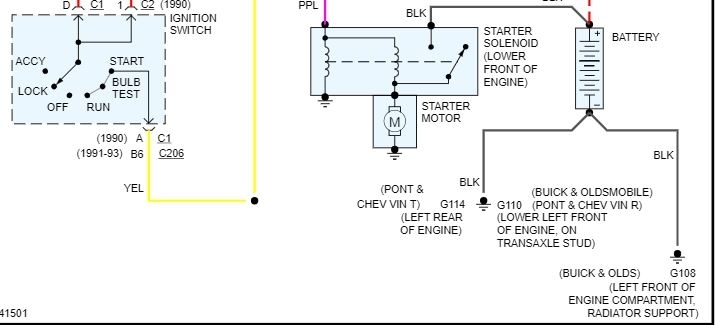

I attached the starting system schematic. I had to cut it in two to get the entire picture. However, I did overlap it so you can easily follow it.
Let me know if this helps.
Take care,
Joe
I attached the starting system schematic. I had to cut it in two to get the entire picture. However, I did overlap it so you can easily follow it.
Let me know if this helps.
Take care,
Joe
Images (Click to enlarge)
Dec 23, 2018 at 6:31 PM
The diagrams help me considerably. There are two rusty colored fusible links going to the solenoid. Do you have a diagram of the front of the solenoid showing or telling what the fusible links are for and what part they represent? Including other wires to the solenoid.
