All the wires got cut and i am having to splice them back together i need a color diagram of the wires under the hood.
Dec 4, 2019 at 2:17 PM
Under hood color wiring diagram needed
1990 CHEVROLET SILVERADO
NEEDHELP75
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello, I'm Danny.

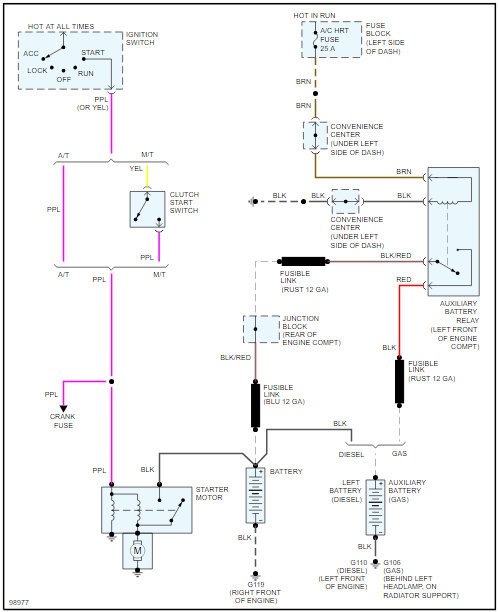

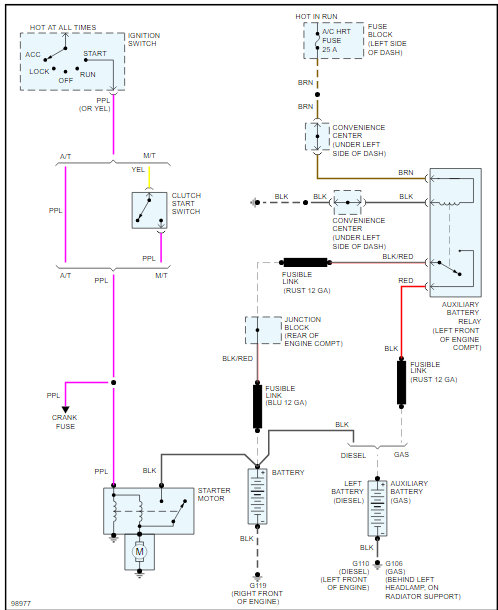

I've attached 2 pictures below of the starting and charging system to begin with. Let me know what other components you need diagrams for. My 1989 K1500 has 79,000 original miles.Hope this helps and thanks for using 2CarPros.
I've attached 2 pictures below of the starting and charging system to begin with. Let me know what other components you need diagrams for. My 1989 K1500 has 79,000 original miles.Hope this helps and thanks for using 2CarPros.
Images (Click to enlarge)
Dec 4, 2019 at 9:19 PM
