wire harness turn signal, hazard pinout needed

2004 CHEVROLET S-10
150,000 MILES • 3.4L • 6 CYL • 2WD • AUTOMATIC
Avatar
TRADITUR DAVIS
  • MEMBER
  • 1 POST
Replaced steering column and turn signal harness used a 2005 Trailblazer in a 2004 s10 blazer looking for a pinout for the Trailblazer to get the lights to work.
Oct 16, 2021 at 4:15 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

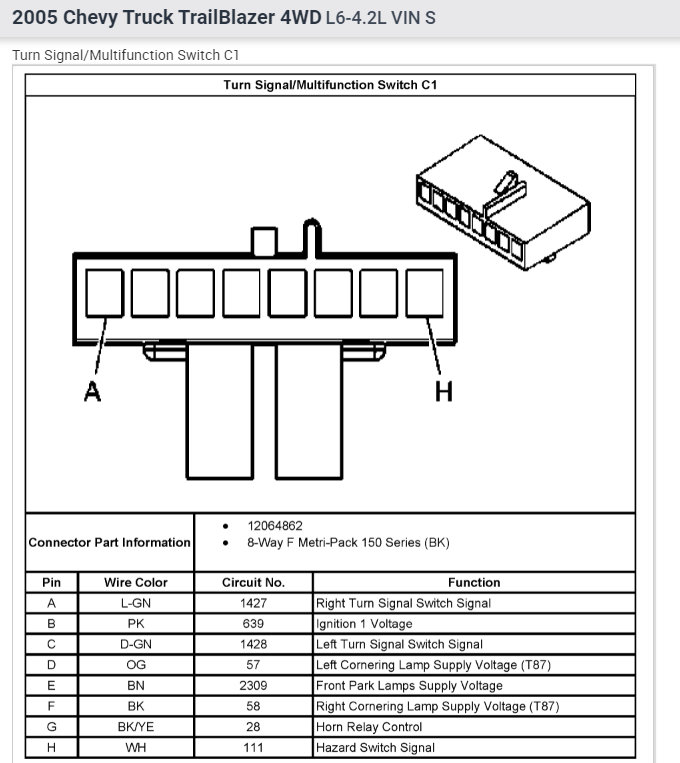

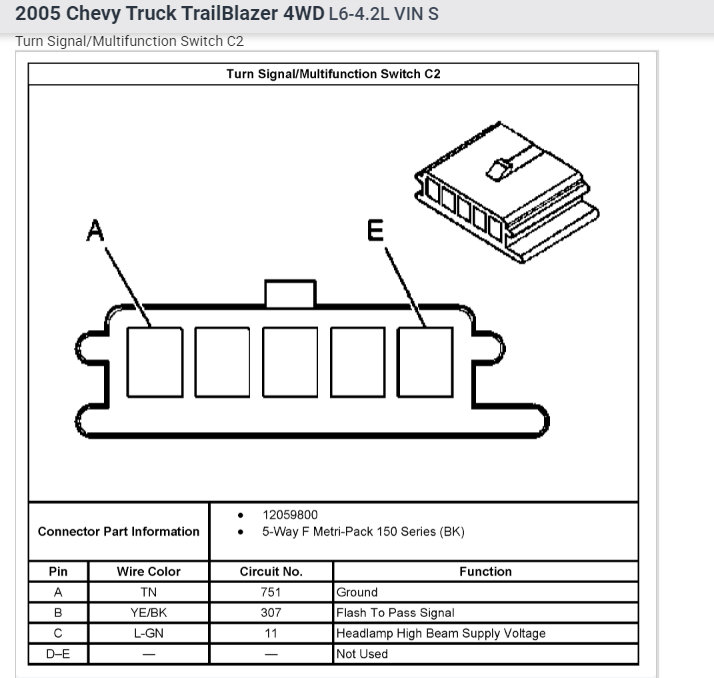

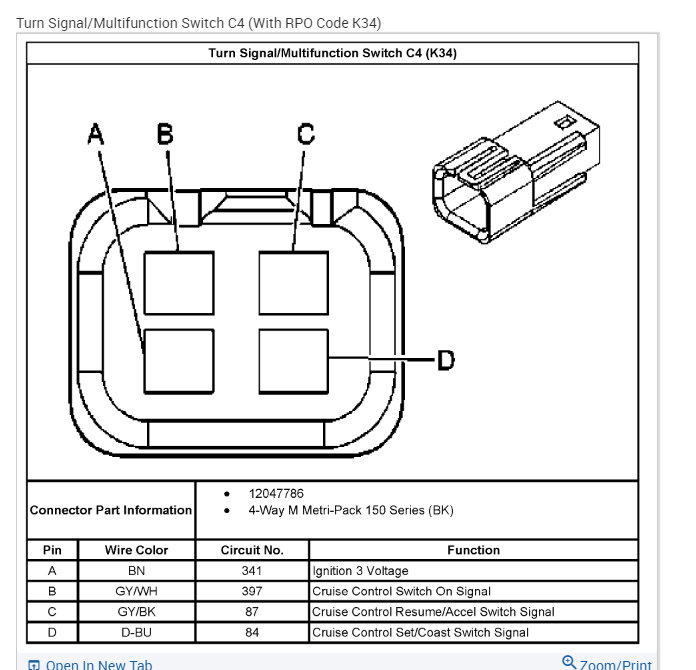

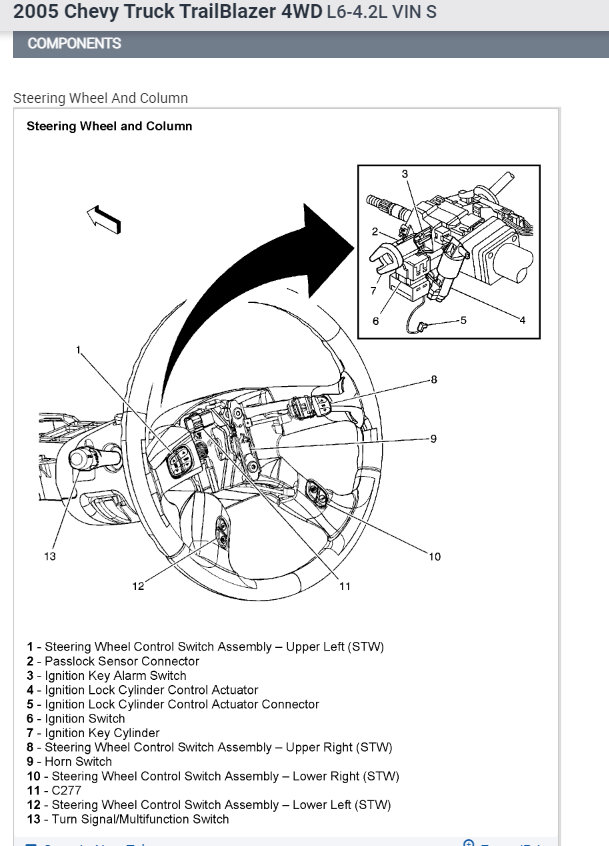

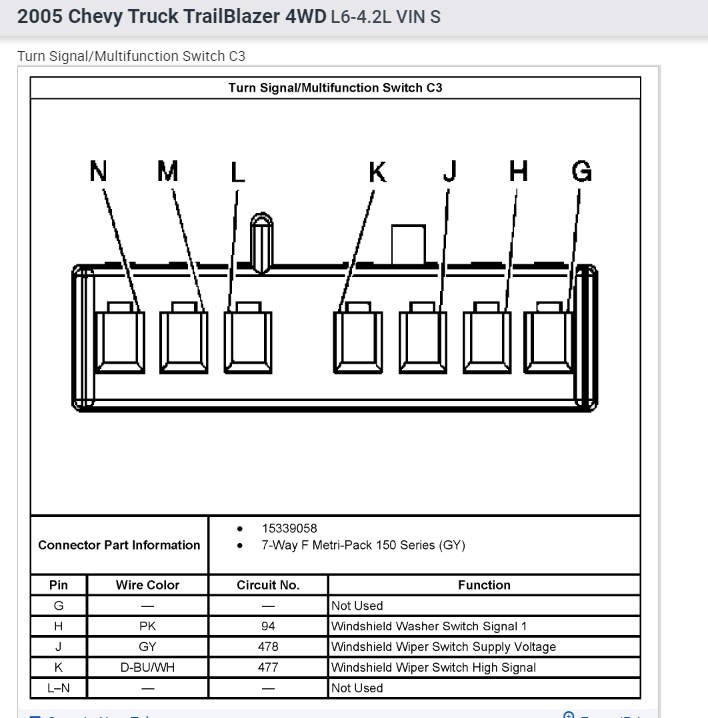

See attached for the multifunction switch pinout on the 2005 Trailblazer.

Please let me know of any questions.
Thank you.

https://www.2carpros.com/articles/how-to-check-wiring
