wiring colors diagram for front door/rear speakers needed

2016 DODGE CARAVAN
96,000 MILES • 3.6L • AUTOMATIC
Avatar
CHRIS MIZSERO
  • MEMBER
  • 12 POSTS
installing some after market speakers, rather than spending on adapters, i am just going to splice into the factory wiring. but the wire colors differ from the stereo side.

any chance to get the correct wire colors for positive and negative? thank you.
Apr 3, 2021 at 3:15 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

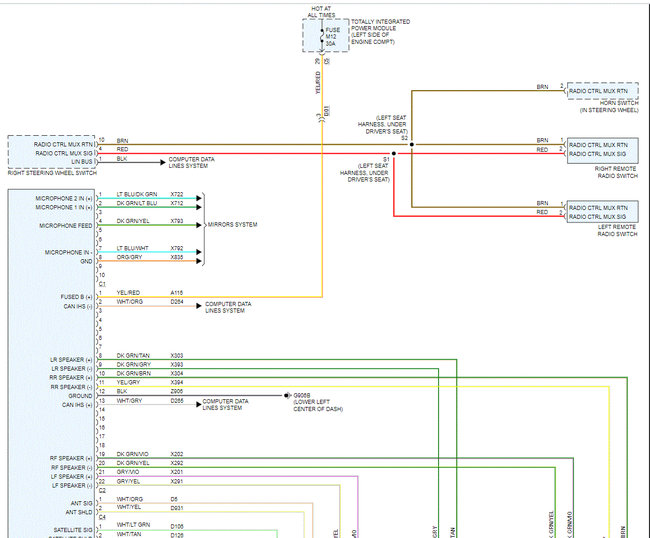

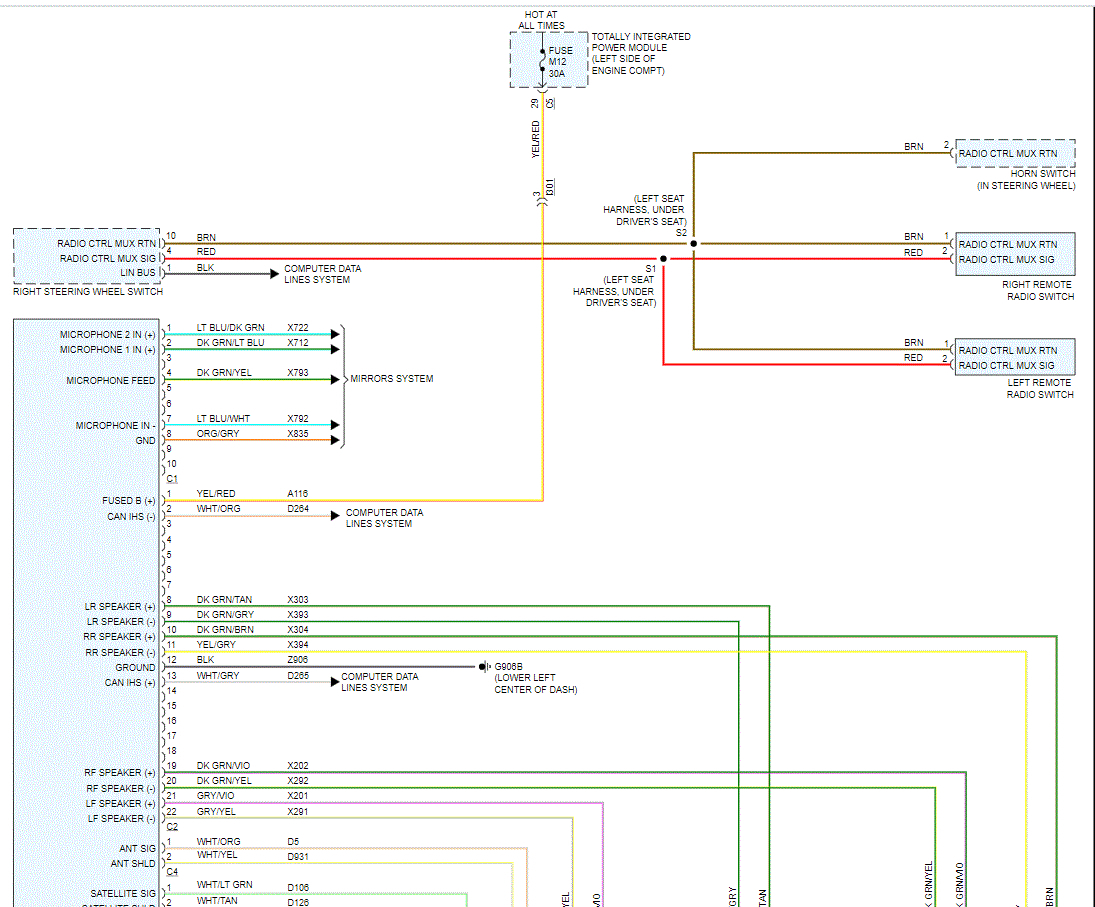

I'm not sure which factory radio was in the vehicle. However, I attached the entire wiring schematic for the standard radio that came in it.

I had to break the pic in two so it was readable, but I did overlap them so you can follow them.

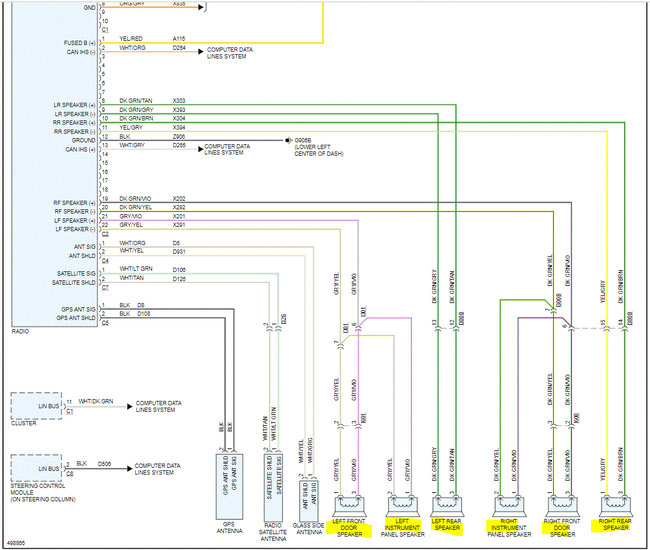

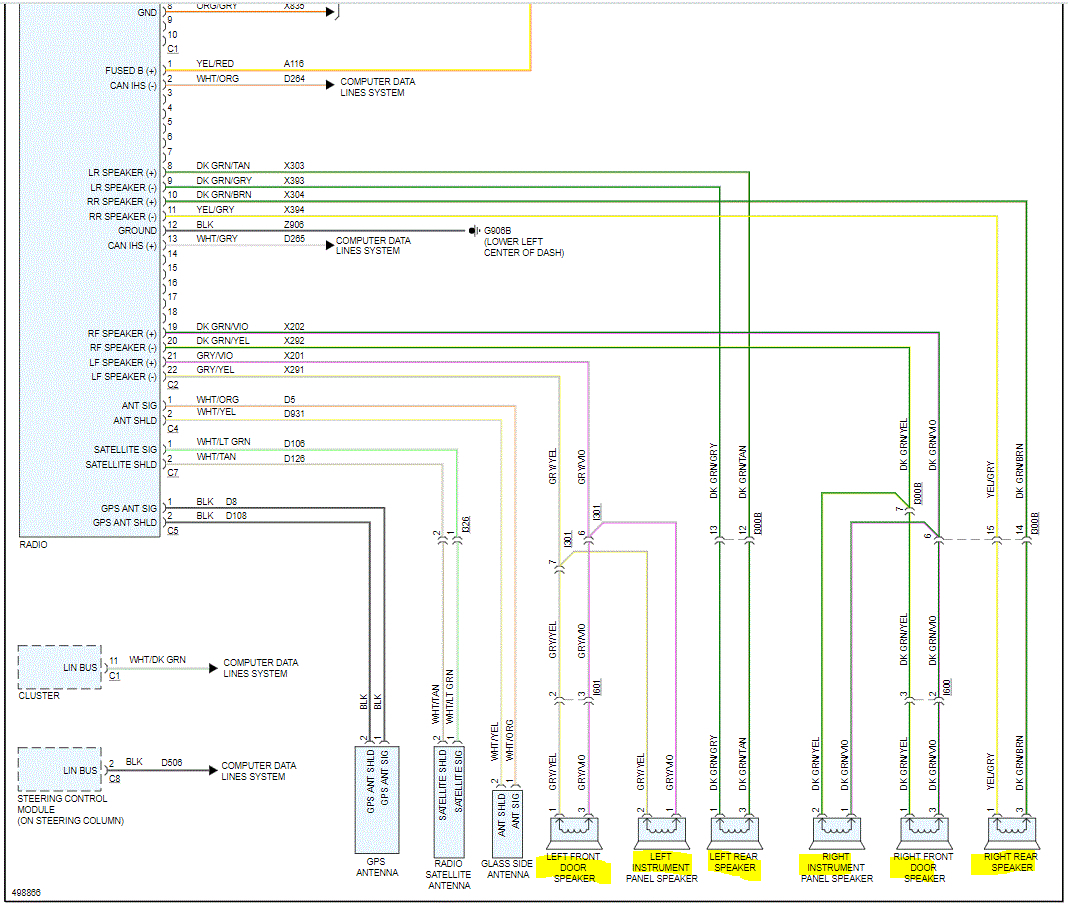

In the second pic, I highlighted all the speakers. The wire color is present in each. if you follow the wire back to the radio, it indicates positive or negative.

I hope this helps.

Take care,

Joe

See pics below
Images (Click to enlarge)
Attached Media
Attached Media
Apr 3, 2021 at 10:00 PM
