where is the voltage regulator located?

1994 FORD RANGER
194,000 MILES • 4.0L • 6 CYL • 4WD • AUTOMATIC
Avatar
TOTHESOUNDOF
  • MEMBER
  • 4 POSTS
After testing the alternator bit stated that the voltage regulator failed and I was wondering if it is located on the inside of the alternator or if it's a separate part located somewhere else, and if so, where that location would be?
Aug 30, 2021 at 11:30 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

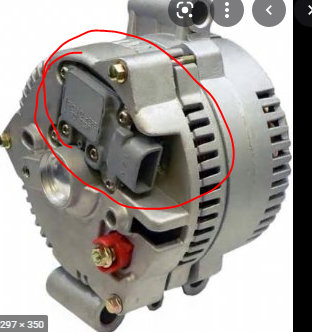

The voltage regulator is a part of the alternator.
It the part where the wire hooks to the alternator.

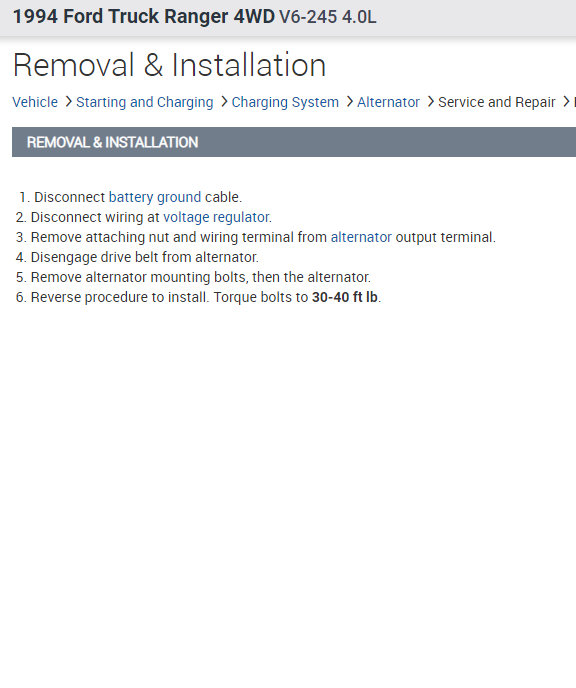

https://www.2carpros.com/articles/how-to-replace-an-alternator

Please let me know of any questions.
Thank you.
