Low pressure fuel sensor location needed

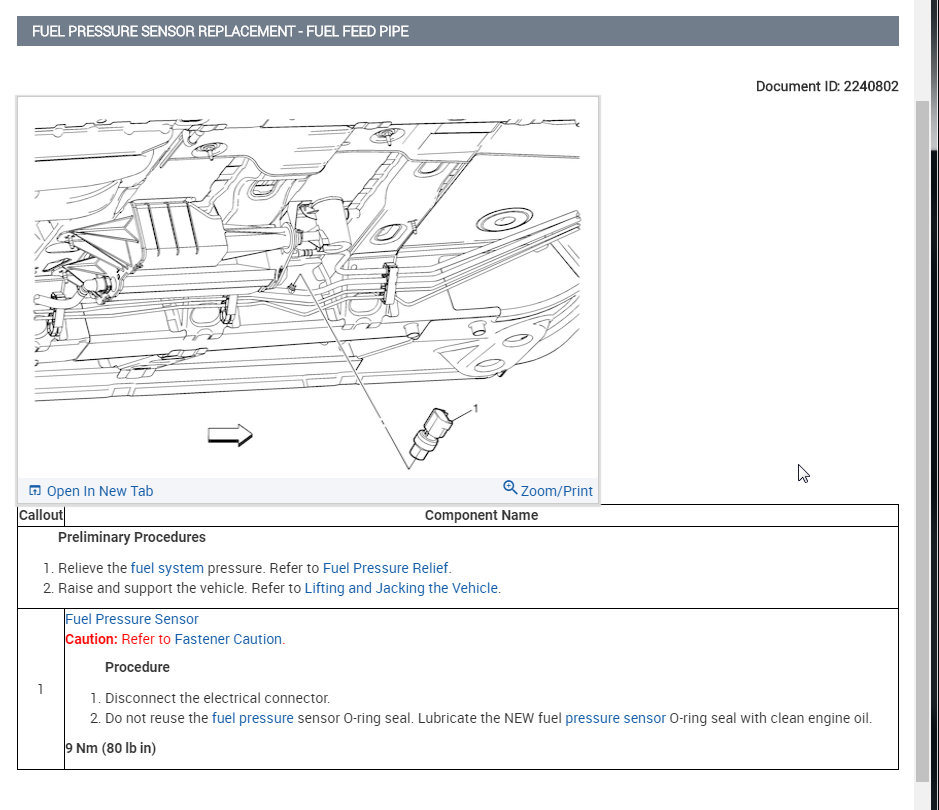

I attached the location for the feed pipe fuel sensor which is what I think you mean by the low pressure sensor.

Which engine do you have? Also, can you have the vehicle scanned for codes to find out if that confirms a fuel pressure issue?

If you can't pull codes, just stop by a parts store as most of them do it free of charge. Thanks

Sorry for the late response.
I have 2.4-liter, flex fuel.
The codes they gave me are P0191 and P0016.
Thank you for helping me out.

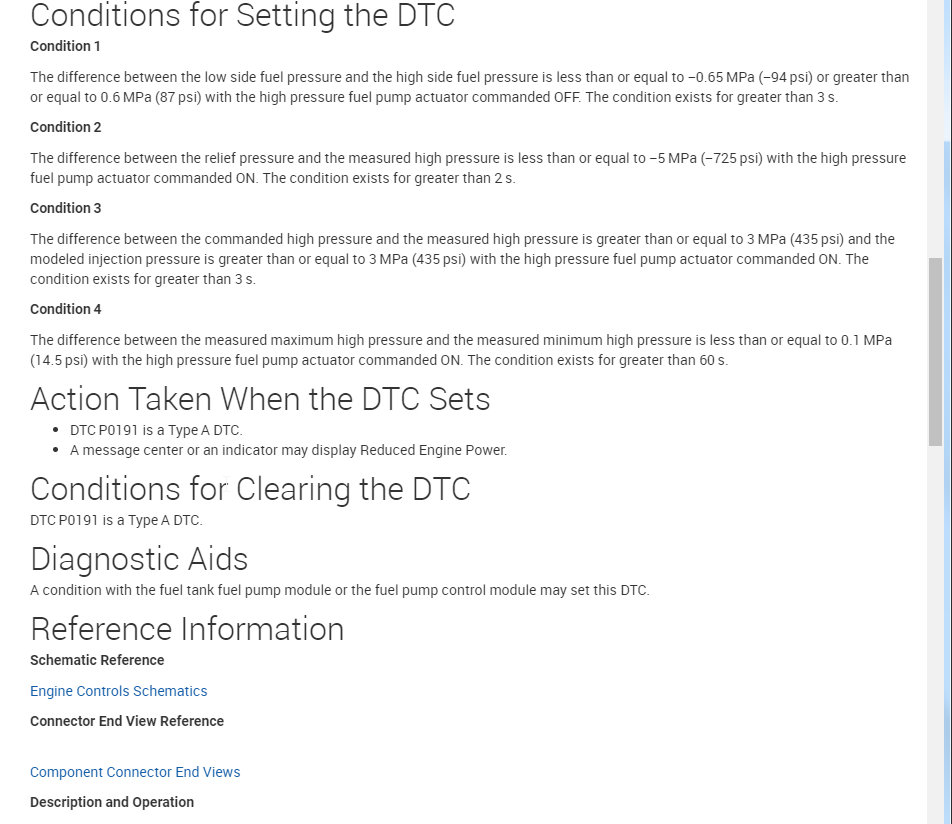

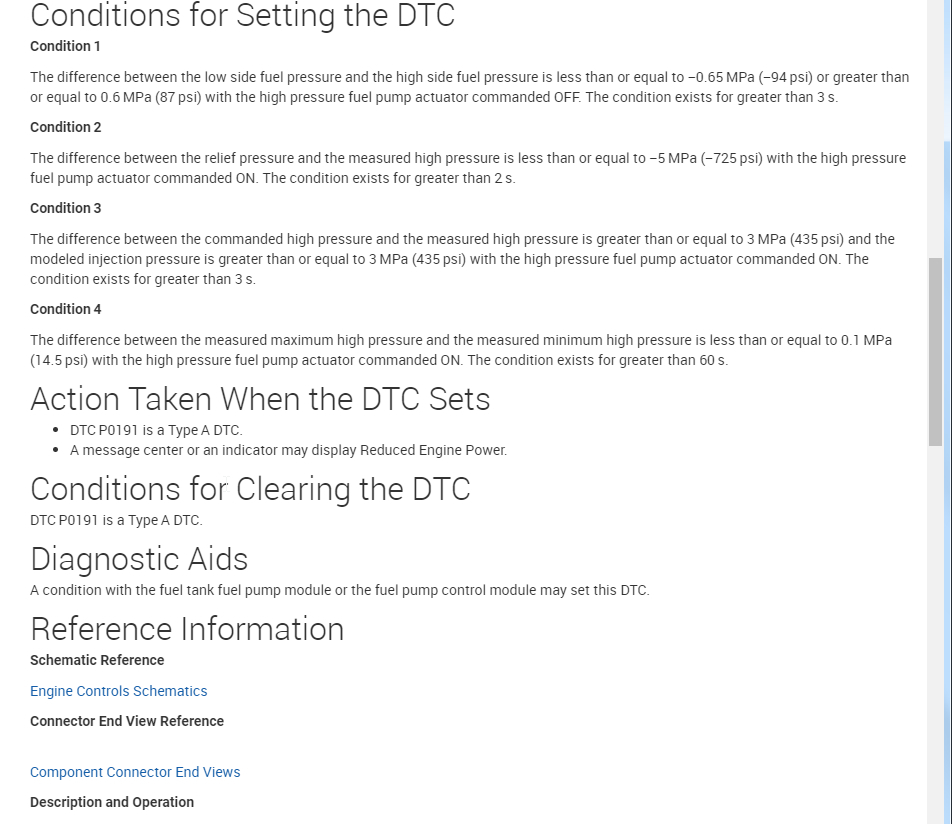

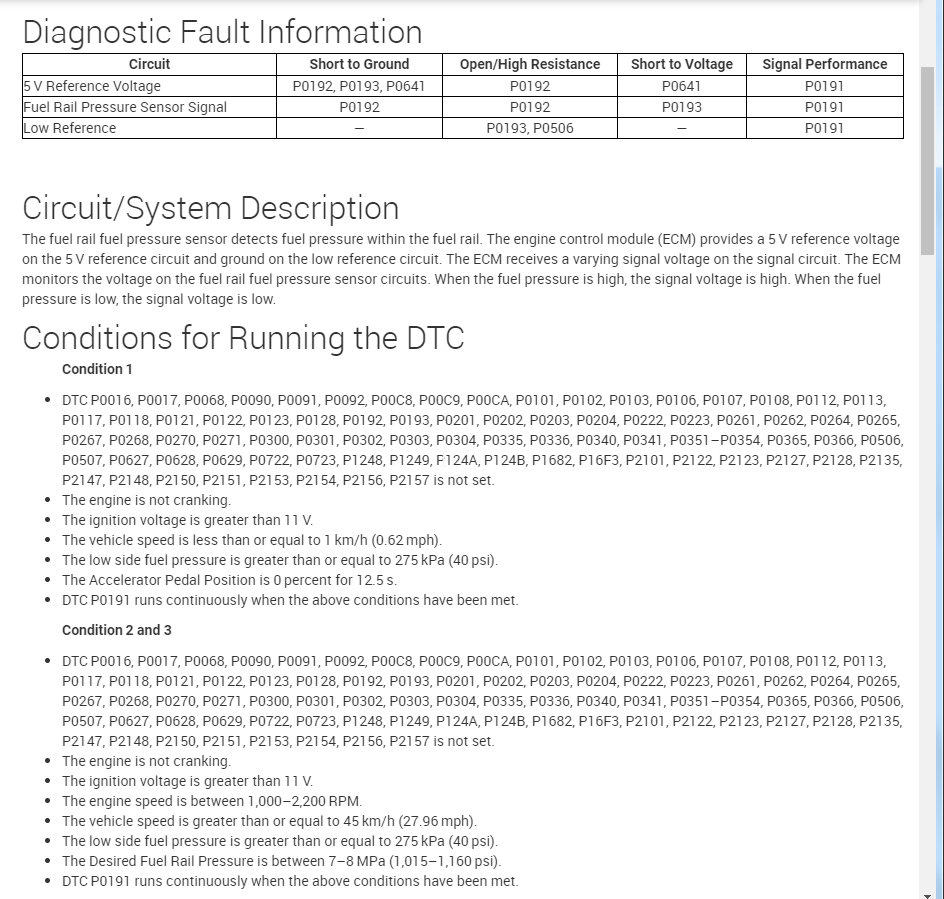

Here is the diagram for the P0191. The P0016 is related and is actually mentioned in the description.

Basically this is finding to great of difference between the fuel pressure sensors.

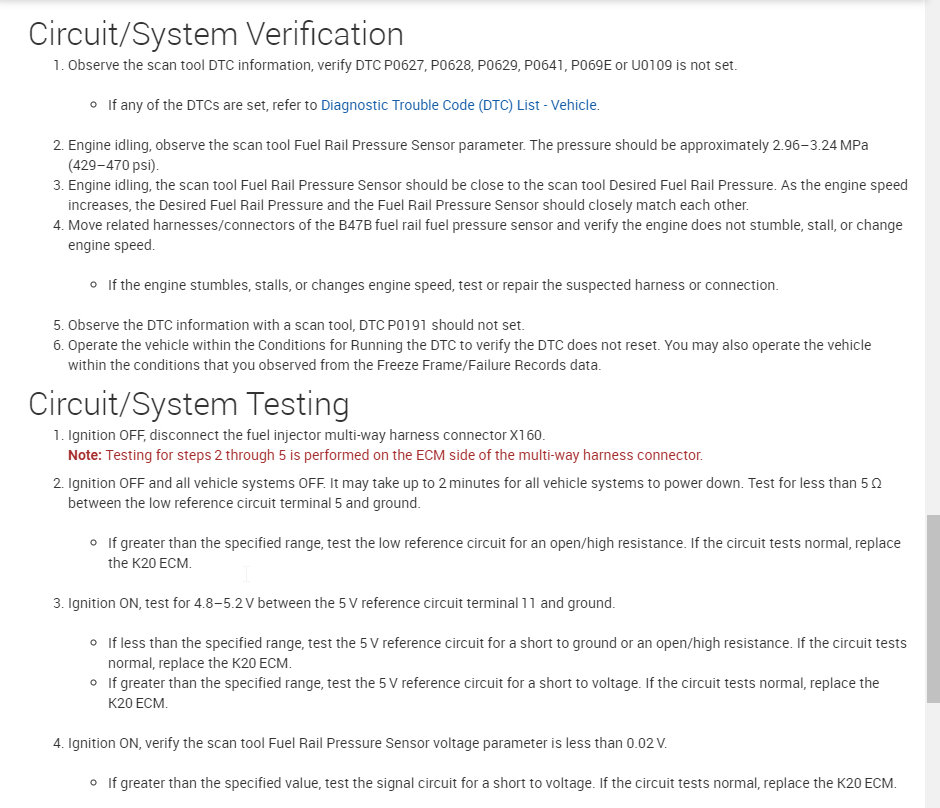

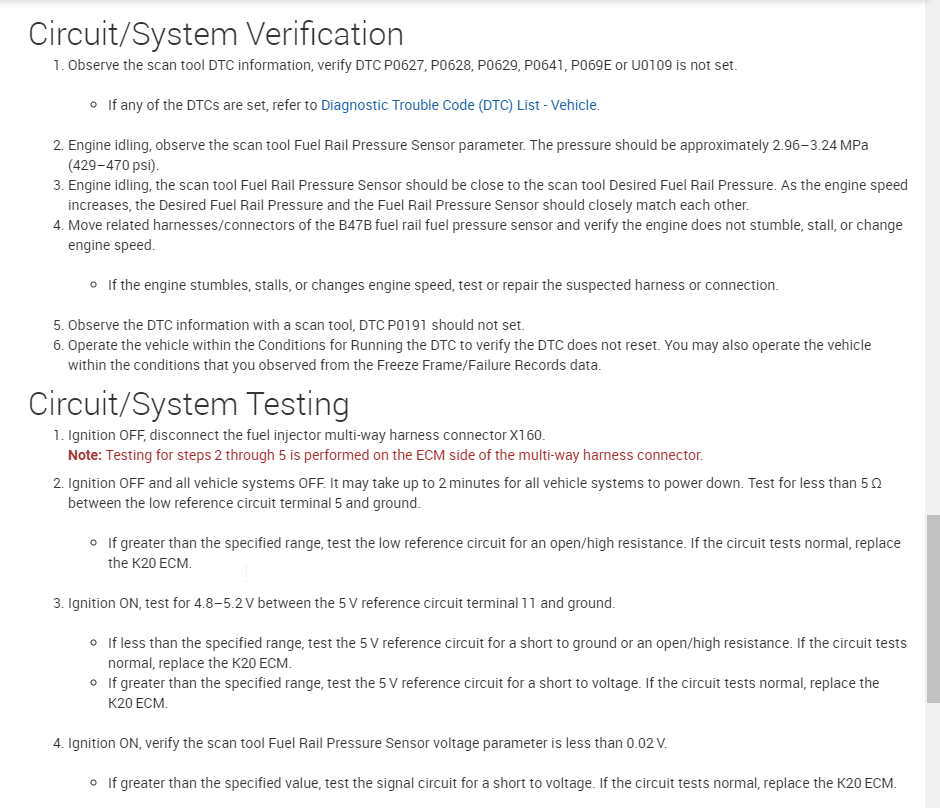

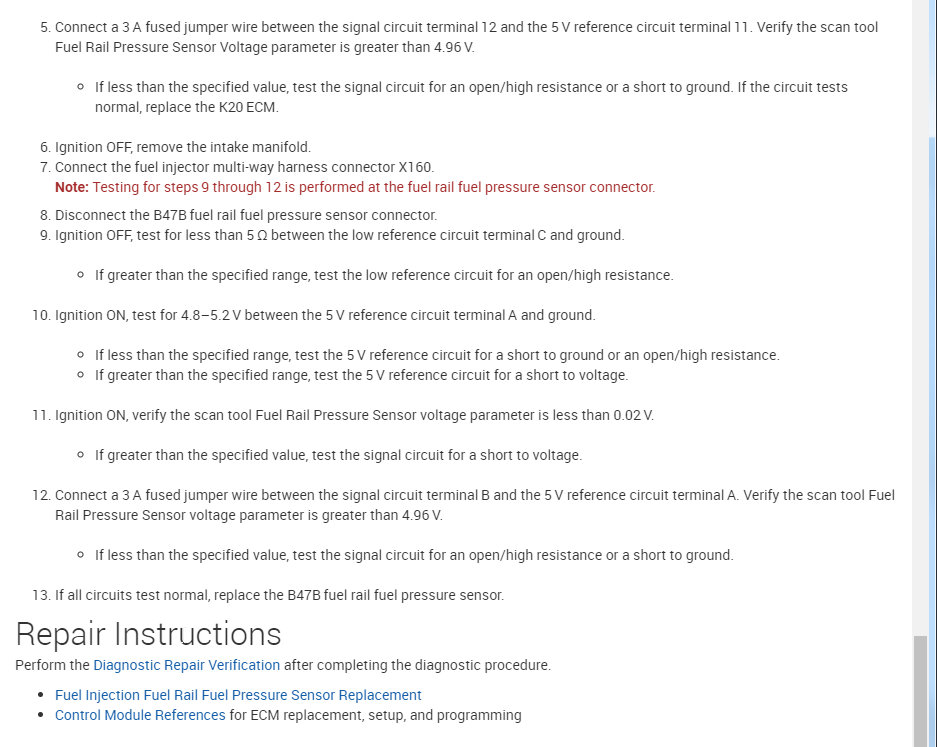

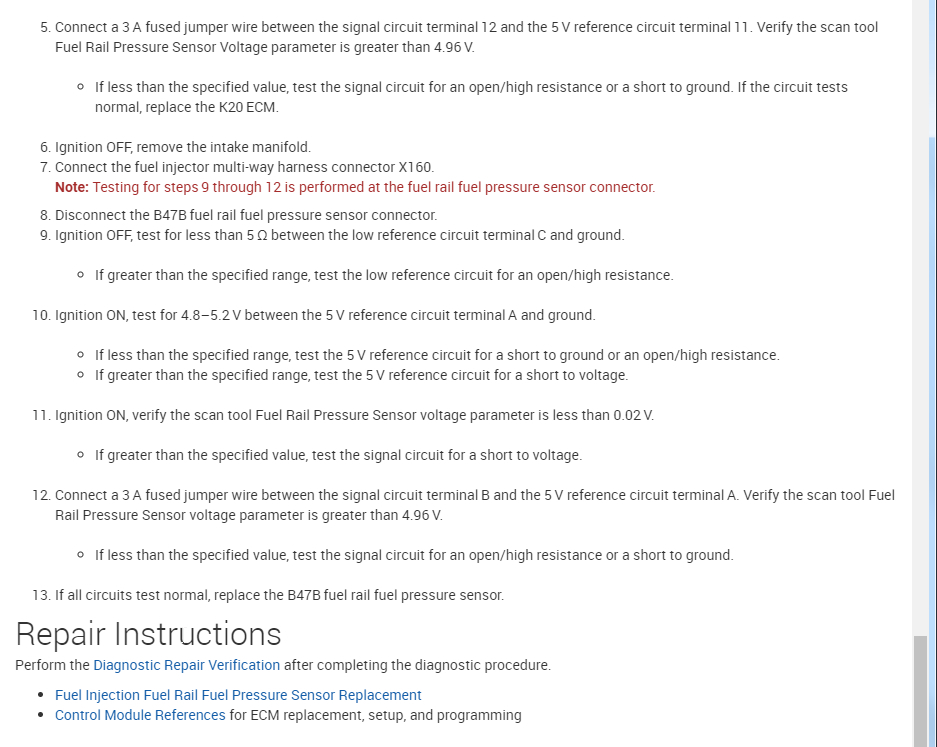

The testing is attached so we need to run through this and see what turns up.

Let me know if you have questions and what you find. Thanks

Sorry for the late response I haven't had a chance to get to the testing part but I'll do it tomorrow and I'll keep you updated.. And thank you for your help.. Is there a different way I can reach you faster if I have any questions ??

Unfortunately, we have to keep all communication on this site. I know it is not the most convenient way but the idea behind it is that others will come that have the same issue you do can follow through our conversation and fix their issues as well.

I will keep an eye on my email this weekend and look for your response specifically just in case you need more help. When I see it, I will respond ASAP.

BTW, I'm MonsterLiiz, So the car decided to finally start running for a few days then it just stalled on my way home from work. the car just didn't want to run so OnStar had it towed for me to the dealership. I just got the car back. I was told I had to replace the timing chain or worse case scenario, new motor. I guess came loose so no compression. Long story short it luckily was just the chain. $2,800.00 sure beats $10,000.00. Oh please let me know if I was overcharged. Thank you for your help.

Thanks for the update. That does not sounds out of line for that job. Especially depending on what part of the country you are in the hourly rate will vary.

Please come back to 2CarPros in the future.

At first I thought it was pretty high, but after I read the full invoice, it was a fair price. The price. Included oil change timing chain, guides, seals, water pump, tensioner and actuators.

Thank you for the help I really appreciate it.

Anytime. Please come back in the future if you have other questions. Thanks for using 2CarPros.
