Code 982C ECM faulty signal

2003 VOLVO S60
143,000 MILES • TURBO • 4WD
Avatar
NWAMAKAEZEANOCHIE
  • MEMBER
  • 3 POSTS
Car starts sometimes and finally stopped. check starter, changed battery and still will not start. Now only key is lost.
Reprogrammed a new key and car still will not start.
DTC code reads 982C ECM faulty signal.
What is wrong?
Dec 8, 2017 at 5:05 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
It sounds like you have an ignition key that did not take the reprogram. Also, is the security light flashing when you try to crank it over?

Check the system fuses to see if one is out causing the communication error.

Here is a guide to help:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

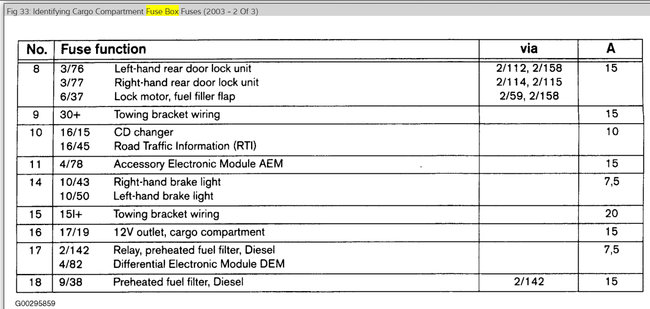

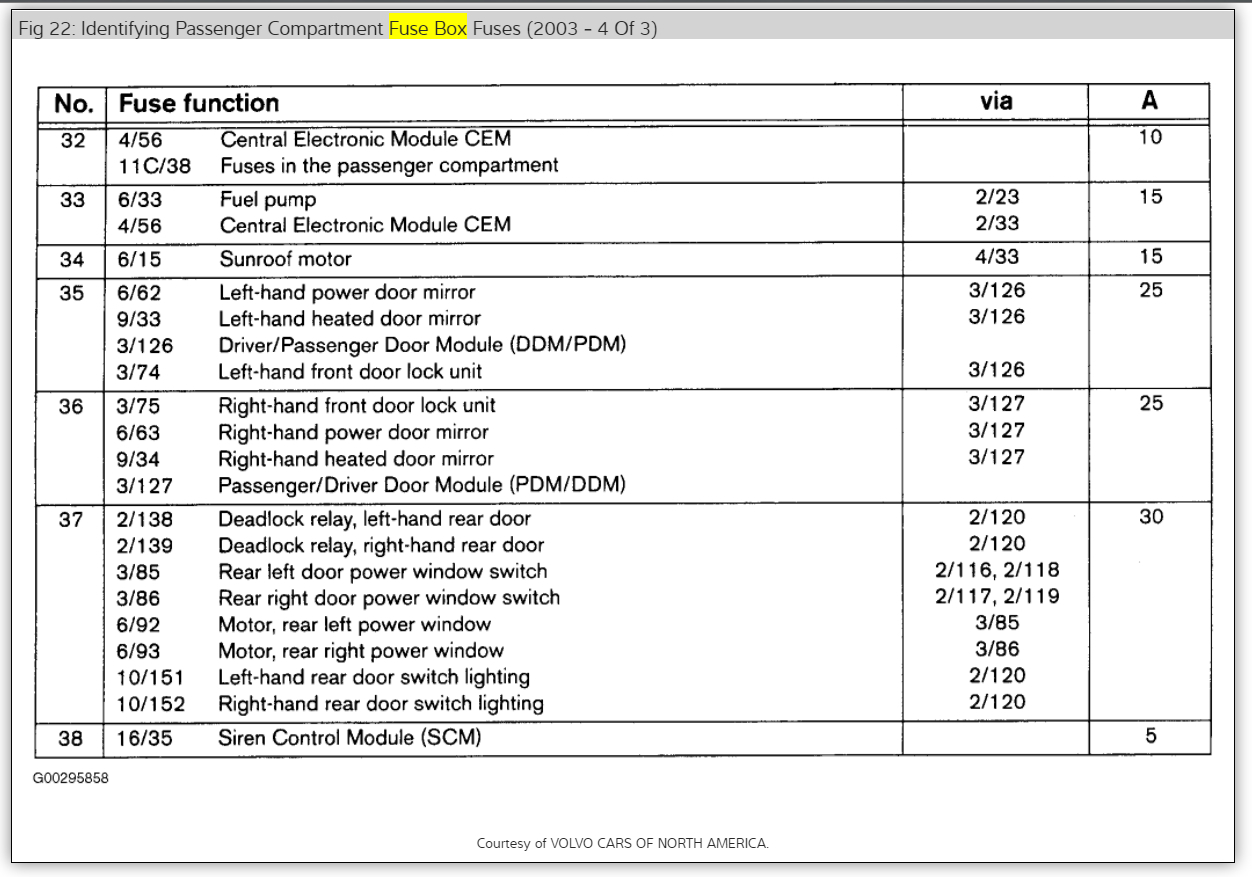

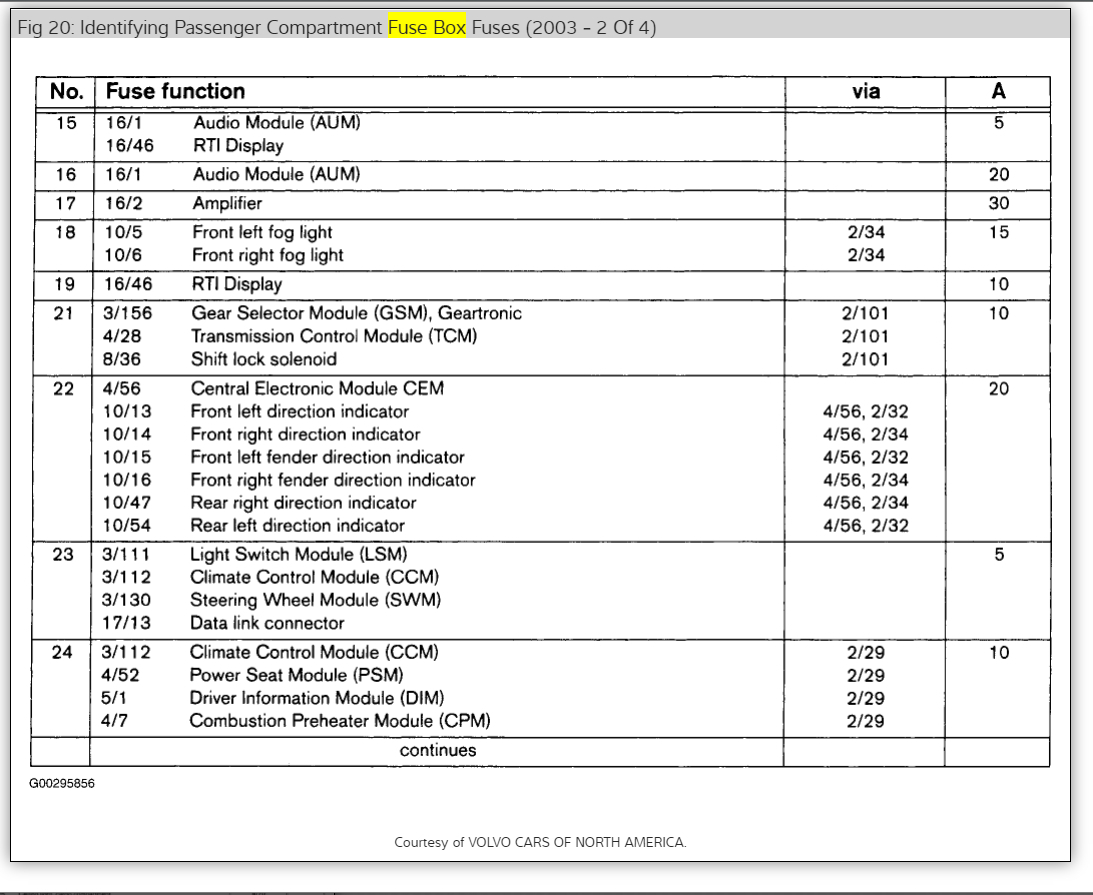

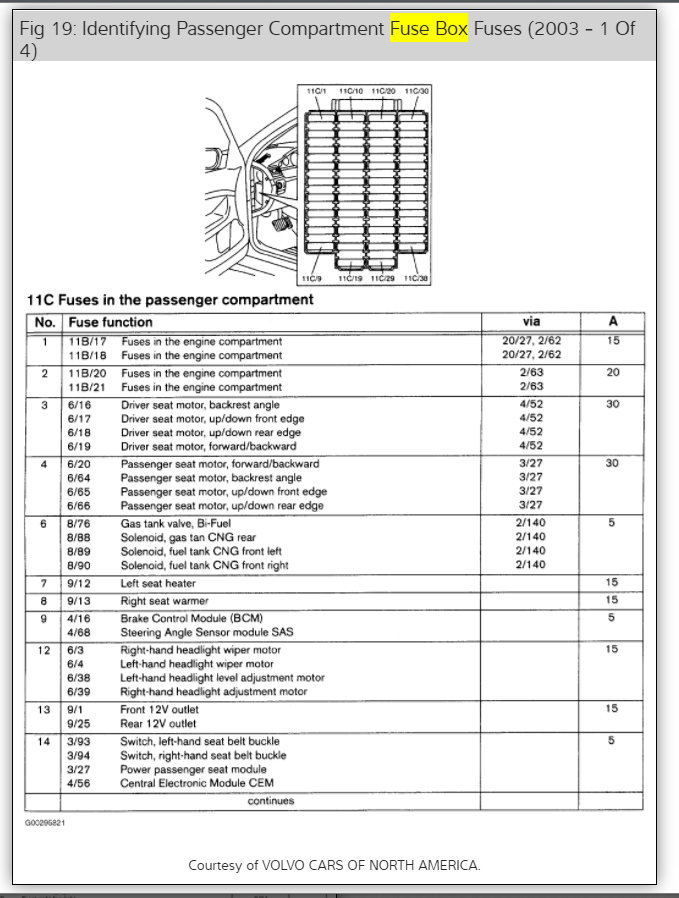

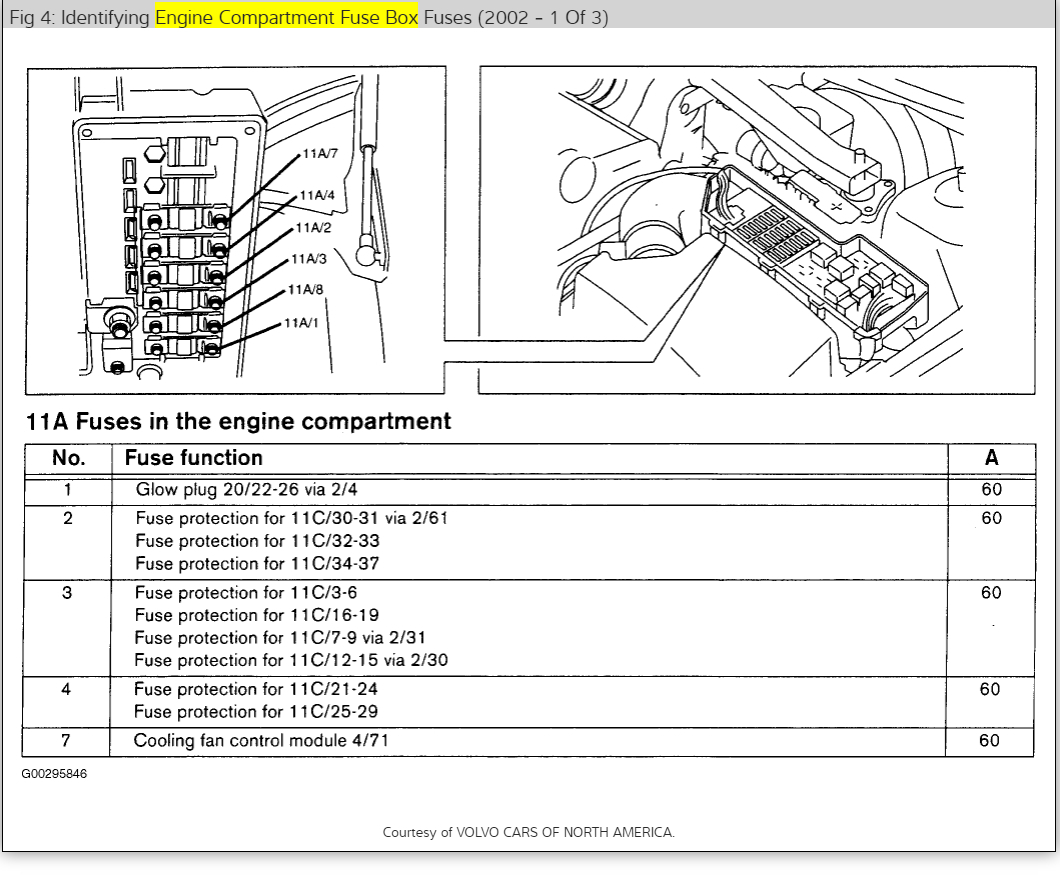

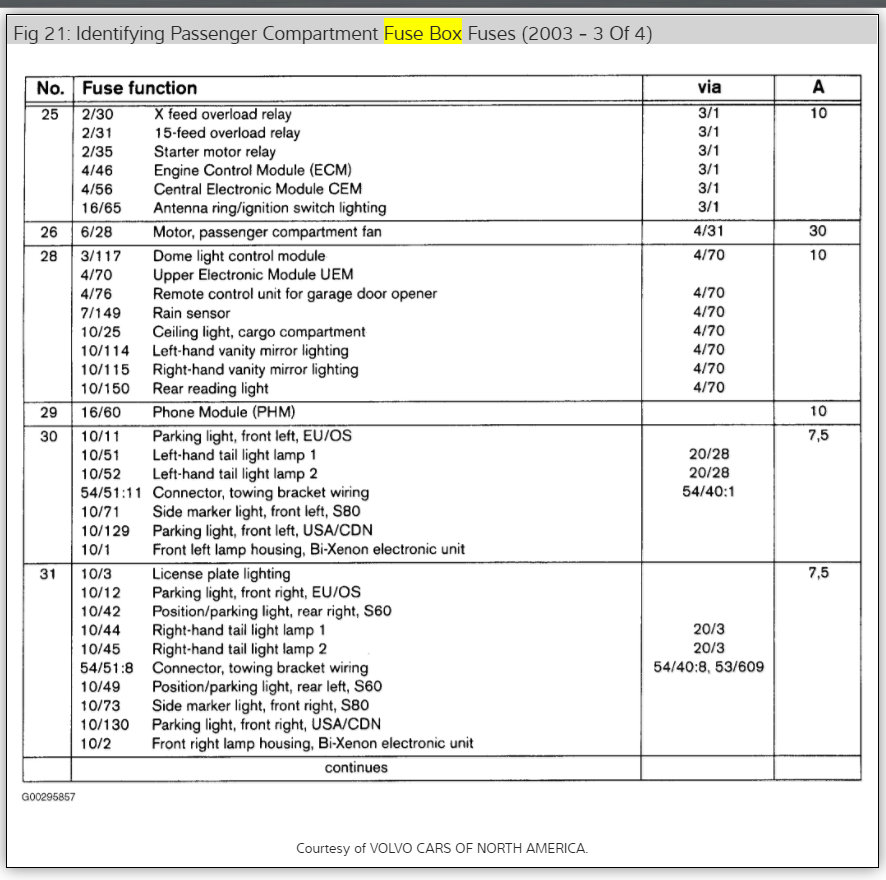

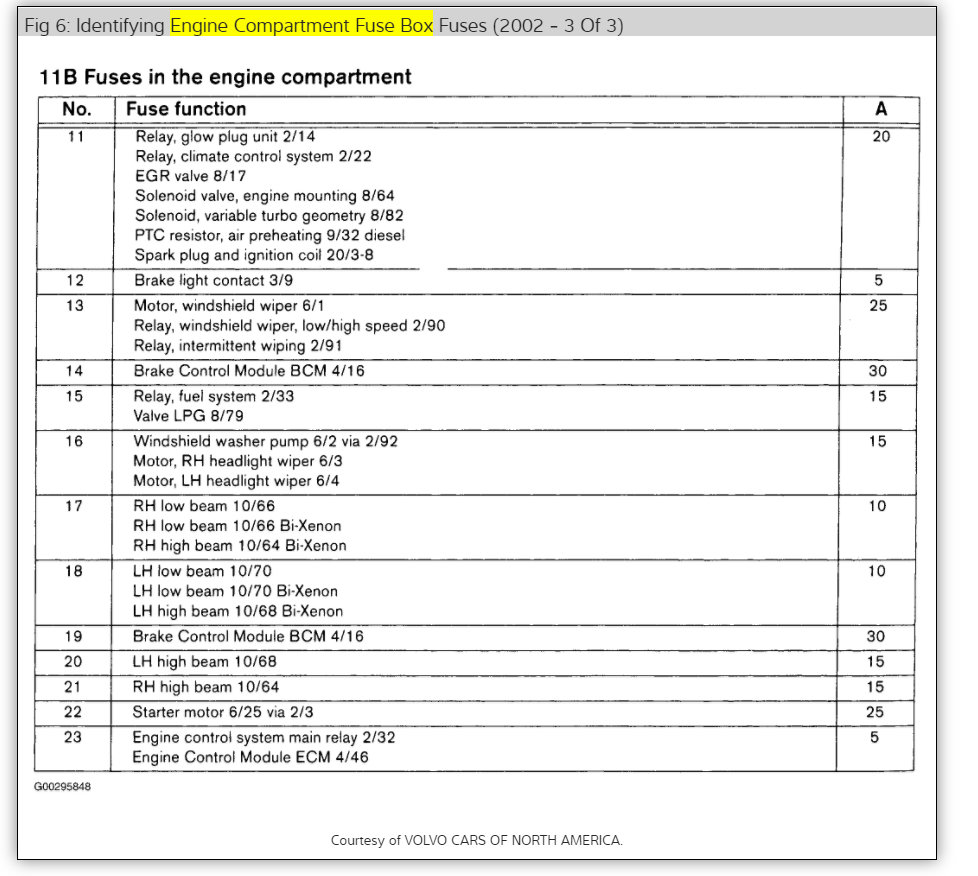

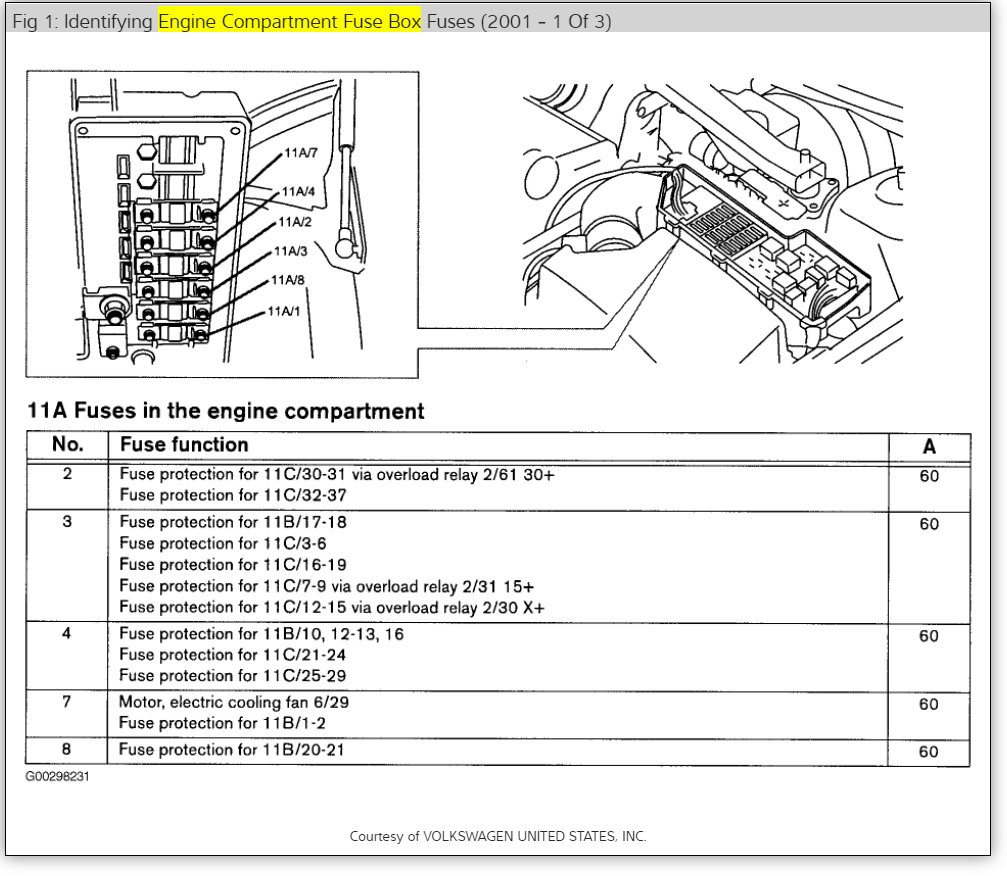

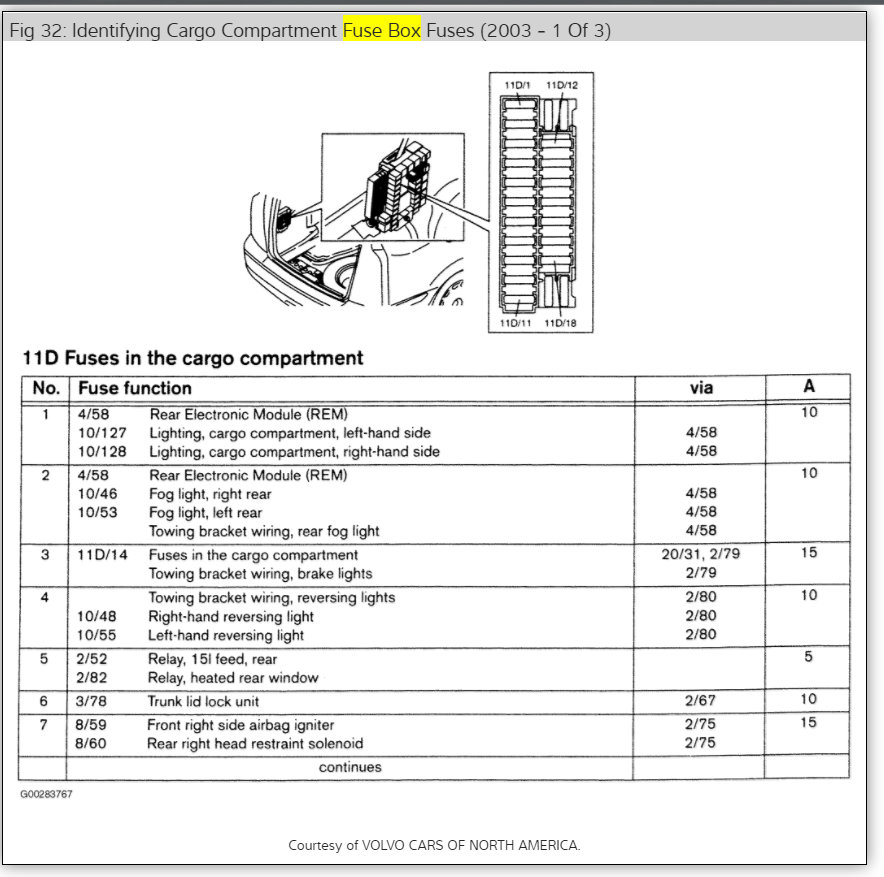

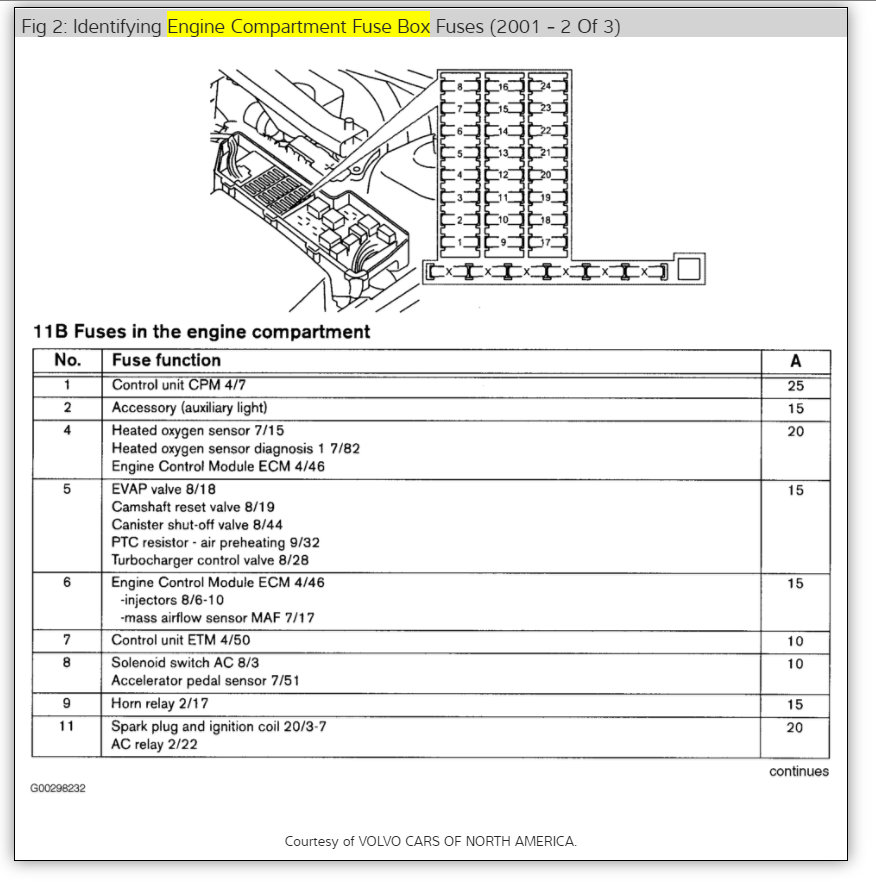

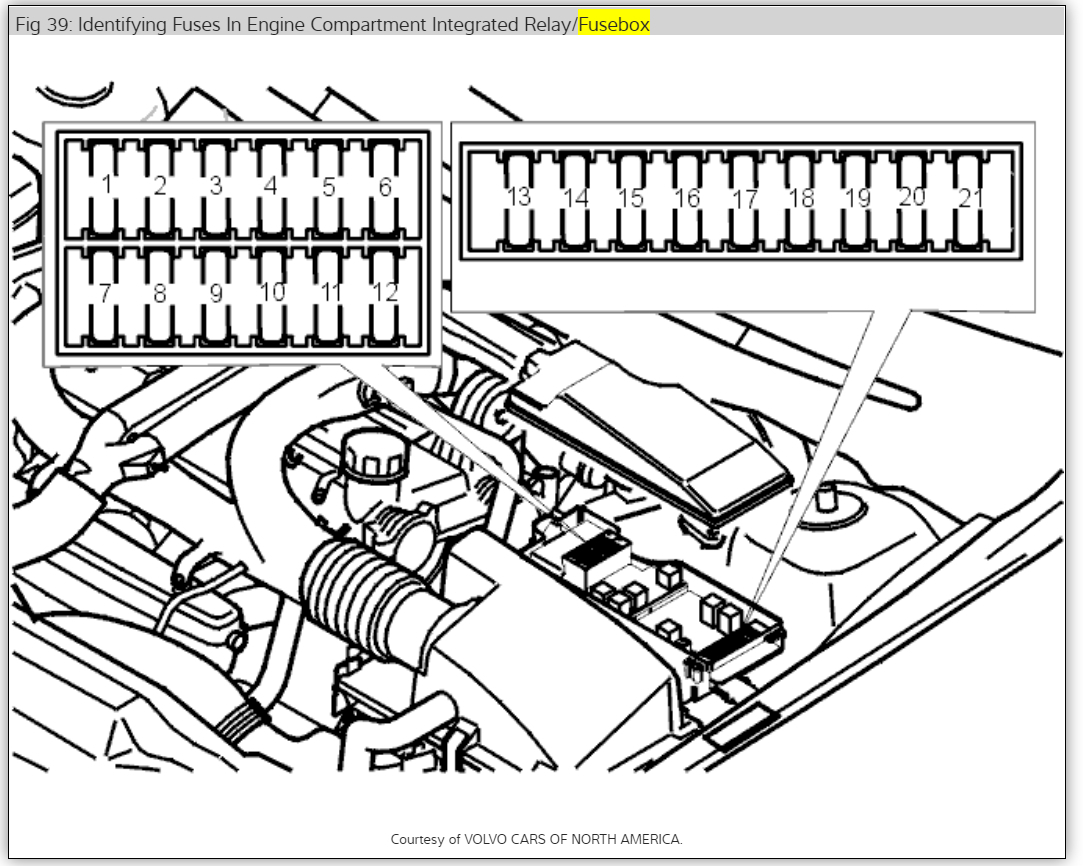

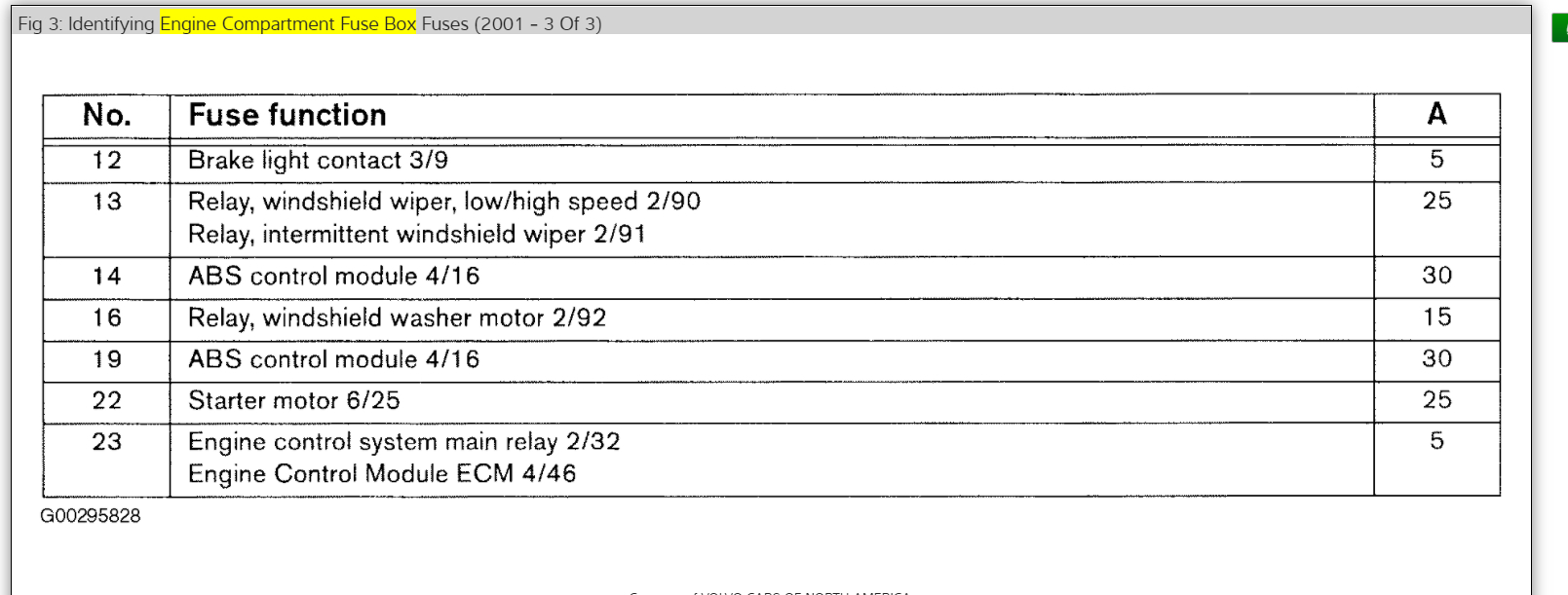

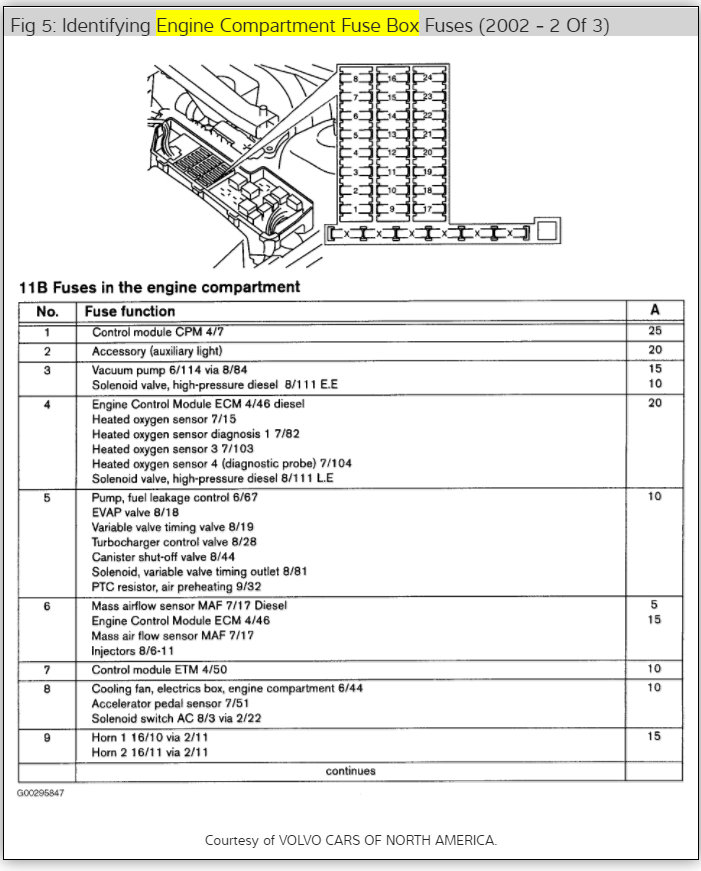

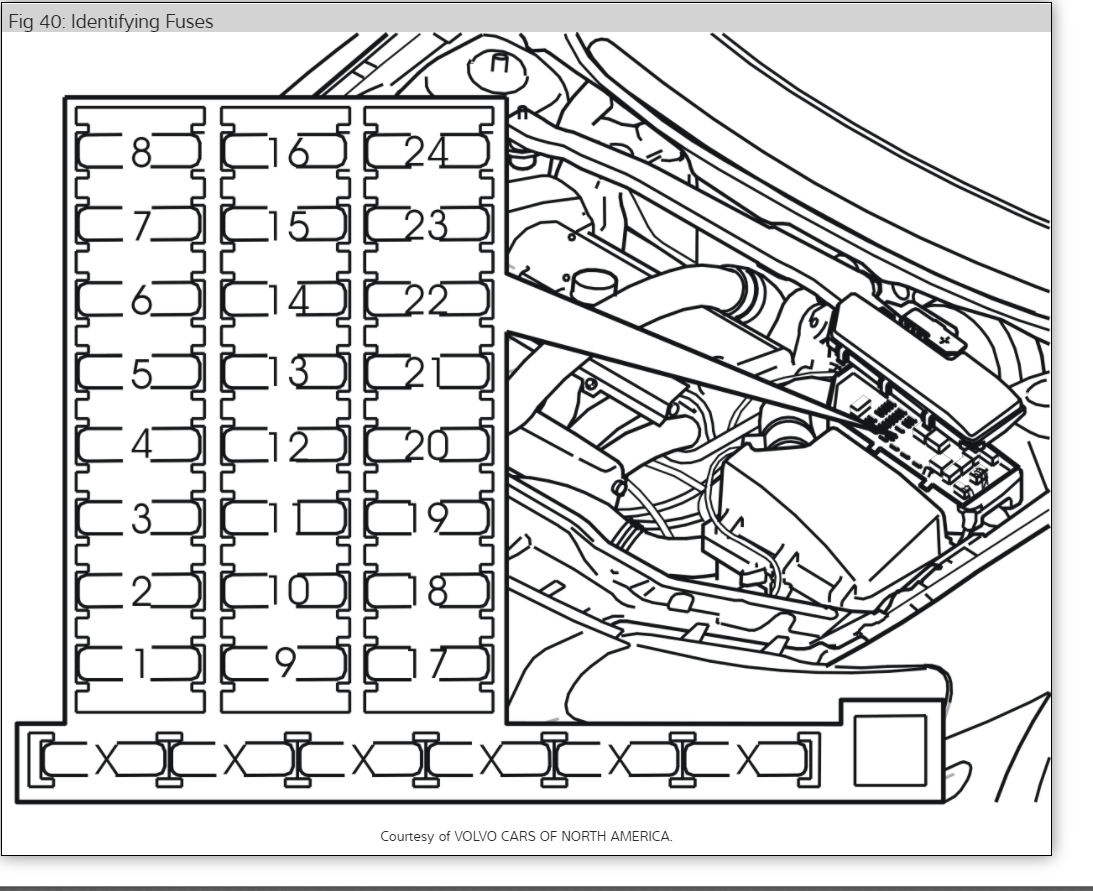

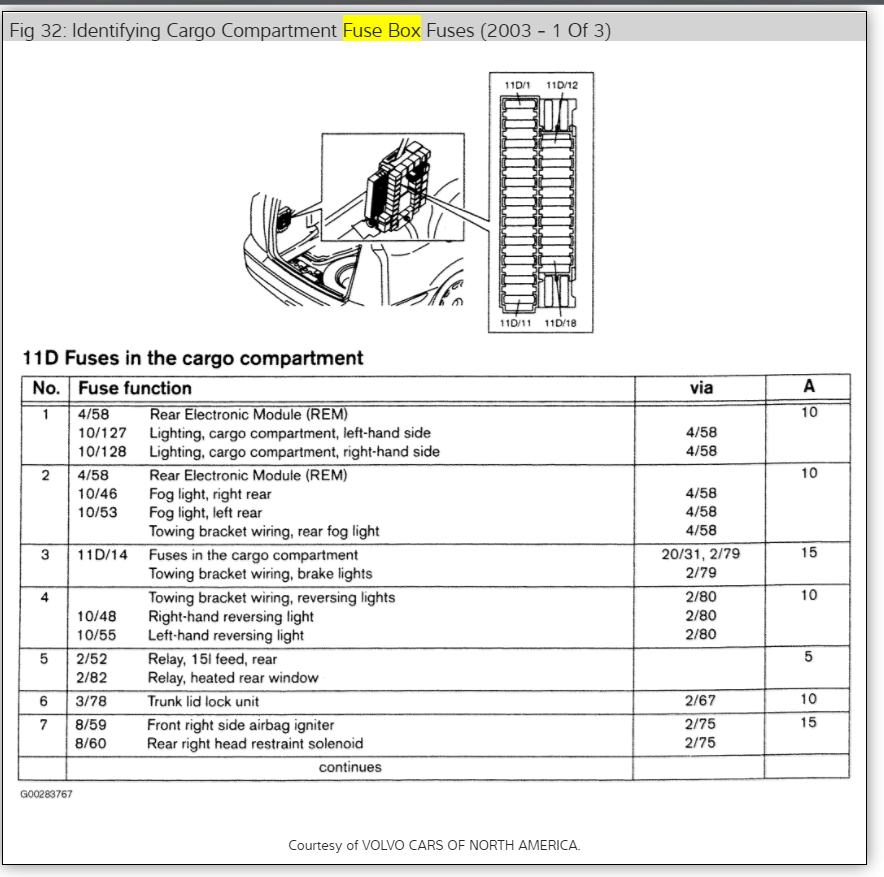

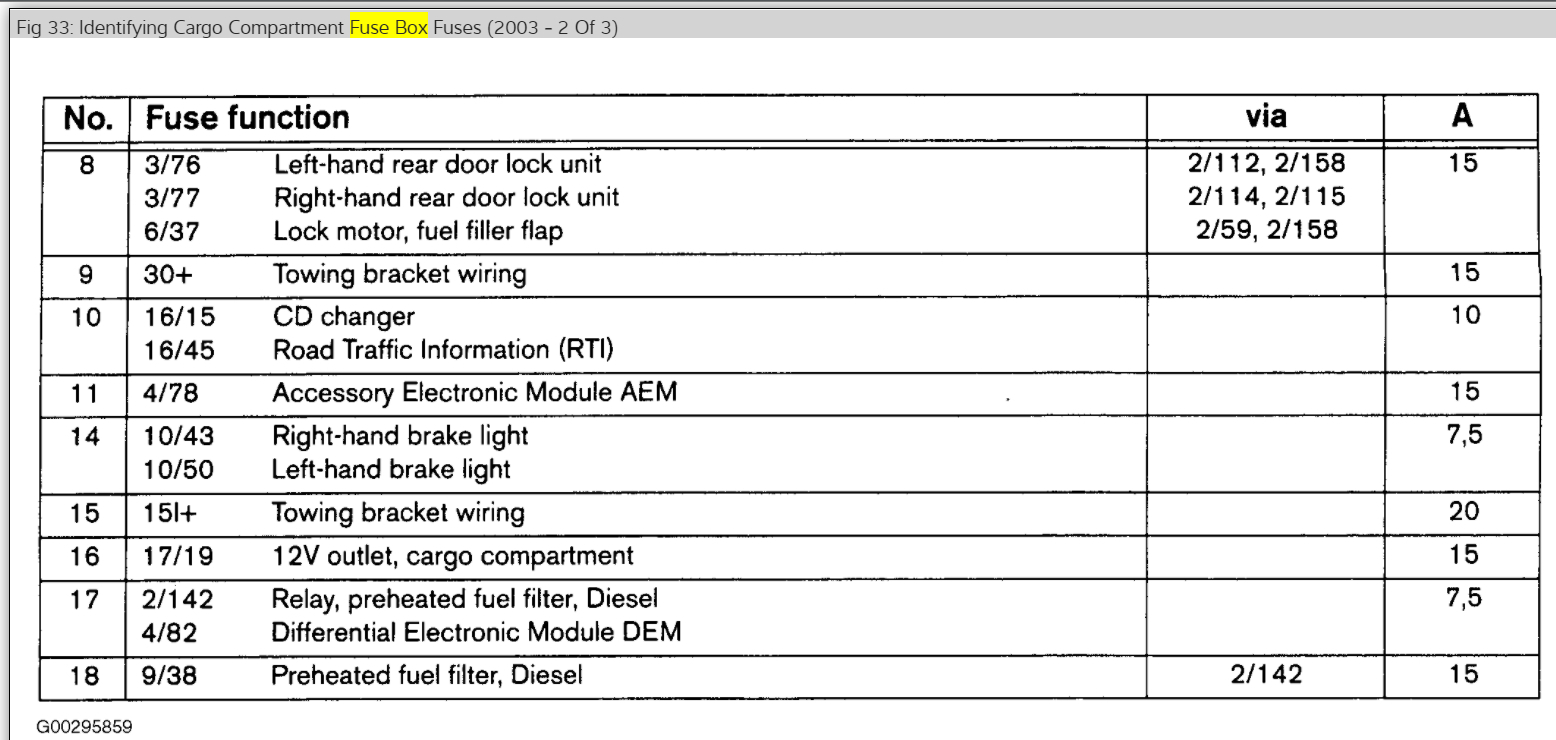

Here are the fuse locations please check them with the key on.

Check out the diagrams (below).

Please let us know what you find. We are interested to see what it is.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Dec 9, 2017 at 6:55 PM
Avatar
NWAMAKAEZEANOCHIE
  • MEMBER
  • 3 POSTS
Sorry, the correct code is 928C ECM faulty signal and yes the security light did go off.
I will be checking the fuses again... I guess you mean if there are blown/bad fuses....
Dec 10, 2017 at 4:19 AM
Advertisement
Avatar
NWAMAKAEZEANOCHIE
  • MEMBER
  • 3 POSTS
Another doc was a bad plug... number 5 but my mechanic says it's not enough to cause problems like cranking cause the car didn't even crank
Dec 10, 2017 at 4:22 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
It wont crank with the security light flashing. Here is a guide to help you reset the security system

https://www.2carpros.com/articles/how-to-reset-a-security-system


Dec 15, 2017 at 1:15 PM
