Where is the Keyless Go antenna located?

2012 MERCEDES BENZ E350
310,000 MILES • 3.0L • 6 CYL • TURBO • 4WD • AUTOMATIC
Avatar
DOBRZAN
  • MEMBER
  • 15 POSTS

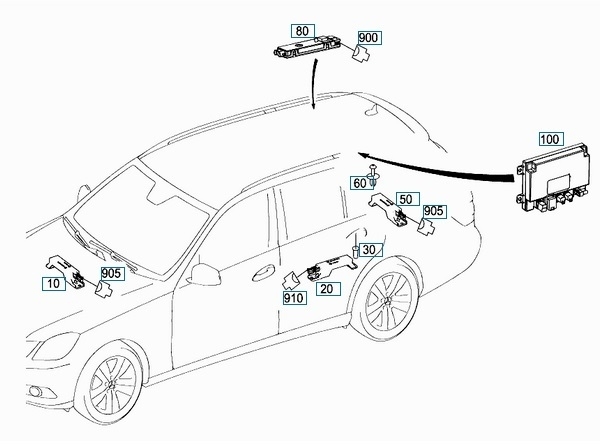

Hi folks. I am looking for Keyless Go antenna's location for W212 Wagon. I know about rear doors where they are. Cannot find where antenna is in front of the car (somewhere under center console) and also rear antenna (somewhere behind rear bench backrest (antennas no 10 and 50 on attached picture). There are 4 antennas and 1 amplifier on the roof frame right side in trunk. or I missed some additional antenna?



Lukasz
Image (Click to enlarge)
Attached Media
May 9, 2023 at 1:03 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

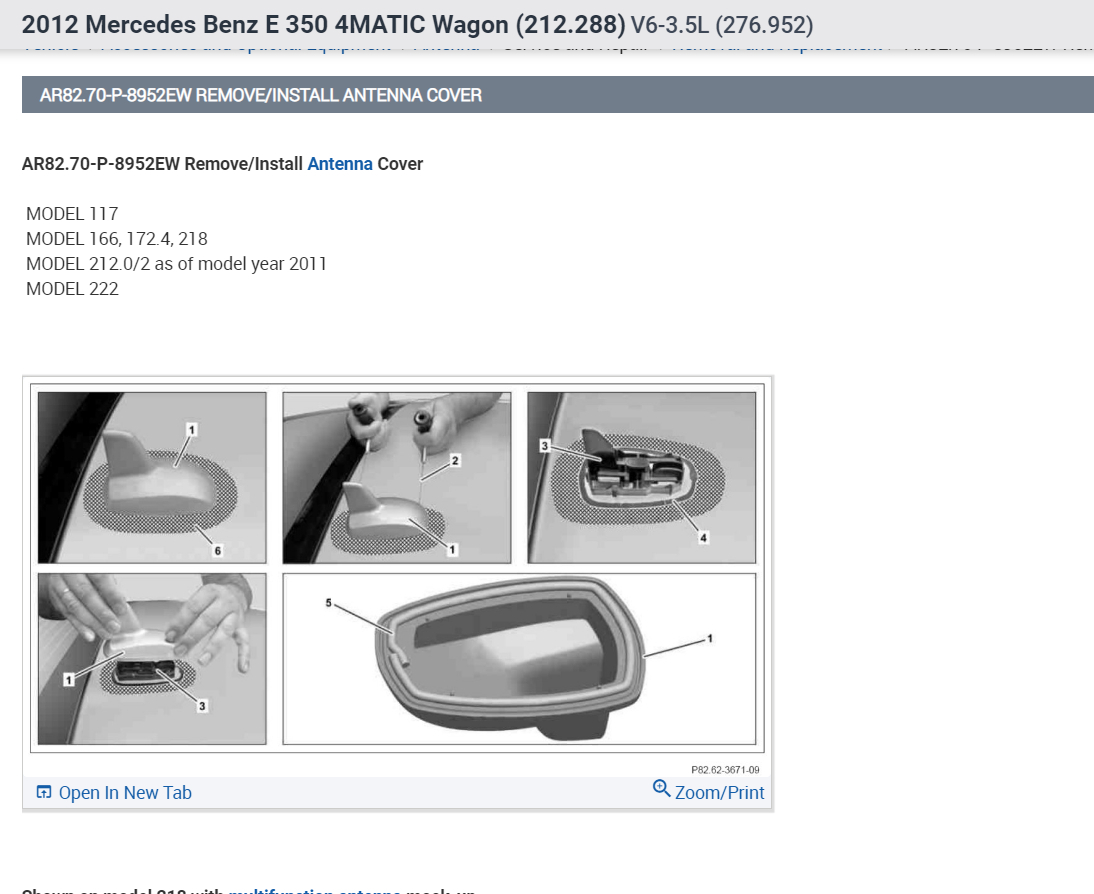

It shows the antenna on the roof. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
May 10, 2023 at 11:20 AM
Avatar
DOBRZAN
  • MEMBER
  • 15 POSTS
Hi Ken. The antenna on the roof is not related to KeylessGo. Okay, no matters. Please try to help me with picture location of rear KG antenna (behind rear bench backrest) and front antenna (somewhere under main or middle console). Thanks
May 10, 2023 at 1:30 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Here are your choices for antenna location:

AN82.61-P-7474-04EW Retrofit Antenna For Global Positioning System (GPS)
AN82.85-P-0020-02EW Retrofit Navigation Box GPS Antenna
AN82.85-P-0020-03EW Retrofit Antenna Signal Splitter
AN82.85-P-0020-04EW Prepare Antenna Line For Navigation Box Retrofit
AN82.85-P-0020-05EW Retrofit Navigation Box Antenna Line
AZ82.61-P-0003-02EW Retrofit GPS Antenna
AZ82.61-P-0003-02EWA Retrofit GPS Antenna

Let me know which one you want.
May 11, 2023 at 9:25 AM
Avatar
DOBRZAN
  • MEMBER
  • 15 POSTS

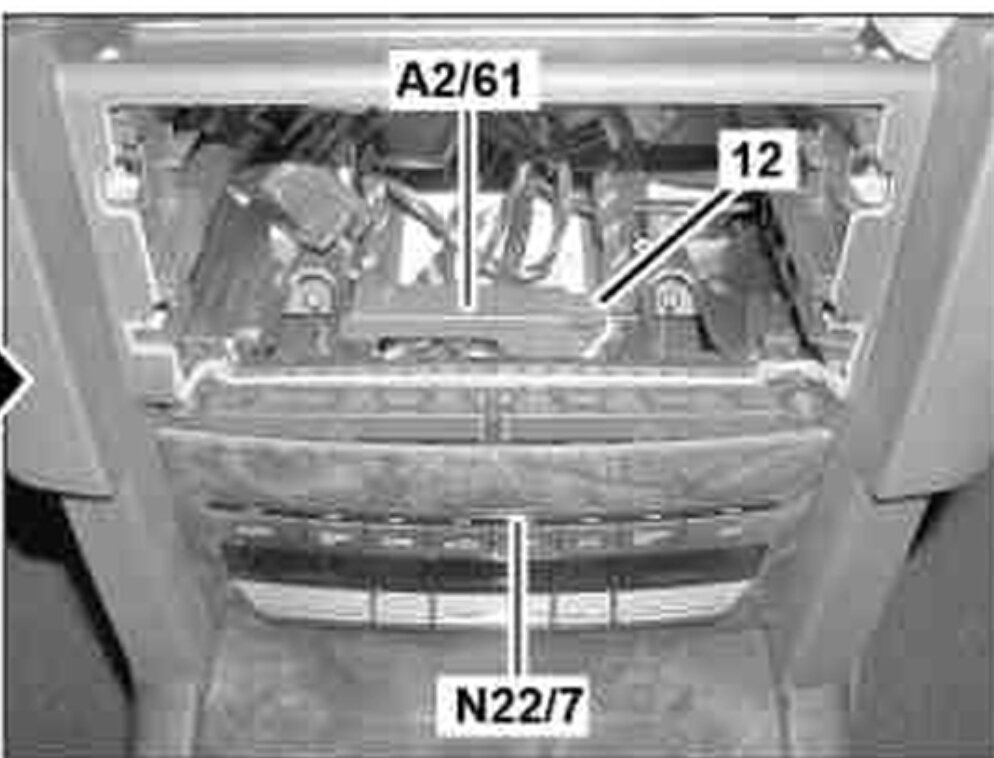

I need a picture like this I have attached below which shows KG antenna under main console (under command unit). Actually, now I need only such picture showing location of antenna in trunk (212 wagon) because only this I cannot find in car.
Image (Click to enlarge)
Attached Media
May 11, 2023 at 11:10 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

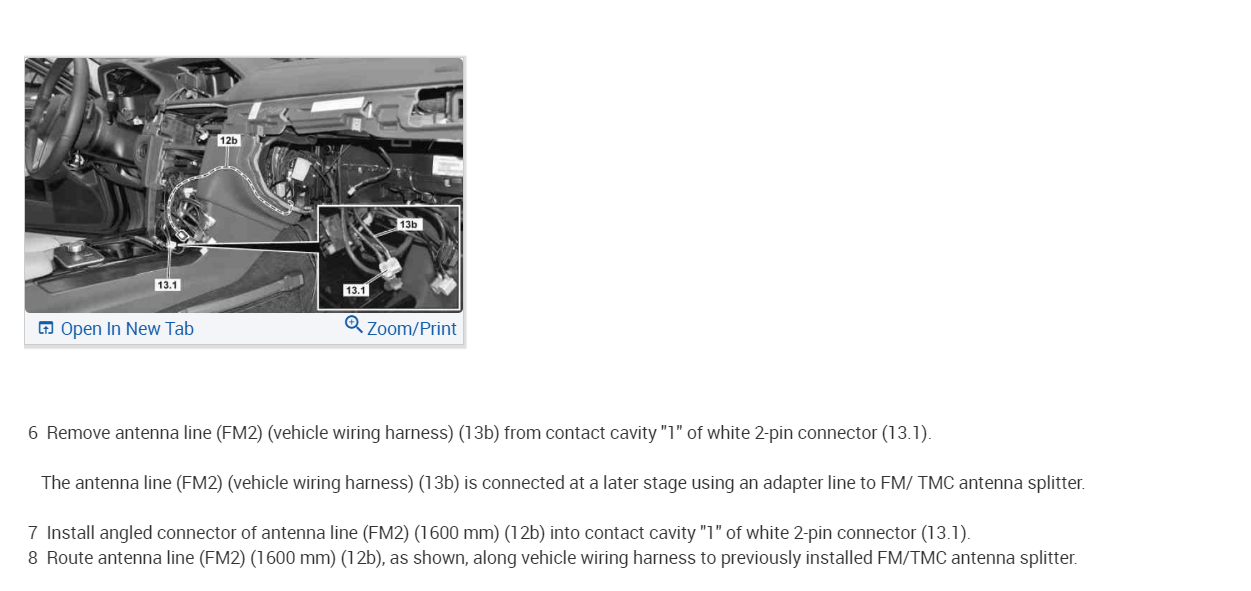

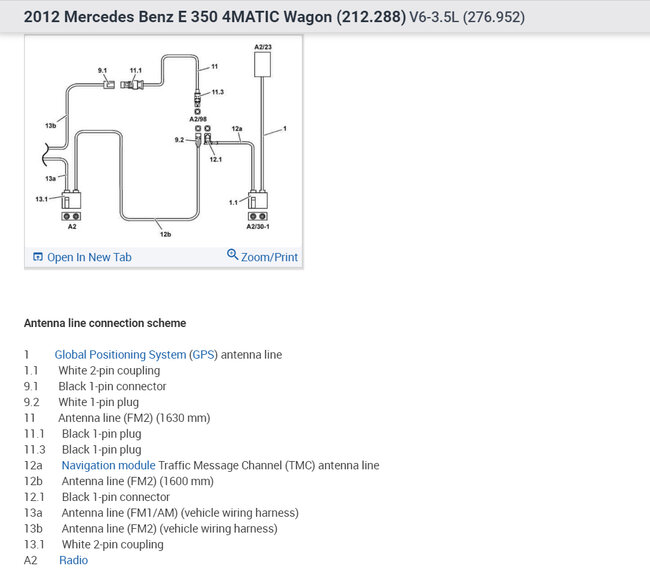

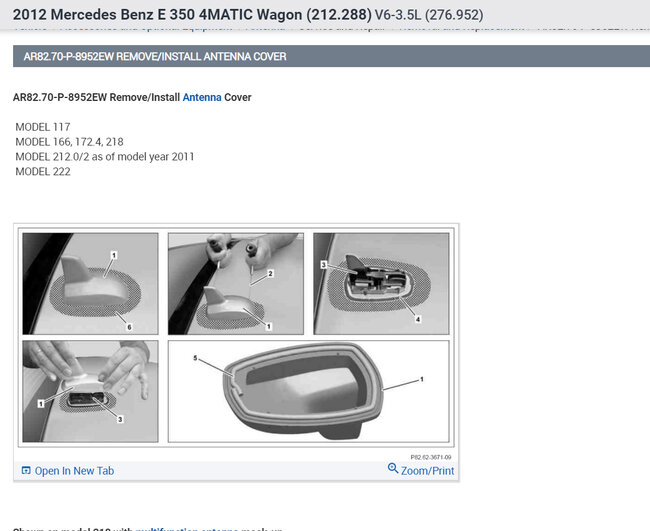

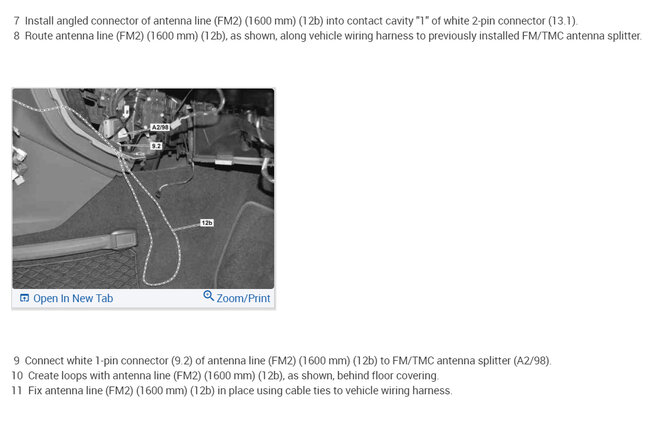

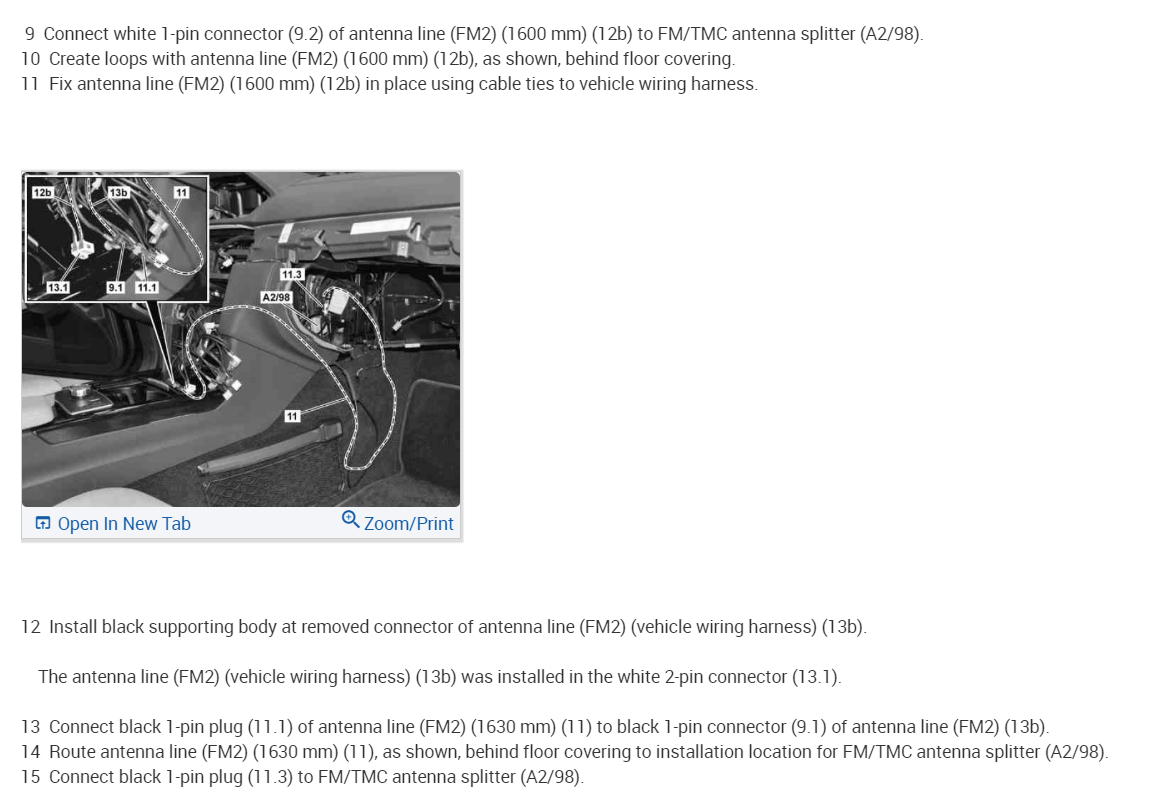

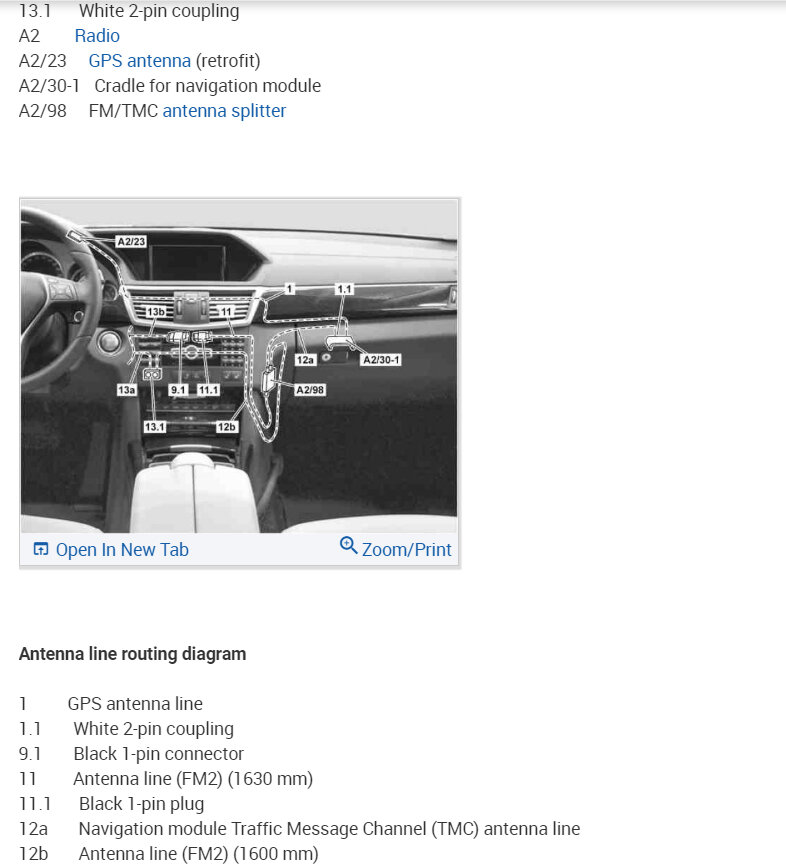

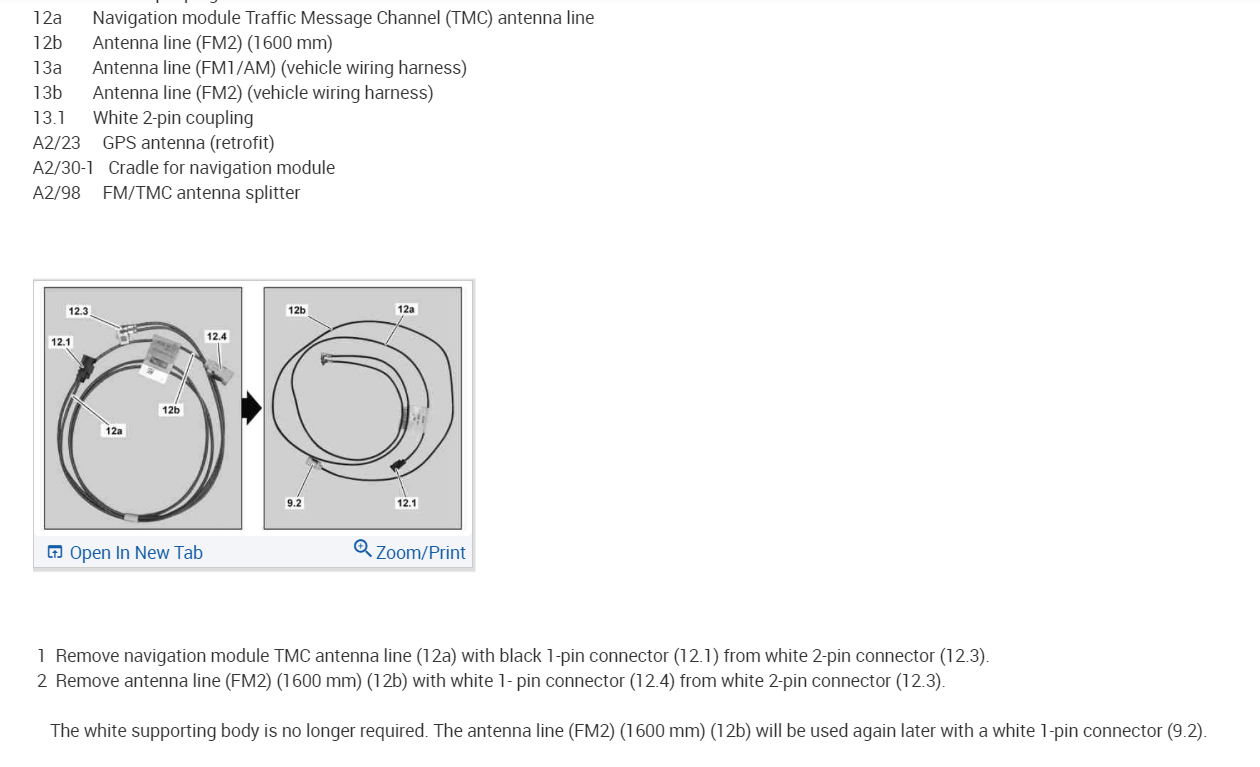

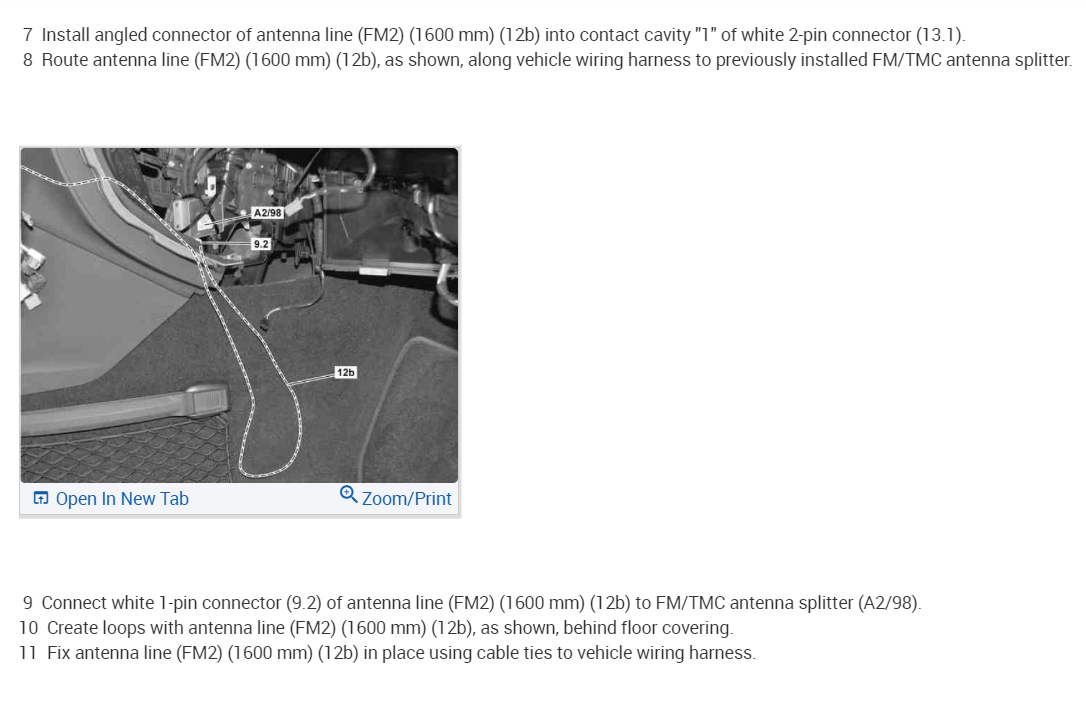

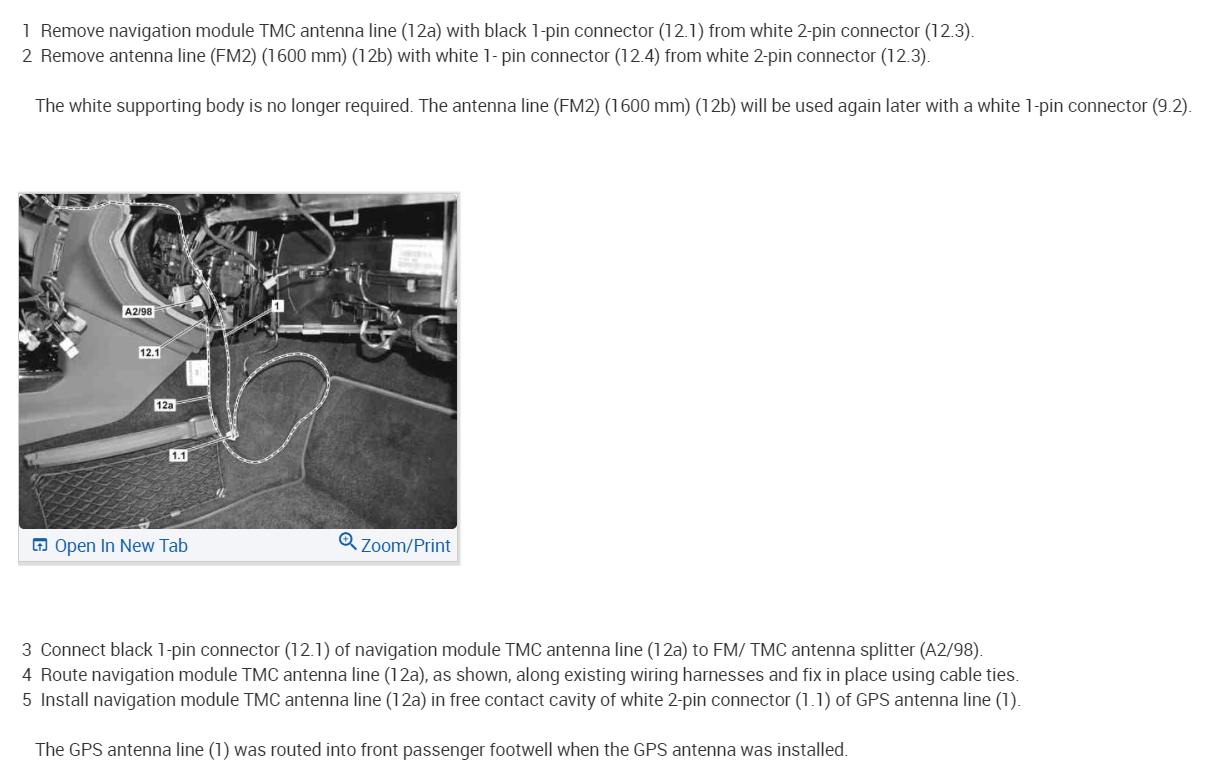

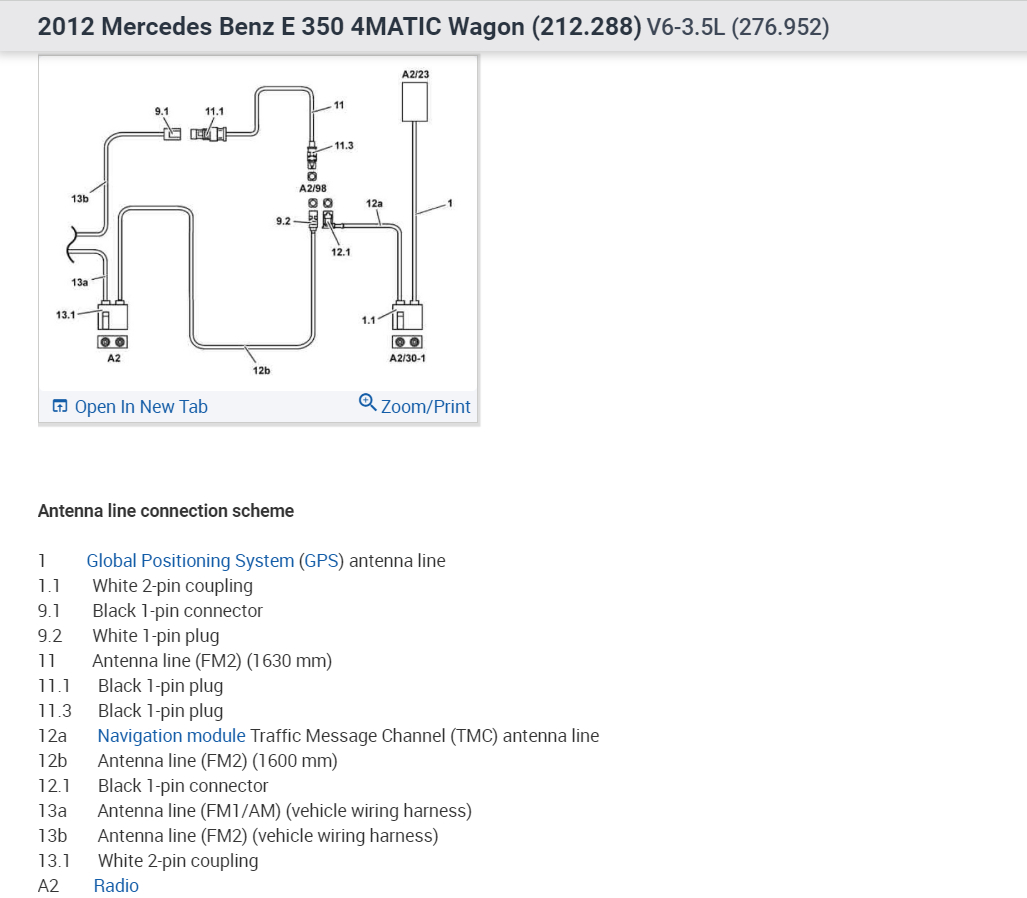

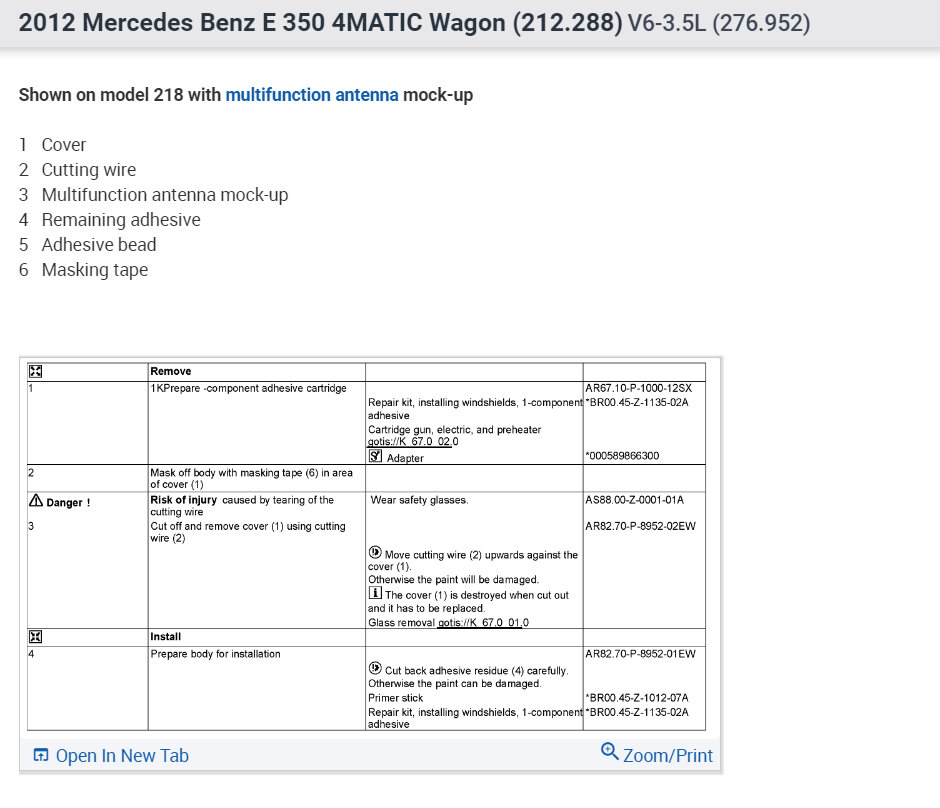

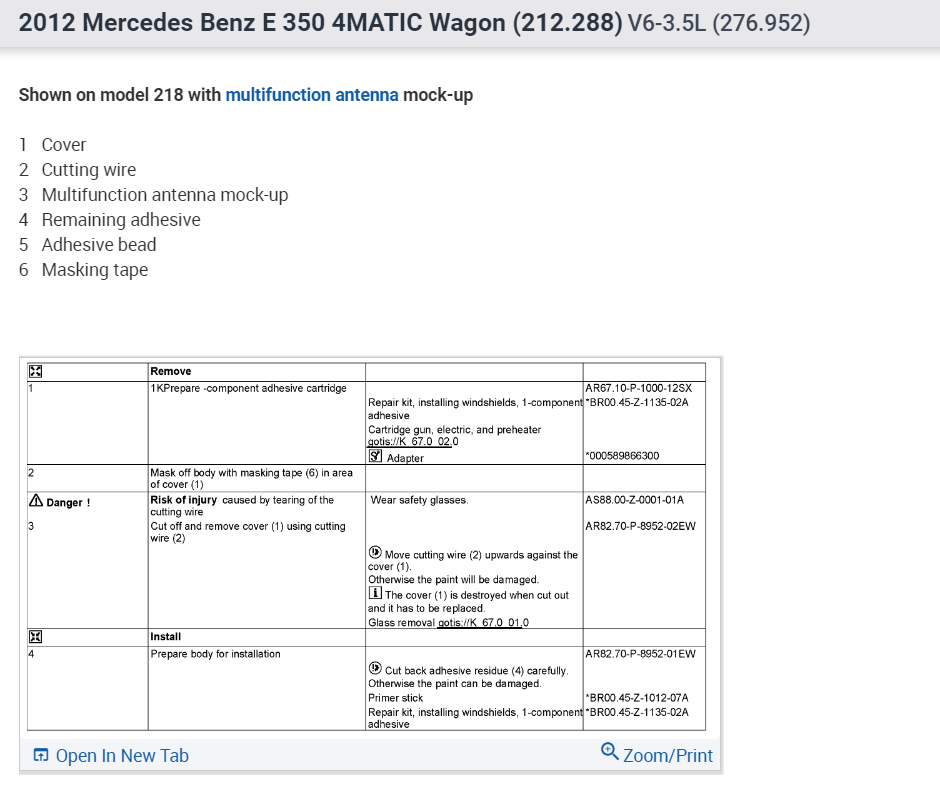

Here is what they show for the antenna locations and routings. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
May 13, 2023 at 9:54 AM
Avatar
DOBRZAN
  • MEMBER
  • 15 POSTS
Ken, i'm not writing about radio (comand) antenna... i need schemes, pictures for Keyless Go system.
May 13, 2023 at 10:45 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Please post your new question here, you must be logged in.

https://www.2carpros.com/questions/new

Cheers, Ken
May 15, 2023 at 9:29 AM
