Radio Wiring Diagrams?

1998 VOLVO S70

CURRO123083

MEMBER
1 POST
FOLLOW

Hello, I have spent two hours online looking for a wiring diagram for a 98 volvo s70, so that I can install my New Stereo. Thought I had the right one but all the colors were wrong, Need to know Speakers + and -, battery 12v, and 12v dc, also ACC, ILL, and thats all, Thank you.

Mar 8, 2009 at 12:58 AM

KHLOW2008

CERTIFIED EXPERT
41,814 POSTS

Hi Curro123083,

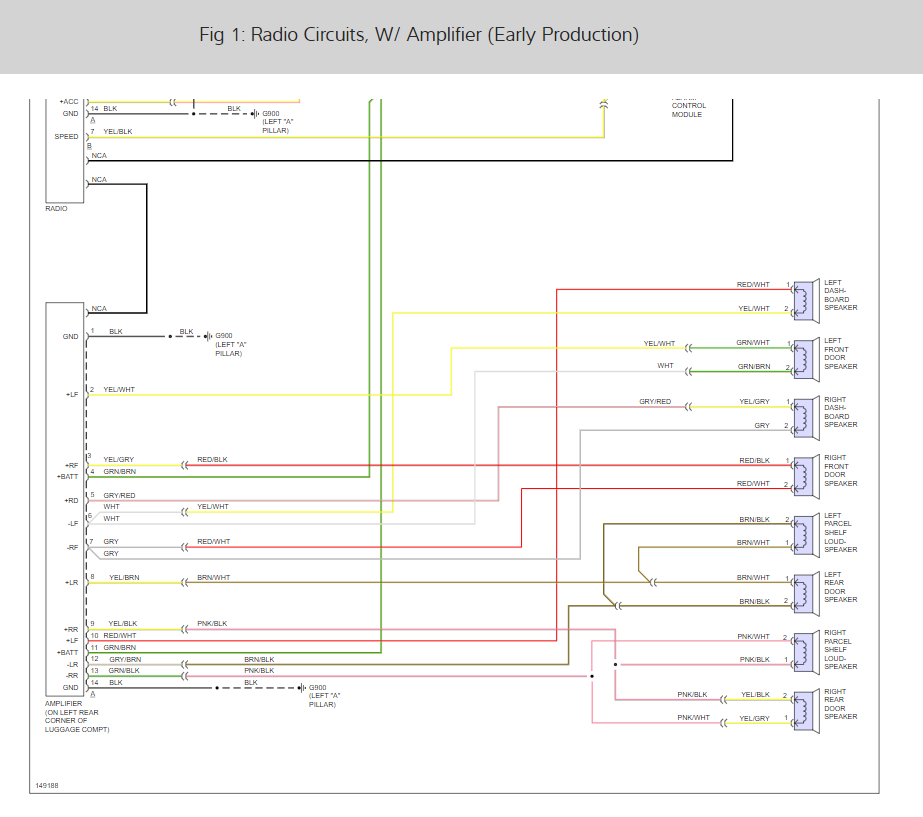

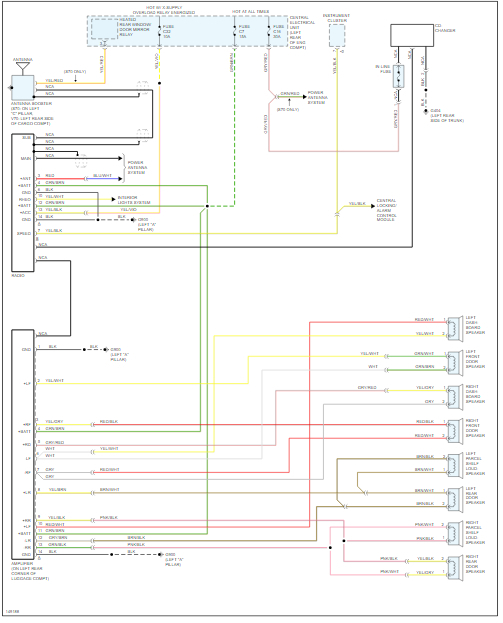

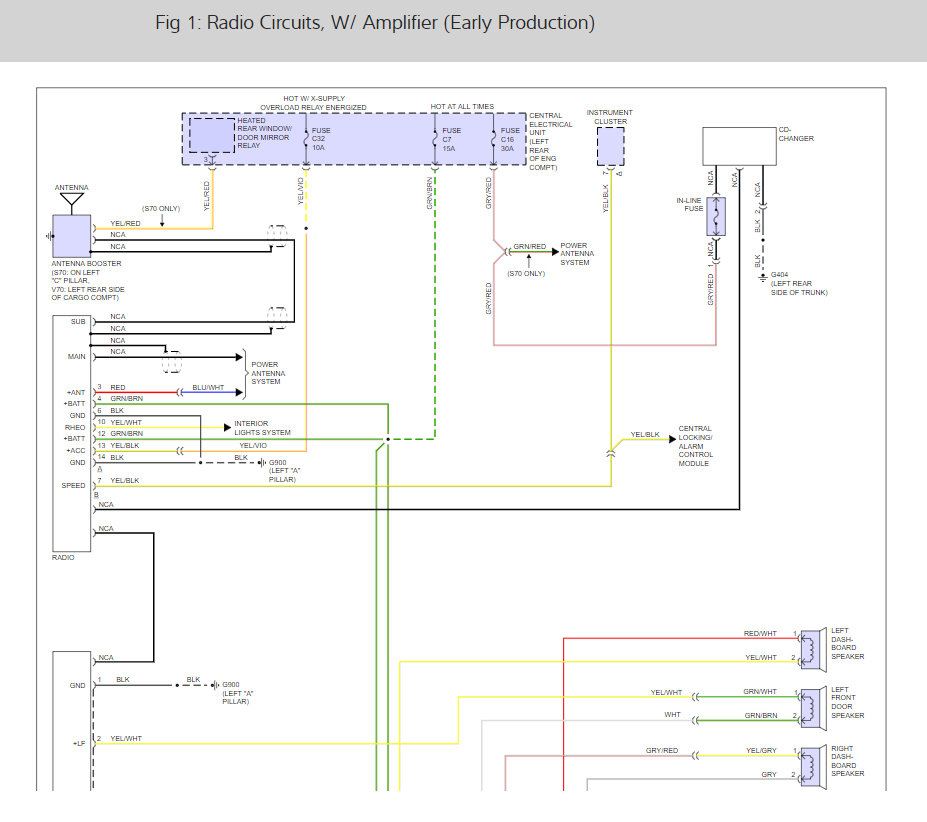

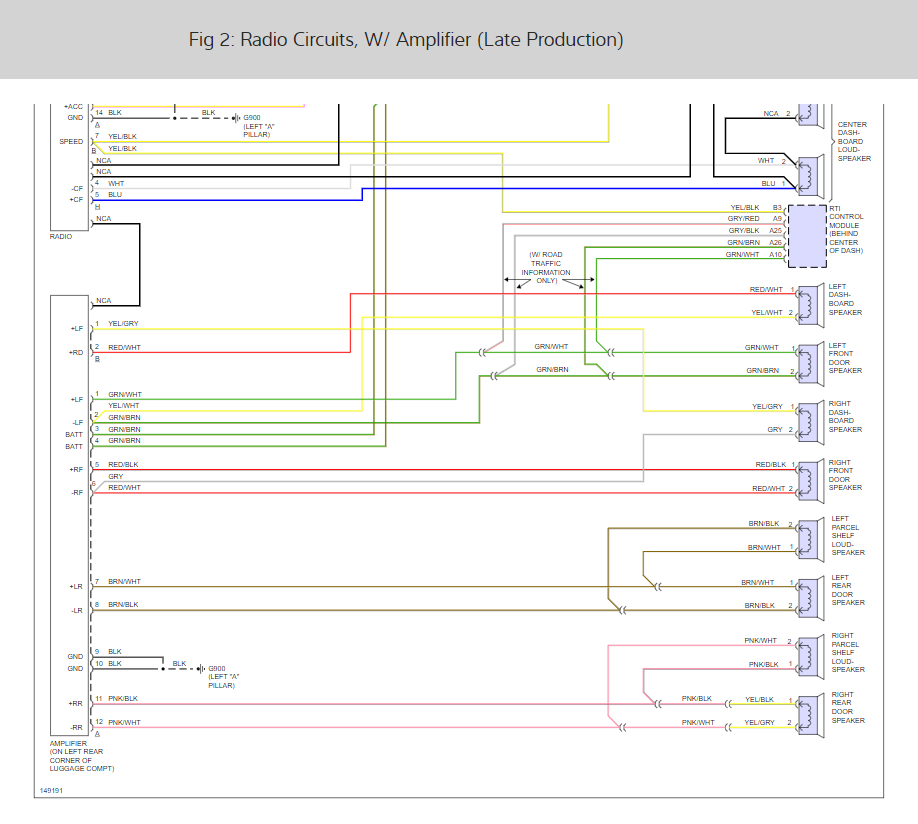

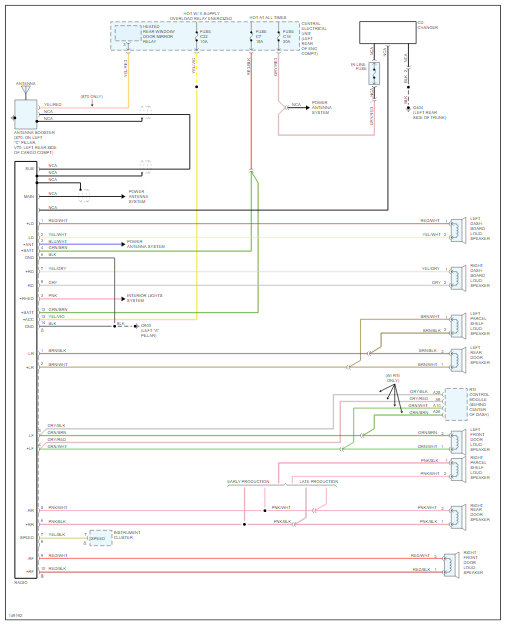

Hope this is the correct diagram there is an early and late production model here are the wiring diagrams for both. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Images (Click to enlarge)

Mar 20, 2009 at 12:03 PM

JIS001

CERTIFIED EXPERT
3,412 POSTS

You can also try to buy an oem wiring kit for your make and model vehicle. You just splice in the connector to your new radio and plugs into your factory connector. You can look online like Best Buy or some where that installs radios.

Mar 30, 2009 at 12:53 AM

CINDY AVERILL

MEMBER
2 POSTS

I am looking for a color coded wiring schematics for stock stereo.

Jun 10, 2019 at 2:24 PM (Merged)

DANNY L

CERTIFIED EXPERT
5,648 POSTS

Hello, I'm Danny.

I've attached three pictures of the stereo wiring diagrams. Here is a tutorial showing how to check wiring:

https://www.2carpros.com/articles/how-to-check-wiring

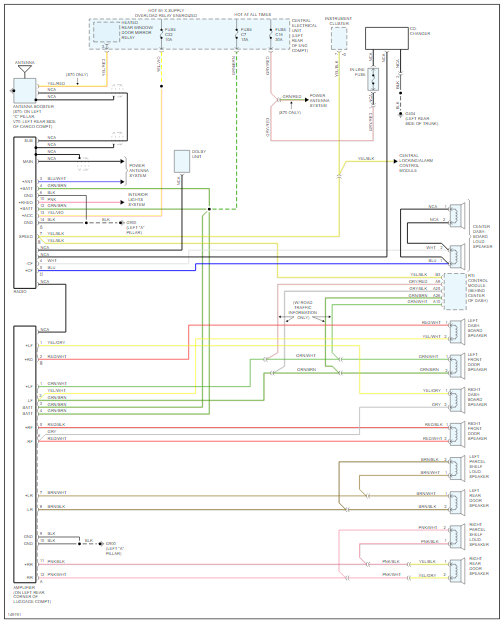

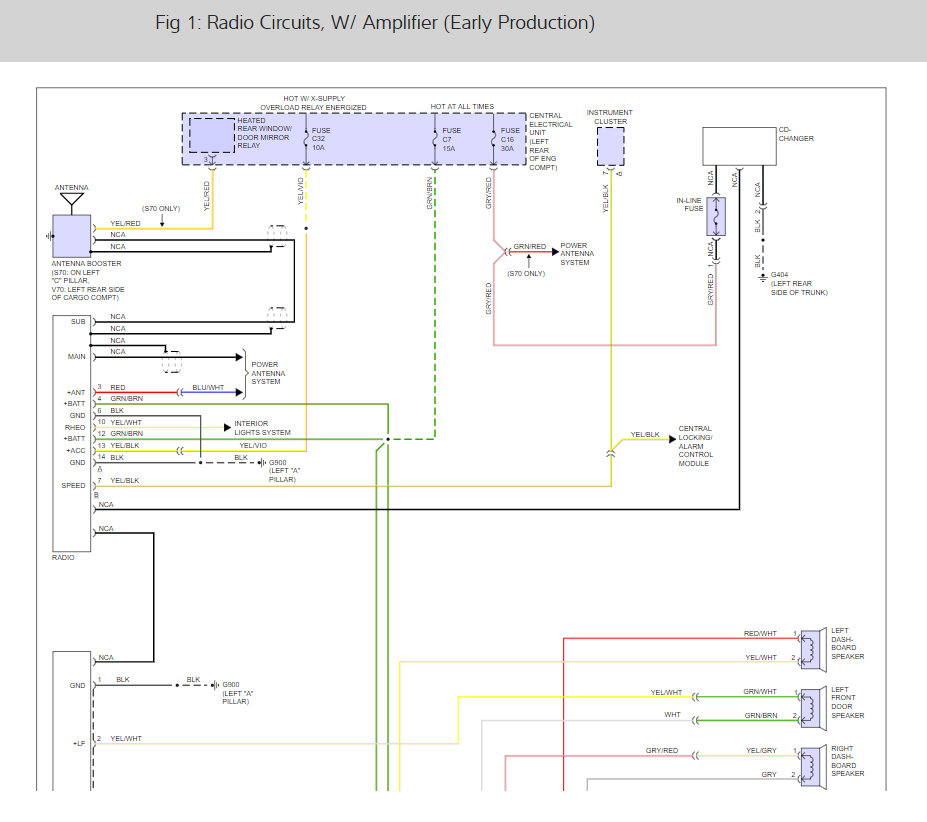

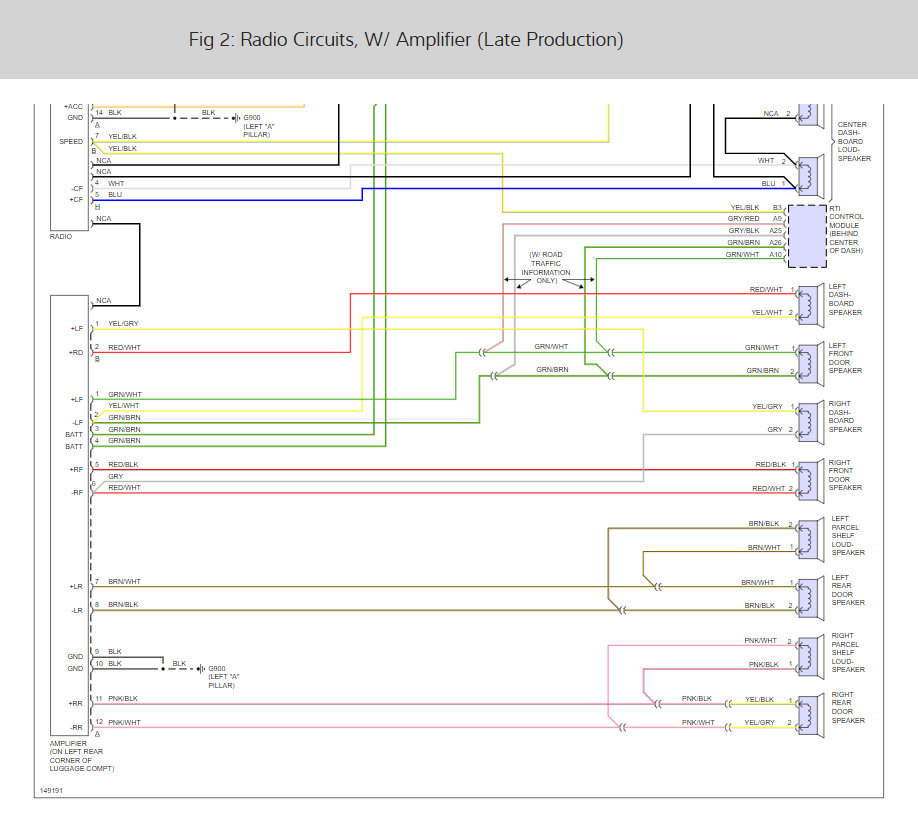

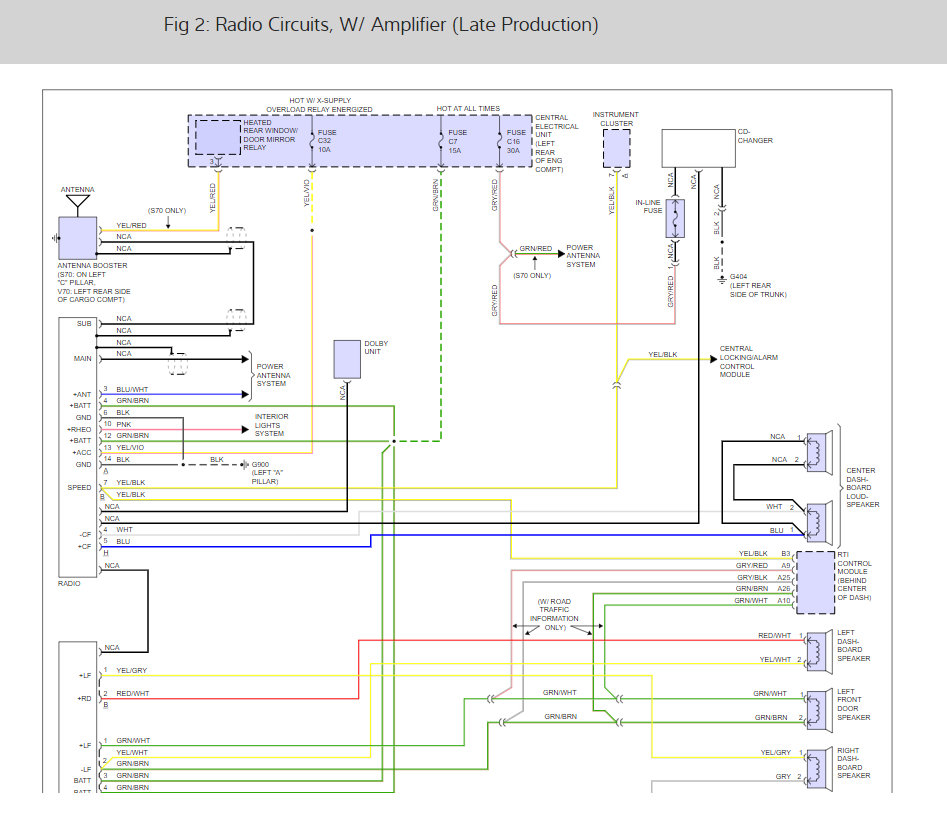

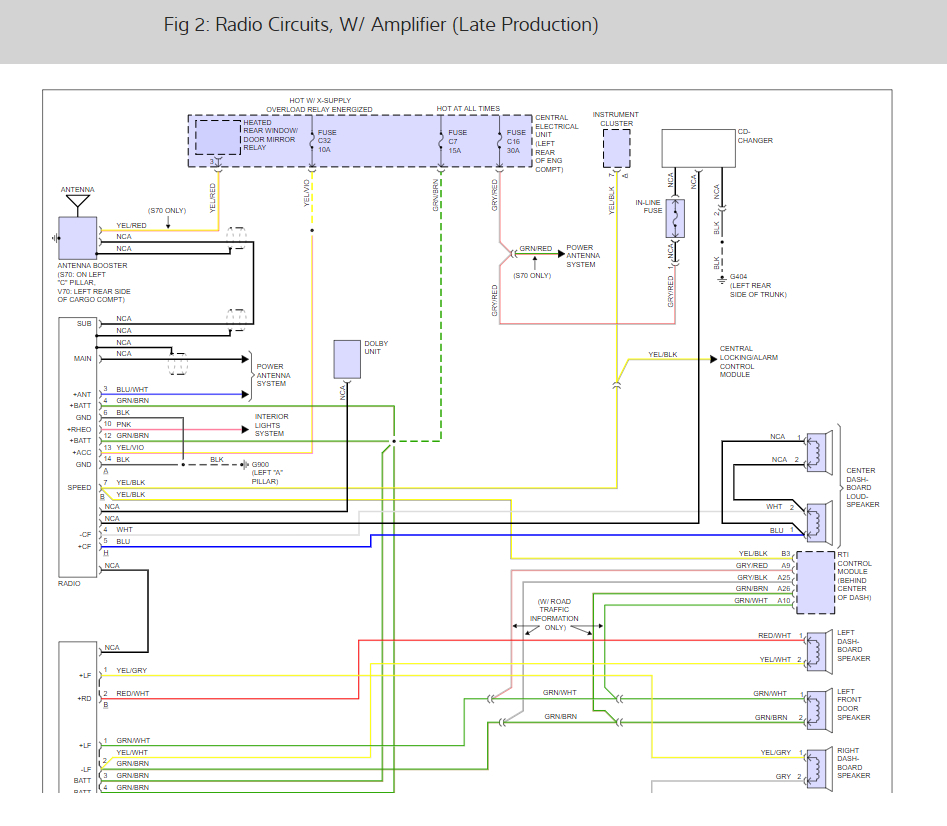

The picture #1 is early production with amplifier, #2 is late production with amplifier, and #3 is radio without amplifier. Hope this helps and thanks for using 2CarPros.
Danny-

Images (Click to enlarge)

Jun 10, 2019 at 2:24 PM (Merged)

CINDY AVERILL

MEMBER
2 POSTS

Thank you Danny.
