Vent doors stuck on defrost

2009 MITSUBISHI GALANT
160,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
[email protected]
  • MEMBER
  • 1 POST
My compressor works fine I can hear it turning on when engaged. My vent doors are stuck on defrost and the vehicle doesn't have a blend door actuator. I do not know what to do, but it's hot.
Jun 16, 2021 at 8:50 AM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
You are correct in the idea of a blend door but this is called a mode door actuator.

Here is a guide that will help with step by step instructions on this:

https://www.2carpros.com/articles/air-vents-stay-in-the-defrost-position

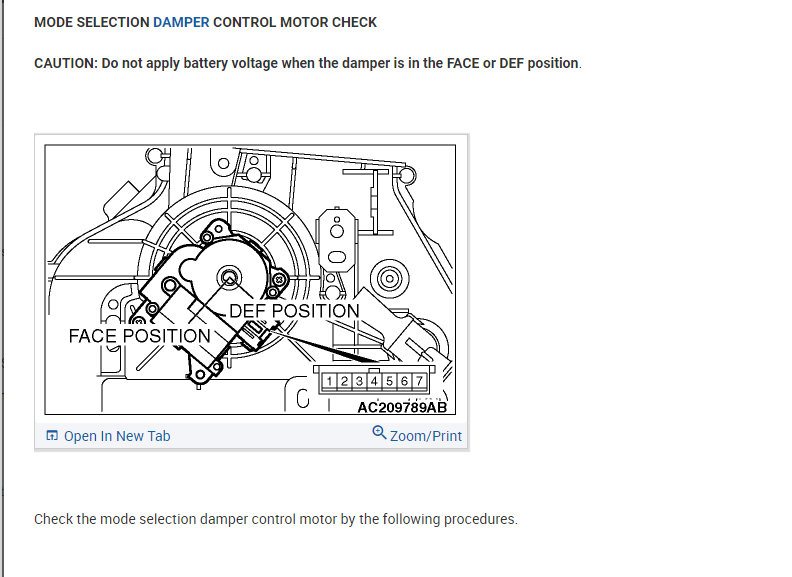

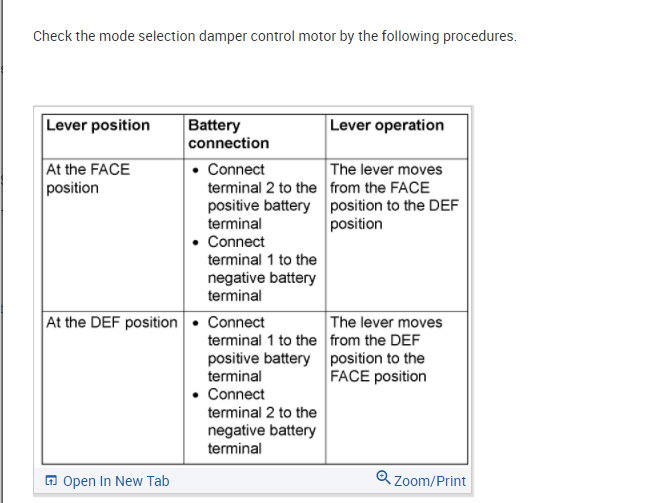

Below you will find the info from the manual on the mode door. Take a look at this and let us know if you have questions. Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Jun 17, 2021 at 6:25 PM
