HVAC vacuum diagrams

1999 CHEVROLET S-10
141,000 MILES • 2.2L • 4 CYL • 2WD • AUTOMATIC
Avatar
COREY HOTTINGER
  • MEMBER
  • 1 POST
i have the 4 vacuum lines hooked up to my blend doors, but a black one disconnect and don't know where to reconnect it.
Dec 24, 2019 at 8:15 PM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS
The black line should go to the engine vacuum source which also attaches to the vacuum reservoir under the hood. With the engine running just listed for the hiss from the vacuum leak.

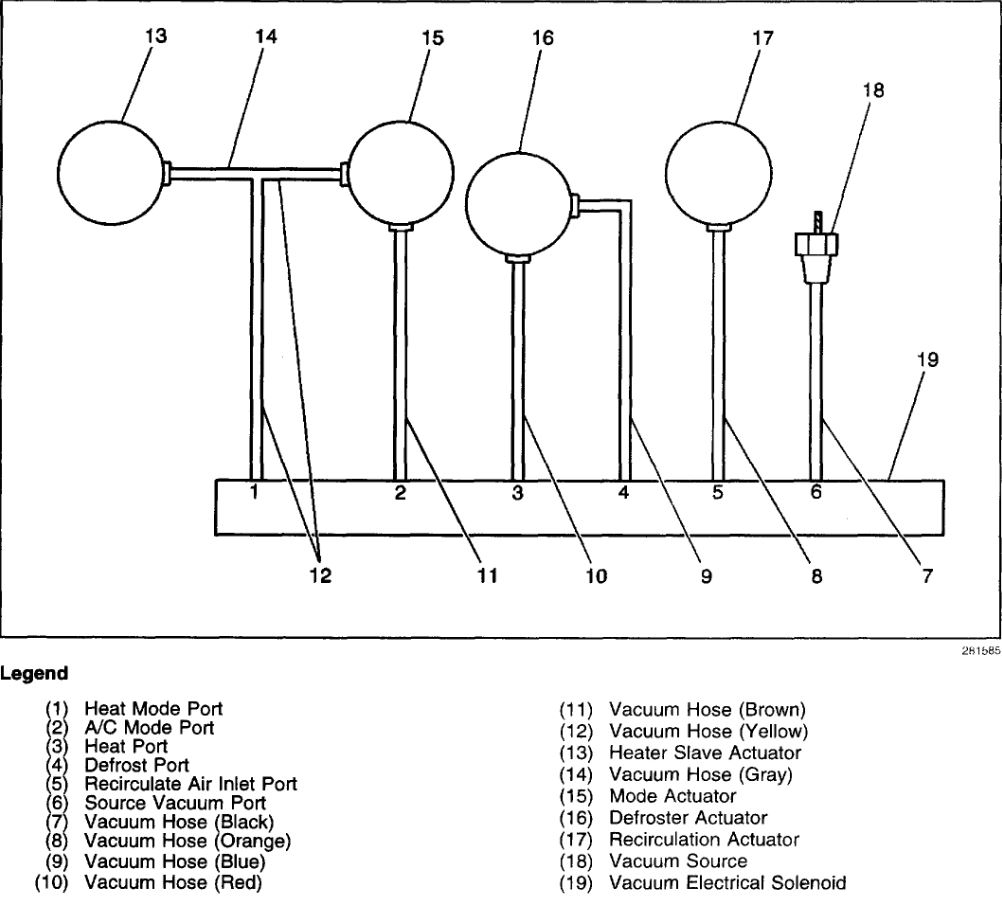

Image (Click to enlarge)

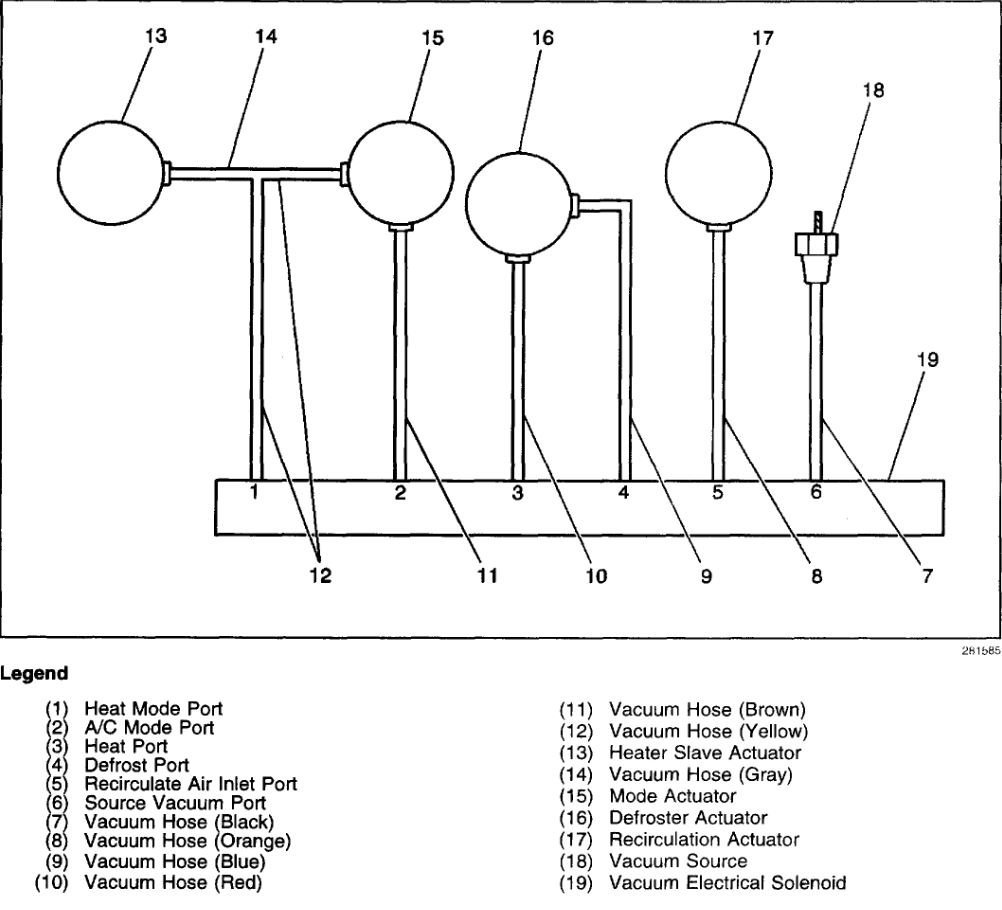

Attached Media
Dec 24, 2019 at 9:48 PM
Avatar
COREY HOTTINGER
  • MEMBER
  • 1 POST
thank you.
