vacuum hose diagram (top)

1996 MAZDA PROTEGE
141,405 MILES • 1.5L • 4 CYL • 2WD • MANUAL
Avatar
DOMINIQUE DAVIS
  • MEMBER
  • 1 POST
I have hoses disconnected and connected wrong. i really need vacuum hose diagram for my specific car listed above, LX model sedan with a 1.5l L4 dohc engine.
Jan 22, 2021 at 7:30 AM
Advertisement
Avatar
SEVAG P
  • CERTIFIED EXPERT
  • 405 POSTS
hello,

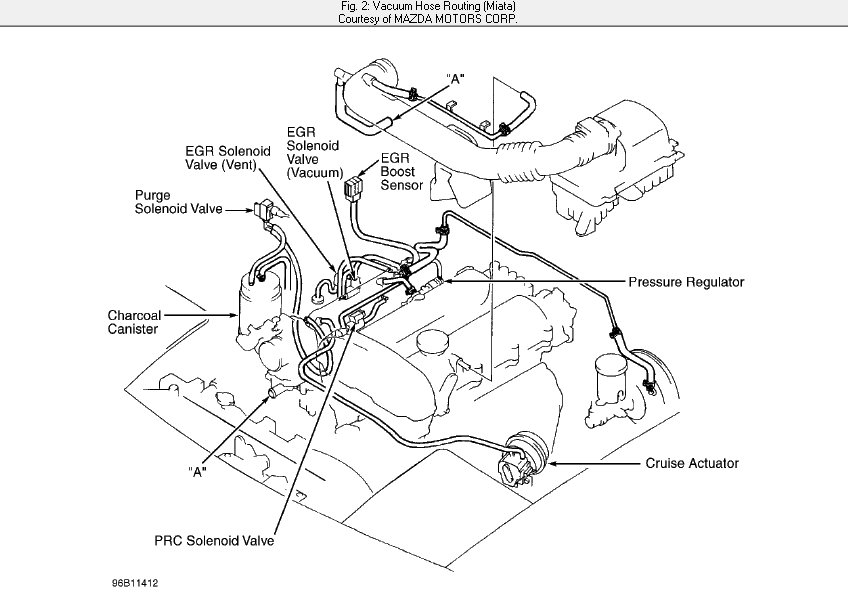

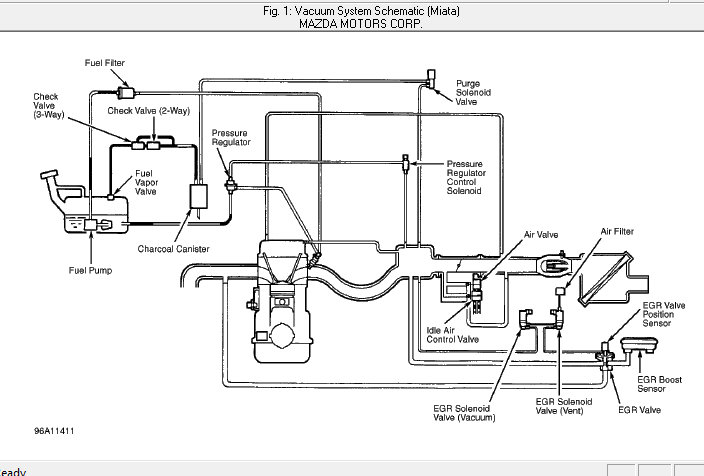

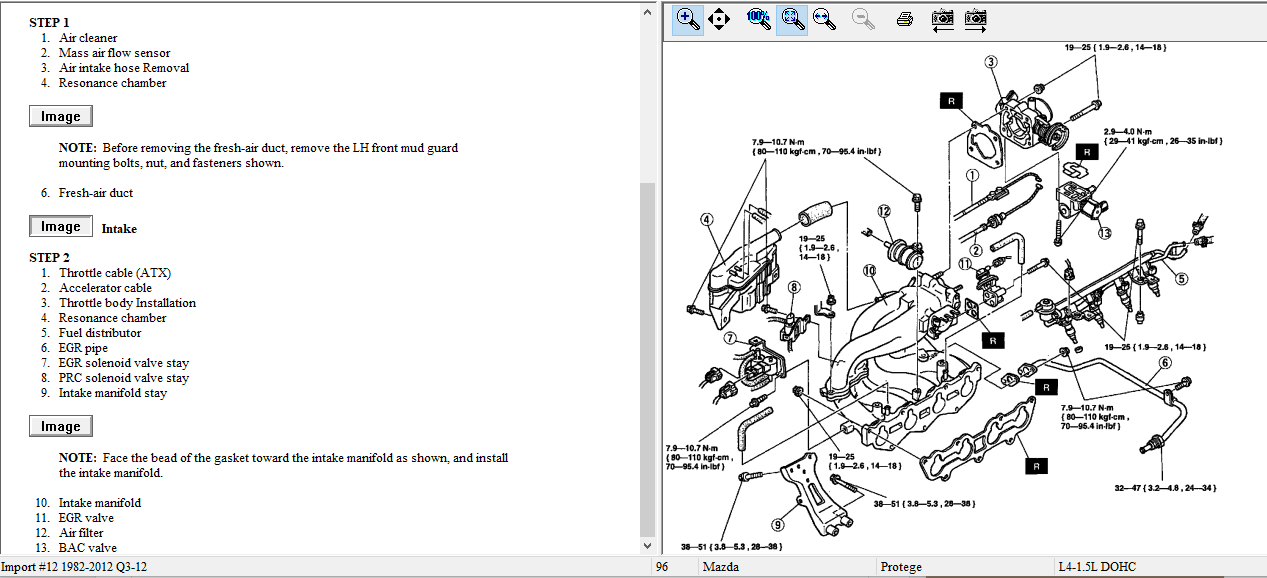

vacuum hose diagram that i found is for mazda miata fig 1 and fig 2 after my research miata and protege they use the same engine. check fig 3 for protege mazda, hope it helps.

let us know if you need more help.

thank you
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jan 22, 2021 at 10:25 AM
