Vacuum diagram

Looks like we have all the diagrams but we need some information about your vehicle because it looks like there are about 15 options of diagram for your engine. First to narrow it down, do you know if your engine is a California or Federal emissions engine or do you just know what the calibration code is for the engine. This should be labeled on a tag on the radiator support.

I attached pictures of the options. Hopefully this tag is still there. If not, we are probably going to have contact a dealer and ask them to look it up by the VIN.

Once we know the code I can send the correct diagram. Let me know if you have questions. Thanks

I know nothing of this trucks history except that an old man was going to the store and ran it into a ditch on his farm. There it sat for the last 20 years until I bought it for $400.00. There's no tags on radiator at all.

F106pfc4413. Has blue emissions tag on valve covers does that help.

Hello again.

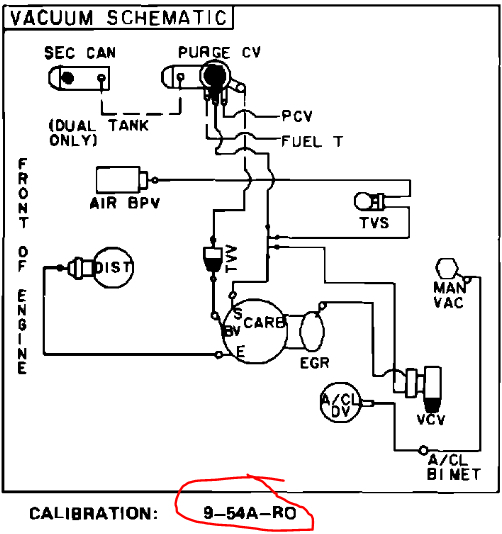

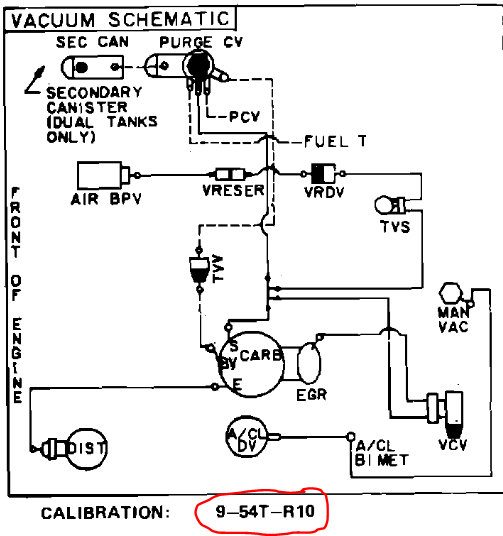

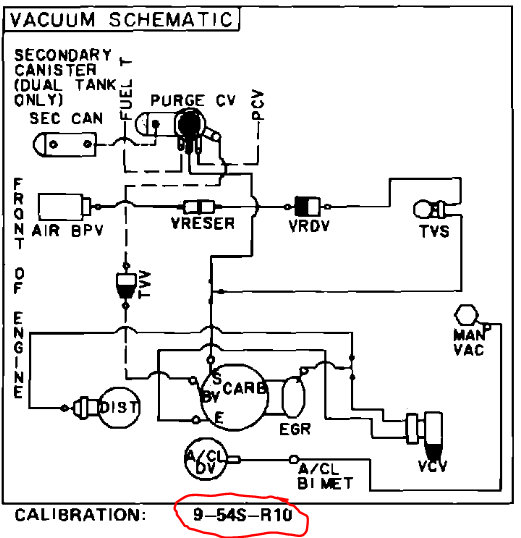

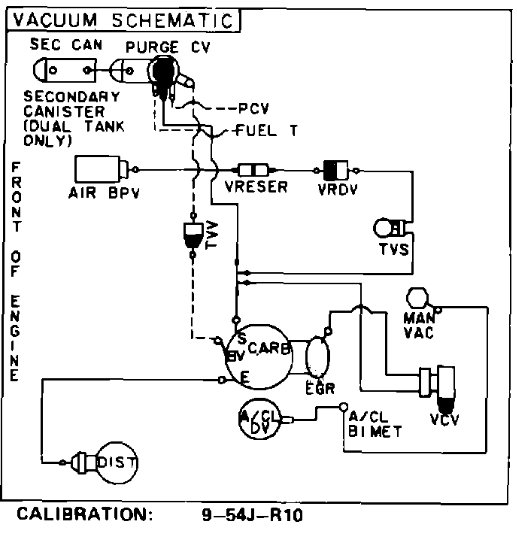

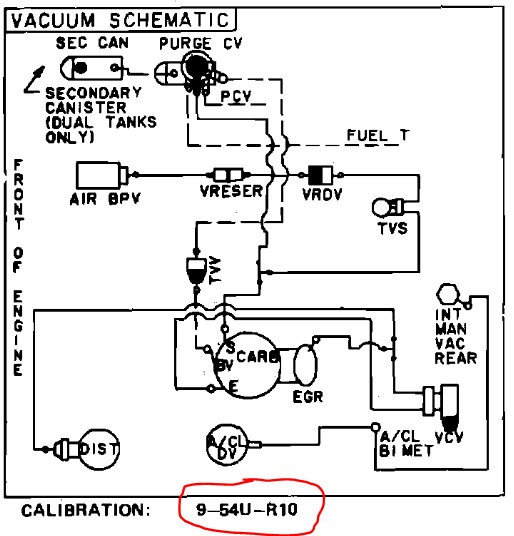

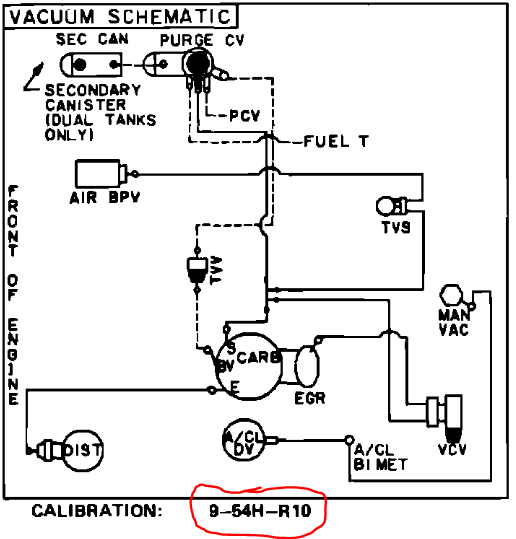

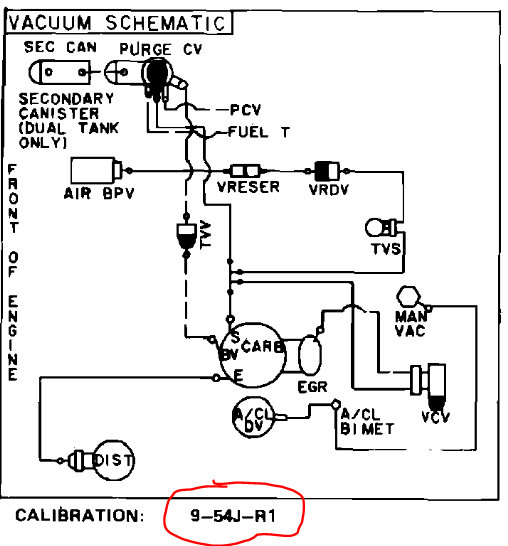

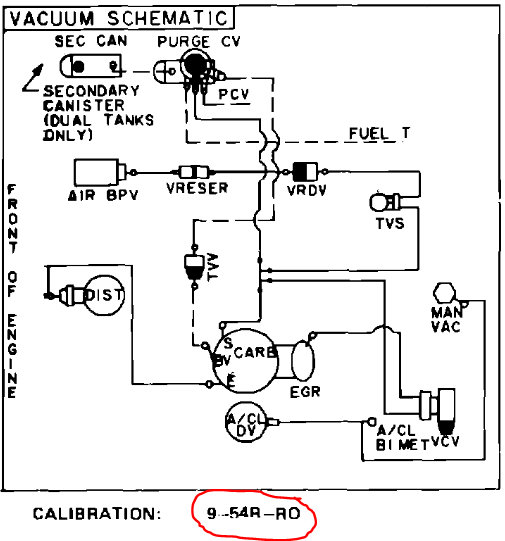

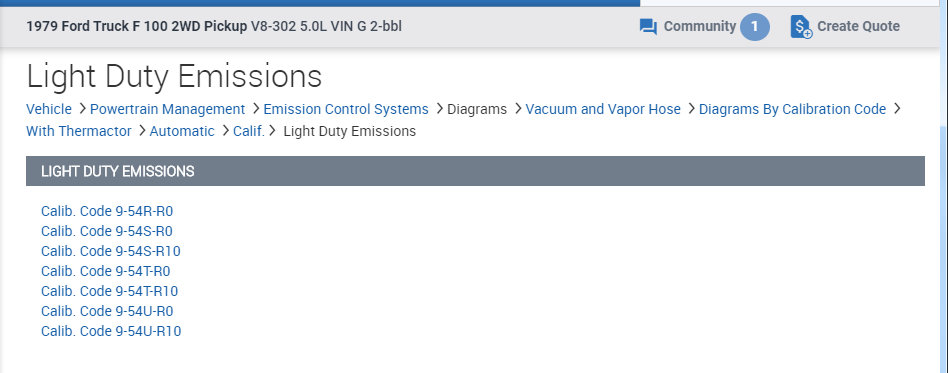

Here are the 7 California vacuum diagrams. They go by the calibration numbers which I've circled in red at the bottom. I've attached the pictures below.

Danny-

My truck is from my Oklahoma.

Hello again.

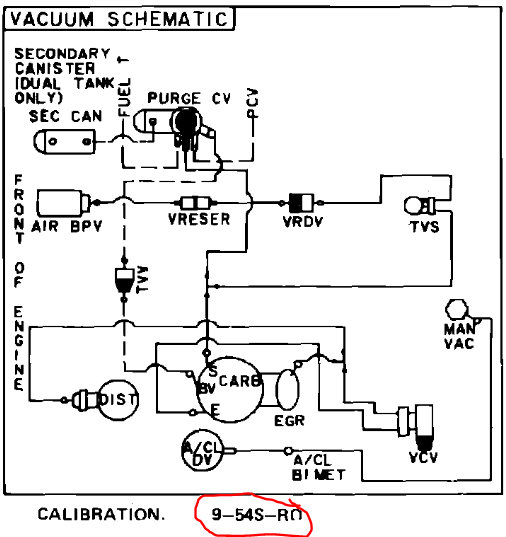

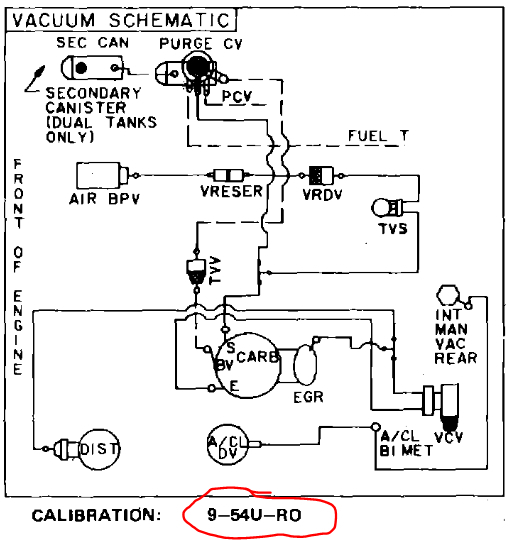

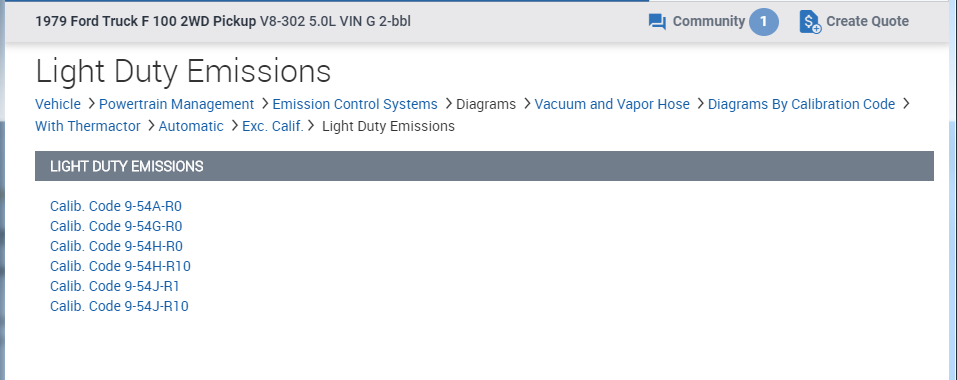

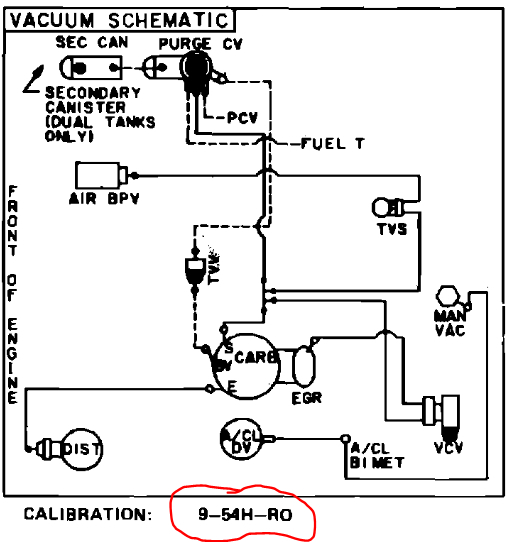

Here are the 6 Federal vacuum hose diagrams. As before they go by the calibration number circled in red at the bottom and I've attached them below.Just something to give you to start with.I'll get back with you tomorrow after getting more info from your VIN number.Hope this helps and thanks again for using 2CarPros.

Thank you very much. I appreciate everything you're doing to help me restore this old girl to her former glory.

Hello again.

Were you able to decipher any numbers off of the blue emissions decal on the valve cover ? Hopefully it will have the calibration number.If not I will run your VIN number in the morning.Hope this helps and thanks again for using 2CarPros.

Danny-

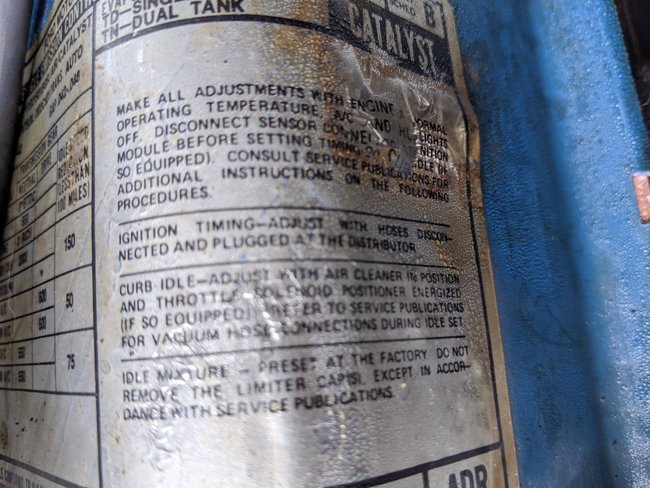

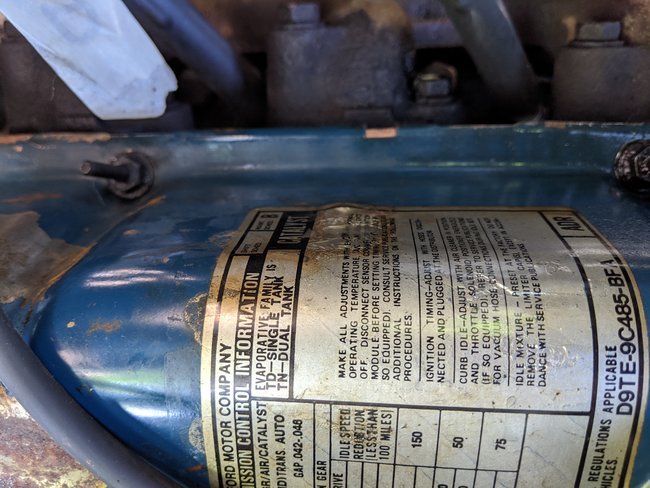

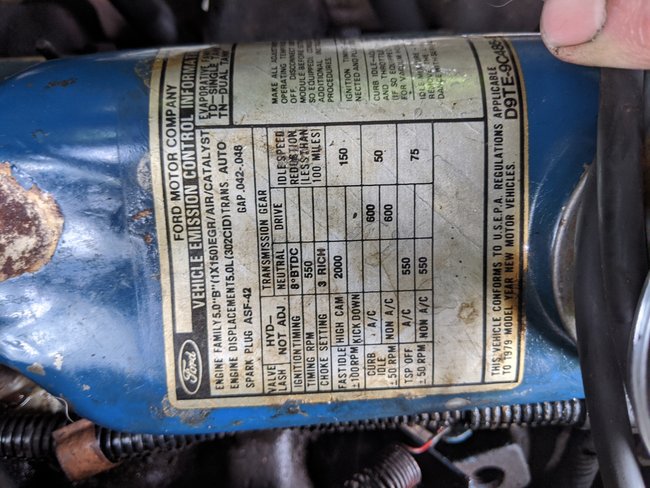

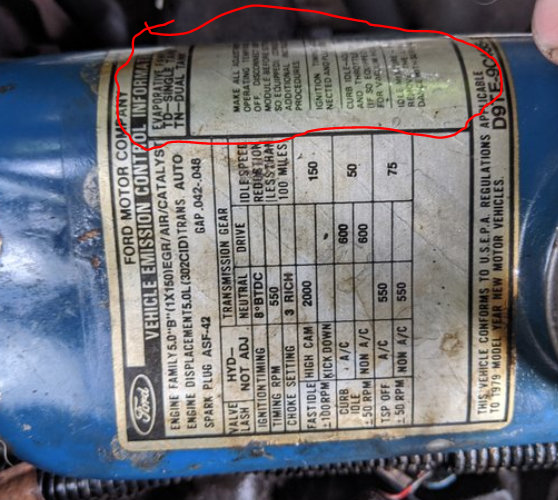

Here's the pictures of the emissions tag on valve cover.

What exactly am I looking for?

Hello again.

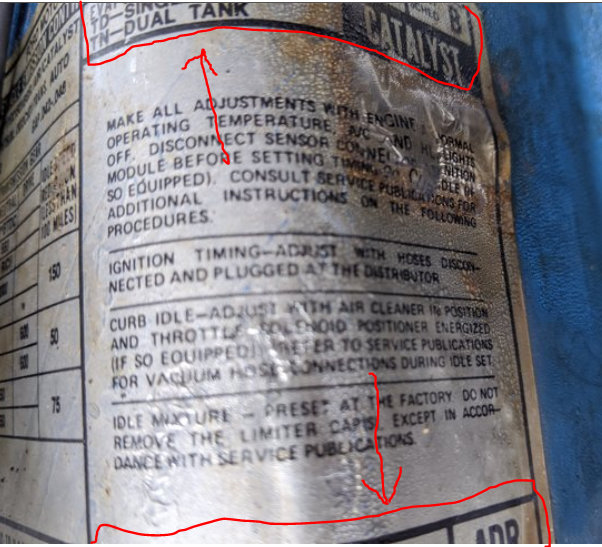

I tried getting the Ford dealer to look up info but they can't go back that far. I've attached your picture and circled the area in red.Can you use your phone to get a better picture of the area on the curve? Hope this helps and thanks again for using 2CarPros.

Danny-

Sure thing I'll get the picture first thing when the sun comes up tomorrow.

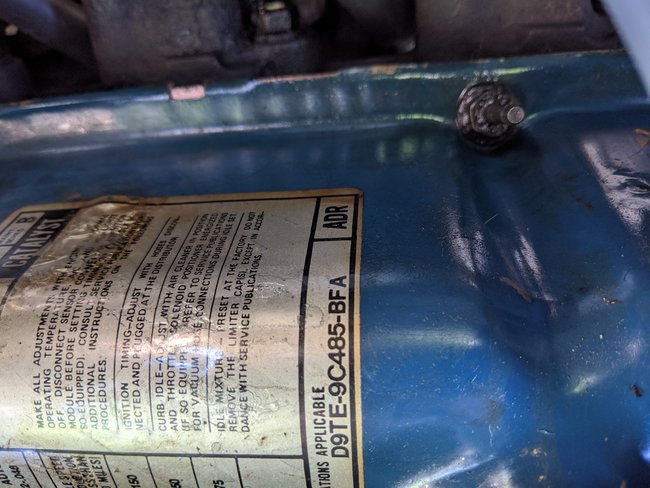

Here's the best I could get on the bend:

Hello again.

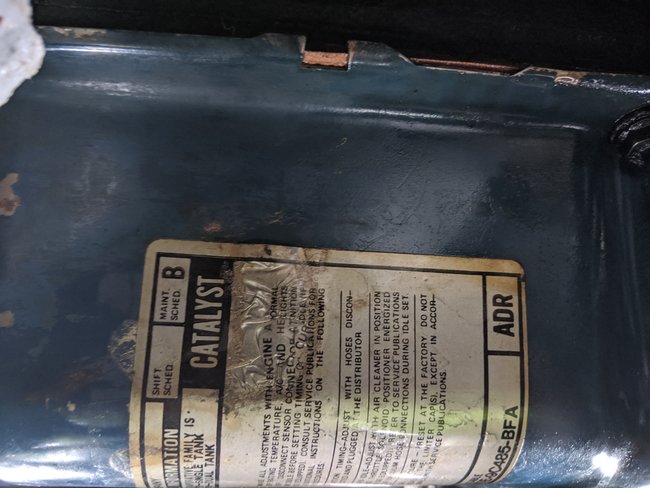

The middle section came out well. I need the top and bottom to go by.We're getting there! I've attached the picture below and circled in red.Thanks again

Danny-

I hope this is correct.

Hello again.

Yes, that's a great photo. One last question. Does your truck have a single gas tank or dual tanks?

Danny-

Single.

Hello again.

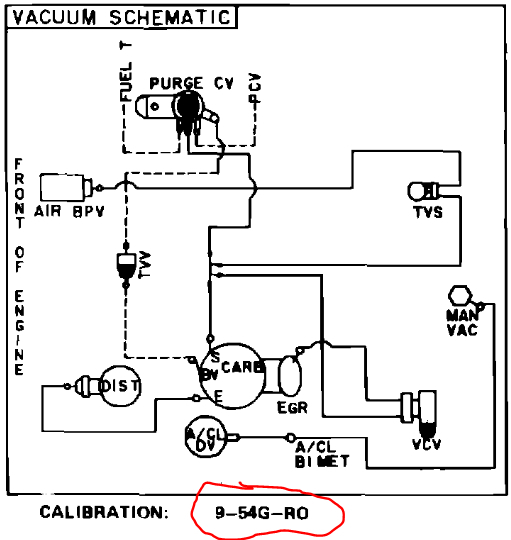

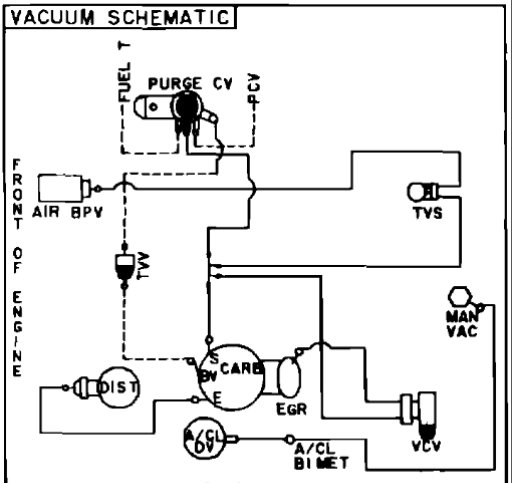

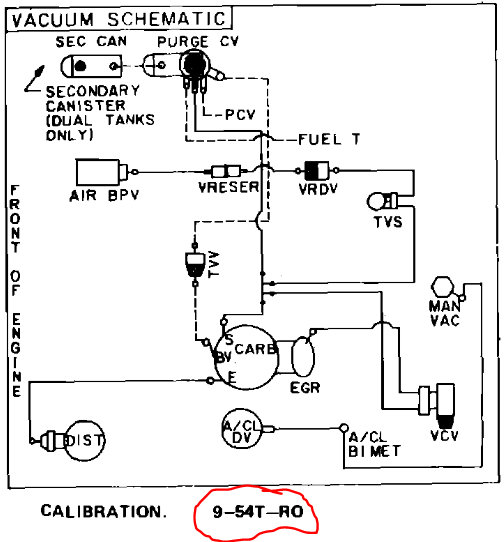

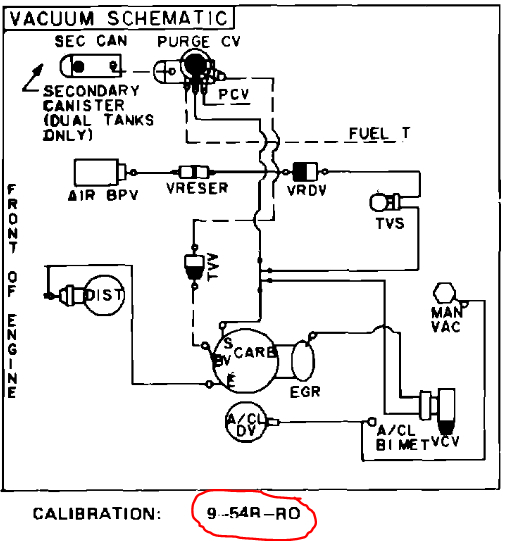

Okay, this will be your diagram for your single fuel tank- federal emissions truck. I've re attached a picture below.Hope this helps and thanks again for being patient and using 2CarPros.

Danny

I'm sorry but do you know what the abbreviations are? Like the TVS and the like. I haven't a clue only guesses.

Or VCV.

TVV.
I did say this is my first automotive adventure. Always loved the old trucks just never had one to restore. Now I do.

If I have anymore things I need help with do I use this same window or do I have to open a new dialogue?

Hello, here are the definitions you were asking for the acronyms Danny posted:

VCV Vacuum control valve
TVV Thermal vacuum valve
TVS Thermal vacuum switch

If there are any others please do not hesitate to respond to this tread.

Thank you and a great rest of your day!

Renee
Site Admin

How do I know what size tubing to use?

Hey guys, I wanted to say thank you for helping me get my truck started. You all have been a great help giving the old girl a new life. Thank you all so so much. I very much appreciate all the help.

Hi Manuel,

I am so happy you got your truck started! Thank you so much for letting us know. Please come back anytime you have automotive questions and please tell a friend.

Enjoy your day!

Renee

Hello again.

You're welcome!

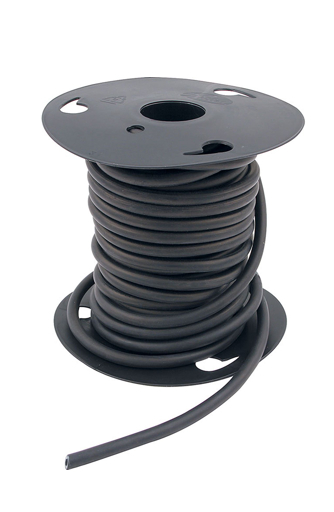

The majority of the vacuum lines on your truck are 5/32 I.D. Hope this helps and thanks again for using 2CarPros. I've attached a picture below.Please feel free to use us again in the future for your automotive questions.

Danny-
