Vacuum diagram

1993 NISSAN PATHFINDER
130,000 MILES • 3.0L • V6 • 4WD • AUTOMATIC
Avatar
ROBERT ERWIN
  • MEMBER
  • 18 POSTS
replaced the engine now can't find where the brake booster vacuum line connects.also please can you give me the vacuum diagram for the engine? so i can check them. thanks. Help
Nov 2, 2019 at 12:57 PM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

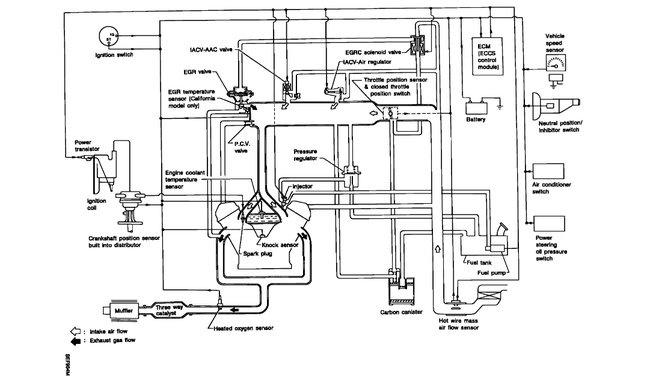

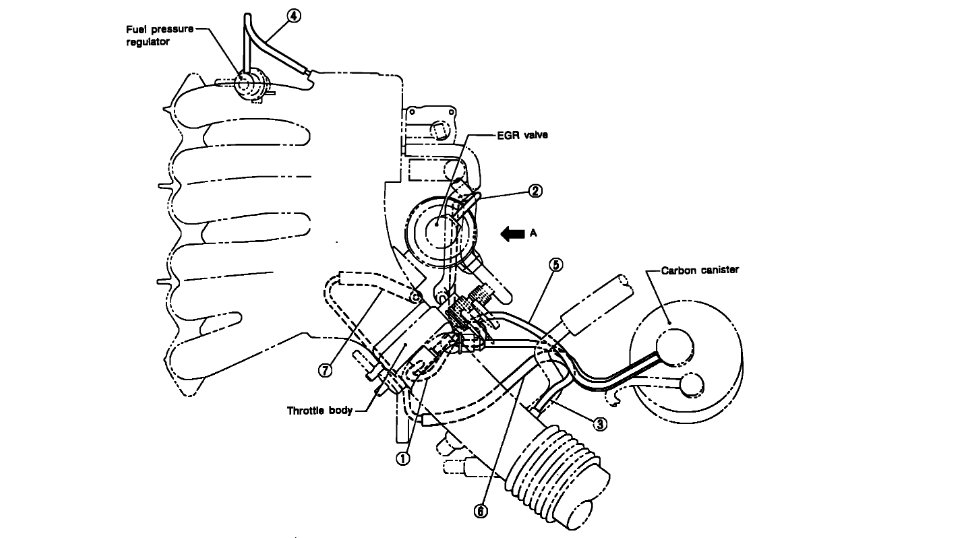

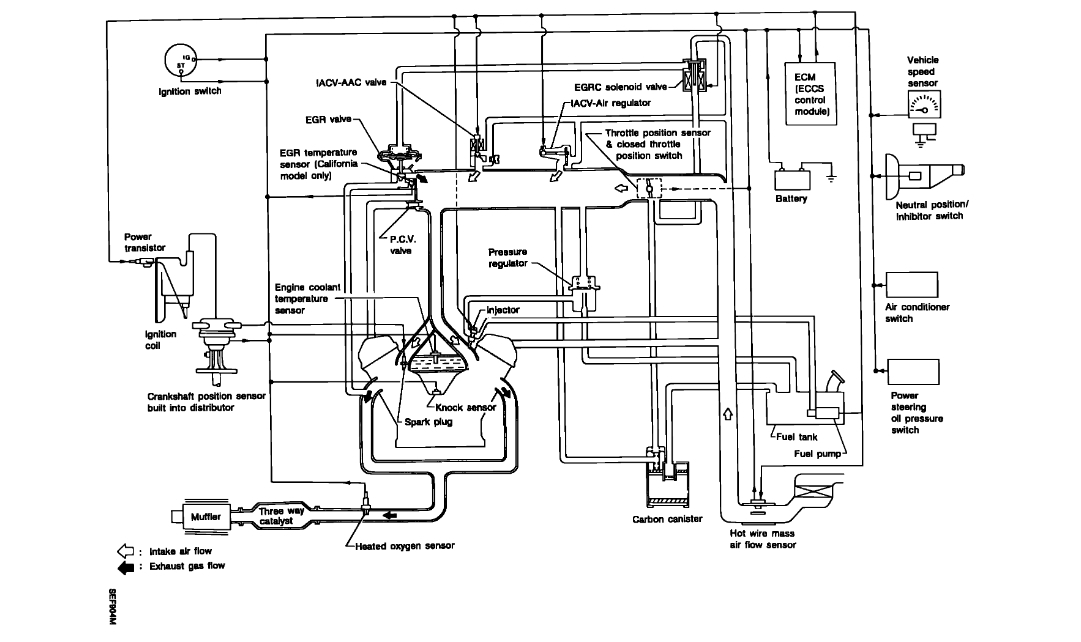

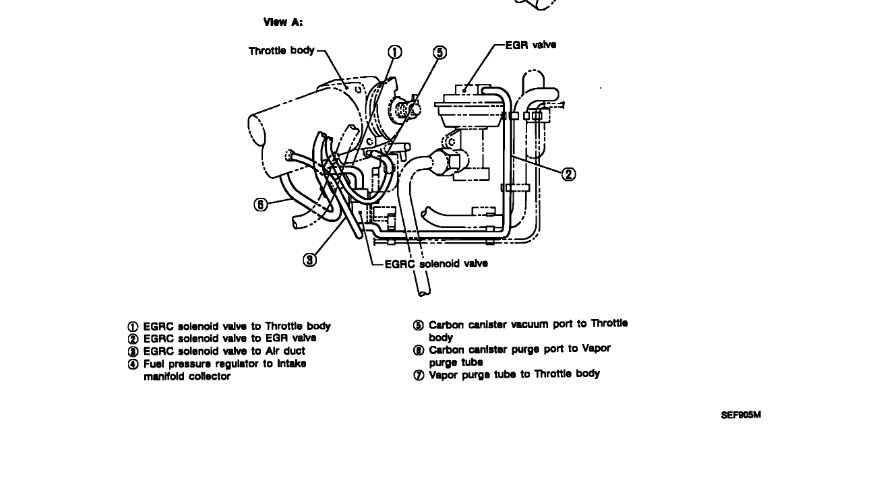

I have included the information that you requested in the diagrams down below. Please go through them and get back to us with what you are able to find out. I hope this helps.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Nov 3, 2019 at 7:26 AM
Avatar
ROBERT ERWIN
  • MEMBER
  • 18 POSTS
i need the connection points for the brake power booster. thank you
Nov 3, 2019 at 1:49 PM
Advertisement
Avatar
MASTERWRENCH
  • CERTIFIED EXPERT
  • 258 POSTS
Unfortunately there aren't any diagrams for your vehicle that show specifically where the brake boost vacuum hose attaches. In most cases though, that particular hose should connect directly to the intake manifold somewhere on the engine side of the throttle body. If you start the engine with that hose disconnected, you should be able to hear and locate a fairly significant vacuum leak.
Nov 11, 2019 at 8:09 PM
