I need to find a vacuum diagram?

1989 CHEVROLET CAMARO
17,000 MILES • 1.7L • V6 • 2WD • MANUAL
Avatar
JOHNYBGOOD@60
  • MEMBER
  • 21 POSTS
I need to find a vacuum diagram for my Camaro, mpfi 2.8 tb I can't find one that got all the hoses coming off my motor it's a Canadian model, if that makes a difference.
Jun 6, 2024 at 12:08 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

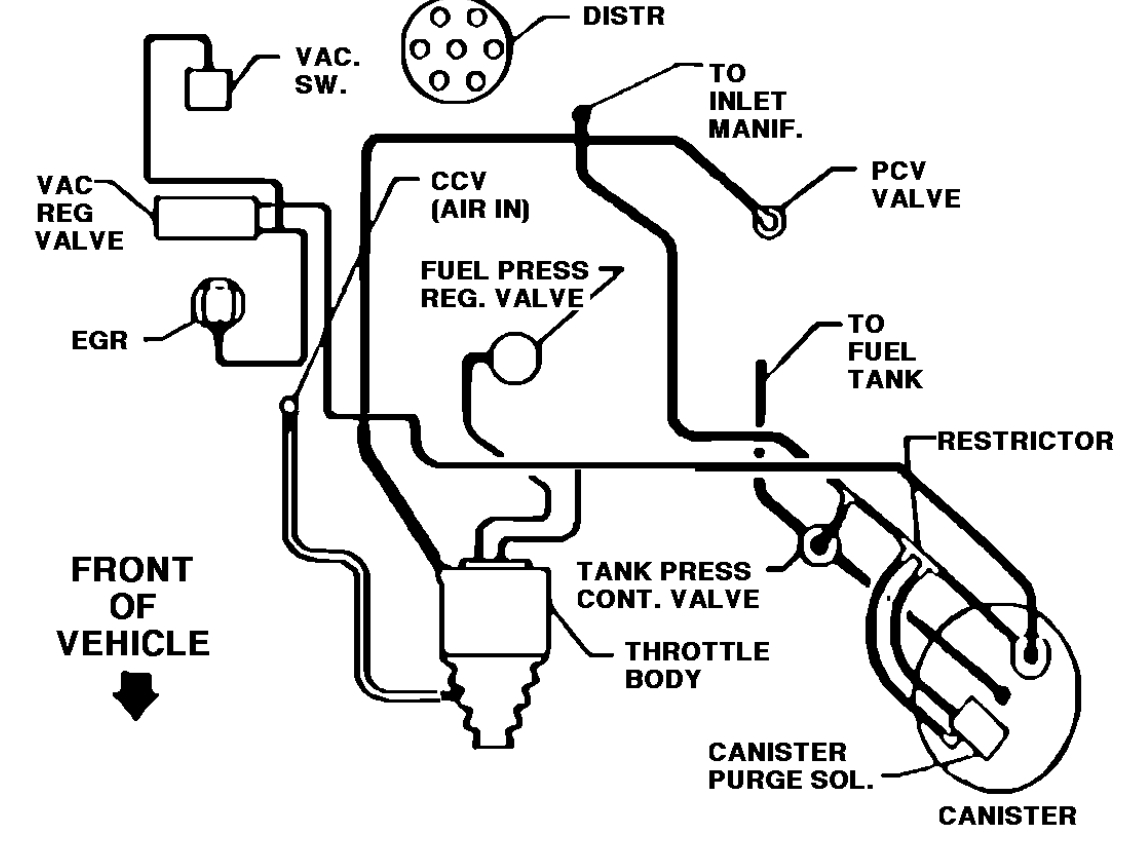

Sure, here is the engine and EVAP vacuum lines, check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Attached Media
Jun 6, 2024 at 5:36 PM
Avatar
JOHNYBGOOD@60
  • MEMBER
  • 21 POSTS
It does not look quite like mine, mine is another round thing with a vacuum hose coming out of it by the EGR, and then I got 2 more that, one goes to the eye I don't know where the other one goes.
Jun 17, 2024 at 1:35 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Can you upload an images of what you are talking about?
Jun 18, 2024 at 10:35 AM
Avatar
JOHNYBGOOD@60
  • MEMBER
  • 21 POSTS
I have a air pump not sure what that does or where it goes. I also have the brake booster hose and not sure how where it goes but small hose goes over to a round thing hose come off it to I think the ECM I don't no perry frustrated.
Jun 25, 2024 at 2:24 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
If you upload images for what you are looking at I can help you find out were the vacuum lines go. Please do so in your response.
Jun 26, 2024 at 9:25 AM
