camber position

2007 CHEVROLET AVALANCHE
100,000 MILES • 5.3L • V8 • 4WD • AUTOMATIC
Avatar
JDM333
  • MEMBER
  • 4 POSTS
Forgot to mark camber position, I am getting alignment done after it’s put all back together. is there a way to get it close so I can drive to my buddies shop about 2 miles away with alignment machine?
Sep 26, 2020 at 12:00 PM
Advertisement
Avatar
JDM333
  • MEMBER
  • 4 POSTS
I also put new coil overs on that raised the truck 2”.
Sep 26, 2020 at 12:04 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon,

Just get the tires to sit flat on the ground. Do not let them pitch in or out.

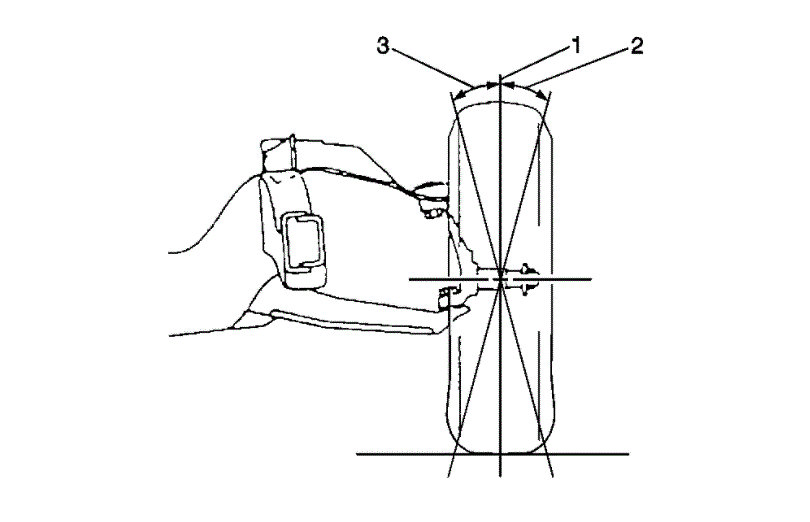

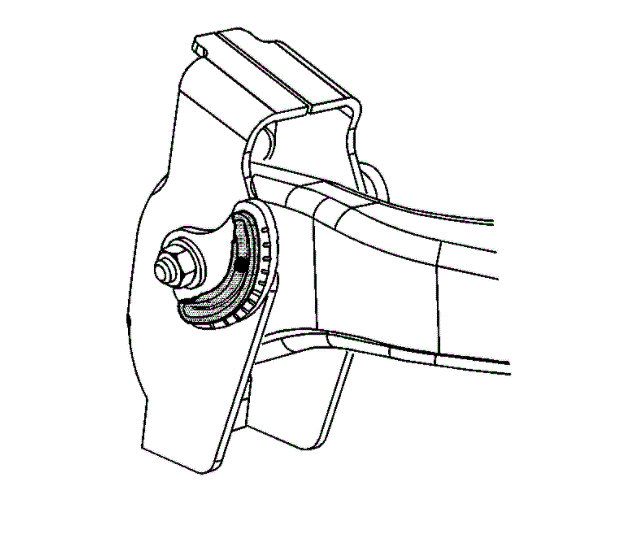

I attached a picture of how the tire should sit and the location of the adjustment.



Roy
Images (Click to enlarge)
Attached Media
Attached Media
Sep 26, 2020 at 2:16 PM
Advertisement
Avatar
JDM333
  • MEMBER
  • 4 POSTS
Thank you very much.
Sep 27, 2020 at 12:52 AM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
You are welcome.

Always glad to help.

Roy
Sep 27, 2020 at 4:25 AM
