Truck will not turn over

2002 CHEVROLET 2500
325,000 MILES • 6.2L • V8 • 4WD • AUTOMATIC
Avatar
RANDY INGLE
  • MEMBER
  • 63 POSTS
Silverado 2500HD Duramax. It will not turn over. Checked all the ignition fuses which are good. Pulled the Defrost 30A Relay and put it in both the ignition and starter relay's but no result. Changed out the starter in July of 1999. Did notice oil was getting on the starter electrical so put a shield to protect it. Have not at this time assessed the starter under the truck. Seems it is either that or the ignition switch.
Nov 5, 2020 at 6:43 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good morning,

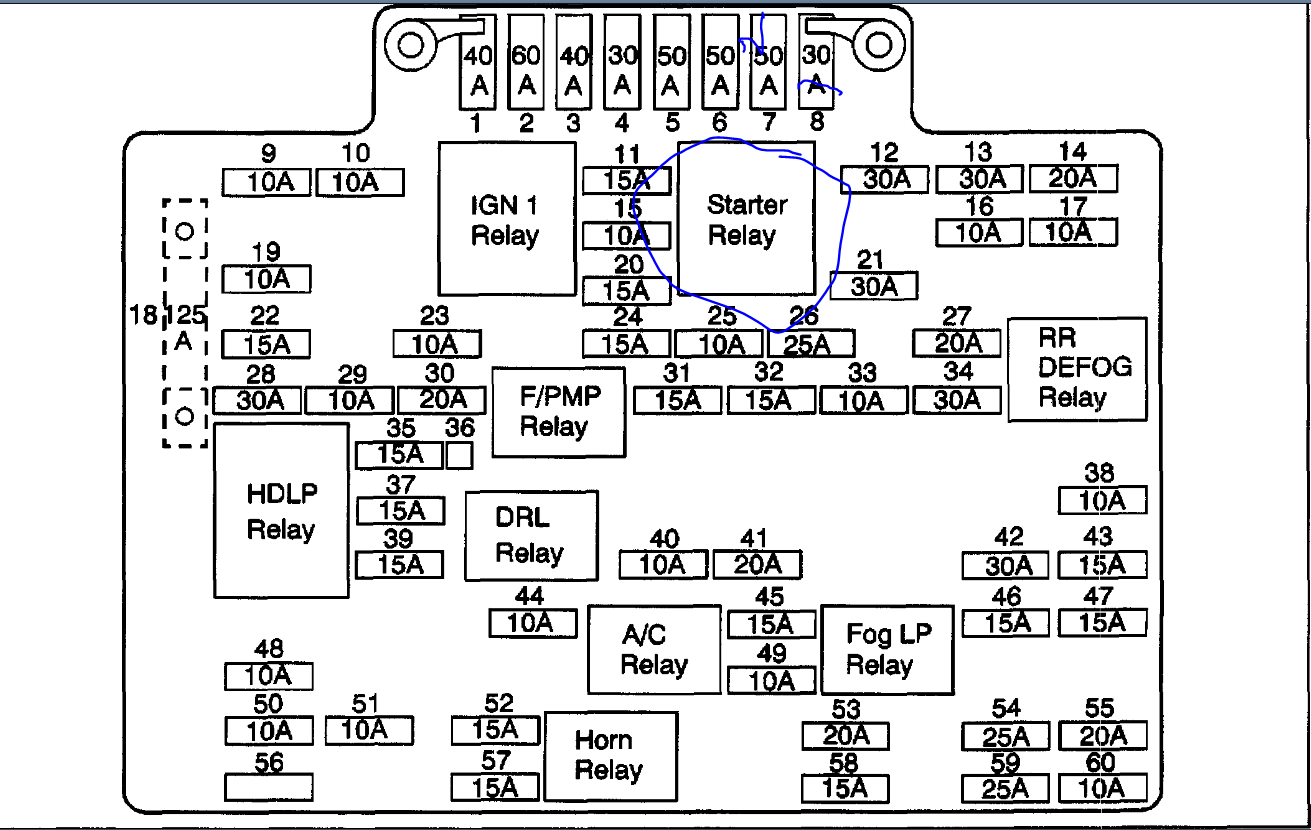

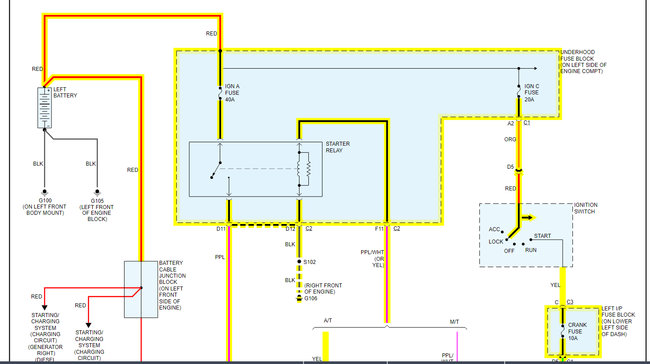

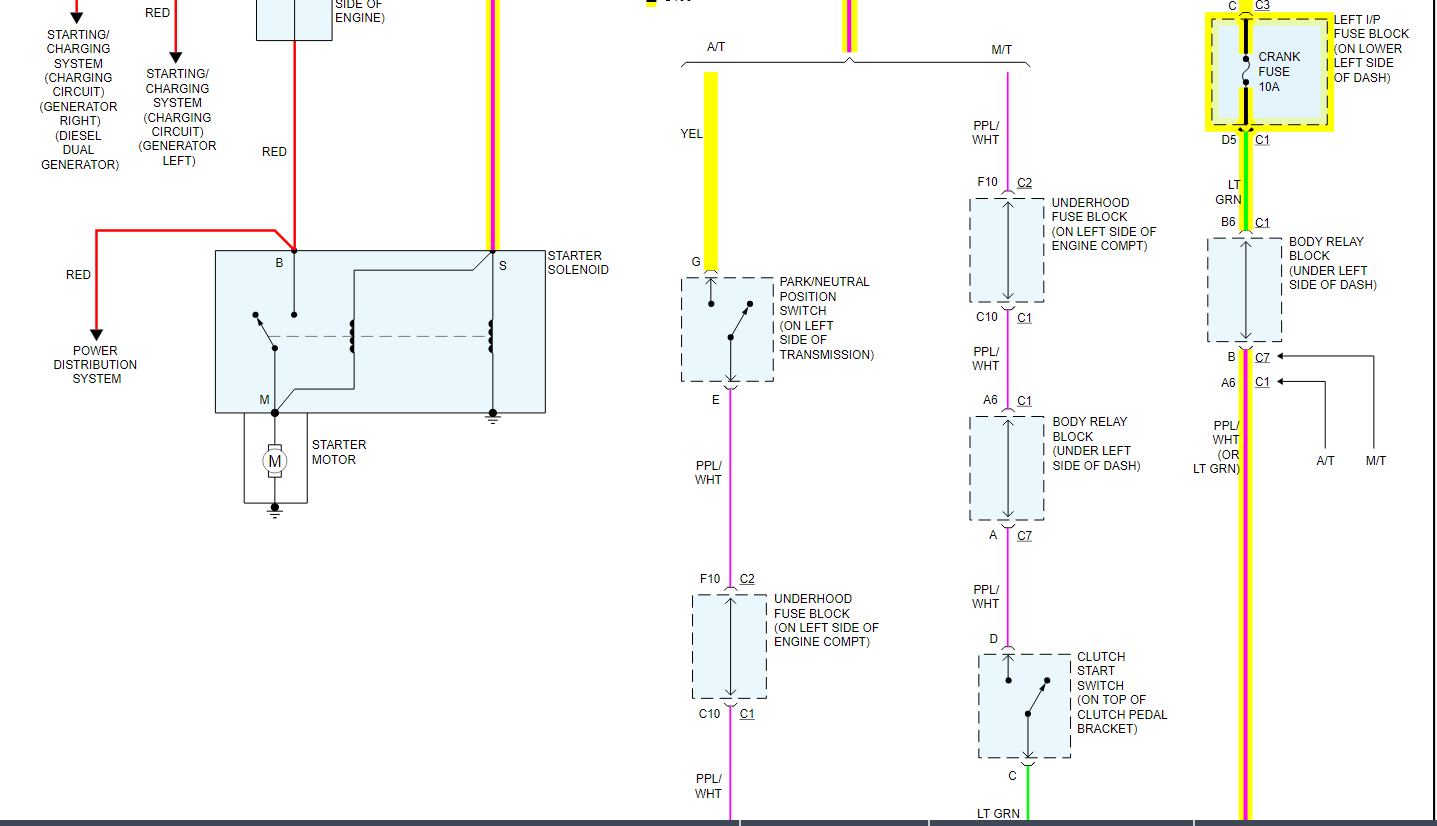

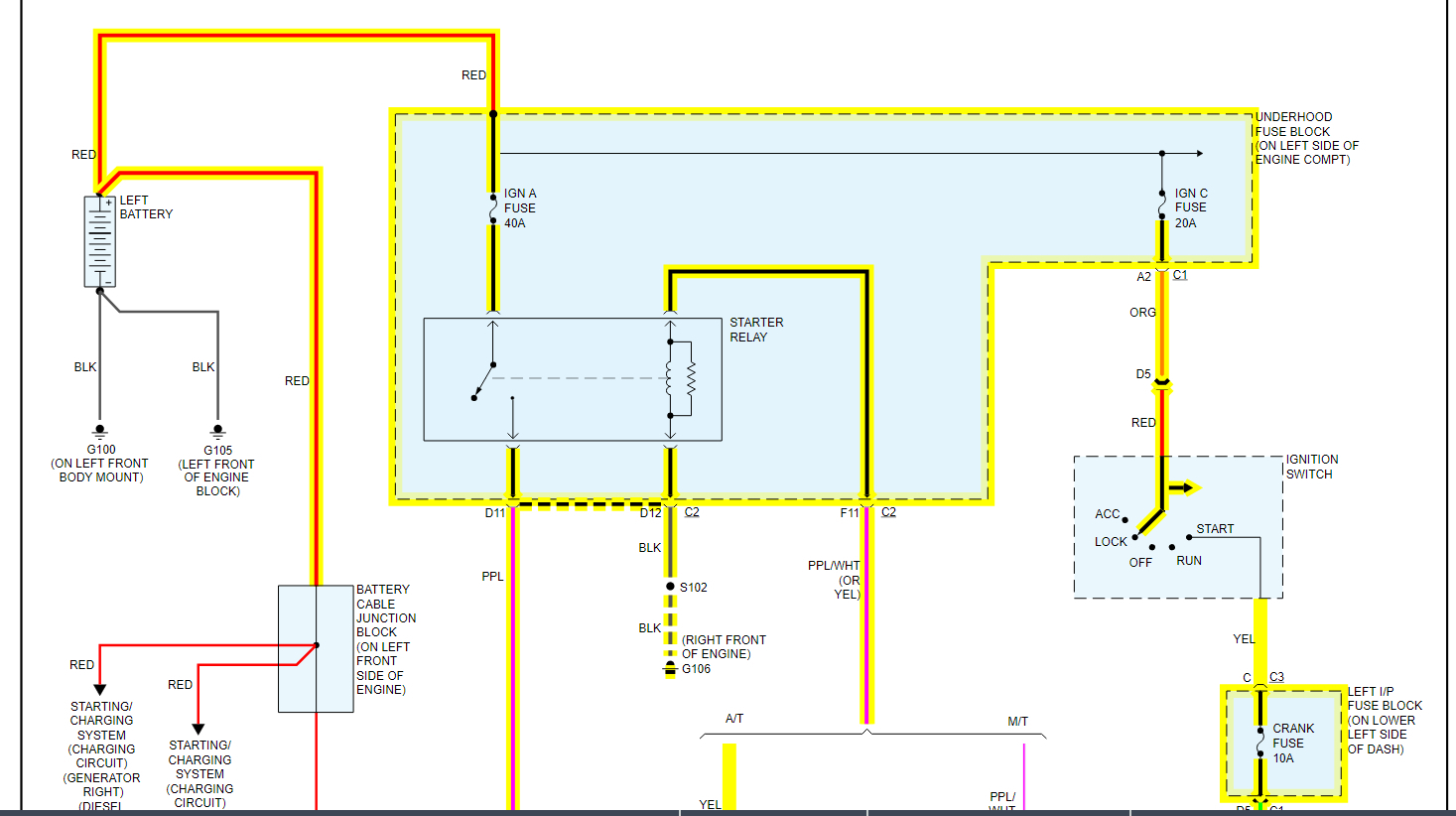

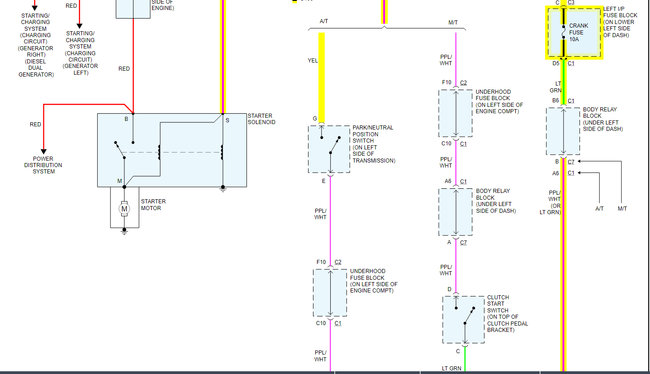

I attached a wiring diagram for you of the starting system.

https://www.2carpros.com/articles/how-to-check-wiring

You will need a test light or voltmeter to some testing at the relay.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

You need constant 12 at one terminal with the key on. Then another terminal should be hot when you turn the key to the start position.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Roy
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Nov 5, 2020 at 8:08 AM
Avatar
RANDY INGLE
  • MEMBER
  • 63 POSTS
Thanks! I just noticed that no beep when I press tab on key to lock or unlock. It does lock or unlock truck but no beep sound.
Nov 5, 2020 at 10:16 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Okay, did you do any testing at the relay?

Roy
Nov 5, 2020 at 10:18 AM
Avatar
RANDY INGLE
  • MEMBER
  • 63 POSTS
Just tested the relay itself. Due to time constraint I have had it towed to a garage. Hopefully they will find the problem and fix it. Thank you so much for your help! God Bless you and your family.
Nov 5, 2020 at 3:21 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
You are welcome.

Always glad to help.

Roy
Nov 5, 2020 at 3:36 PM
Avatar
RANDY INGLE
  • MEMBER
  • 63 POSTS
This is really embarrassing. Had the truck towed to a garage and they determined I needed 2 new batteries! I had checked the voltage and both showed 12 volts! At least I am back on the road.
Nov 6, 2020 at 9:24 AM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
No worries. 12 volts is almost drained. 12.6 is what they need to be.

Roy
Nov 6, 2020 at 9:35 AM
Avatar
RANDY INGLE
  • MEMBER
  • 63 POSTS
Mechanic told me to avoid Walmart batteries and Autozone but only put Heavy Duty from AC Delco.
Nov 6, 2020 at 3:36 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good advice.

Roy
Nov 6, 2020 at 3:39 PM
