Transmission temperature sensor

2006 CHEVROLET UPLANDER
150,000 MILES • 3.5L • 6 CYL • 2WD • AUTOMATIC
Avatar
STONEWALL JACKSON
  • MEMBER
  • 1 POST
I am looking for a diagram with the location of the transmission temperature sensor on my vehicle? The sensor became unhooked while replacing pressure switch and I do not see where the TTP is suppose to be. Any help would be much appreciated.
Sep 10, 2017 at 7:11 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
The transmission fluid temperature sensor is under the side cover.

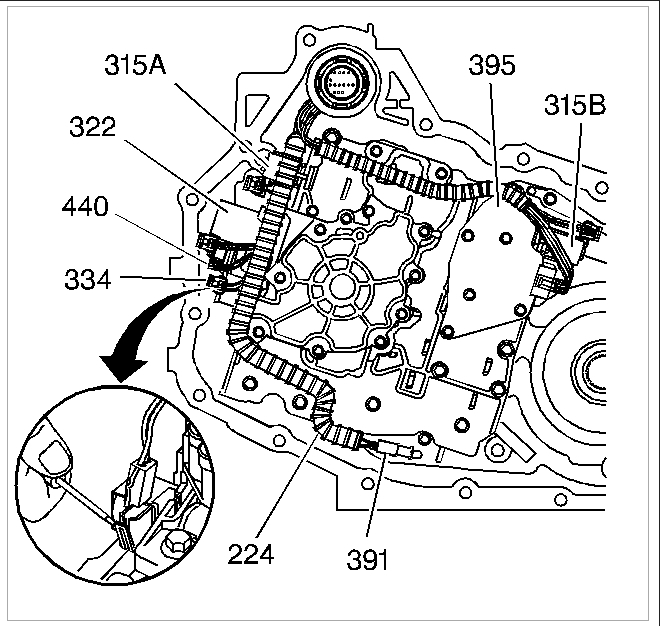

Here is a diagram (below) of its location:

Remove the case side cover.
Remove the wiring harness assembly from the fluid temperature sensor (391).
Remove the fluid temperature sensor (391).

https://www.2carpros.com/articles/how-to-service-an-automatic-transmission

Please let us know what happens and upload pictures of the problem.

Cheers, Ken
Image (Click to enlarge)
Attached Media
Sep 11, 2017 at 12:54 PM
Avatar
AMADO RIVERA
  • MEMBER
  • 1 POST
Cannot find the sensor, is it inside or outside the transmission?
Sep 24, 2020 at 10:13 AM (Merged)
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS

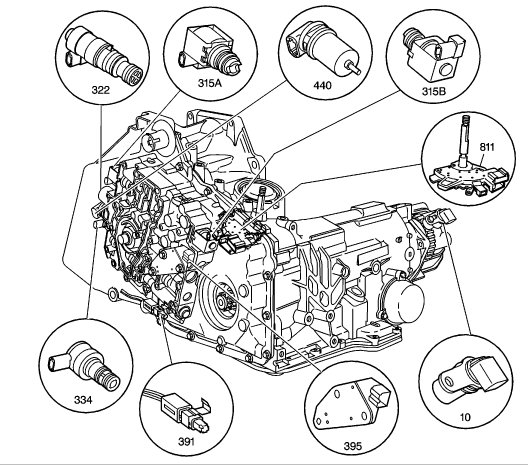

Inside the transmission valve body cover at the bottom of the case, below the valve body. #391 Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
