Transmission and rear differential service?

2021 MERCEDES BENZ GLA250

36,000 MILES • 4WD • AUTOMATIC

RAMTINSABET

MEMBER
1 POST
FOLLOW

I have a 2021 GLA 45 AMG it’s due for a transmission service and rear differential fluid.

I believe the transmission has to be brought up to a certain temperature for the ATF liquid flow all over the transmission.

VIN W1N4N5DBXMJ216572

I was wondering if there was video or step by step PDF that could help to get the job done. I appreciate your assistance.

Jun 24, 2023 at 5:45 AM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

Sure, here are the instructions on how to change out the oil in the transmission and differential. Here is a generic guide to help you step by step with instructions in the diagrams below to show you how on your car:

https://www.2carpros.com/articles/how-to-service-an-automatic-transmission

and

https://www.2carpros.com/articles/differential-service

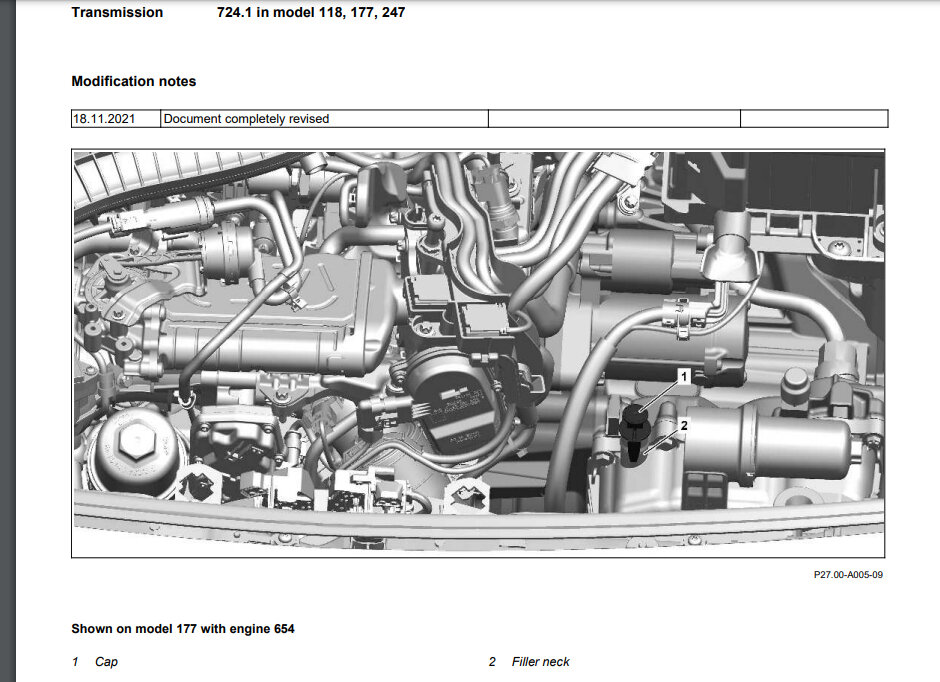

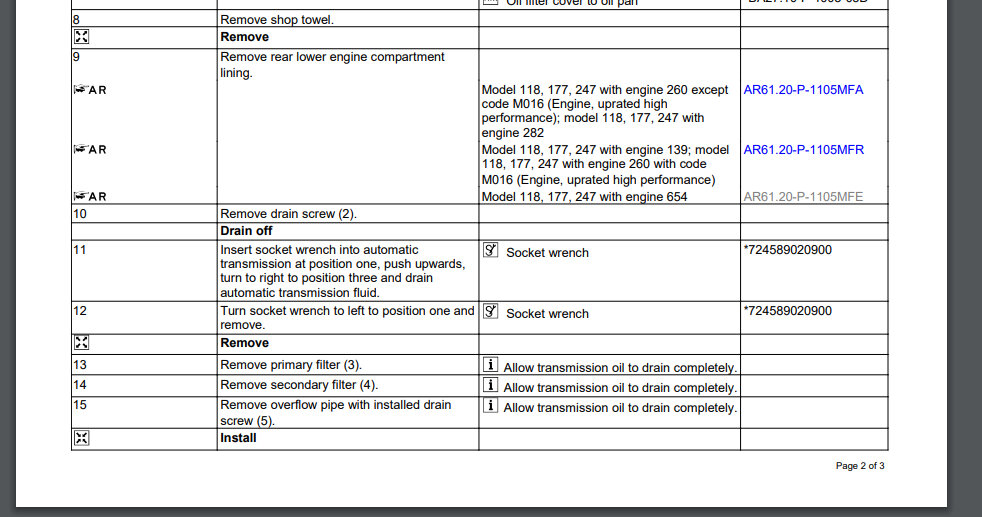

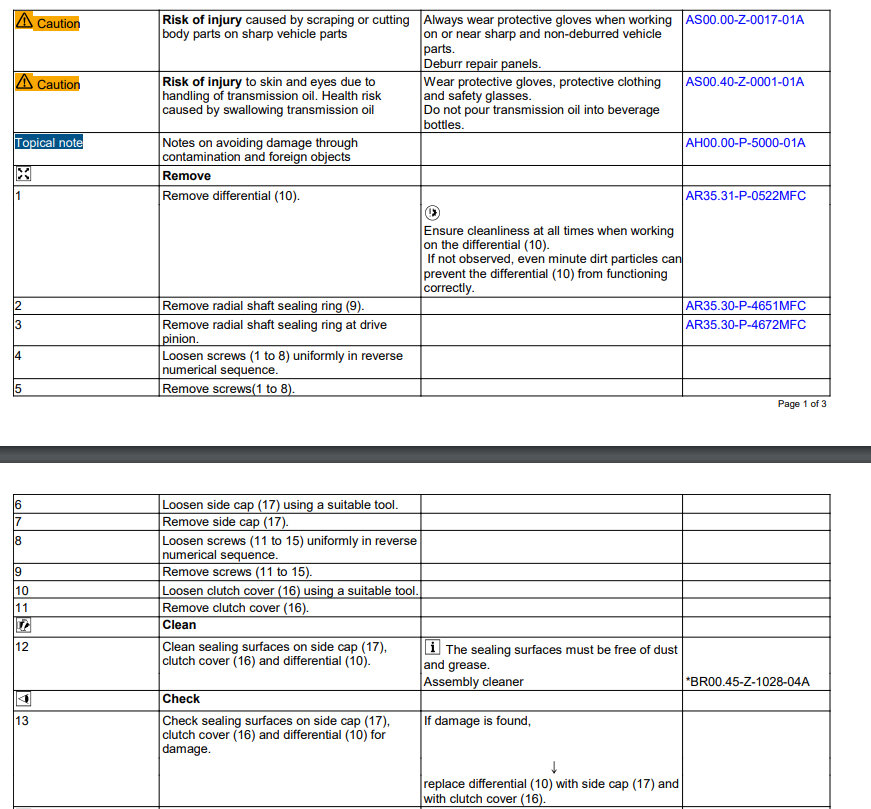

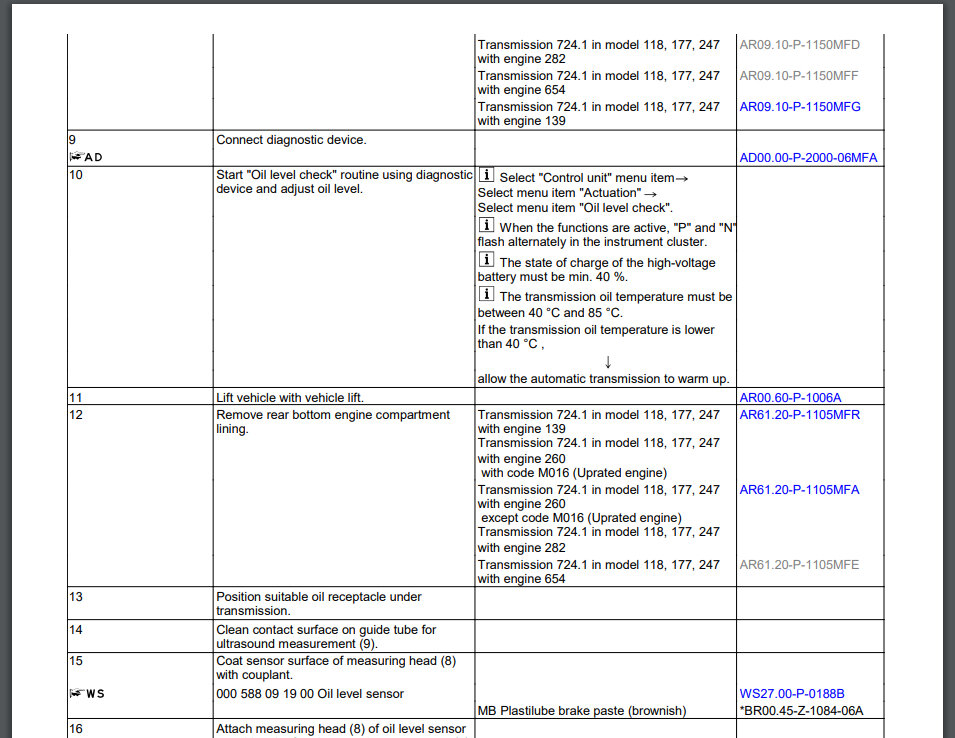

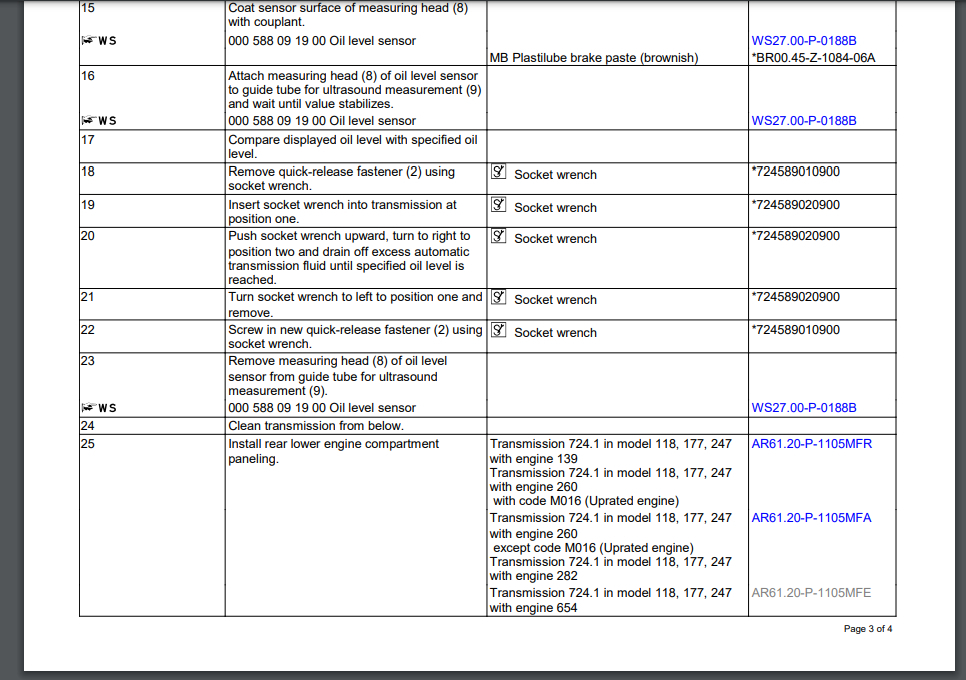

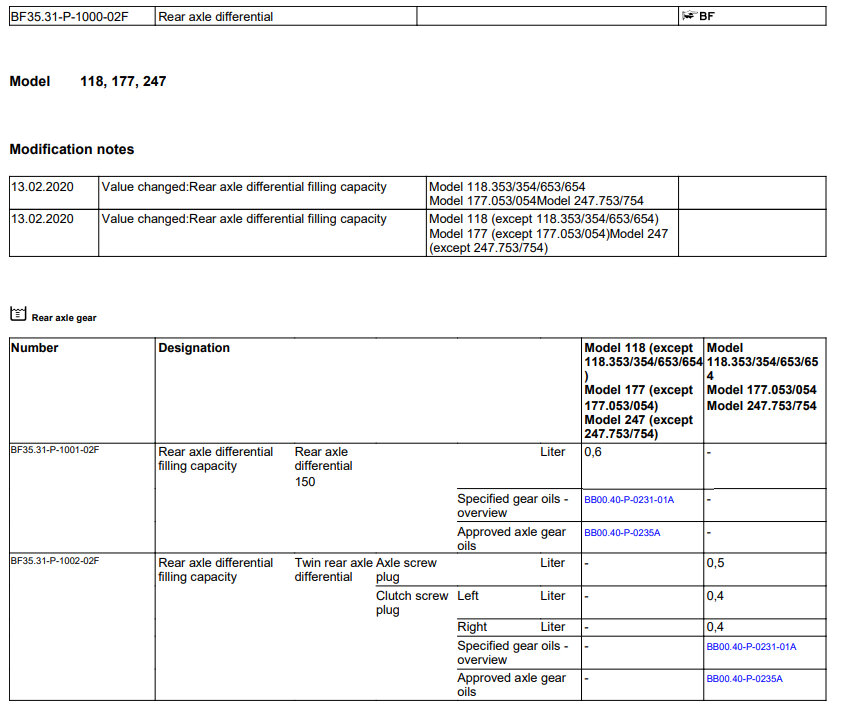

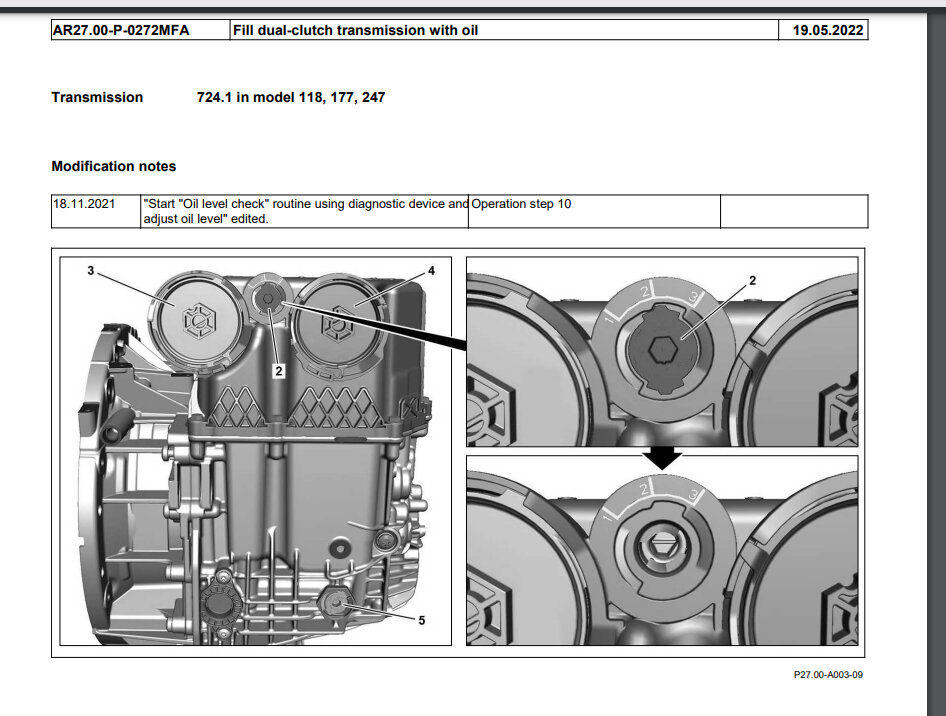

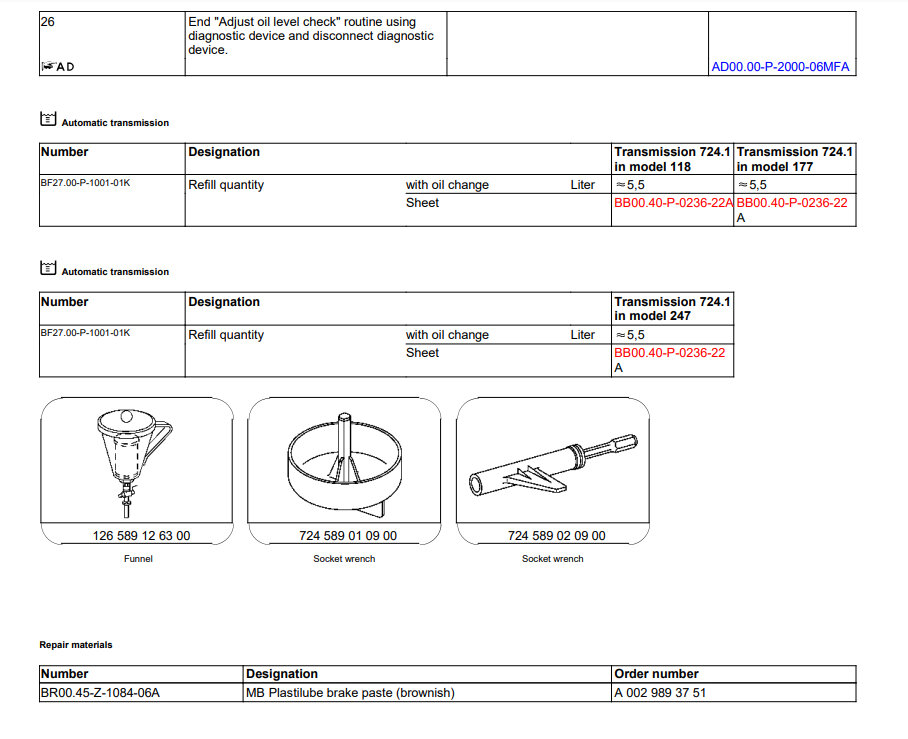

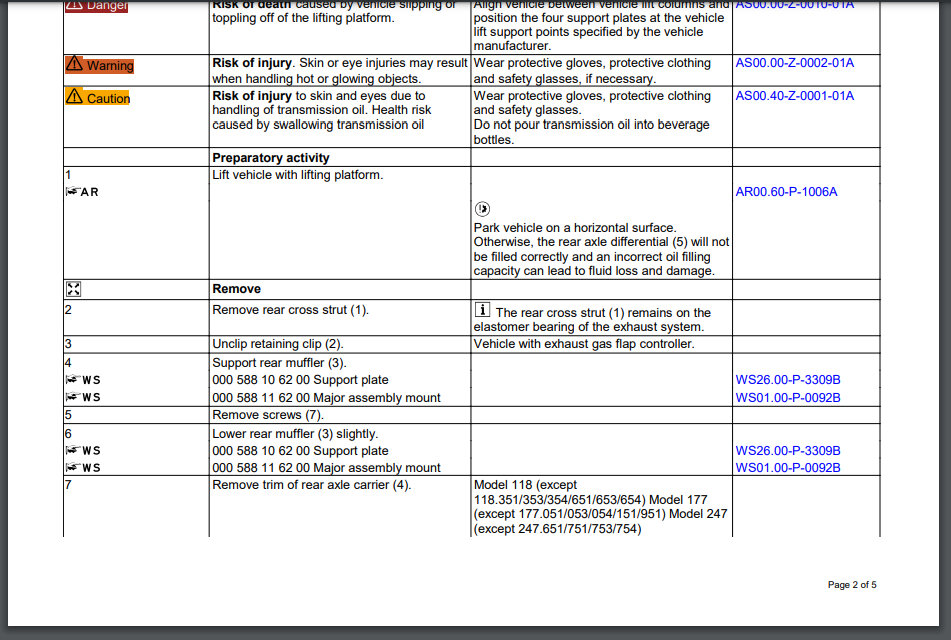

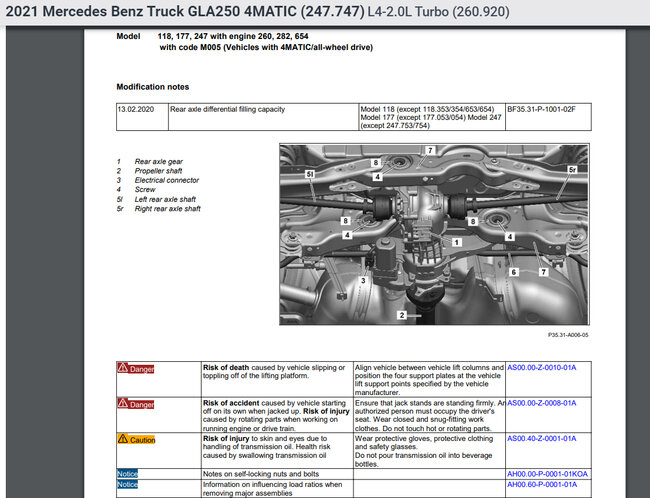

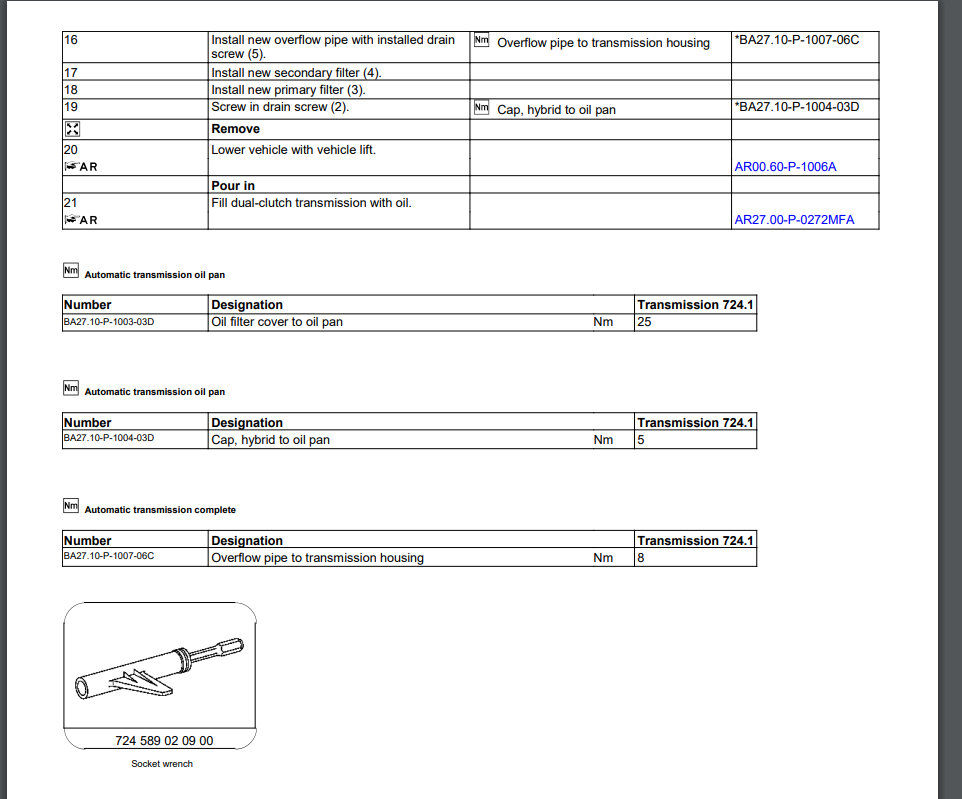

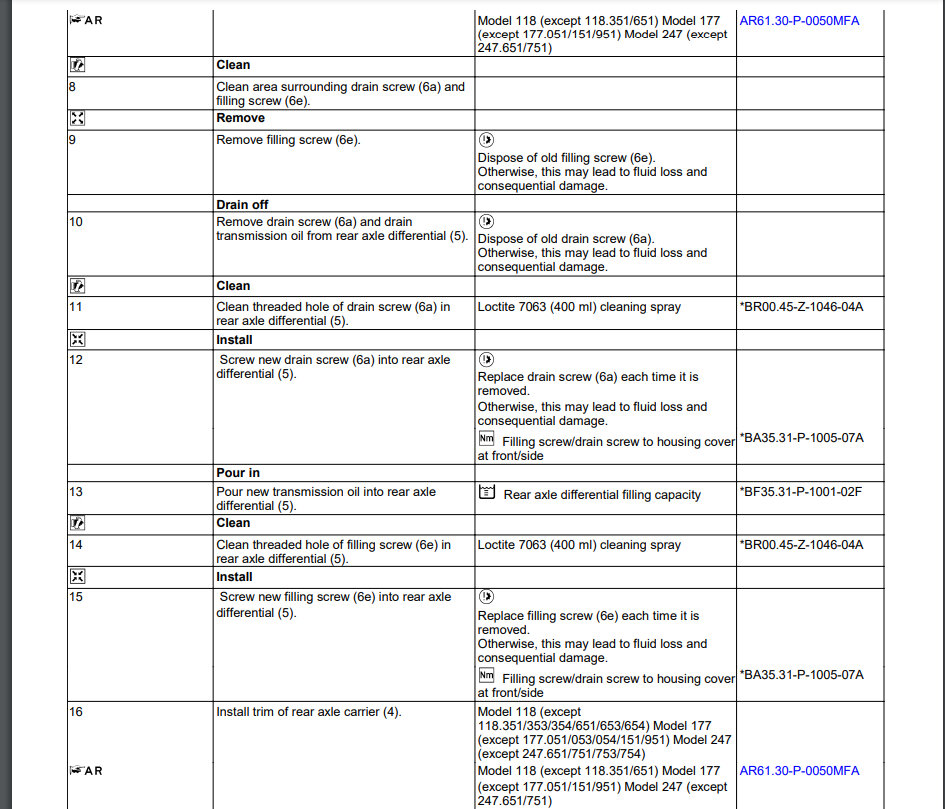

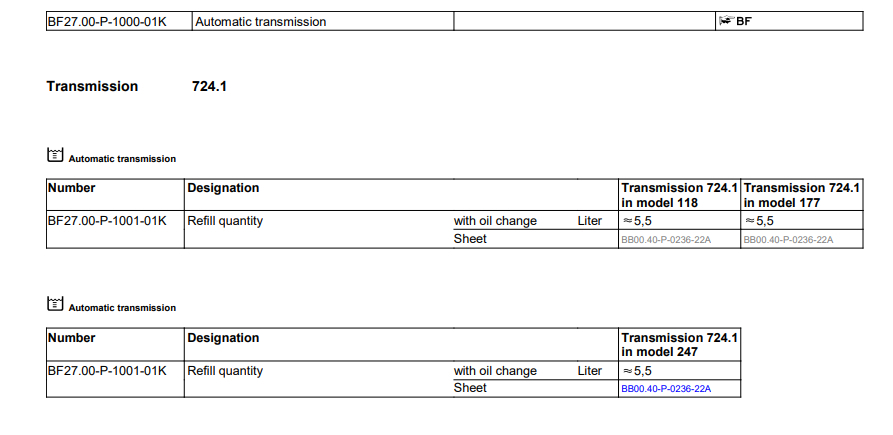

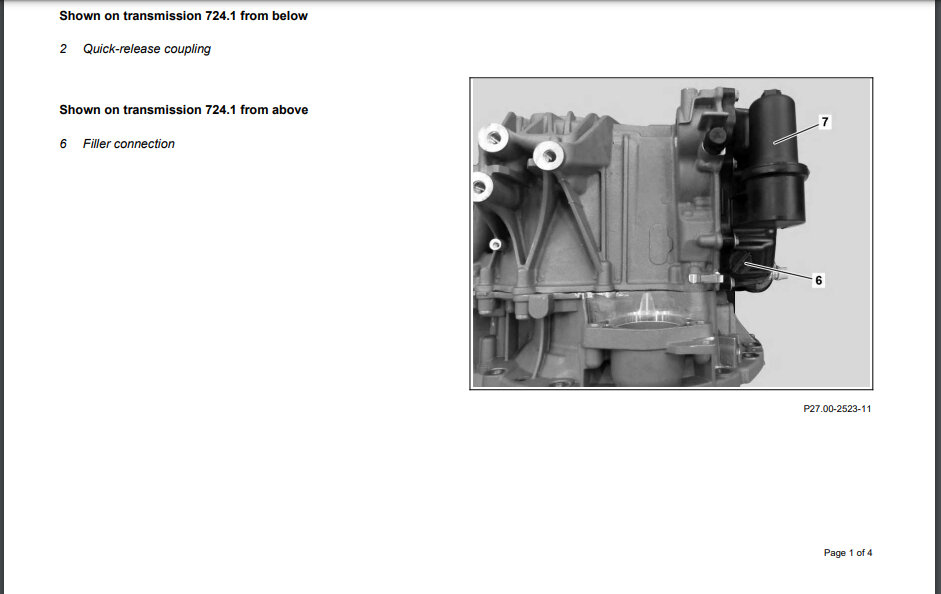

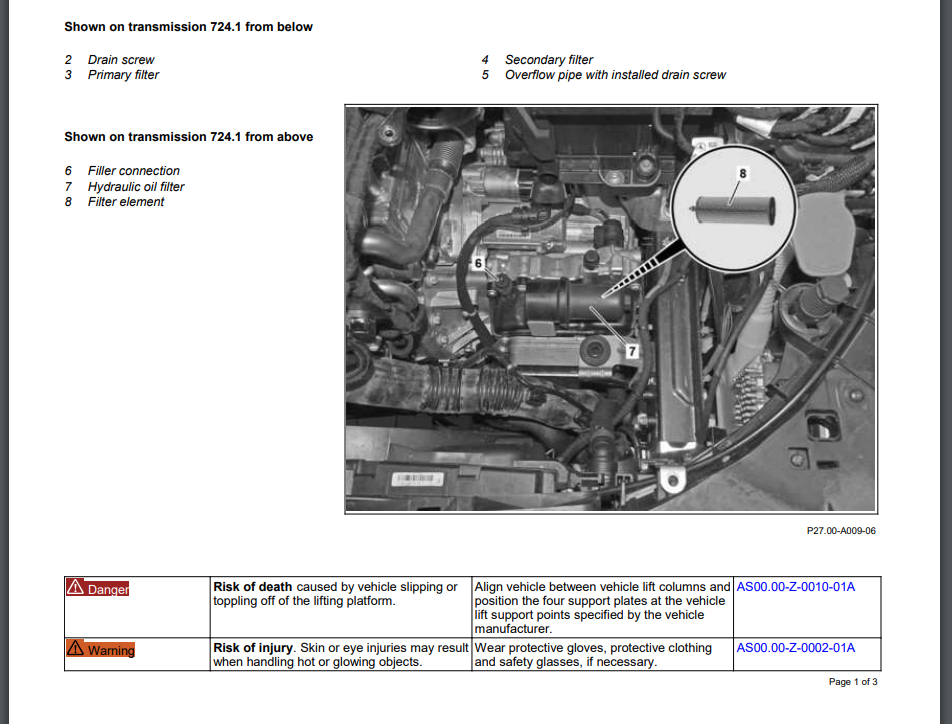

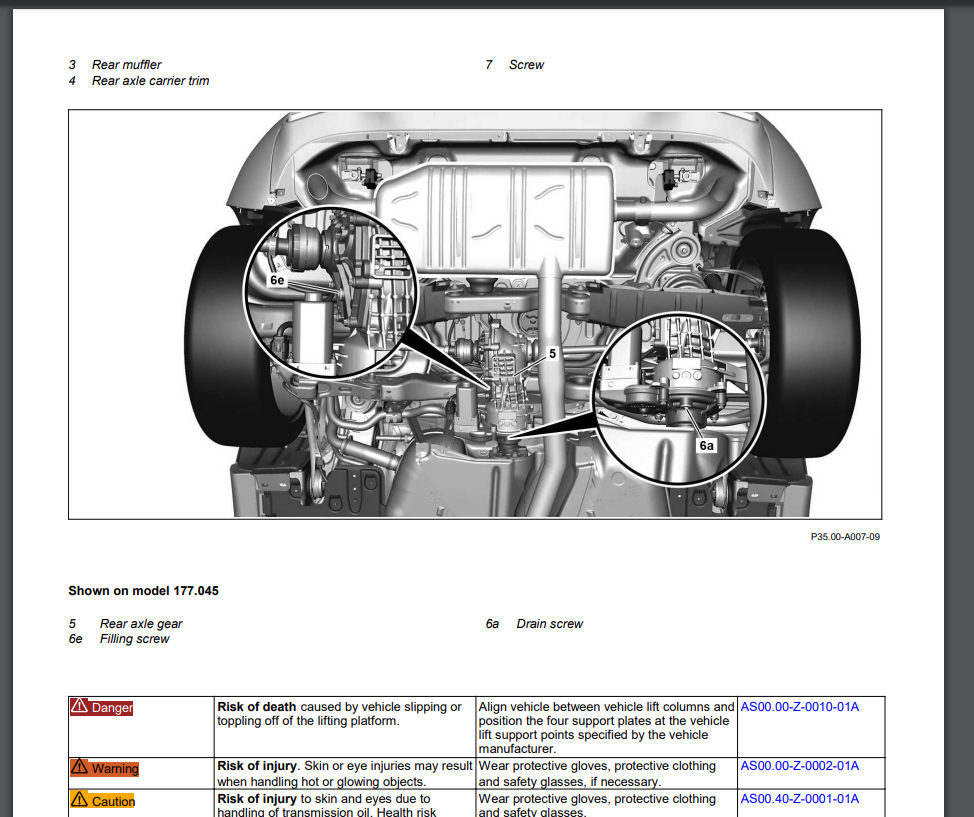

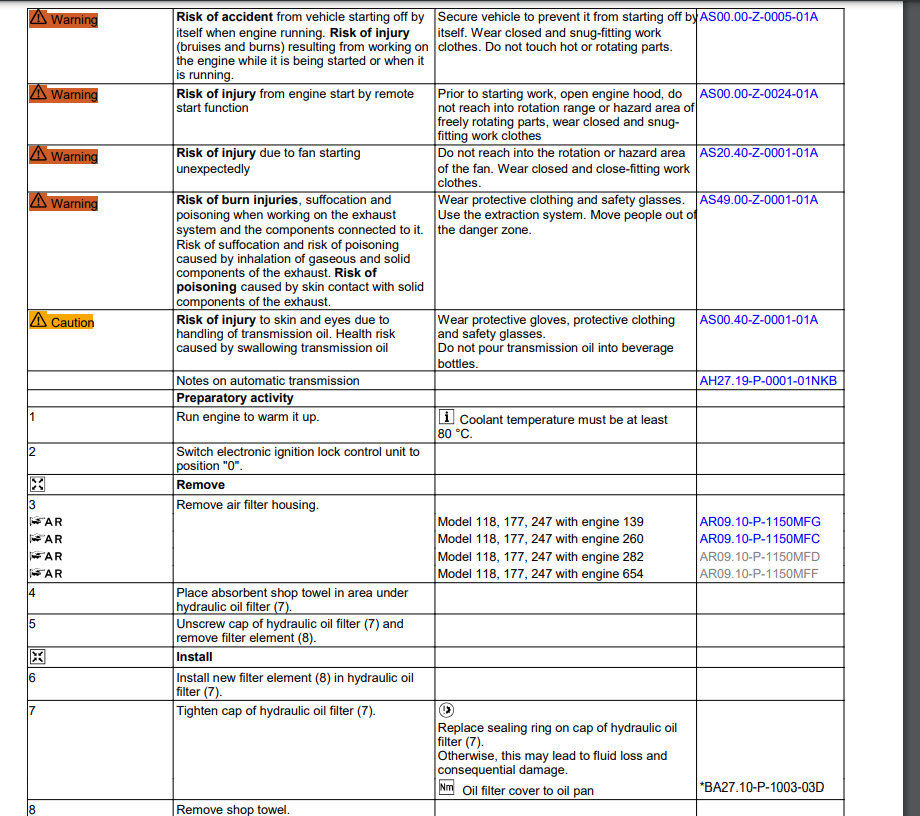

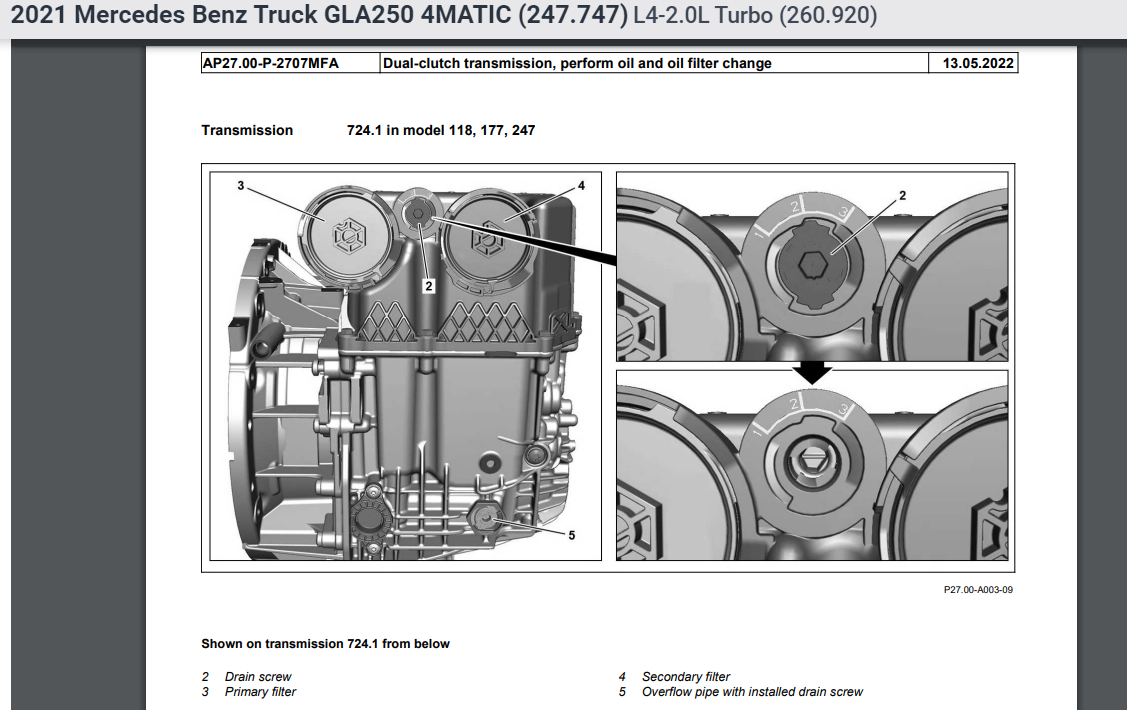

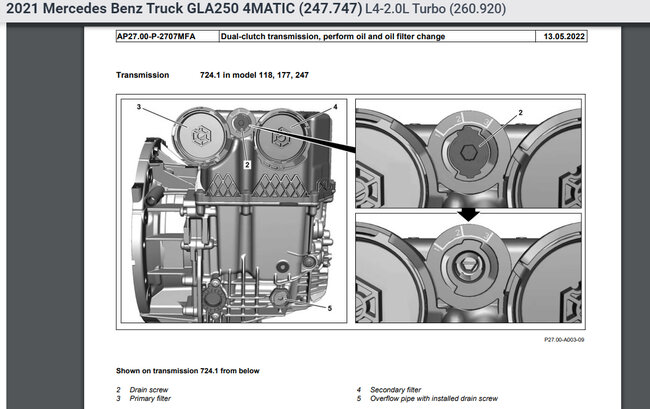

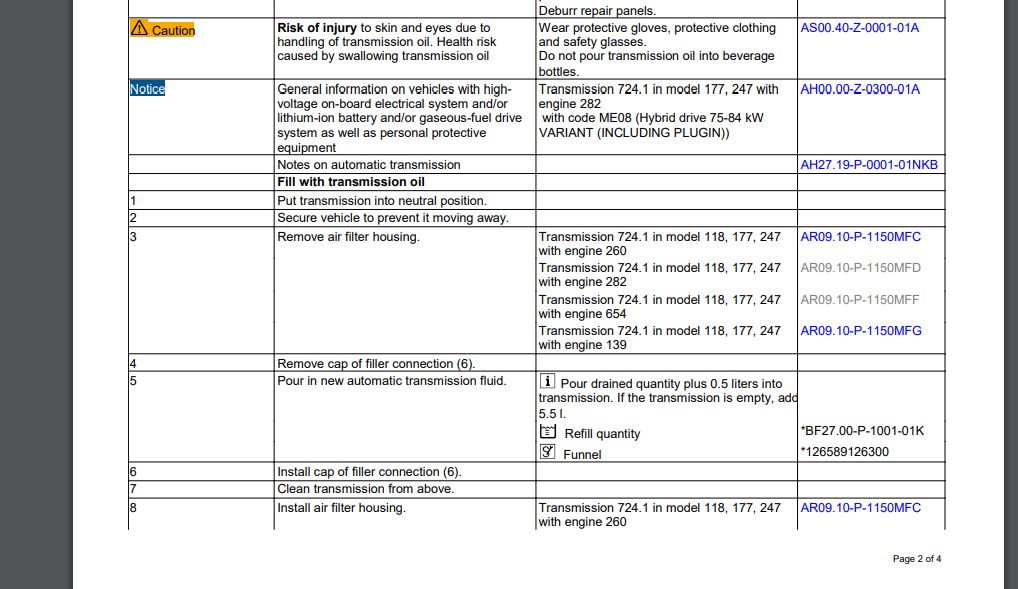

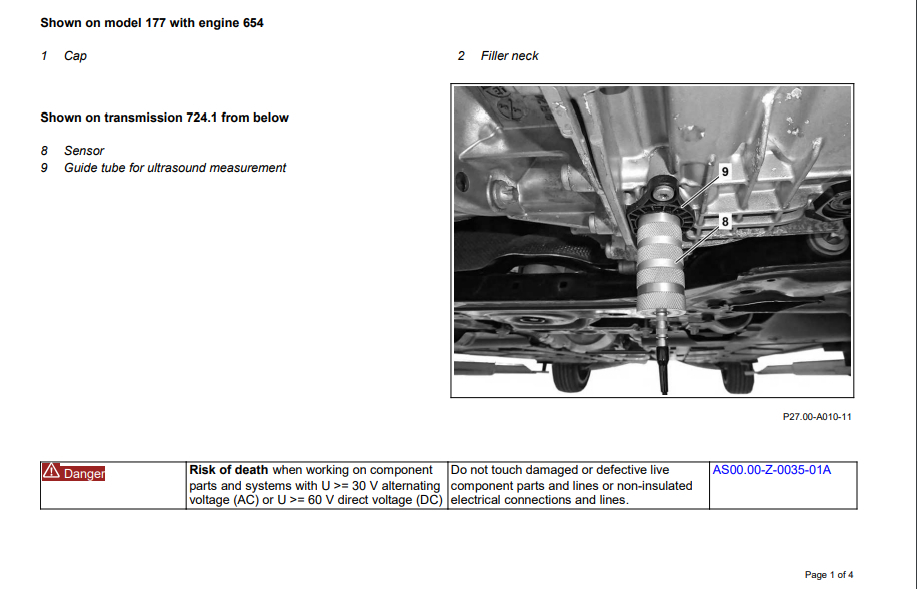

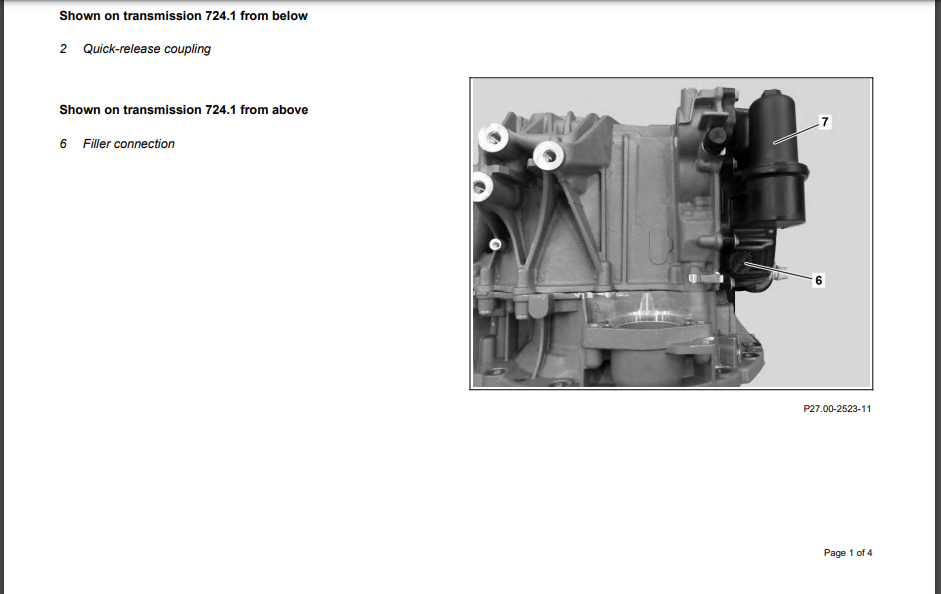

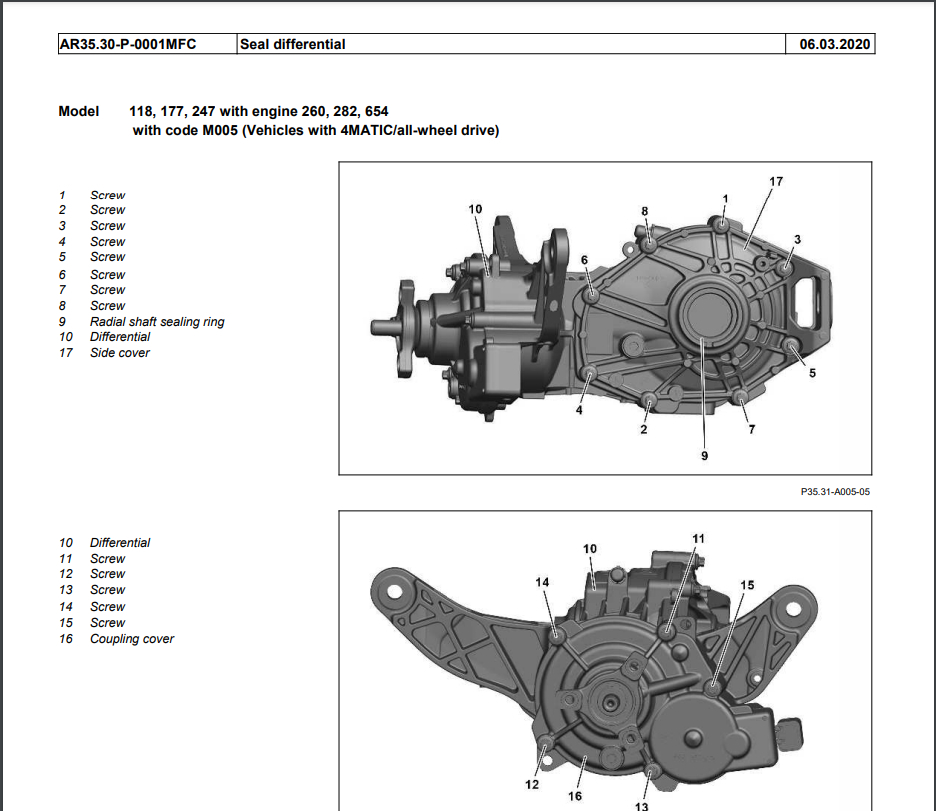

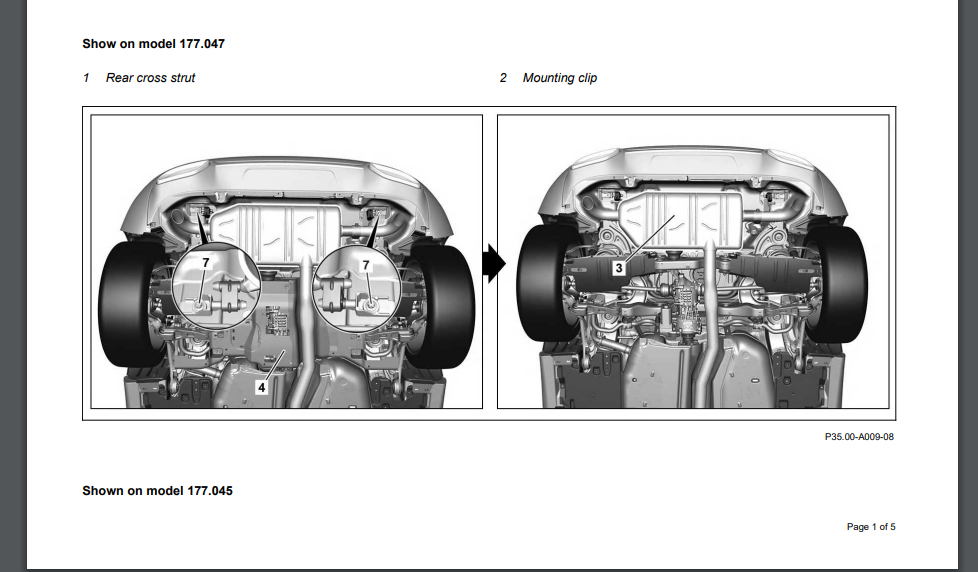

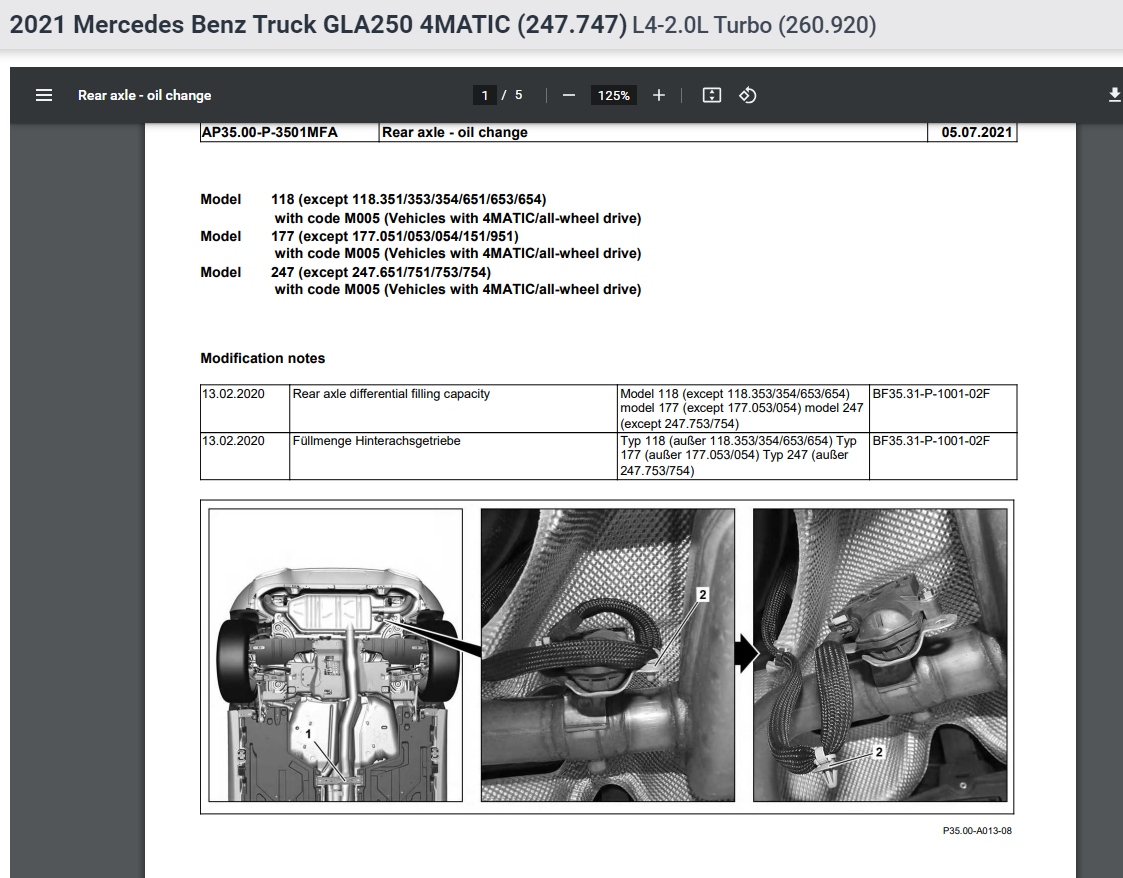

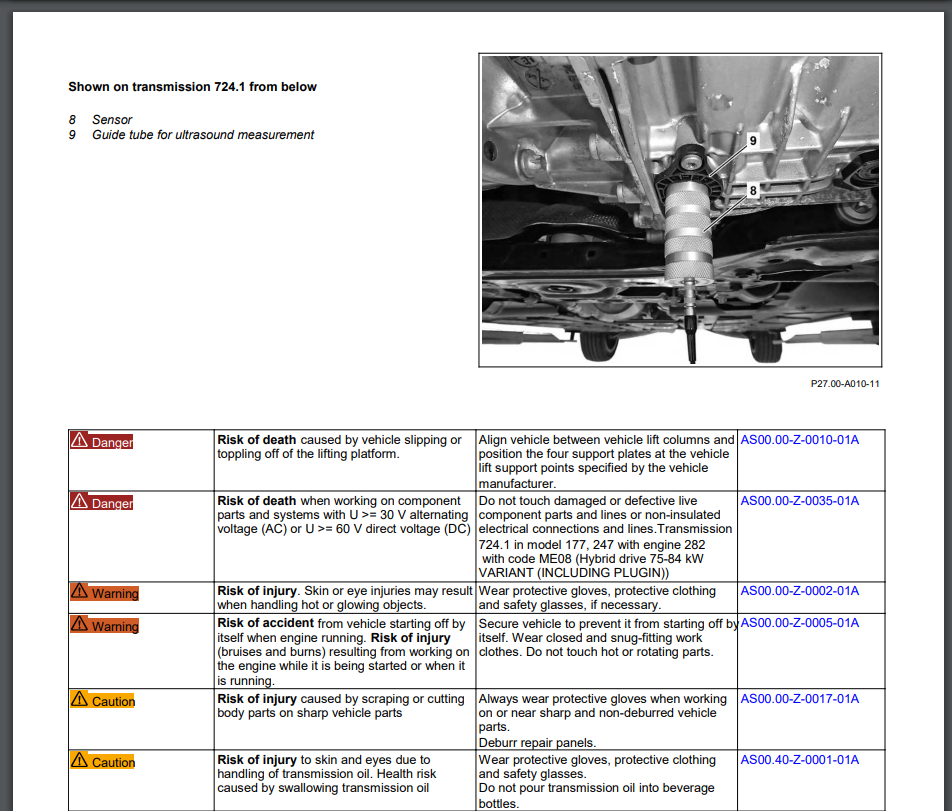

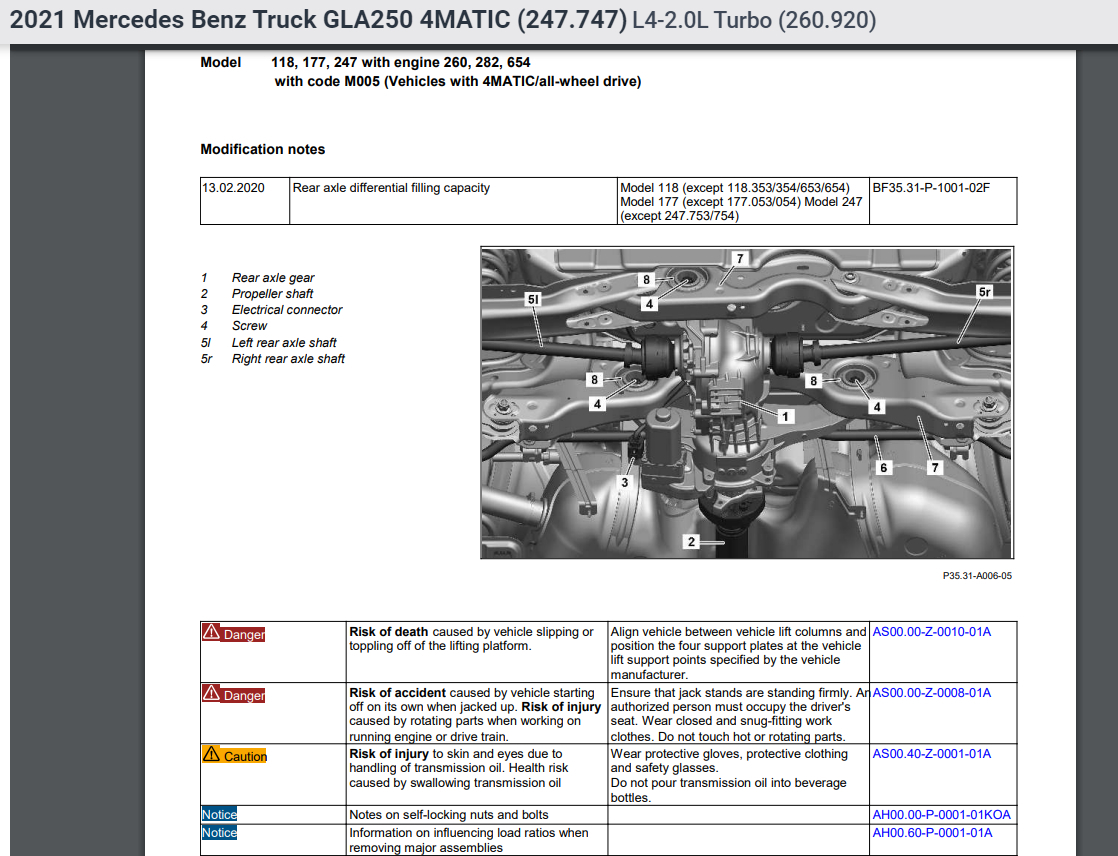

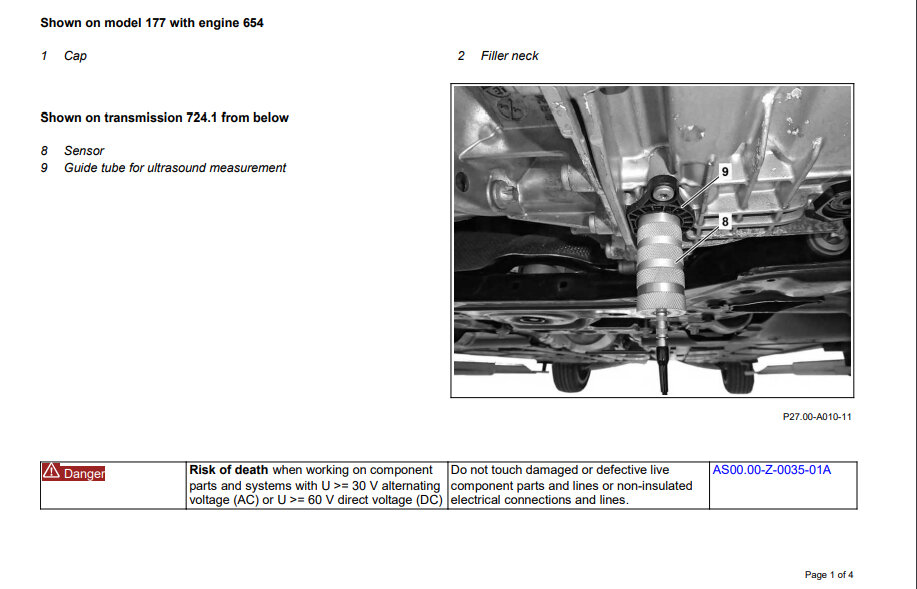

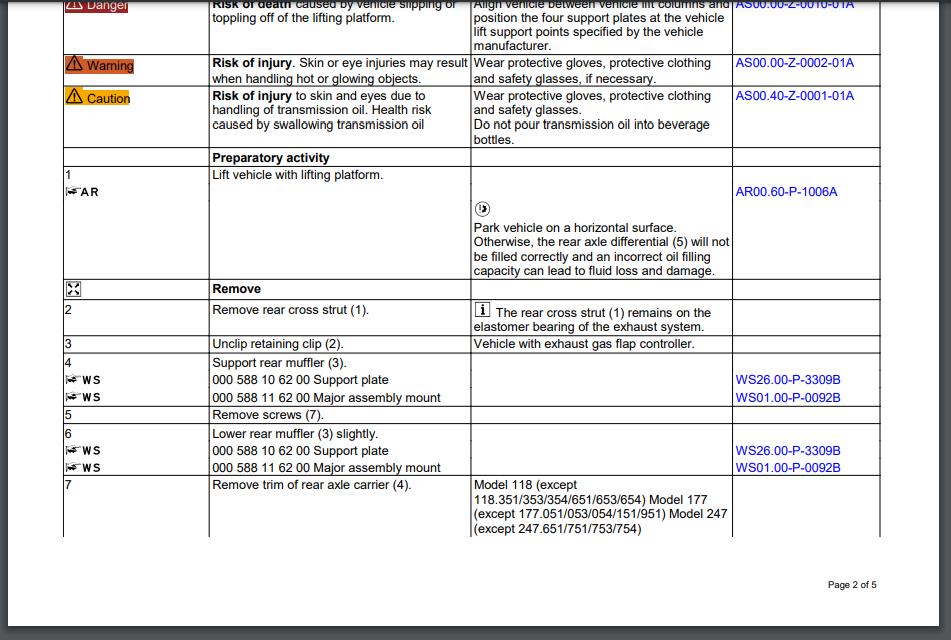

Check out the images (below). Please let us know if you need anything else to get the service completed.

Images (Click to enlarge)

Jun 24, 2023 at 12:46 PM
