Code P0885, where is the Transmission Relay located?

2005 KIA AMANTI
100,000 MILES • 3.5L • 6 CYL • 2WD • AUTOMATIC
Avatar
[email protected]
  • MEMBER
  • 1 POST

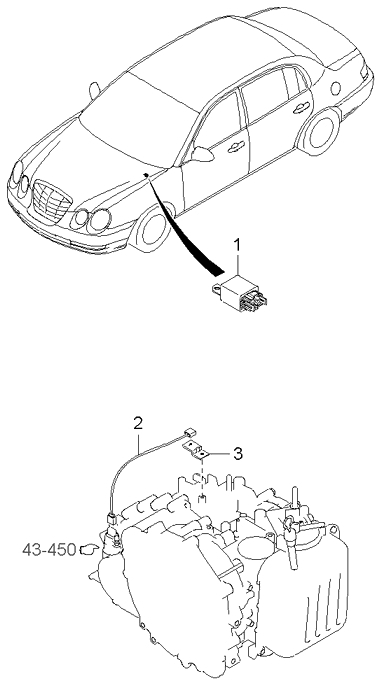

According to KIA part store, the relay is not in the fuse box, but under dashboard https://www.kiapartsnow.com/genuine/kia-relay-a-t-contr~9544539052.html?vin=&make=Kia&model=Amanti&year=2005&submodel=&extra1=&extra2=&filter=()&location=electrical/transmission_control_unit,9195411,95445

Not sure where it is, should take off dashboard to find it?
Image (Click to enlarge)
Attached Media
Aug 22, 2022 at 8:52 PM
Advertisement
Avatar
BORIS K
  • CERTIFIED EXPERT
  • 836 POSTS
Hello,

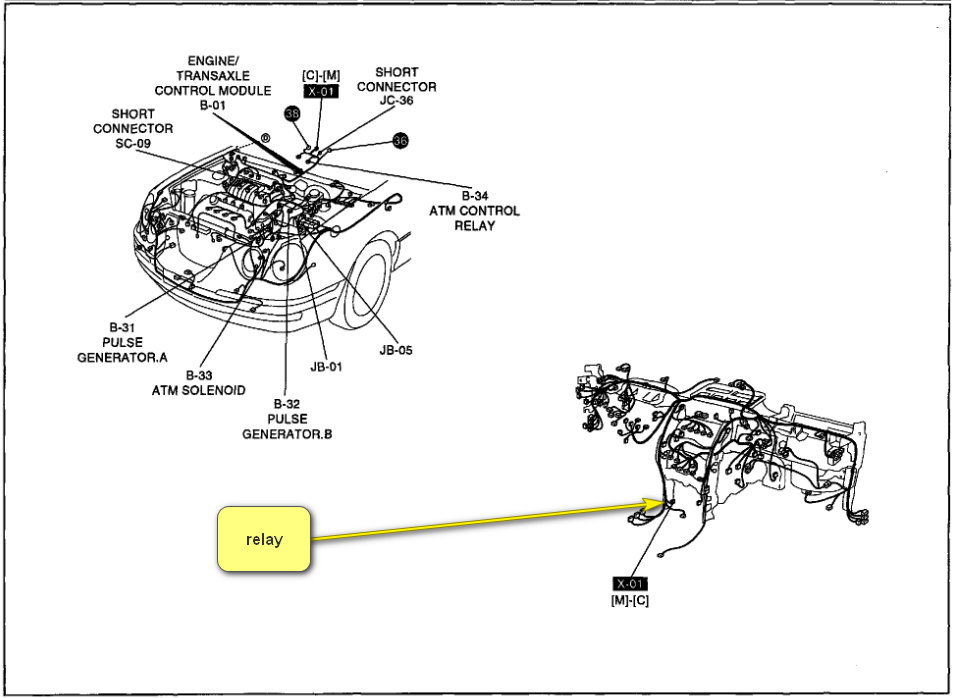

The ATM relay is located on the driver's side center console.

Please see 1 image below.

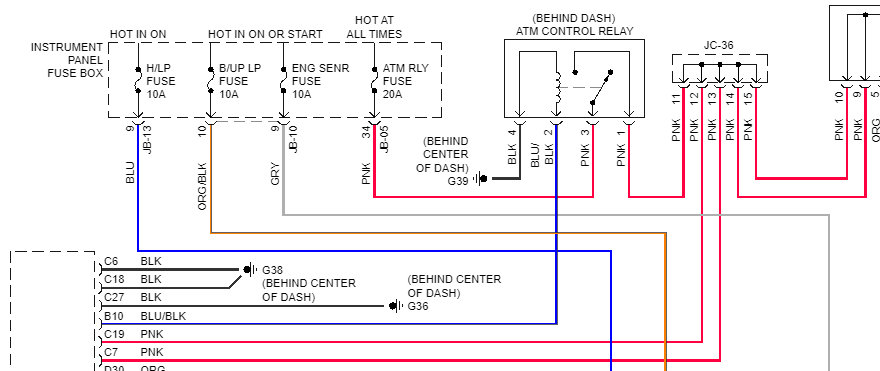

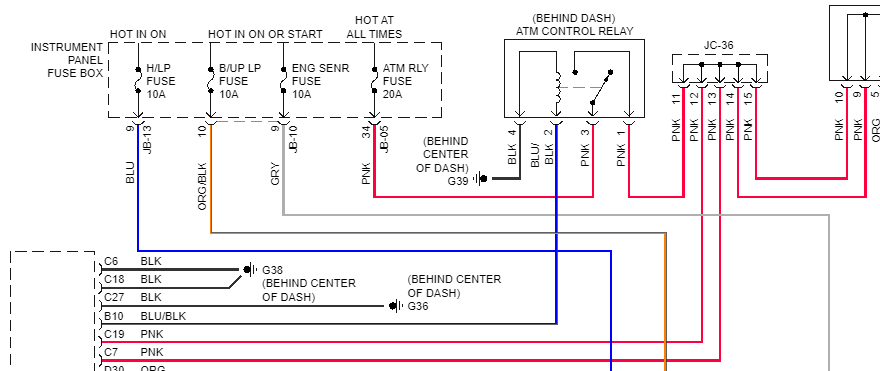

Suggest checking 12V and ground at ATM relay, see image 2.
Voltage and ground can be checked using a test light or voltmeter.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester
and
https://www.2carpros.com/articles/how-to-use-a-voltmeter

Pin 3, pink wire constant 12V from ATM relay fuse, 20A.
Pin 4, black wire ground.

How to test a relay:
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Cheers, Boris
Images (Click to enlarge)
Attached Media
Attached Media
Aug 23, 2022 at 2:43 AM
