how to repair the transfer case shifting motor and I need pictures and specs to put back together?

2011 GMC CANYON

112,345 MILES • 2.9L • 4 CYL • 4WD • MANUAL

MEMBER
2 POSTS
FOLLOW

i have taken the motor apart and I need picture and specs to put back together. And how to test. Also, I need to know what feeds the red wire to motor no 4x4 4 high flashing than back to 2 high any information is help full.

Sep 30, 2022 at 10:50 PM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

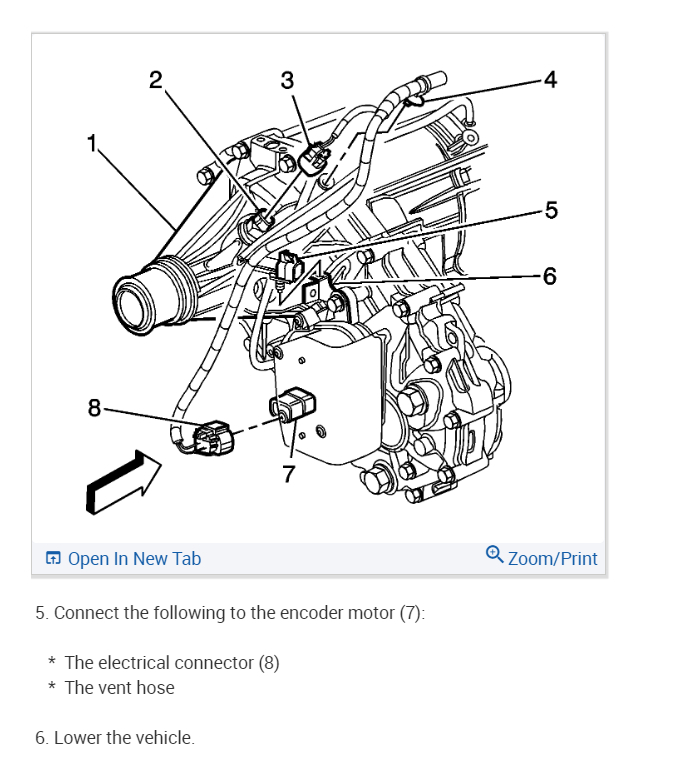

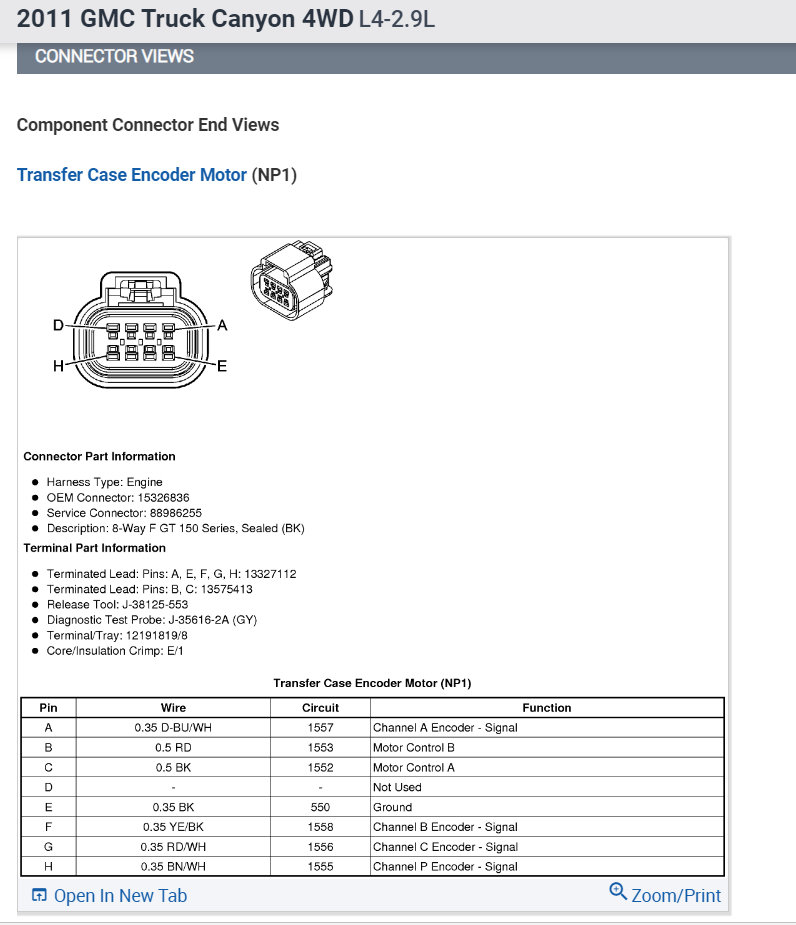

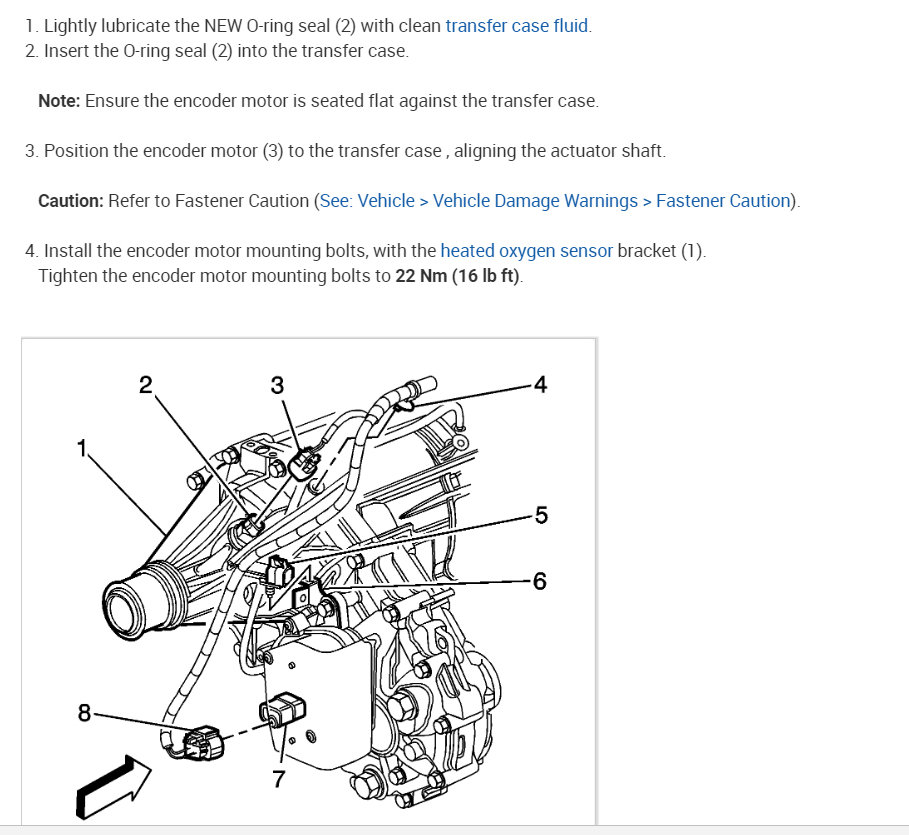

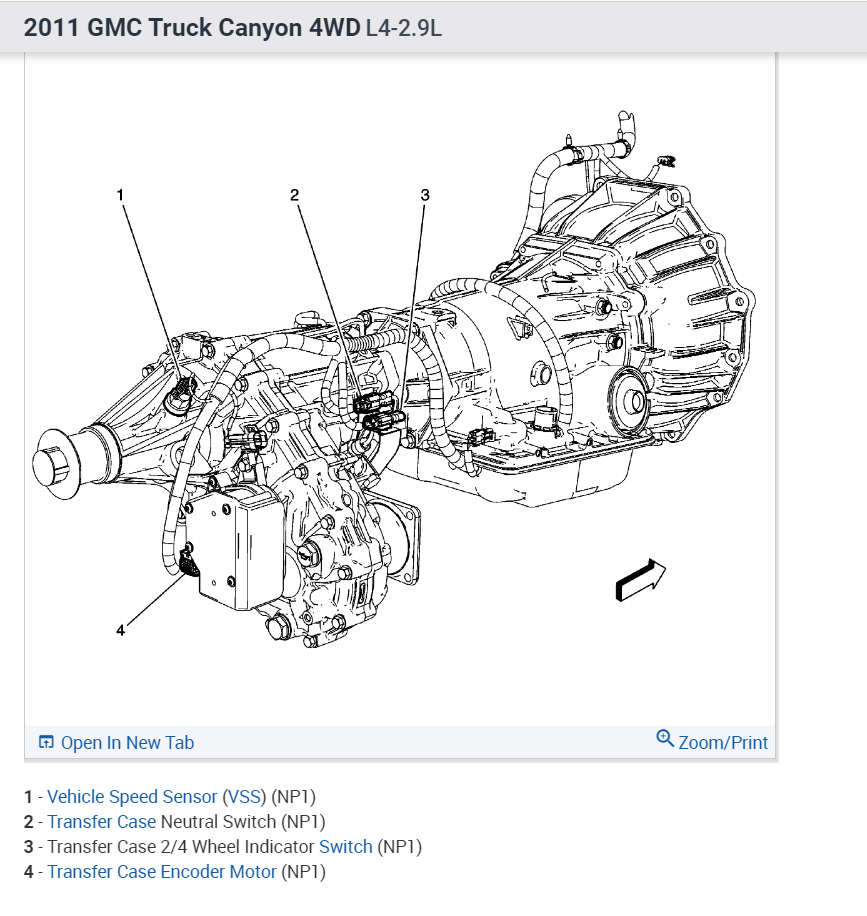

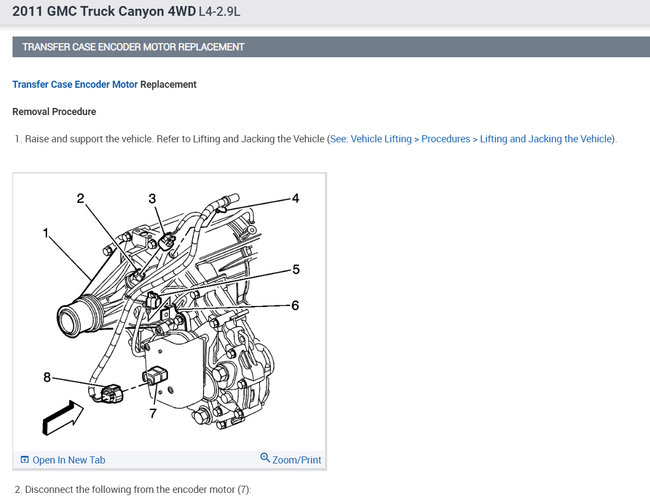

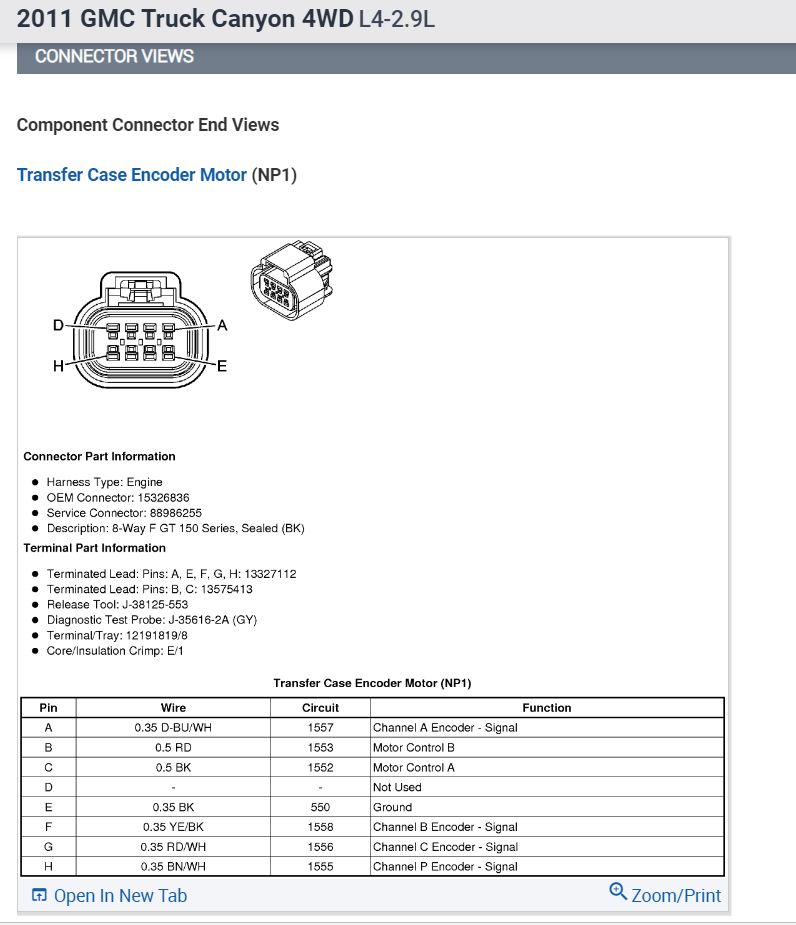

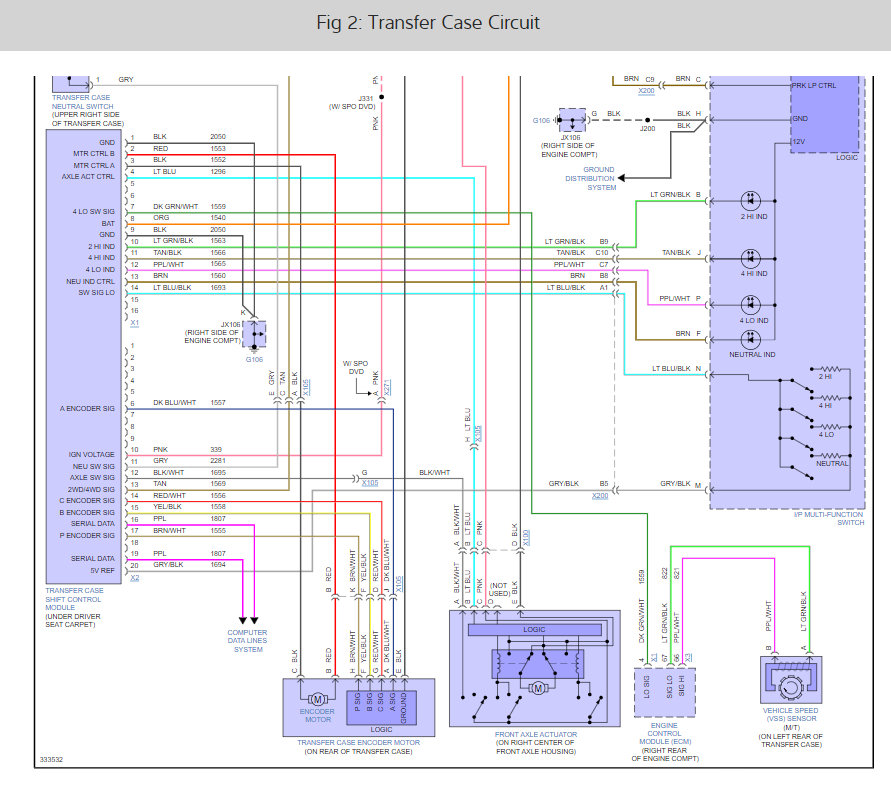

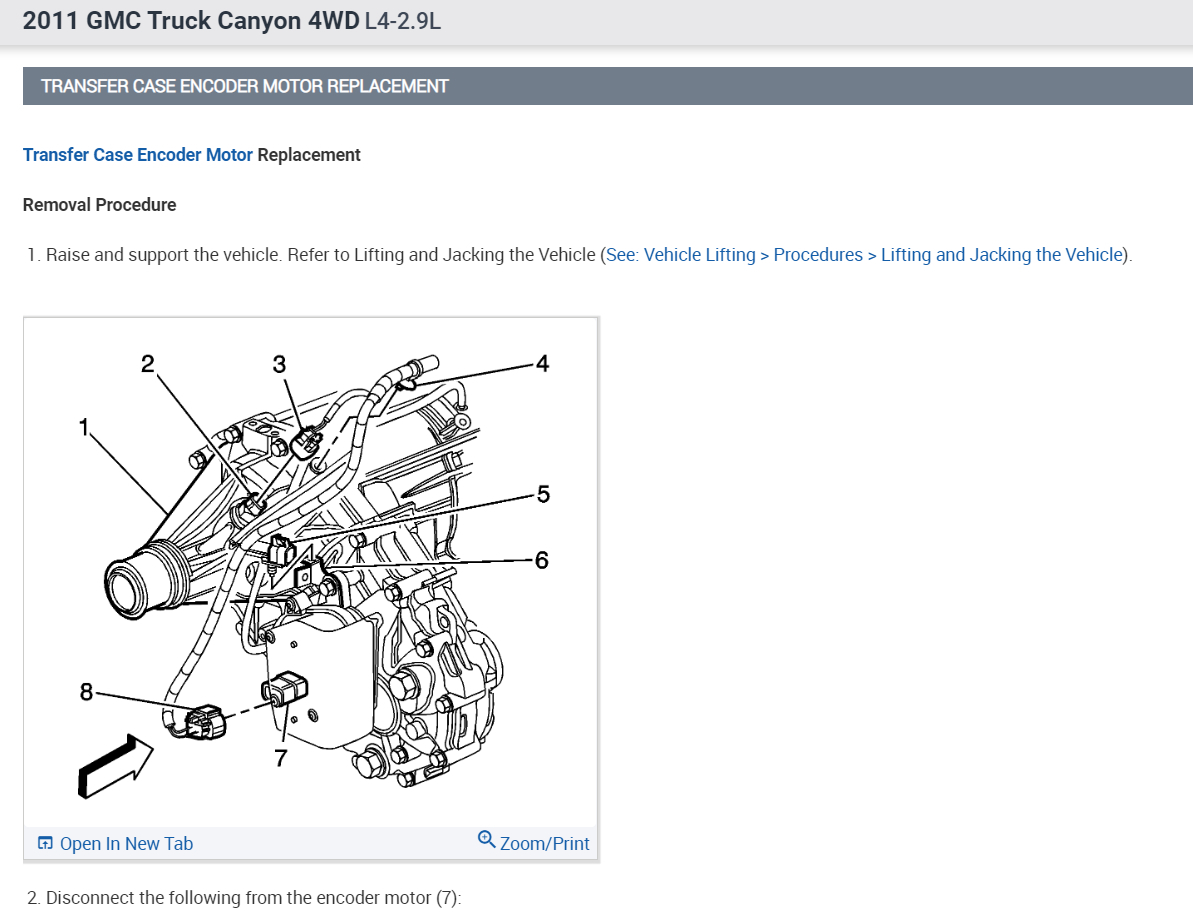

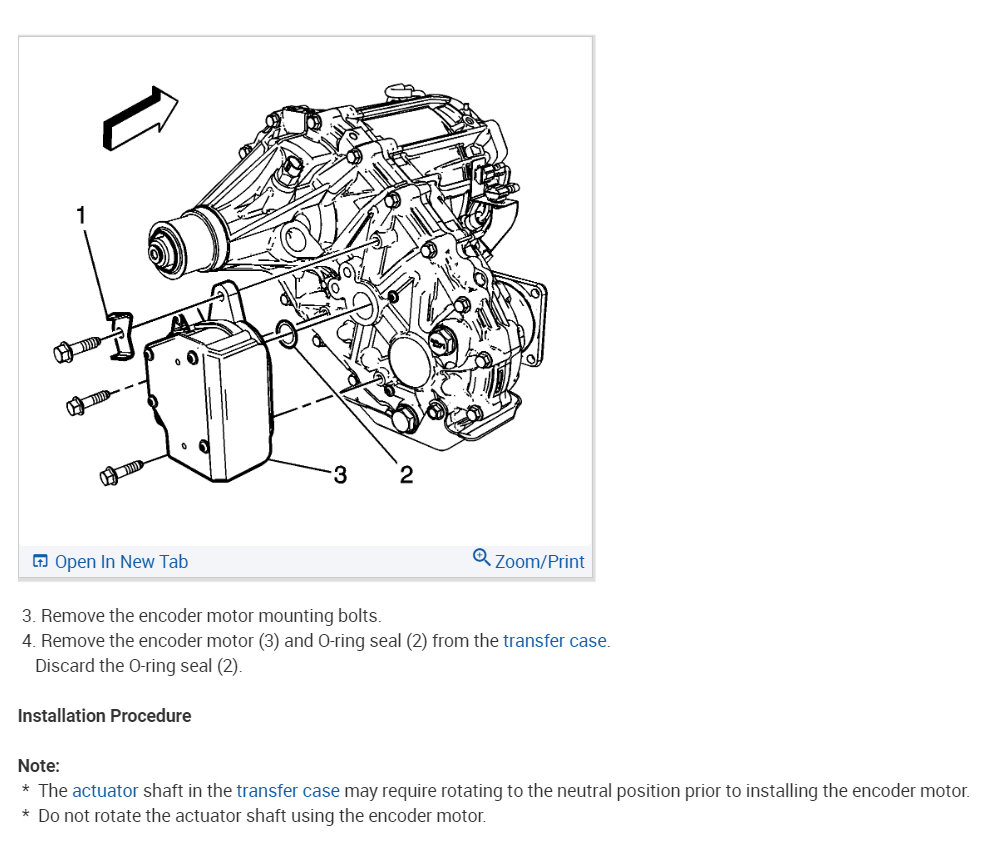

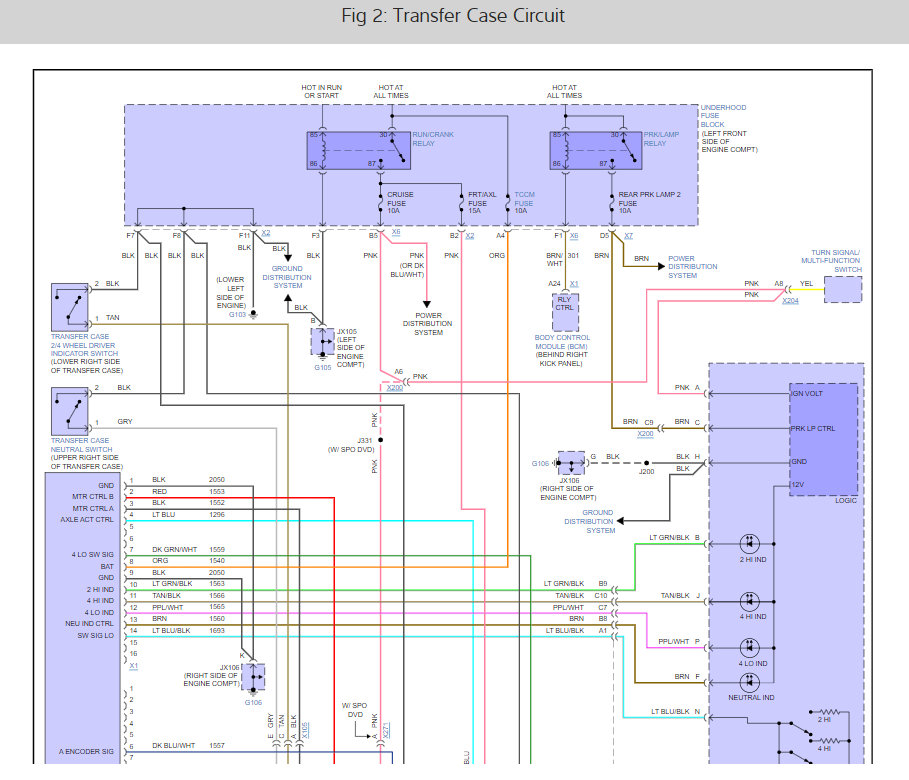

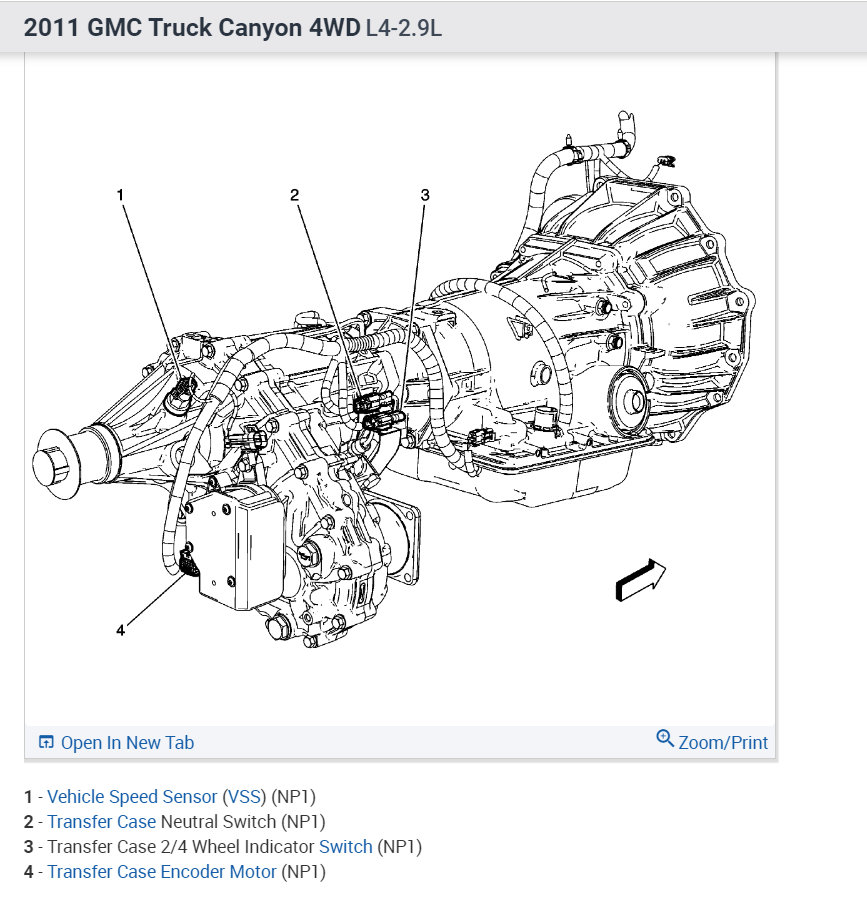

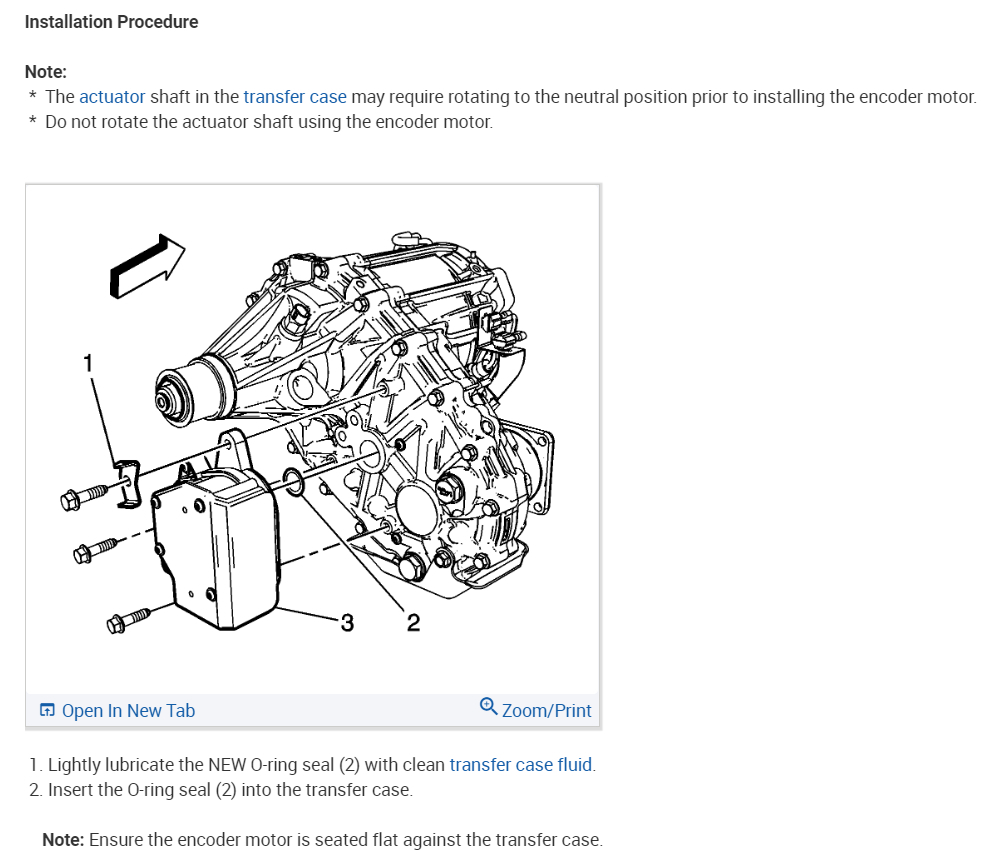

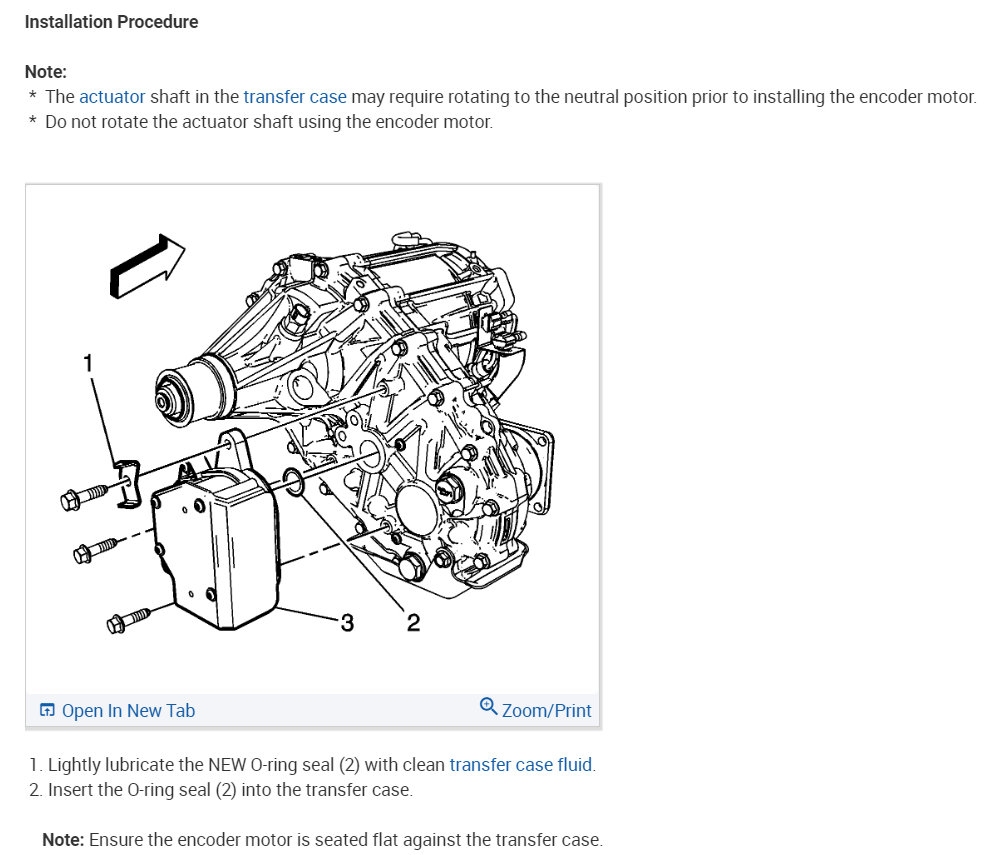

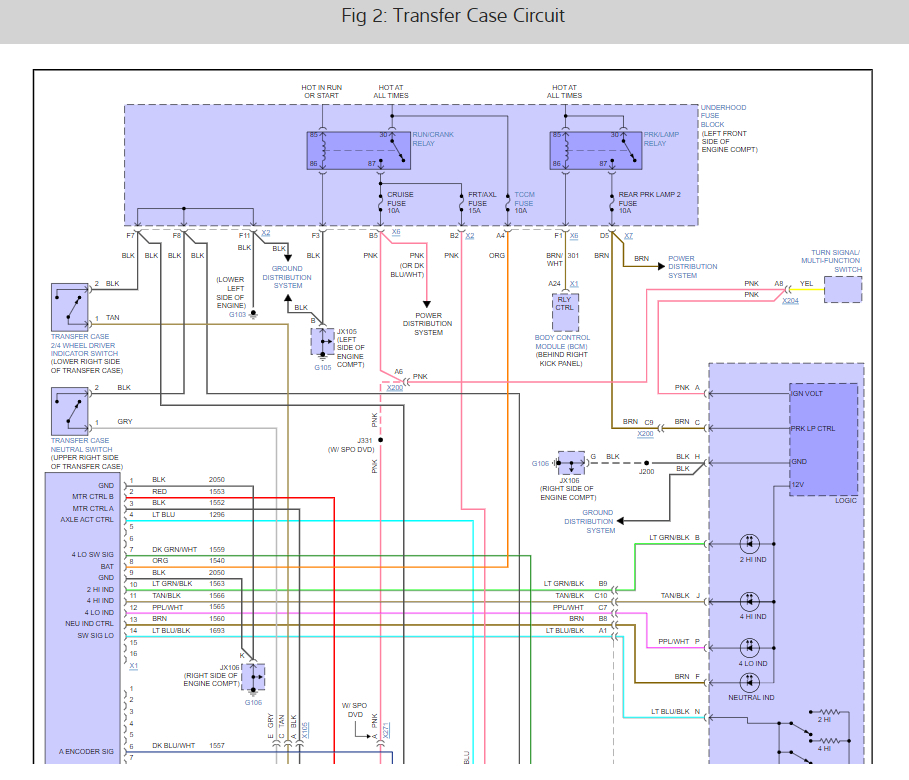

They really don't show us how the motor goes back together; most people just get a new transfer case actuator motor. here is how to replace it and the wiring diagrams that control the actuator motor. I may be able to help if you load a short video or images of what you are trying to do. Check out the images (below). Let us know what happens and please upload pictures or videos of the problem.

Images (Click to enlarge)

Oct 1, 2022 at 10:55 AM
