Crankshaft torque settings

2005 TOYOTA COROLLA
250,000 MILES • 1.6L • 4 CYL • 2WD • MANUAL
Avatar
B.LUTCHMANAN
  • MEMBER
  • 2 POSTS
Hi i am rebuilding the engine on a toyota run x 1.6 with a 4zze 587 410 engine and in need of all the torque settings for it
Dec 20, 2018 at 8:39 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Hello,

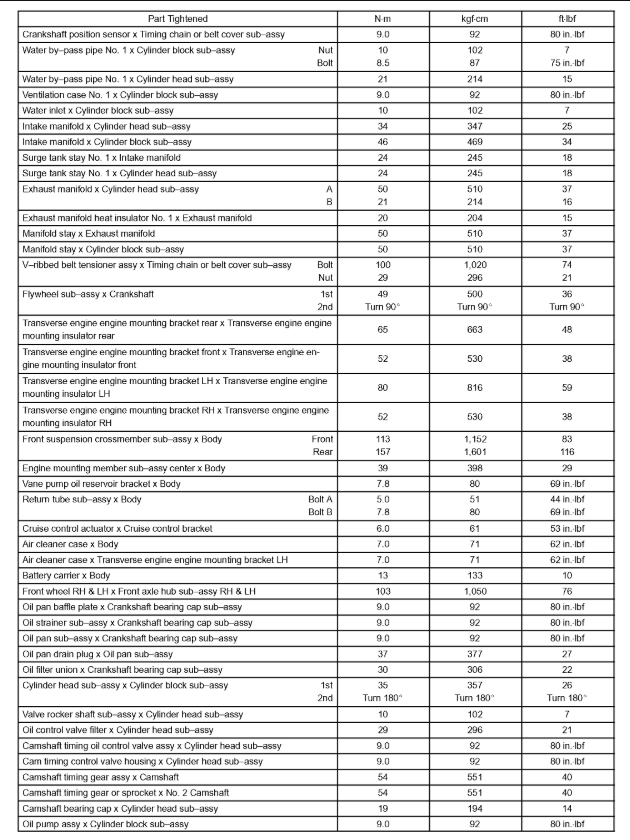

Here is a video to show you how to use a torque wrench and the specs in the diagrams below:

https://youtu.be/juOClONIWeY

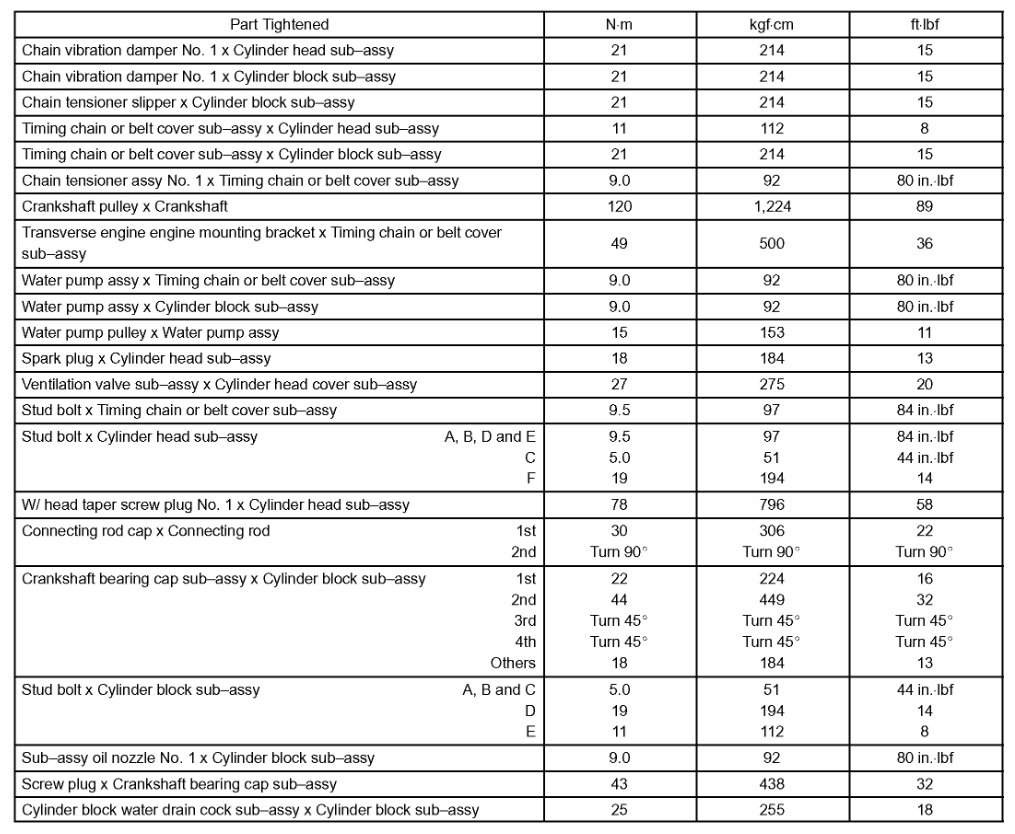

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 10, 2020 at 10:18 AM
Avatar
DHAYNE
  • MEMBER
  • 1 POST
what is the torque specs for crank bolts on 1992 corolla 1.6l

Dec 26, 2020 at 2:51 PM (Merged)
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

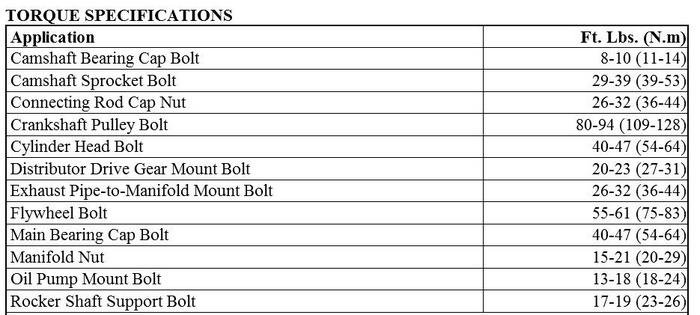

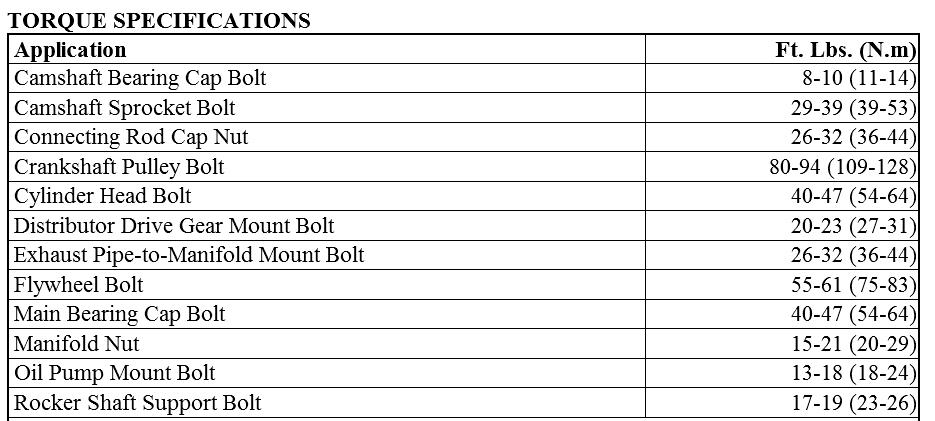

Connecting rod cap nuts = 36 ft.lbs. (49 N.m.)

Main bearing cap bolts = 44 ft.lbs. (60 N.m.)

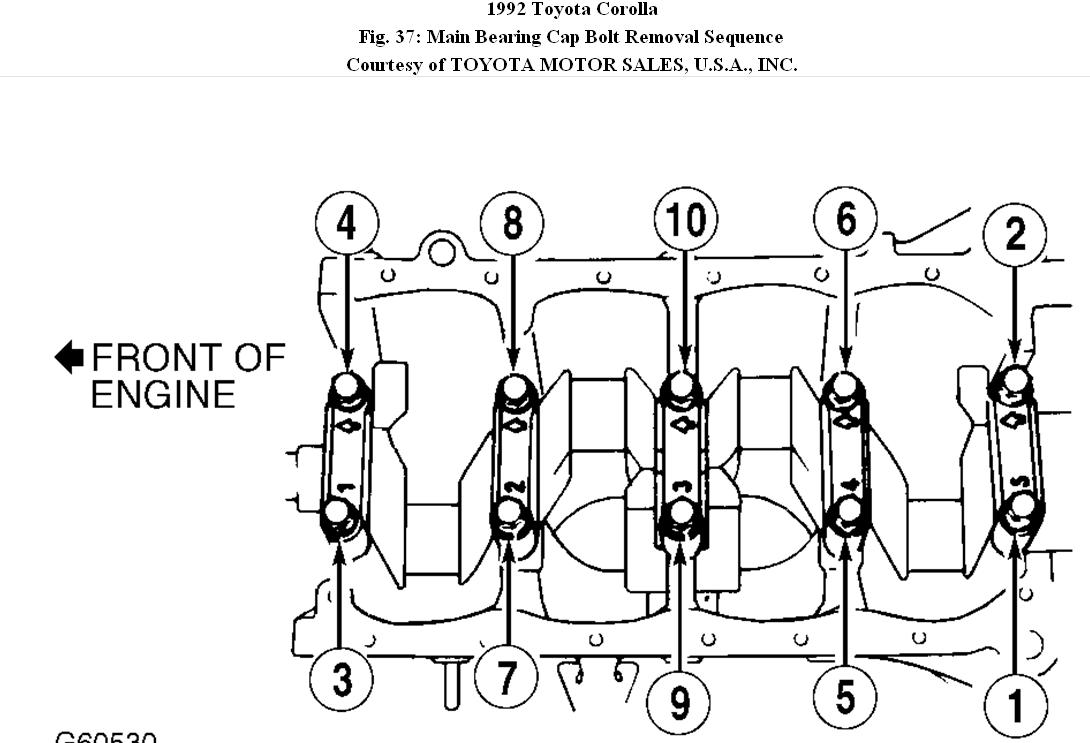

For main bearing caps, tighten evenly in sequence according to diagram.
Image (Click to enlarge)
Attached Media
Dec 26, 2020 at 2:51 PM (Merged)
Avatar
CAMERONDOBBS
  • MEMBER
  • 1 POST
Currently replacing engine bearings and need to know how tight the torque has to be.
Dec 26, 2020 at 2:51 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Refer to diagram.
Image (Click to enlarge)
Attached Media
Dec 26, 2020 at 2:51 PM (Merged)
