Torque specs and tightening sequence for the camshaft cap bolts needed?

2016 KIA FORTE
230,145 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
WOOD8669
  • MEMBER
  • 1 POST
Just need the torque specs and tightening sequence for the camshaft cap bolts.
Apr 23, 2025 at 7:53 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
I don't see a 2.4-liter engine, there is a 2.0-liter engine though so here are the specs for that engine. There seems to be two different bolt sizes, here are the specs for both.

Tightening torque
M6 bolts:
11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)
M8 bolts:
18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

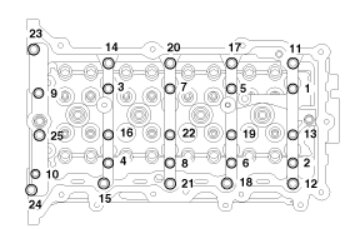

Here is the tightening sequence. Check out the images (below). Let us know if you need anything else.

Apr 23, 2025 at 11:23 AM
