TIPM Horn wiring diagram needed?

2013 DODGE AVENGER
130,000 MILES • 3.6L • V6 • 2WD • AUTOMATIC
Avatar
SINNAKERRI
  • MEMBER
  • 1 POST
Hi, there! I'm having an issue with my TIPM where the horn is randomly sounding. I've already narrowed it down to being the TIPM. I have pulled the TIPM and looked at all connections inside and outside, all seem to be fine. I'd love it if I could get a wiring diagram to know which wires affect the horn to narrow down exactly where I should be looking for damaged wires/connections.
Apr 3, 2025 at 11:40 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

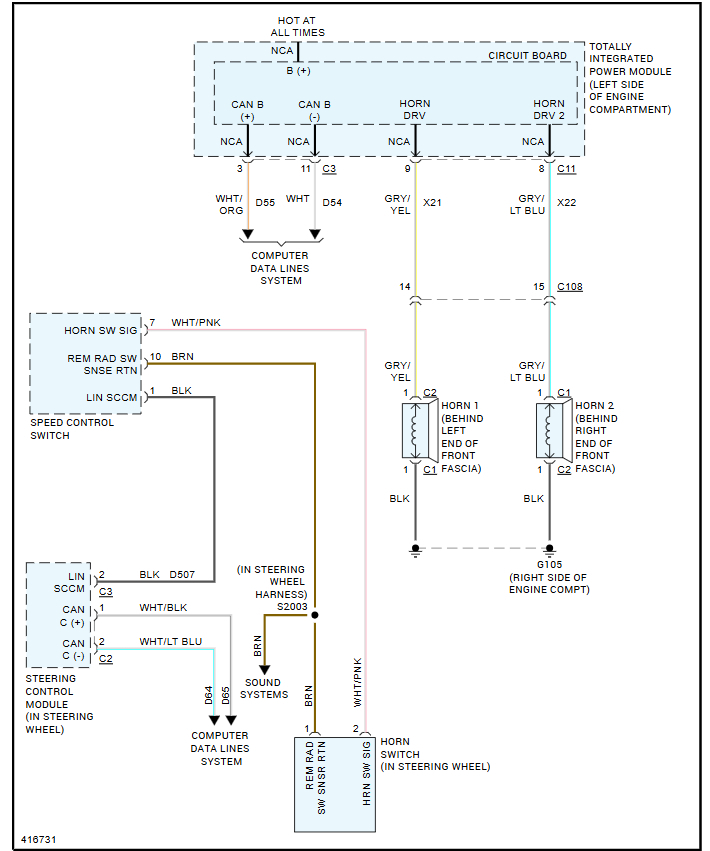

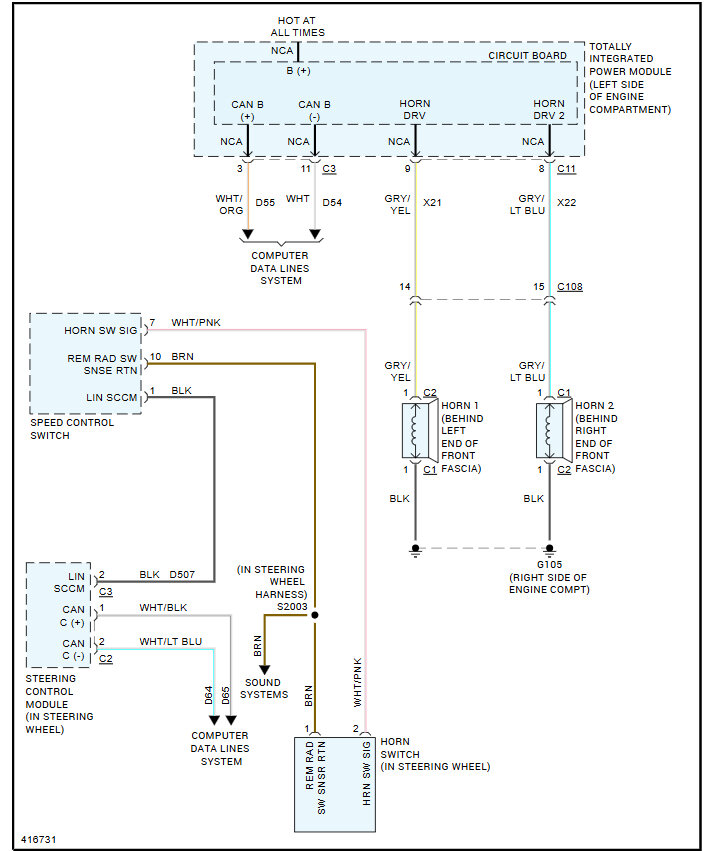

It sounds like the TIPM is bad, here are the wiring diagrams for the horn and TIPM as requested. Check out the images (below). Please let us know what happens.
Apr 4, 2025 at 10:57 AM
