TIPM connectors wiring diagram needed?

2011 RAM 3500
200,000 MILES • 6.7L • 6 CYL • 4WD • AUTOMATIC
Avatar
CHRIS WENTZELL
  • MEMBER
  • 1 POST
I have a cab/chassis and I just replaced the TIPM. In the process I had to repair 10 wires due to corrosion, I also had to replace connectors C2 and C6. I would like to find a wiring diagram for these two plugs to make sure I got the pin outs correct.

With the new TIPM installed, the display reads No Fuse, and the wipers turn on.
Feb 8, 2023 at 10:16 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

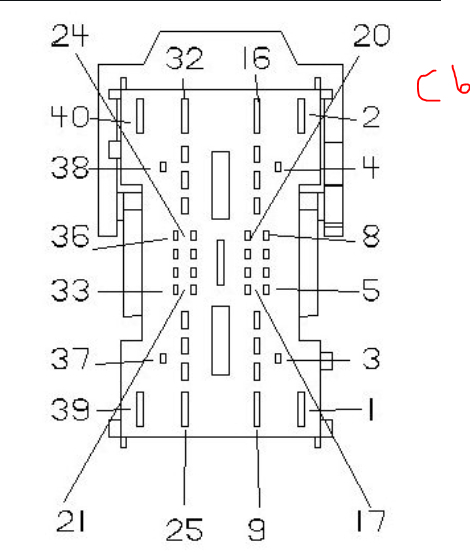

I attached a pic of the connectors and how they are oriented. The pics under the connectors provide info on the wiring color, function, pin number and so on. Let me know if this is what you needed.

Take care and let me know if this helps.

Joe

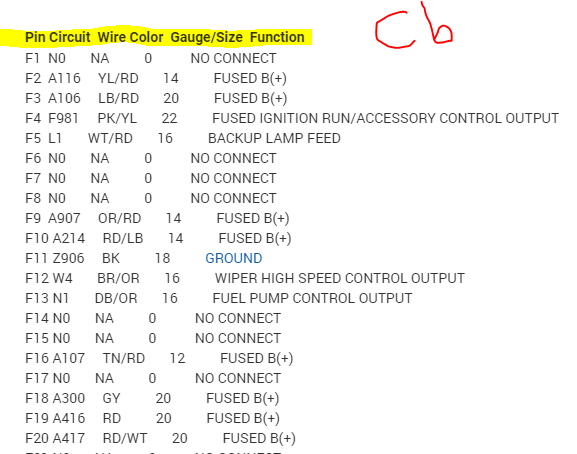

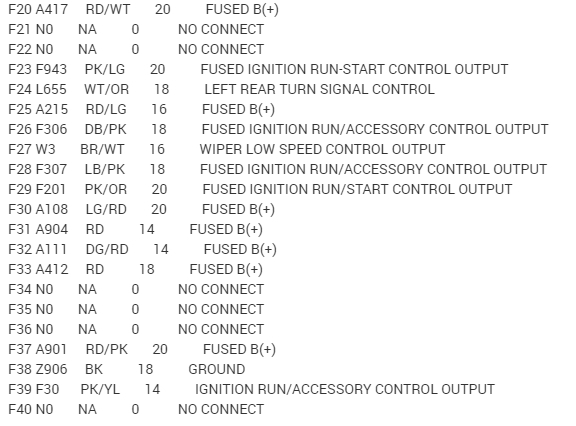

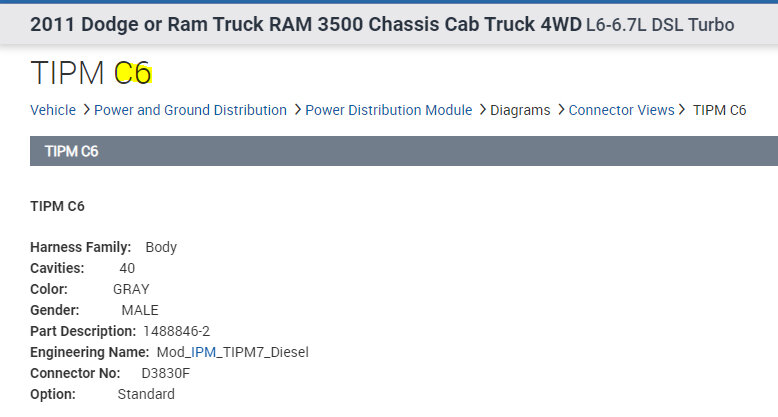

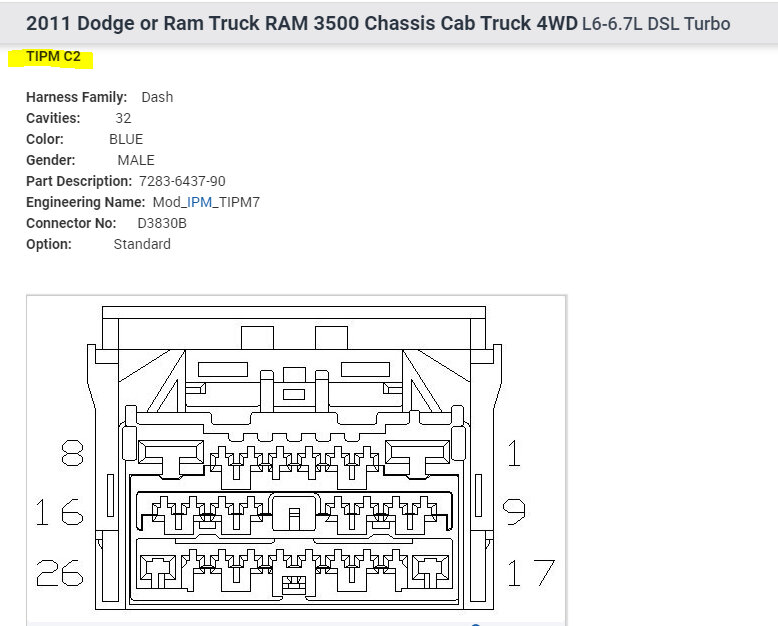

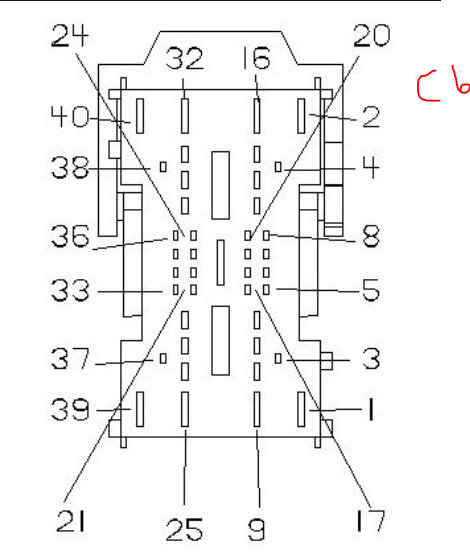

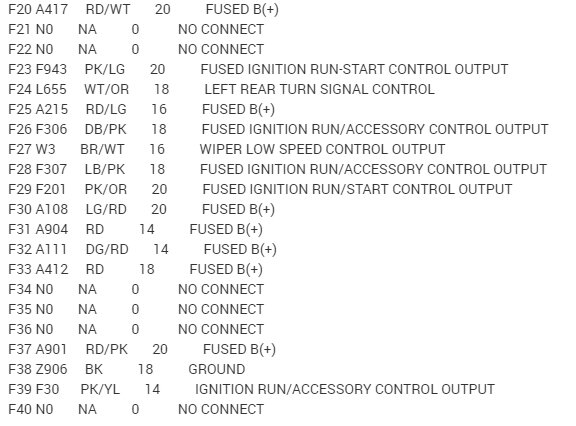

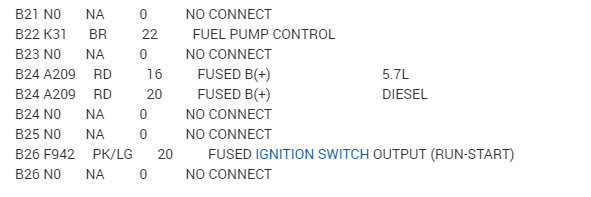

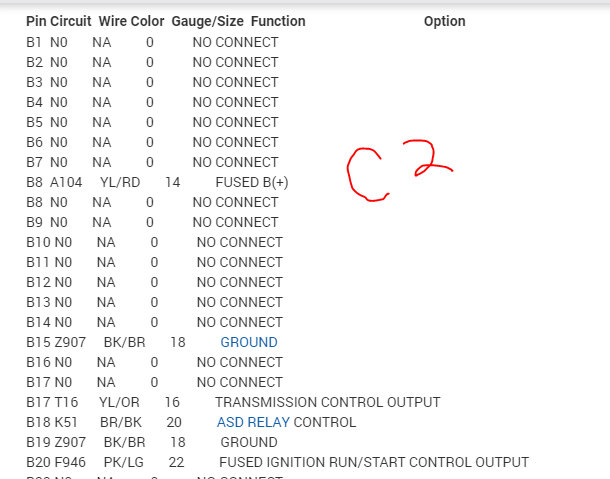

See pics below. Connector 2/pics 1, 2, 3. Connector 6/remaining pics.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Feb 8, 2023 at 2:47 PM
Avatar
LAKECOUNTYCUSTOMS
  • MEMBER
  • 5 POSTS
Hi JACOBANDNICKOLAS,

I am fixing a harness on a similar truck, 2012 Ram 3500 w/6.7L Diesel. I am looking for the C5 brown harness block pinout please.

Thanks,

Paul
Jan 15, 2025 at 8:18 AM
Advertisement
Avatar
LAKECOUNTYCUSTOMS
  • MEMBER
  • 5 POSTS
I am looking for the C5 block pinout for a 2012 3500 with the 6.7L Diesel.
Jan 15, 2025 at 8:43 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
https://www.2carpros.com/questions/2012-3500-cummins-tipm-c5-pinout here you go.
Jan 17, 2025 at 11:13 AM
