TIPM C5 and C6 wire connecting diagram needed?

2007 JEEP WRANGLER
178,000 MILES • 3.8L • V6 • 4WD • MANUAL
Avatar
TYLERVANMETER21
  • MEMBER
  • 2 POSTS
Hello Danny, I saw on your page you posted a wire diagram for the TIPM connect on a van. I was wondering if you could do the same thing but for the vehicle listed above Sahara Unlimited.
Feb 26, 2024 at 11:55 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

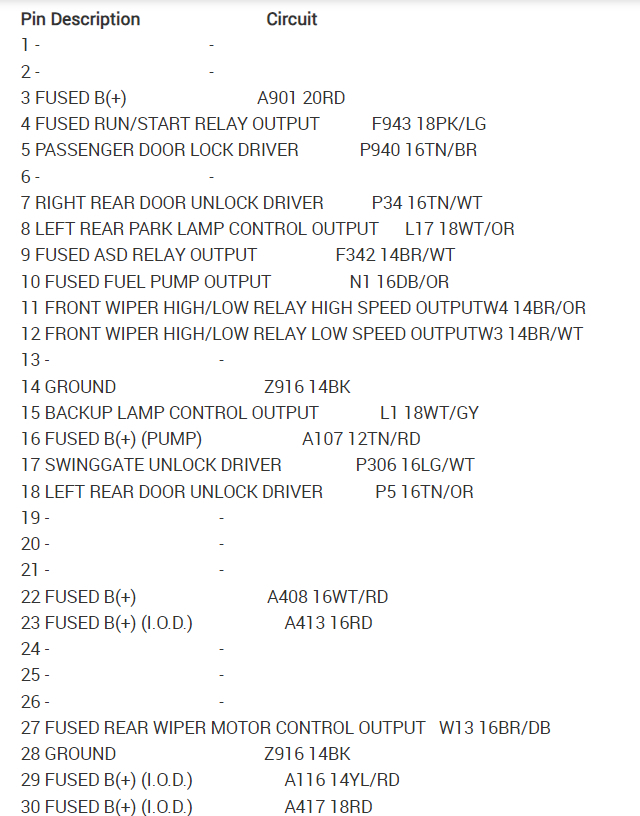

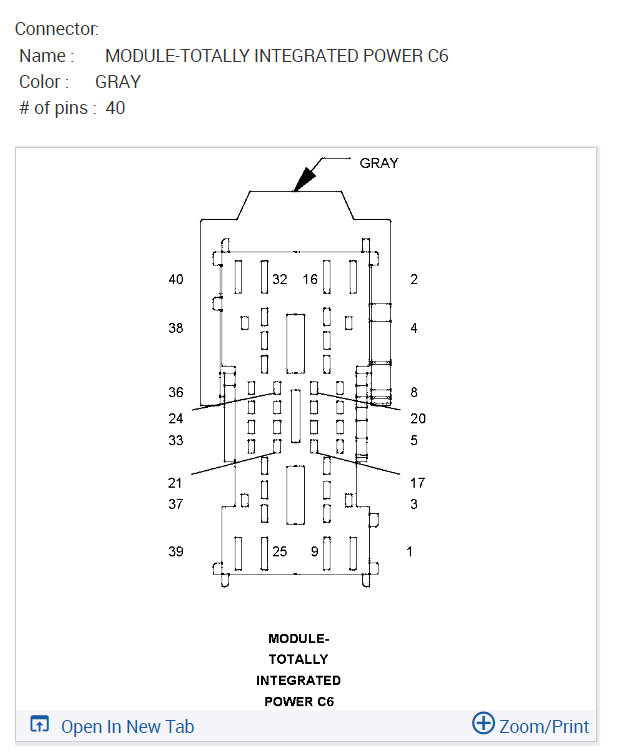

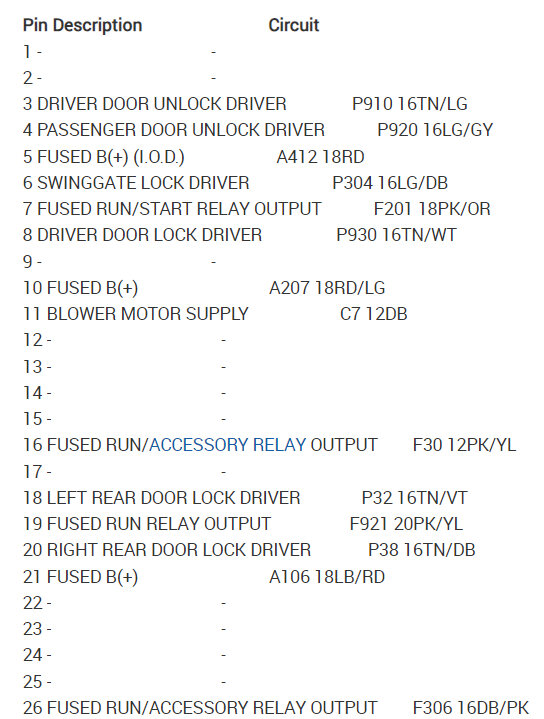

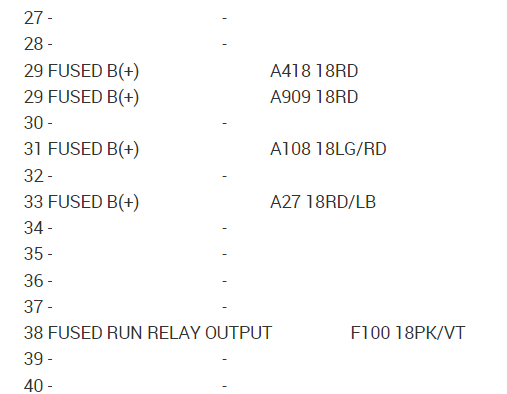

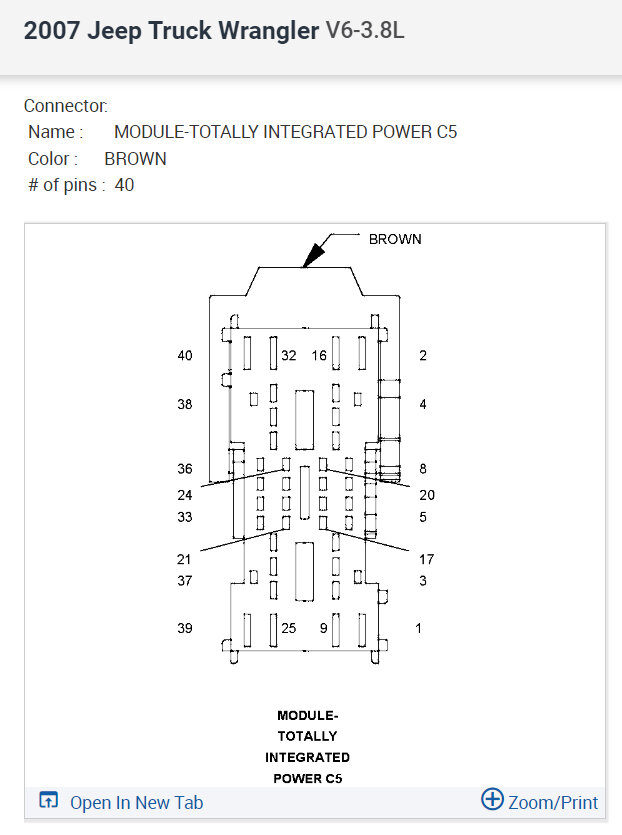

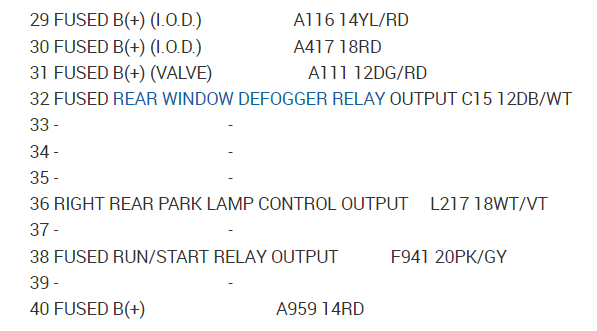

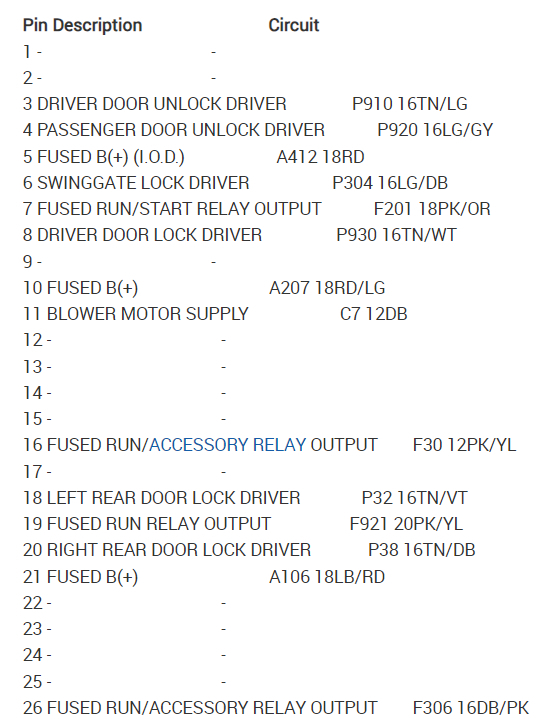

Sure, here are the C5 and C6 TIPM connector view pin outs. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Feb 26, 2024 at 12:37 PM
Avatar
TYLERVANMETER21
  • MEMBER
  • 2 POSTS
Awesome, thank you!
Feb 26, 2024 at 12:56 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
You are welcome, please use 2CarPros anytime we are here to help.
Feb 27, 2024 at 8:56 AM
