Timing mark alignment needed?

1998 VOLKSWAGEN CABRIO
100,000 MILES • 2.0L • 4 CYL • MANUAL
Avatar
ALEX GATLIN
  • MEMBER
  • 47 POSTS
Hi guys. Unfortunately, I have been roped into finishing someone else's unfinished job of replacing a water pump on this car. So, I guess if I could just get a copy of the whole run down the timing belt and alignment should be included. Thank you.

Alex
Oct 21, 2022 at 2:24 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello Alex,

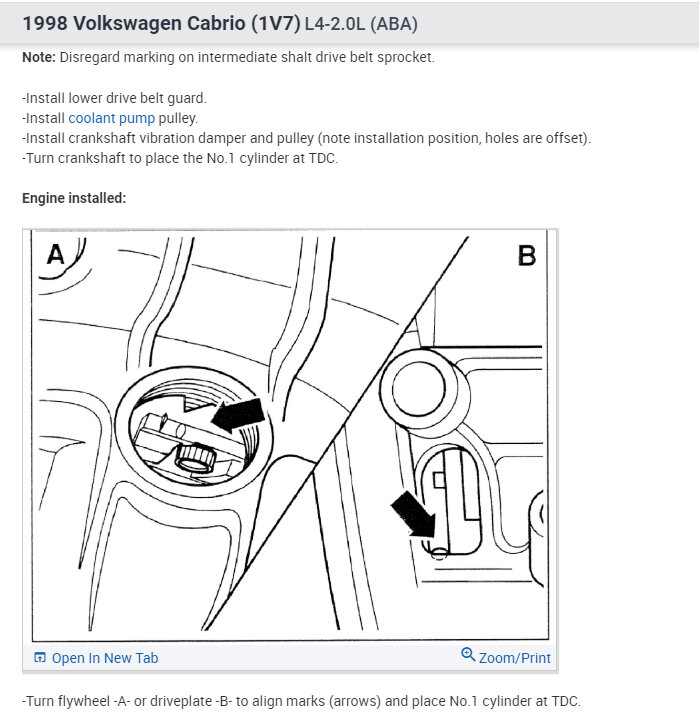

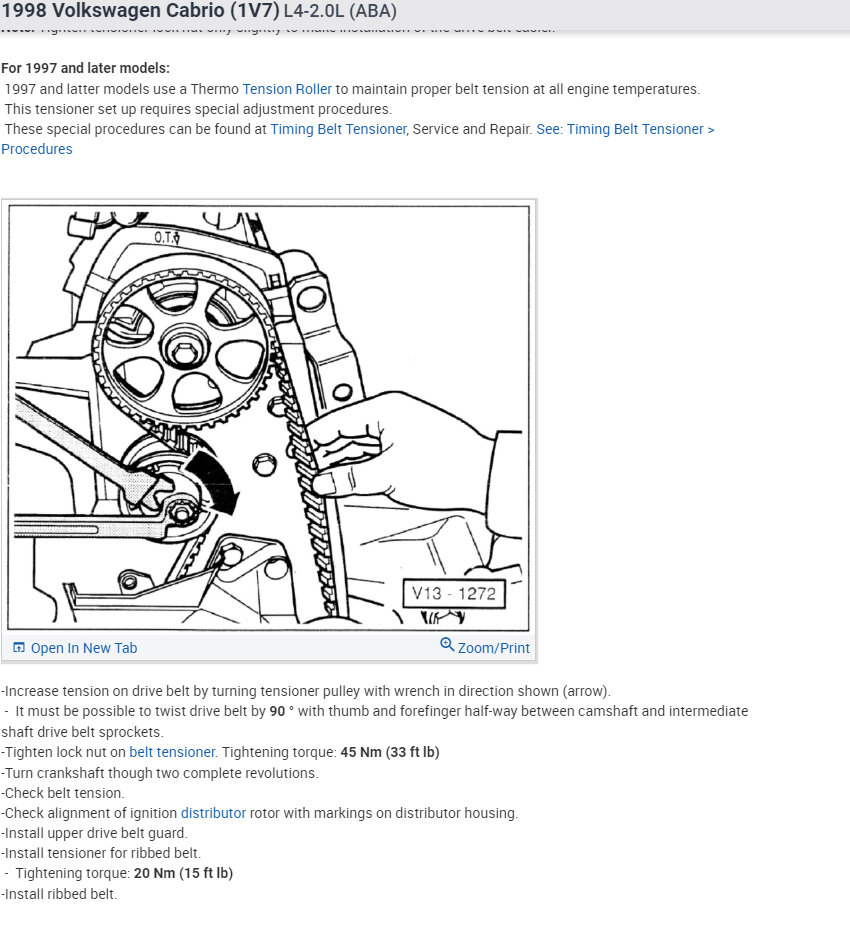

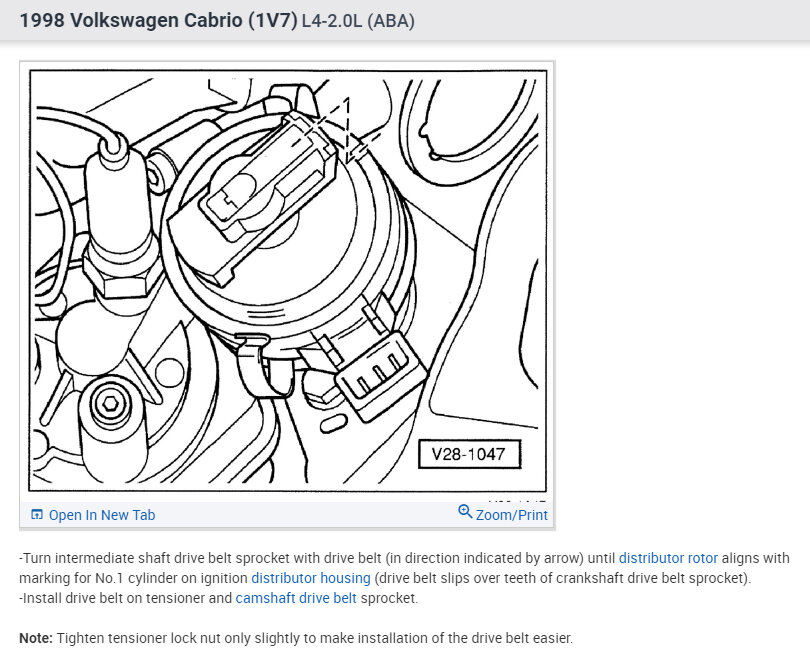

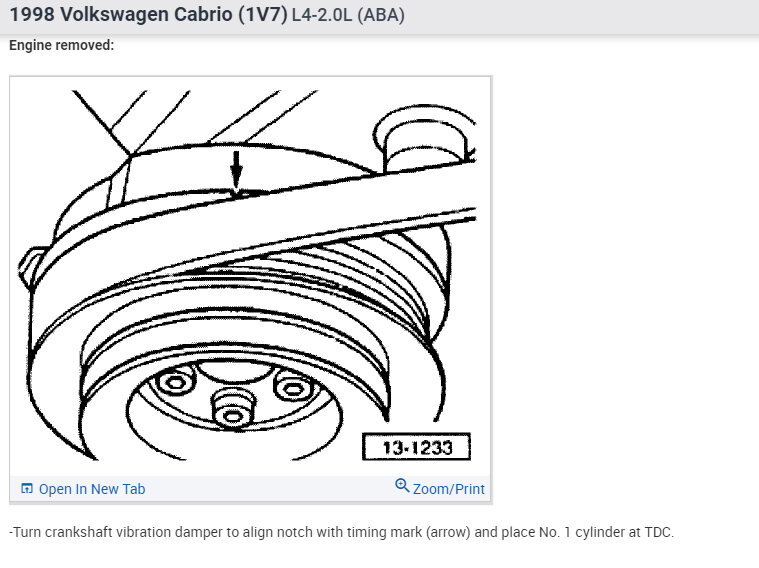

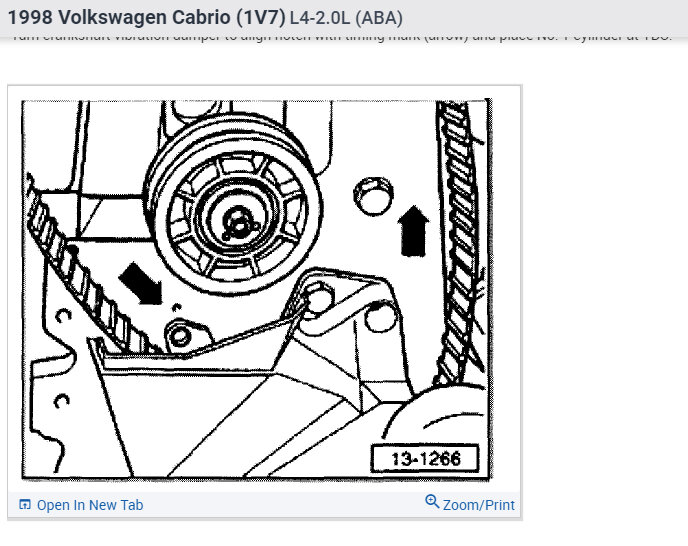

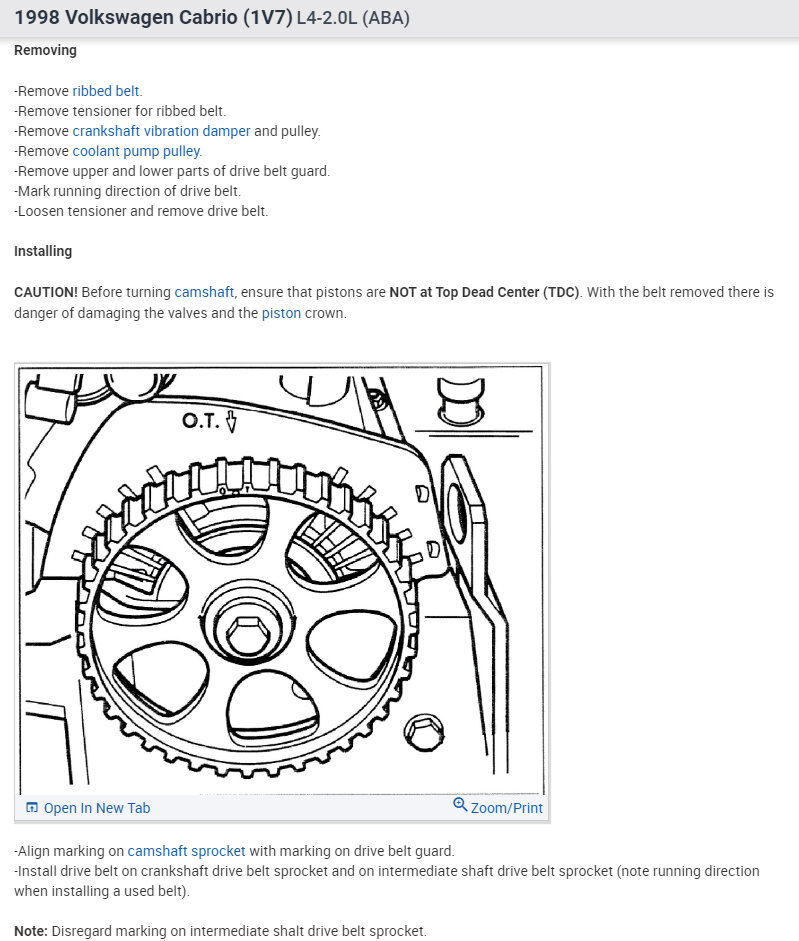

See attached for the timing belt procedure.

Let me know if you have any questions.

Thank you

https://www.2carpros.com/articles/how-a-timing-belt-works.
Oct 21, 2022 at 8:15 PM
Avatar
ALEX GATLIN
  • MEMBER
  • 47 POSTS
Can I also get the "special procedures" for the thermo tensioner please? Thank you for your help.
Alex
Oct 21, 2022 at 10:29 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS

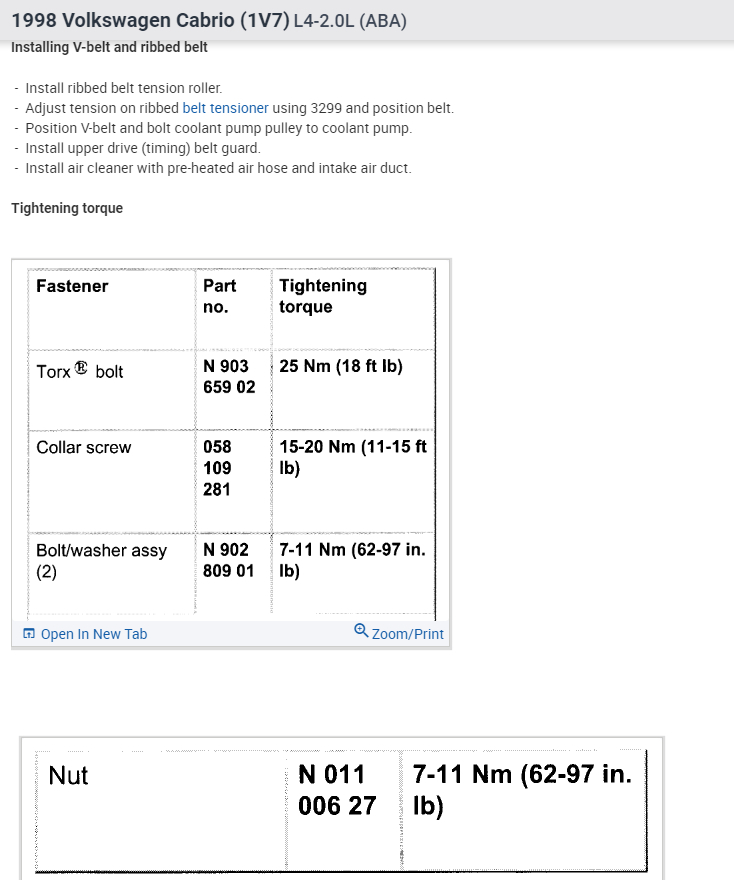

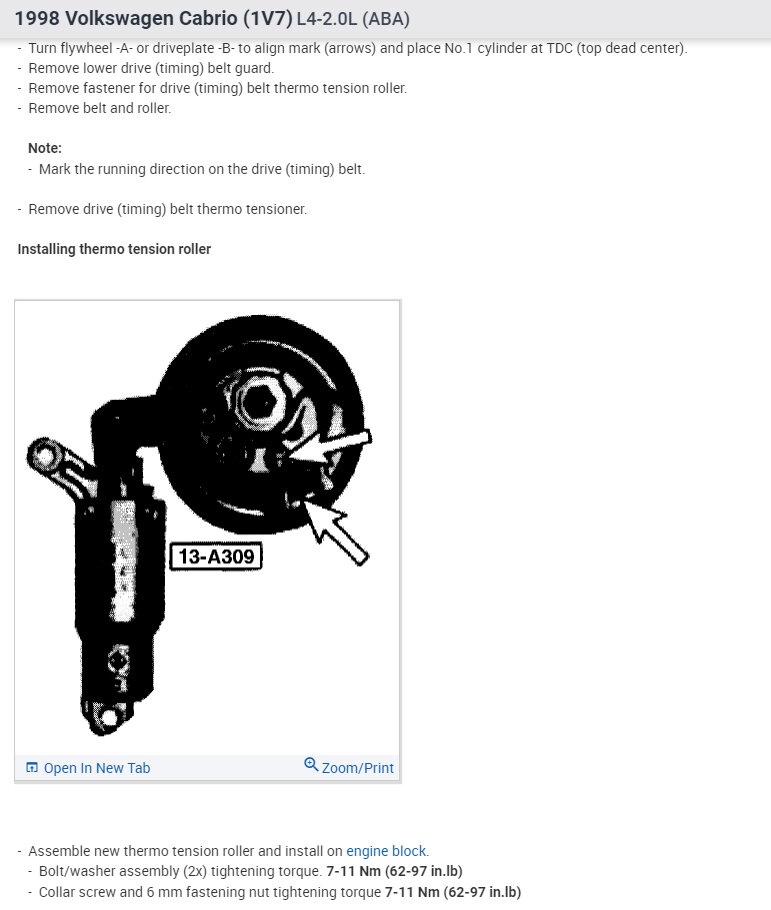

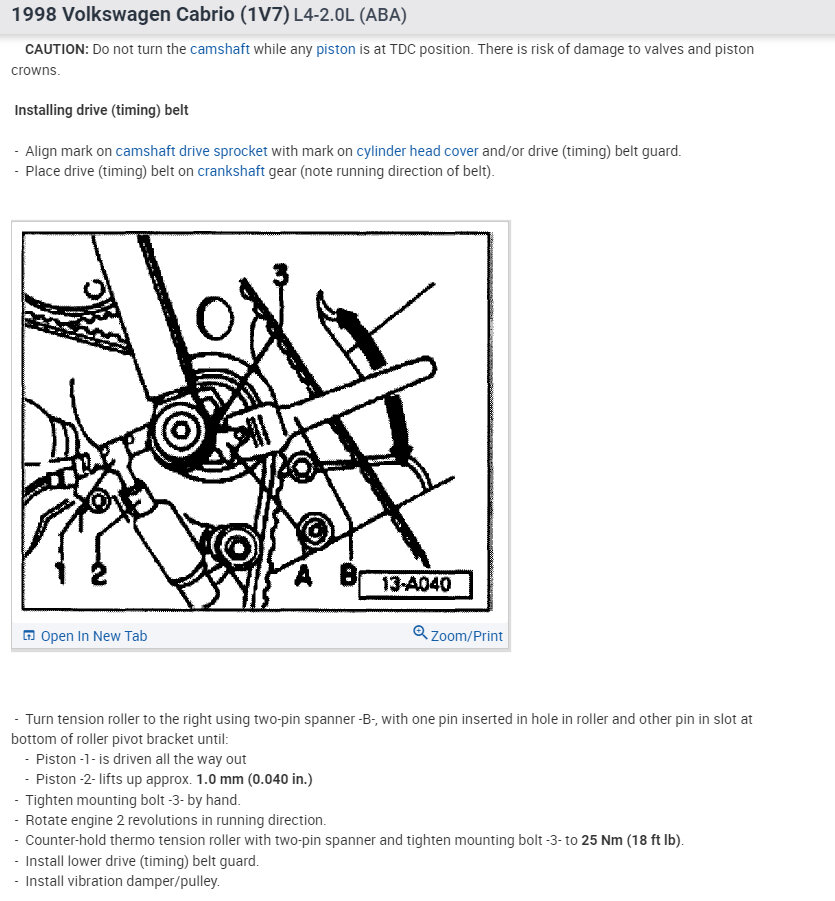

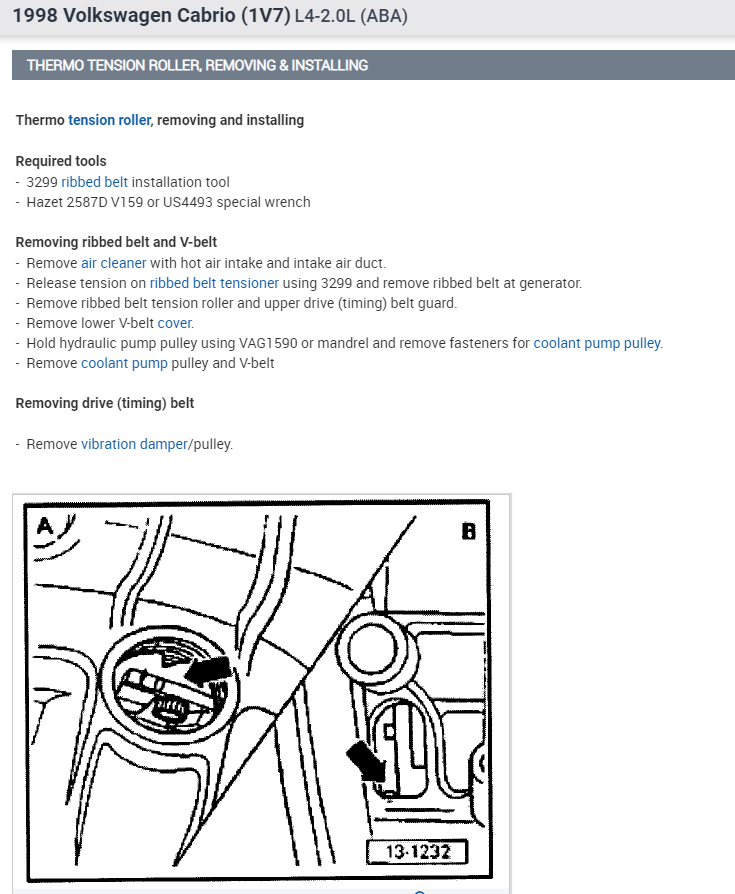

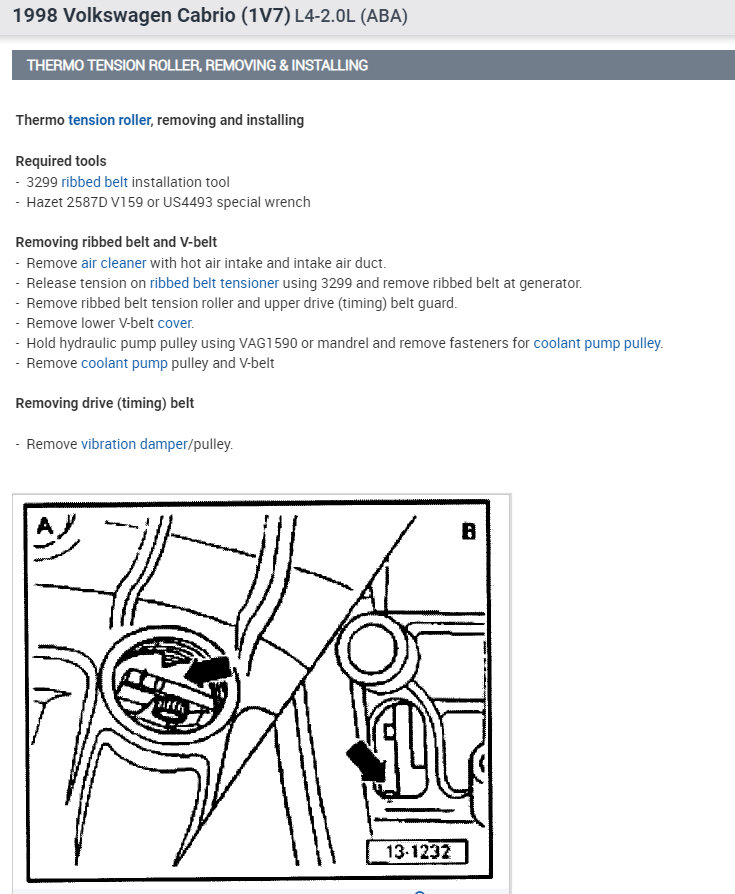

See attached for the tensioner procedure.
Oct 22, 2022 at 8:25 PM
Avatar
ALEX GATLIN
  • MEMBER
  • 47 POSTS
Hi again, can I please get a wiring diagram for the fuel pump please?
Dec 21, 2022 at 3:50 PM
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hey Alex,

Since this is for a different component, please create a new thread. That will put the question in front of all the experts.

Just go to this link:

https://www.2carpros.com/questions/new


Thank you.
Dec 21, 2022 at 8:49 PM
