Timing chain marks replacement?

1994 FORD RANGER
200,000 MILES • 4.0L • V6 • 4WD • MANUAL
Avatar
JCRUCE
  • MEMBER
  • 2 POSTS
I’m doing a complete rebuild on a 94 ranger 4.0 ohv. I’m trying to set the timing chain but I can’t get the cam and crank to line out at cam 6oclock and crank 12oclock tdc. When crank is at tdc I can’t get cam to line up so sprockets match 6/12. How do I fix this?
Mar 12, 2026 at 7:44 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

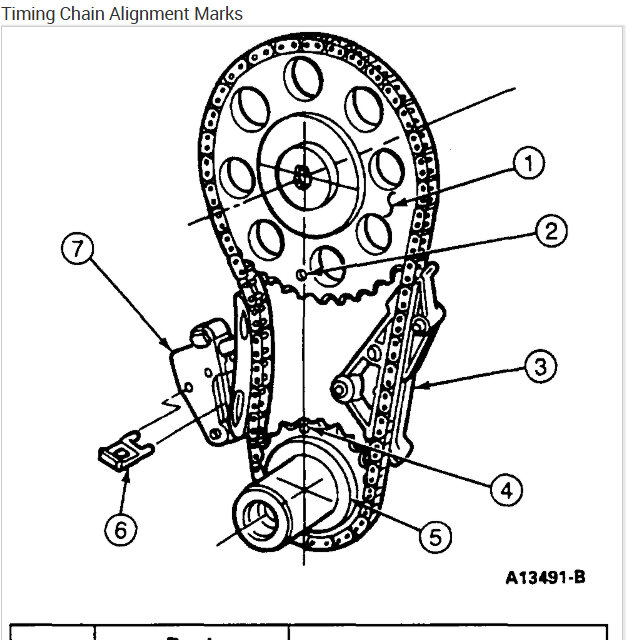

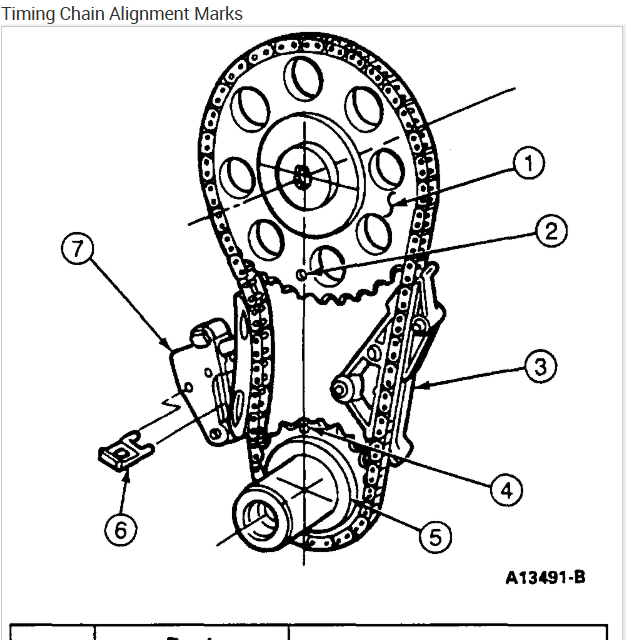

I don't understand so you cant move the crankshaft and camshaft into potion like they are stuck? If so you must remove the rocker arms because the valve are contacting the pistons. Here are the timing marks for clarification. Check out the images (below). Please let us know what happens.
Image (Click to enlarge)
Attached Media
Mar 13, 2026 at 9:36 AM
Avatar
JCRUCE
  • MEMBER
  • 2 POSTS
Thank you that is exactly what I did, remove the rocker arms and that solved my issue.
Mar 13, 2026 at 10:56 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Glad you could get it fixed, thanks for letting us know. Please use 2CarPros anytime we are here to help.
