Step by step instructions needed for replacing the timing belt?

2003 VOLKSWAGEN PASSAT
200,000 MILES • 2.8L • V6 • 2WD • MANUAL
Avatar
PDADDY
  • MEMBER
  • 1 POST
Can you give me schematics and step by step instructions on how to replace timing belt, water pump, and cam seals from the step at service mode on.
Jan 27, 2024 at 3:48 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

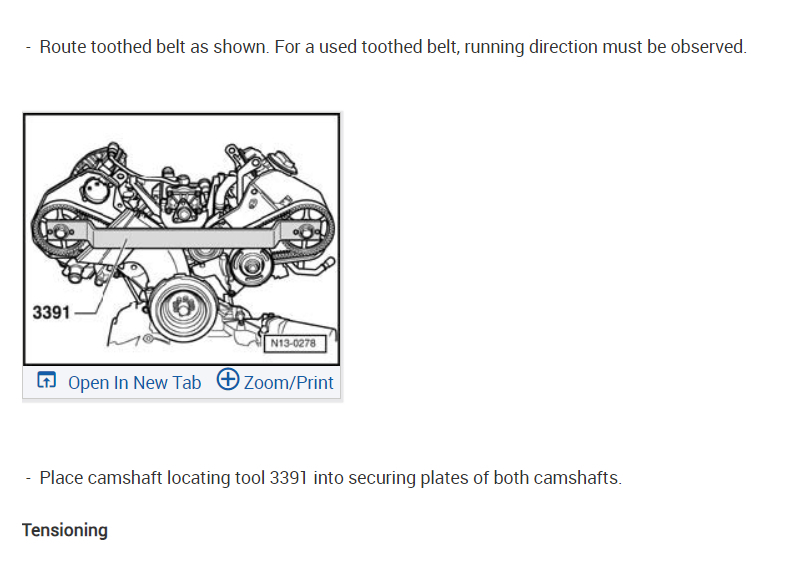

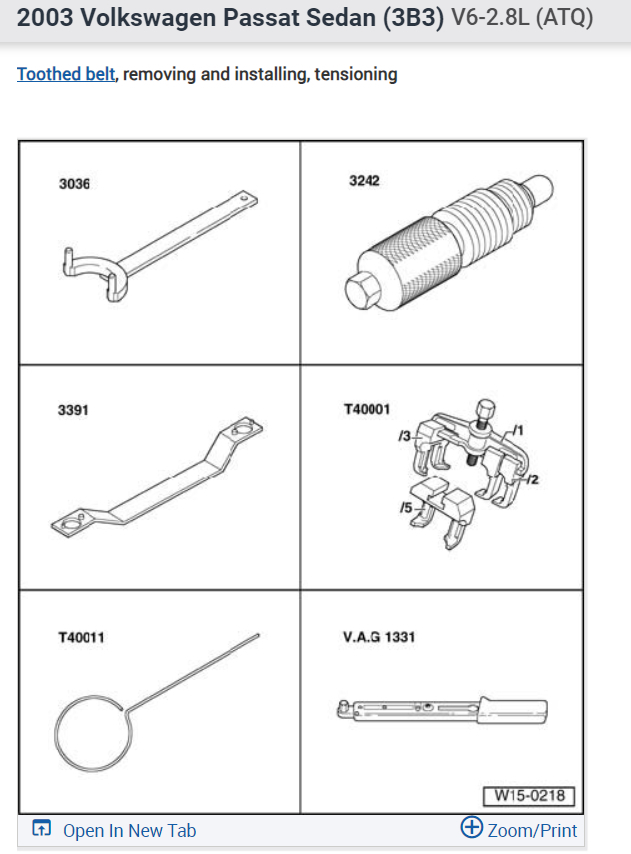

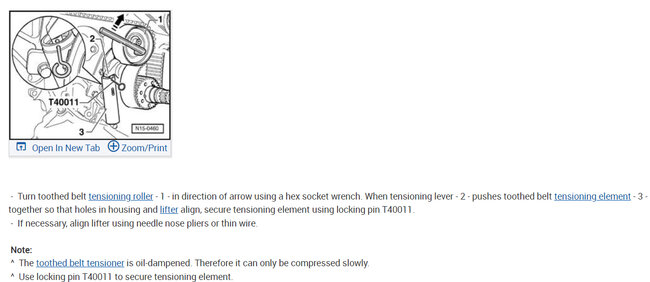

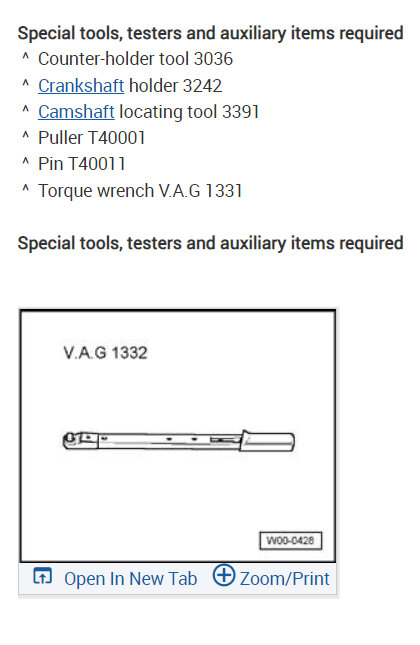

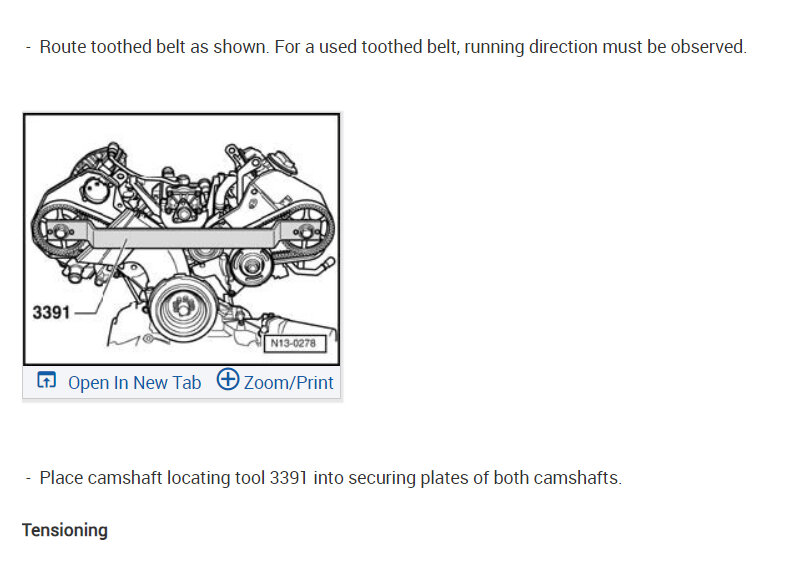

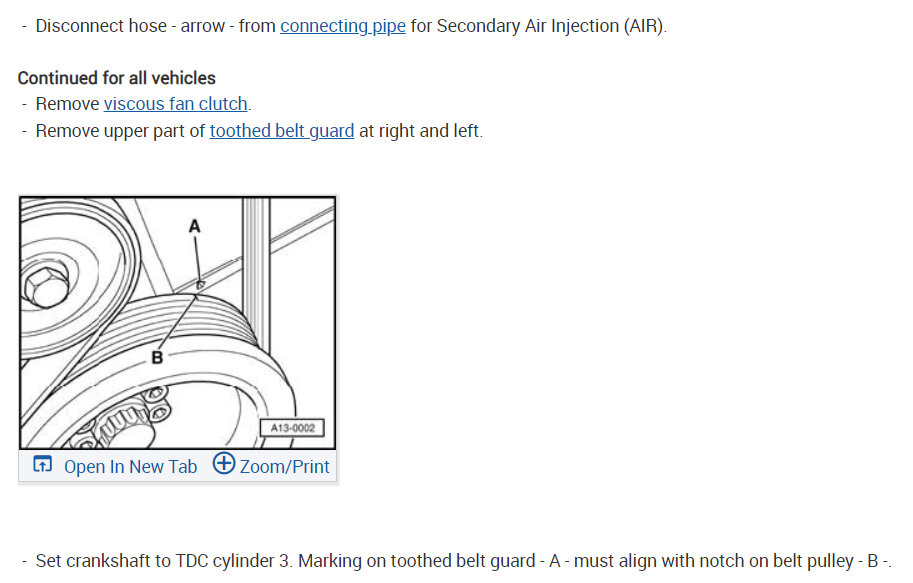

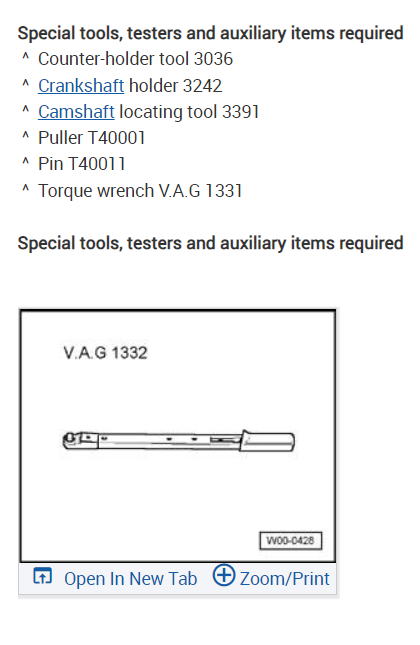

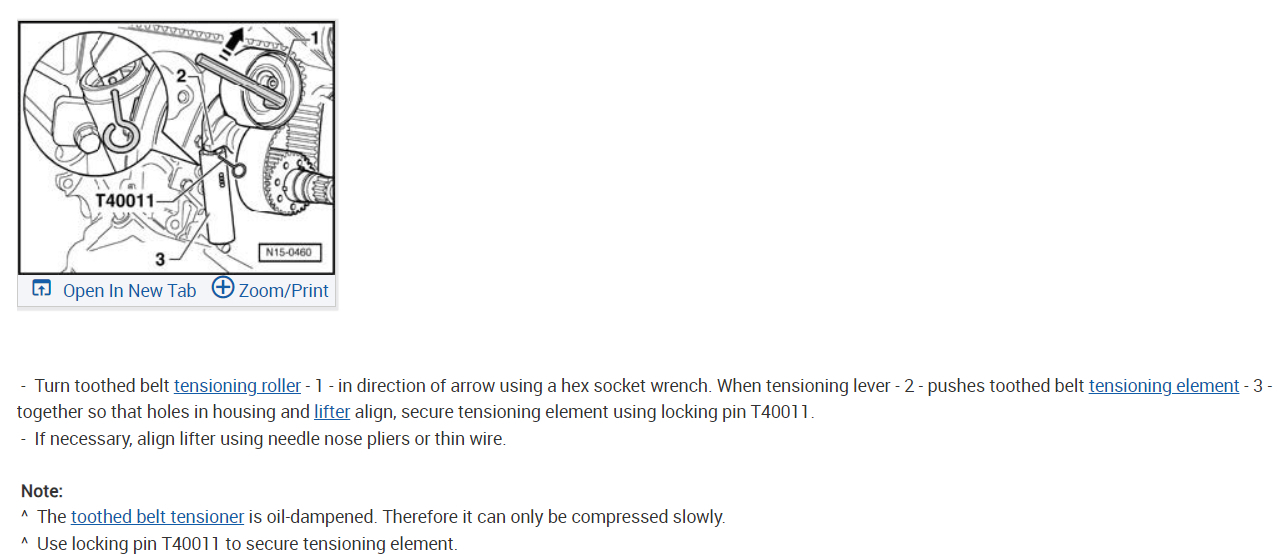

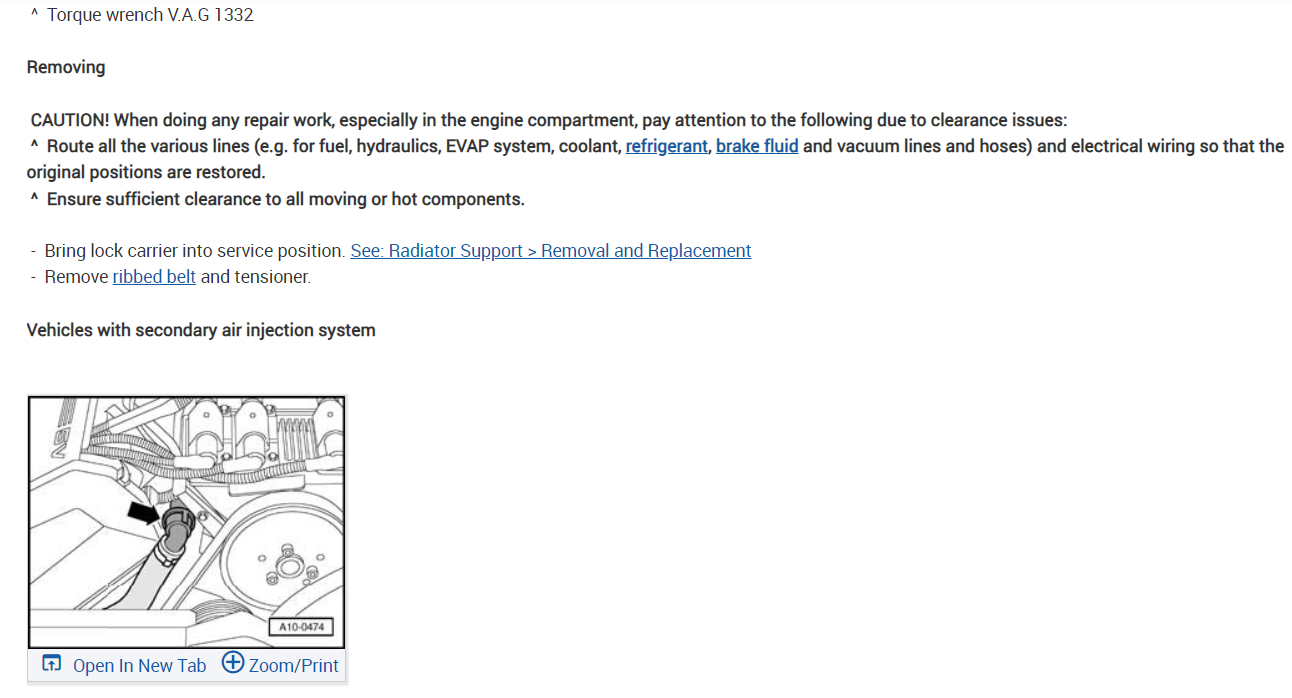

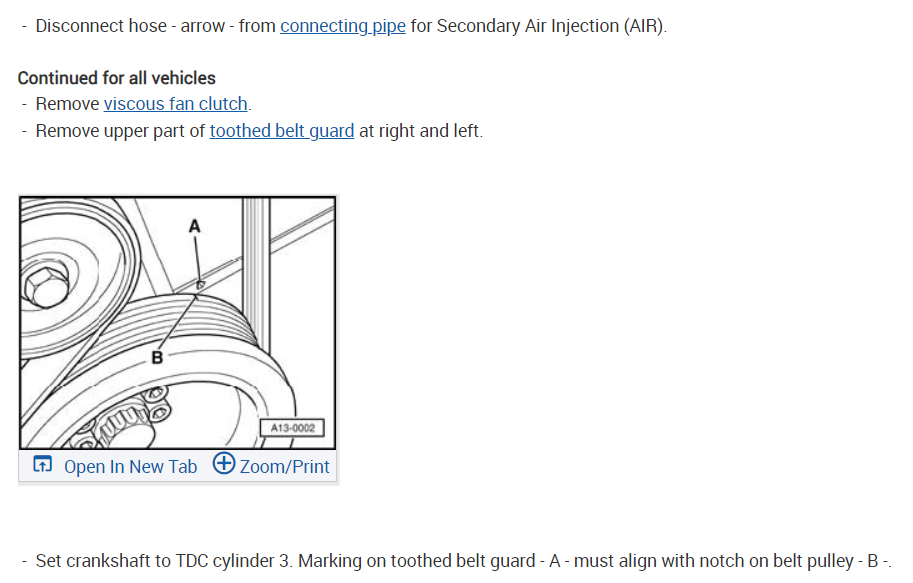

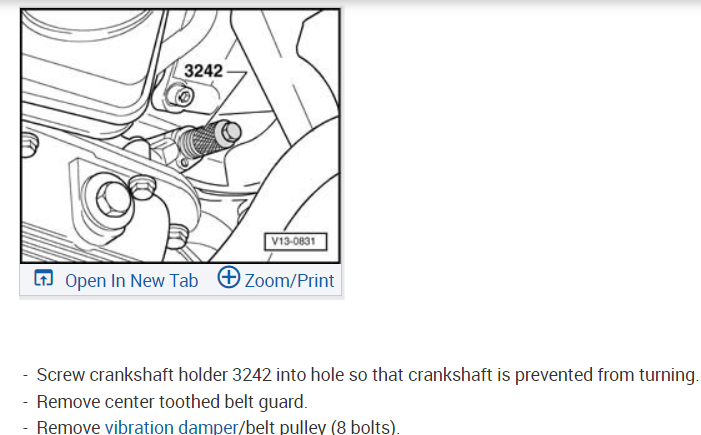

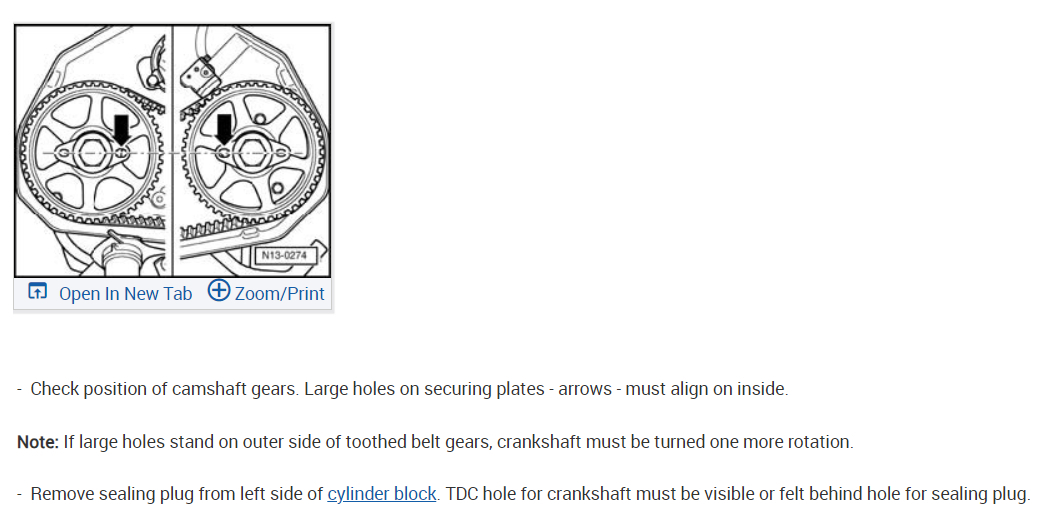

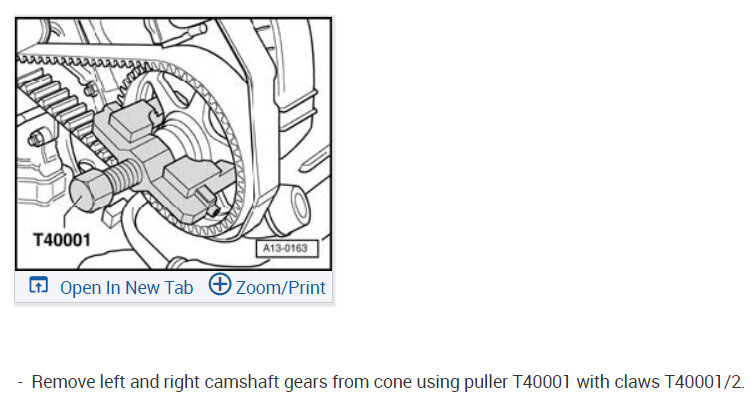

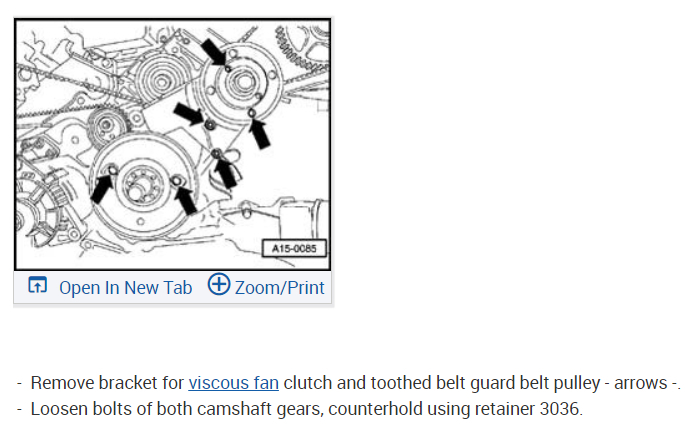

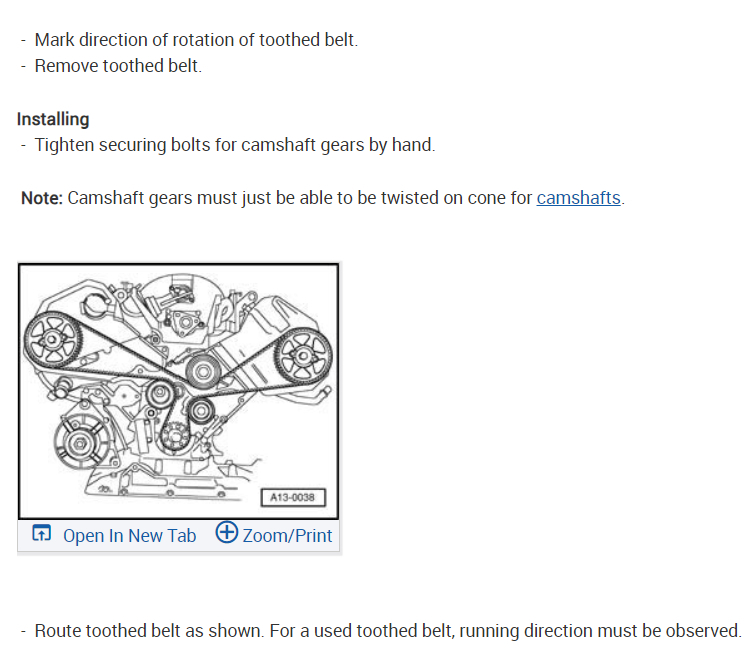

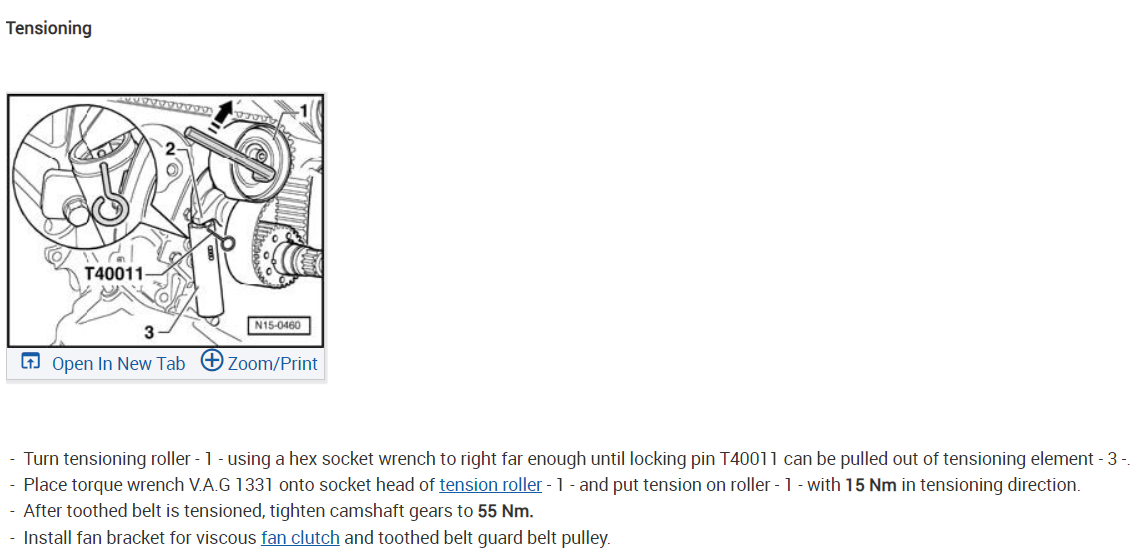

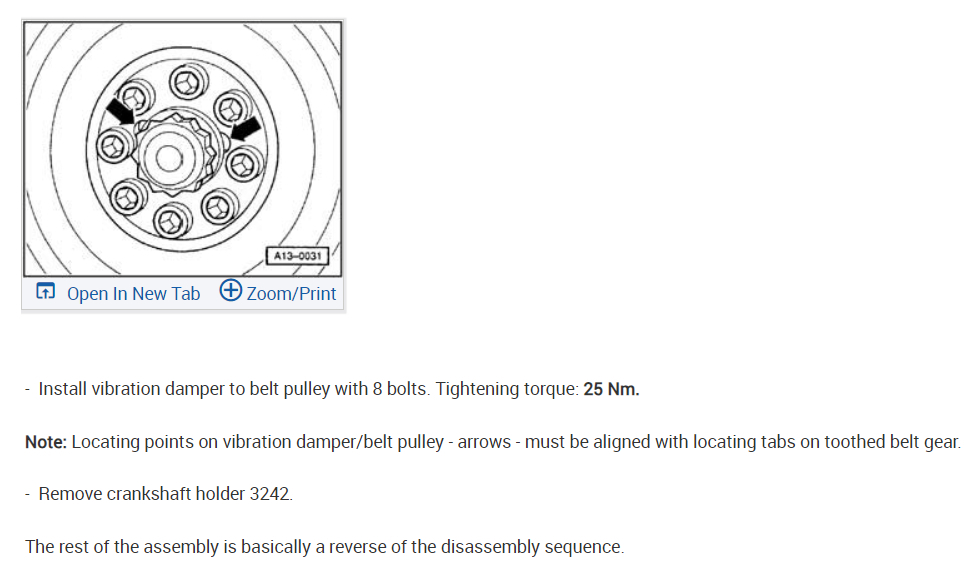

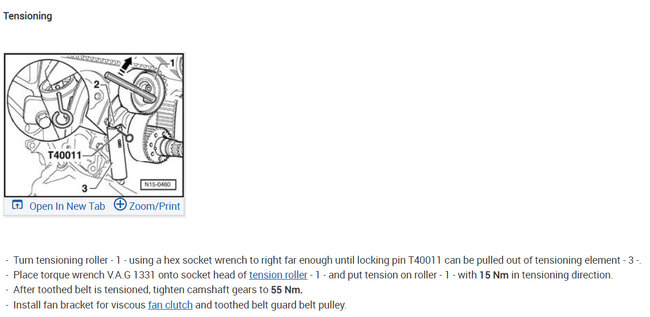

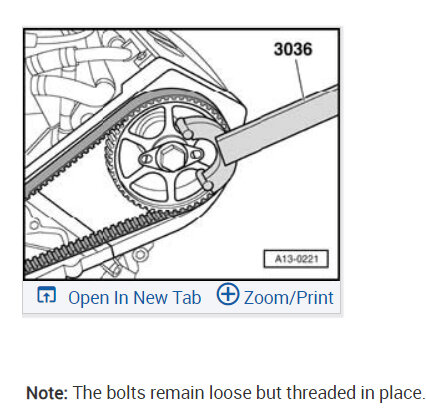

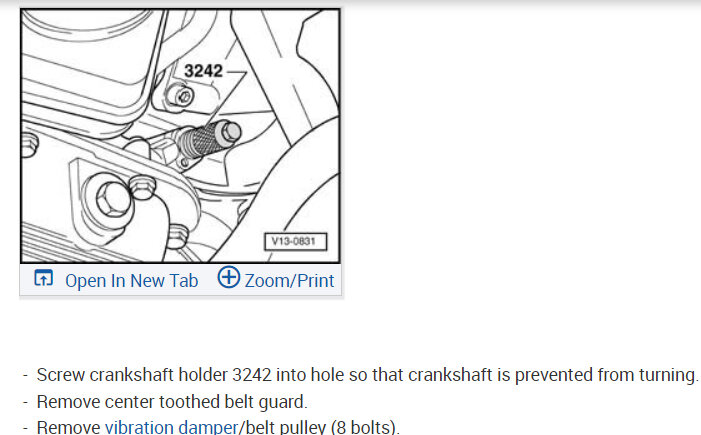

Sure, here you go, these are the instructions on how to replace the timing belt, I did notice there is a timing chain engine model as well so make sure you have the correct application. Start by disconnecting the battery. Check out the images (below). Let us know if you need anything else.

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jan 27, 2024 at 10:55 AM
