Timing belt and balance shaft belt marks diagram needed?

2004 HYUNDAI SANTA FE
190,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
DHARRISON479
  • MEMBER
  • 1 POST
I am attempting to replace my balance shaft belt, but I need a diagram of where the timing marks are for the belt.
Apr 24, 2025 at 2:00 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

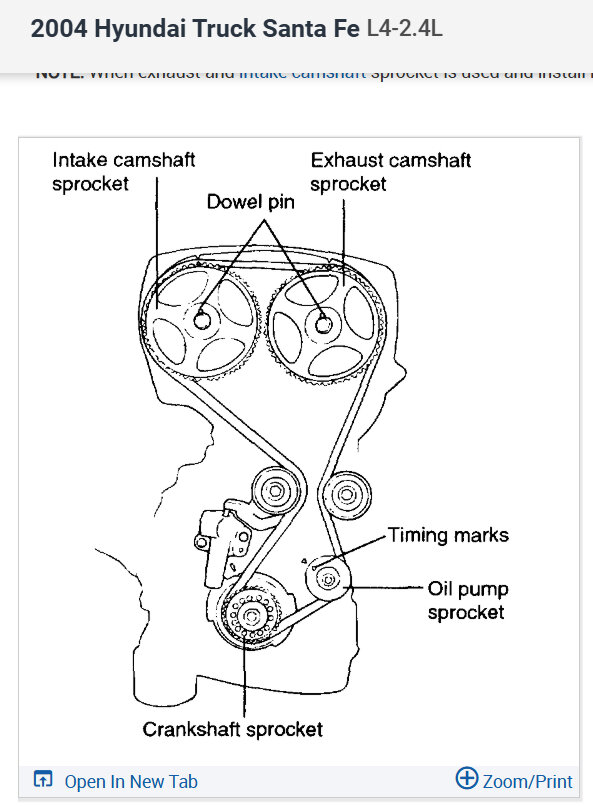

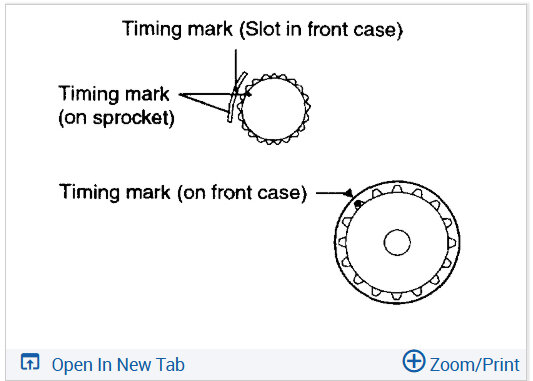

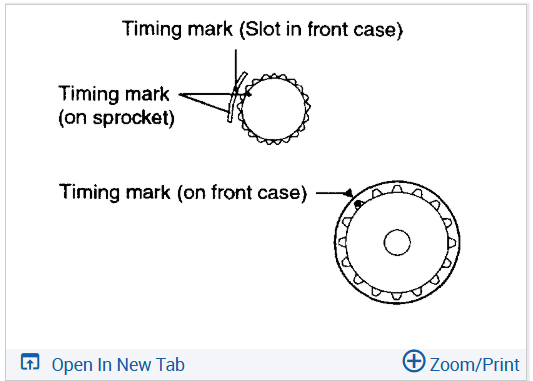

Sure, here are the timing marks for the main timing belt and the balance shaft belt. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Apr 25, 2025 at 10:22 AM
