which way the sprockets go on the camshaft?

2003 SATURN VUE
150,000 MILES • 3.0L • V6 • 4WD • AUTOMATIC
Avatar
JEFFREY WONDER
  • MEMBER
  • 7 POSTS
Need to know which way the sprockets go on the camshaft or if it matters.
Feb 14, 2025 at 9:19 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

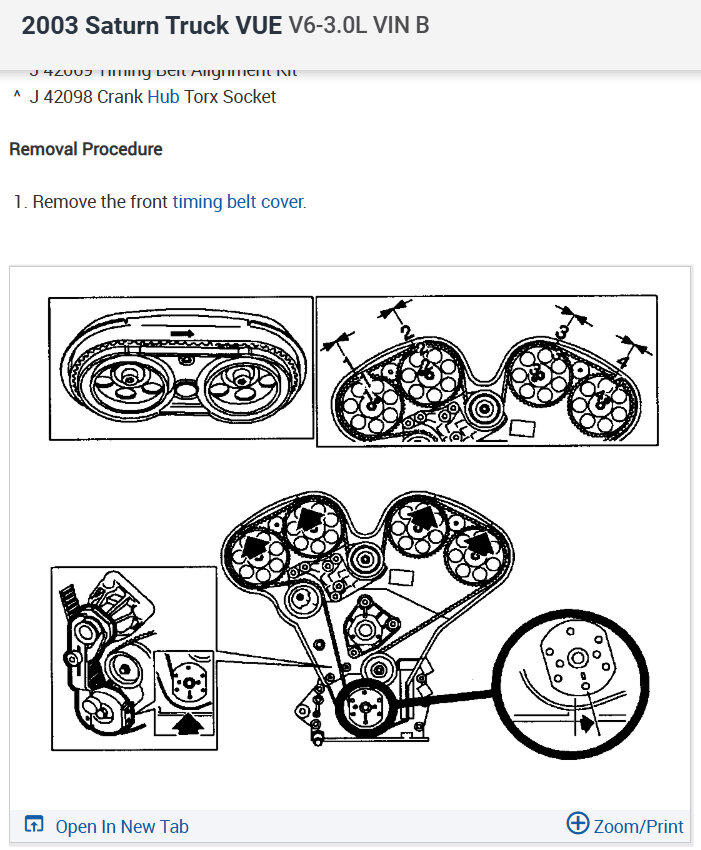

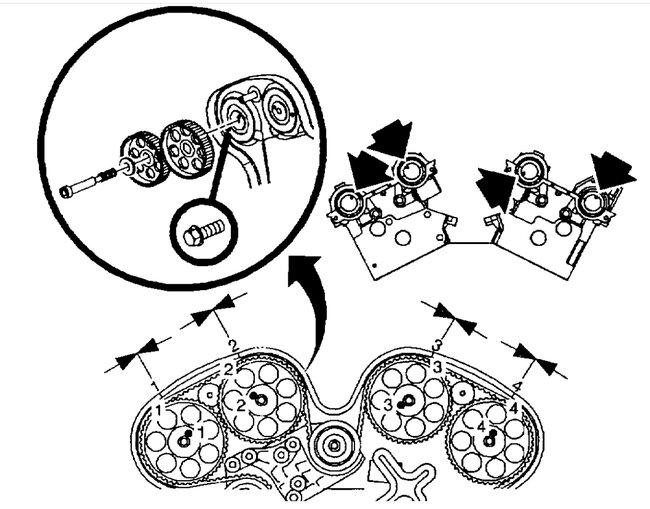

It might not matter; can you see any differences? Here are the diagrams of how the sprockets go on the camshafts. Check out the images (below). Please upload pictures or videos in your response of any problems so we can see what to help you with.

Feb 14, 2025 at 11:24 AM
Avatar
JEFFREY WONDER
  • MEMBER
  • 7 POSTS
I need to know with way the dowel on the cam is pointed in the notch in the sprocket.
Feb 14, 2025 at 12:01 PM
Advertisement
Avatar
JEFFREY WONDER
  • MEMBER
  • 7 POSTS

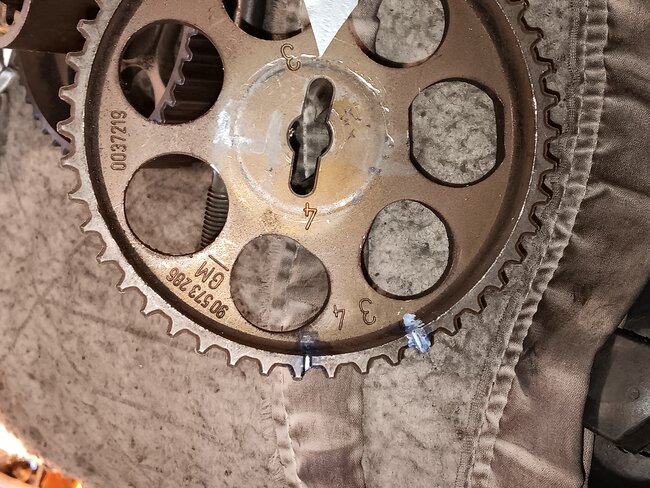

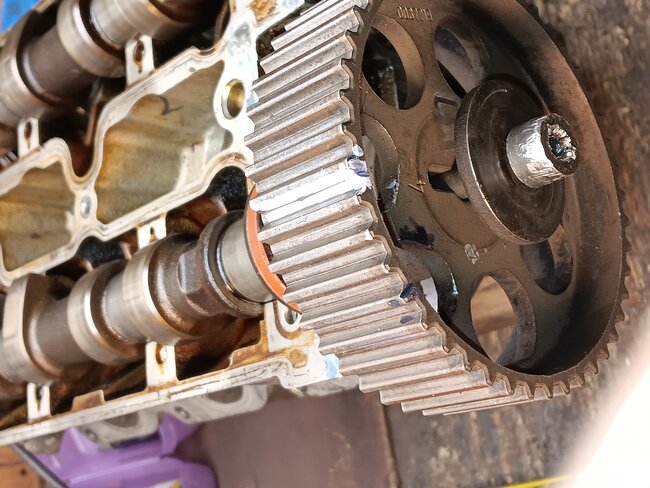

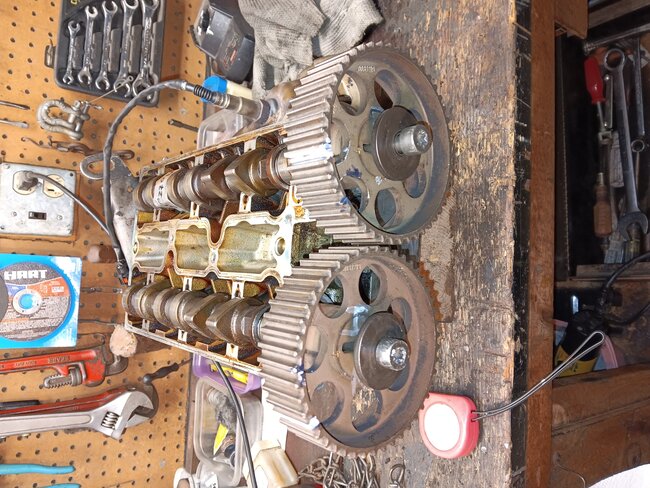

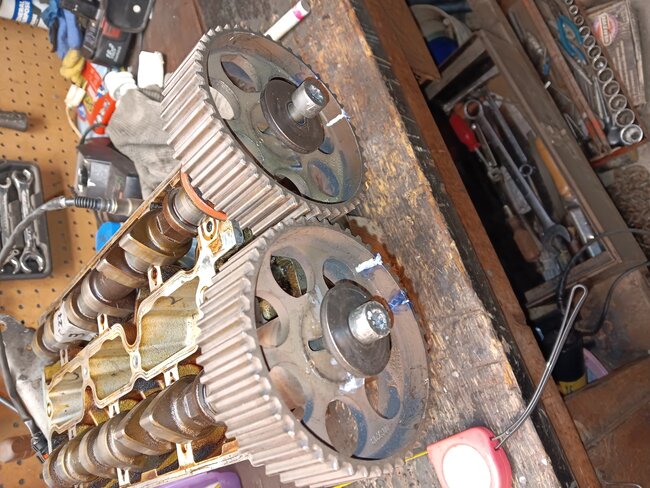

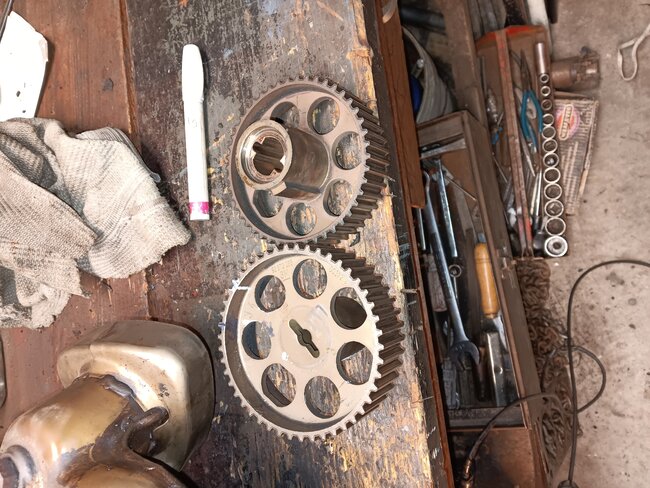

Here is some pictures.
Feb 15, 2025 at 7:55 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

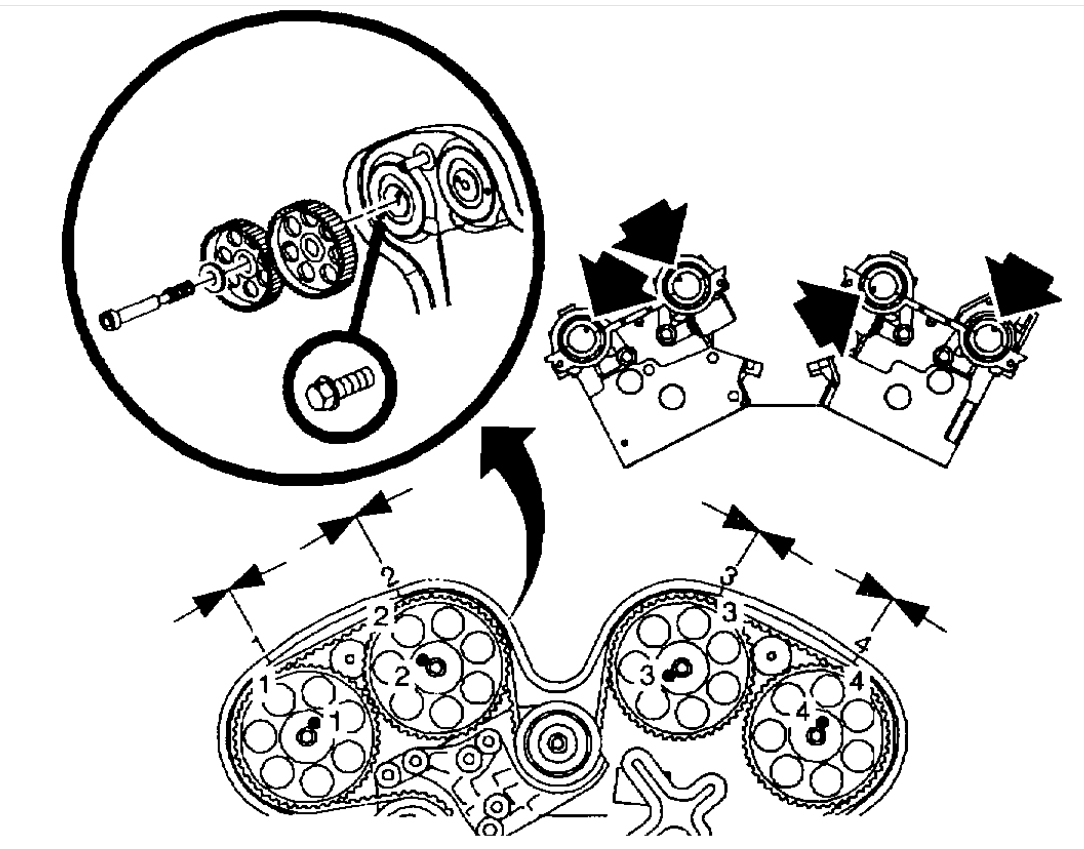

I can see in one of the images the sprocket has a number 4 do the rest have numbers as well? If so, you can see the numbers in the diagrams I provided. Here is another diagram, zoom in you can see the dowels.
Feb 15, 2025 at 10:10 AM
Avatar
JEFFREY WONDER
  • MEMBER
  • 7 POSTS
Does the number on cam gear go to the dial pin?
Feb 20, 2025 at 1:09 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
The numbers should stick out.
Feb 21, 2025 at 9:40 AM
Avatar
JEFFREY WONDER
  • MEMBER
  • 7 POSTS
Need to know which way the sprockets go on the camshaft or if it matters.
Feb 22, 2025 at 12:36 PM (Merged)
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
I am not sure what I am missing here, what seems to be the problem again?
Feb 22, 2025 at 12:37 PM
Avatar
JEFFREY WONDER
  • MEMBER
  • 7 POSTS
This is the #3 camshaft pulley does the dial pin go where the arrow is pointing?
Feb 22, 2025 at 3:18 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Correct, and you will use the #3 timing mark as well, they used one sprocket of two positions, 3 and 4.
Feb 23, 2025 at 10:09 AM
Avatar
JEFFREY WONDER
  • MEMBER
  • 7 POSTS
Thanks, I got it now.
Feb 25, 2025 at 10:24 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
You are welcome, please use 2CarPros anytime we are here to help.
