Throttle body not responding

2005 NISSAN MURANO
187,976 MILES • 3.5L • 6 CYL • 2WD • AUTOMATIC
Avatar
ANDRIN ATEM
  • MEMBER
  • 393 POSTS
Please I like if any one could help me a diagram which contains Electronic throttle body, voltage that goes on the throttle body.
They are six cables entering the mouth of an enemy.
Jul 14, 2021 at 5:56 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

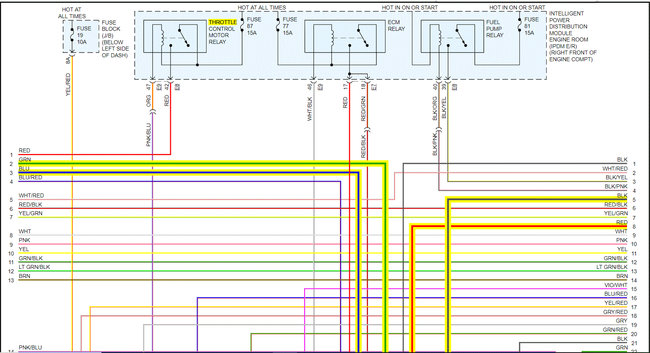

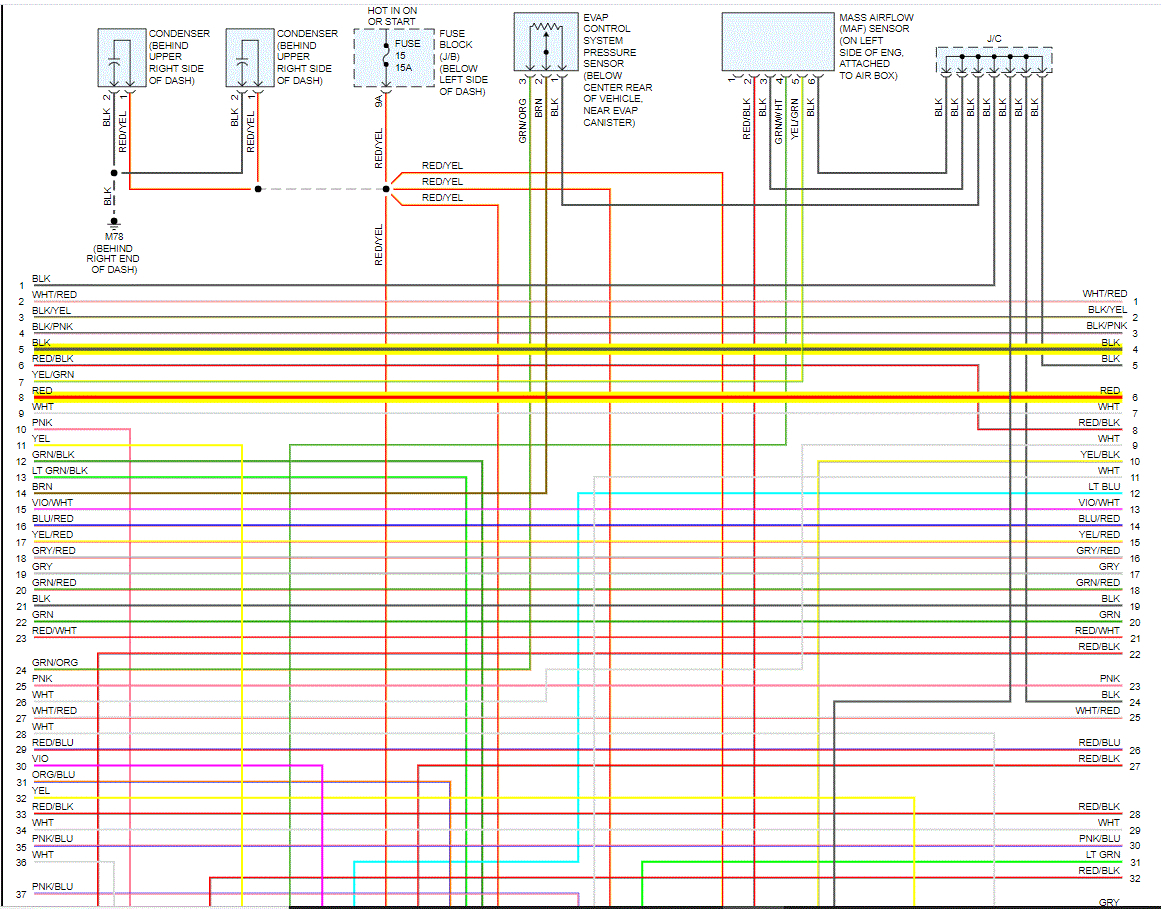

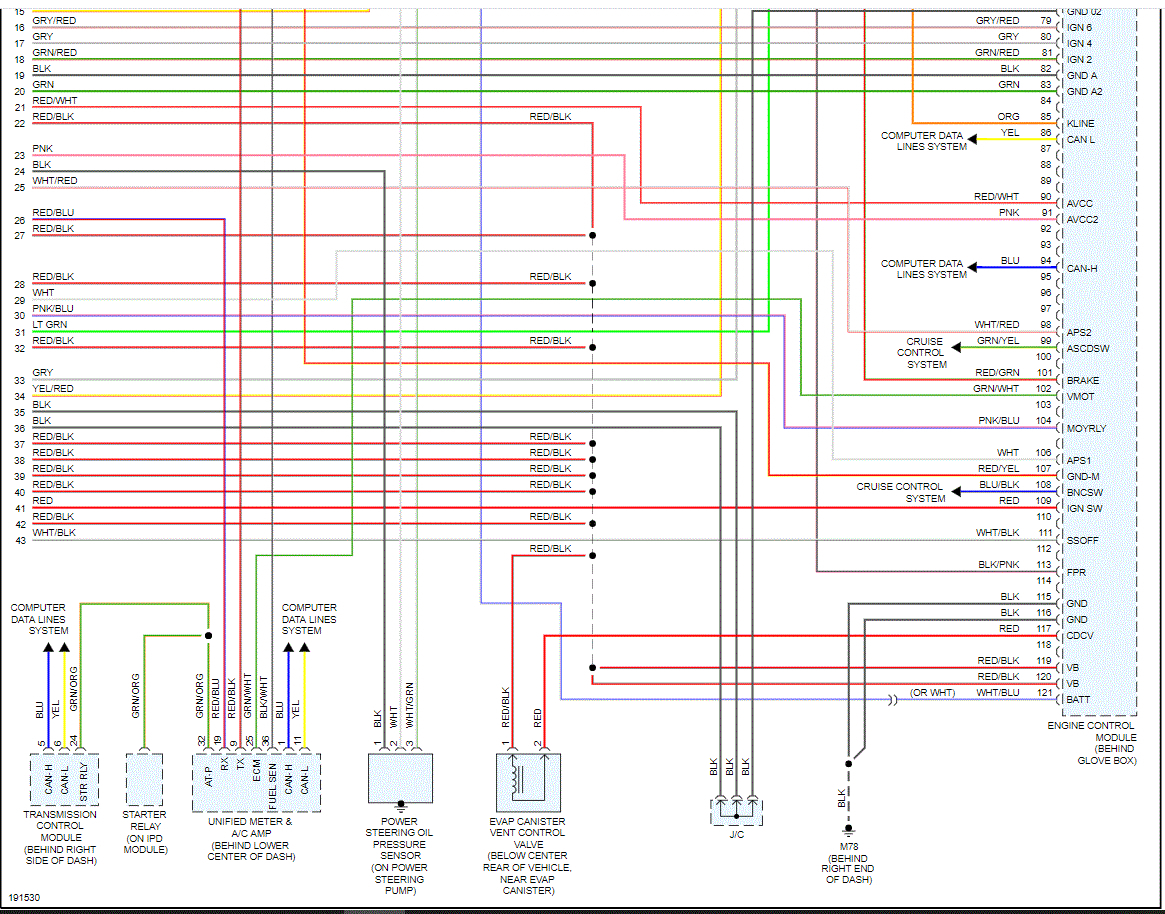

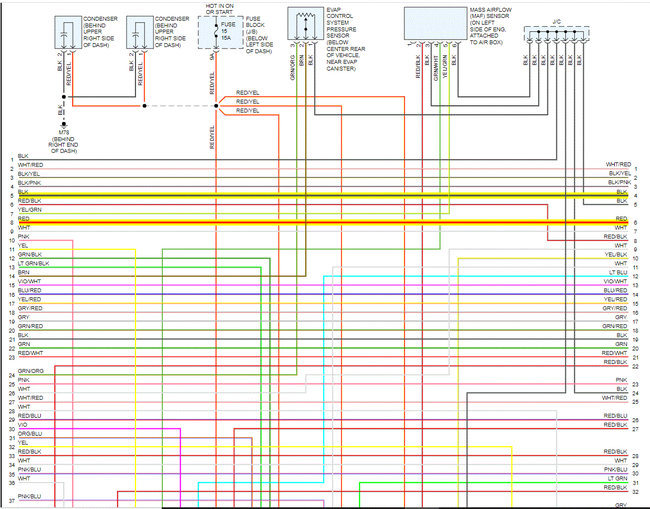

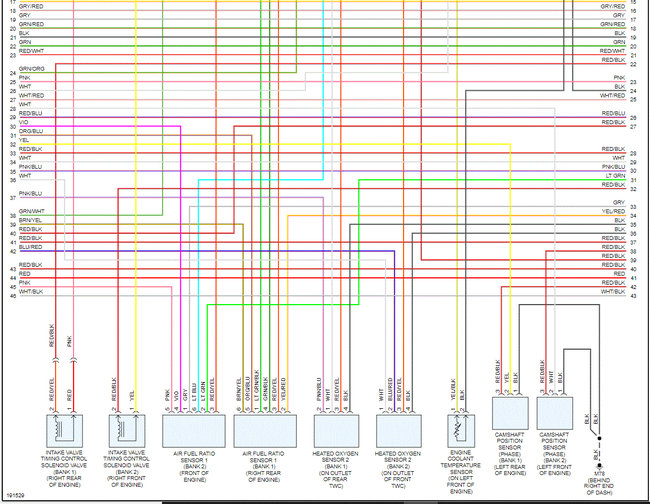

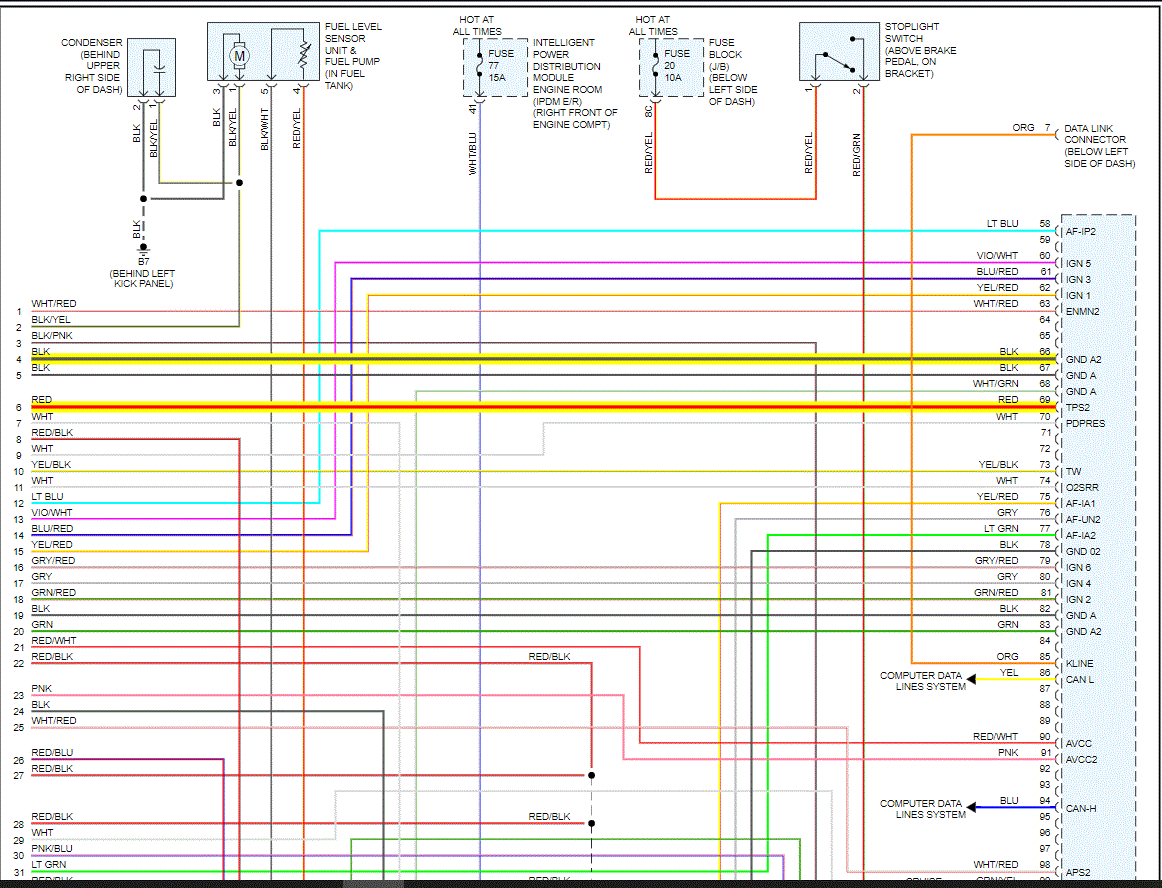

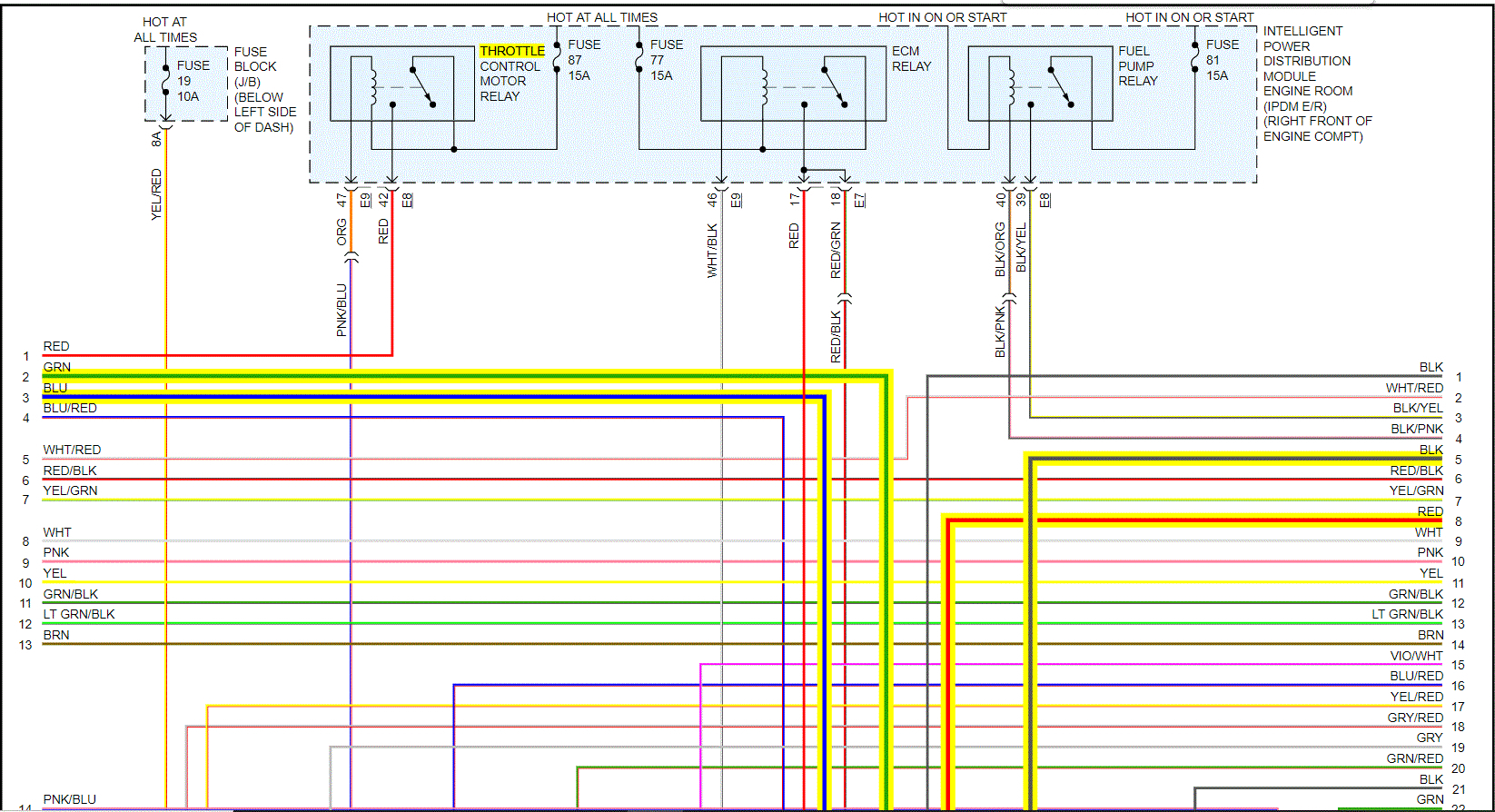

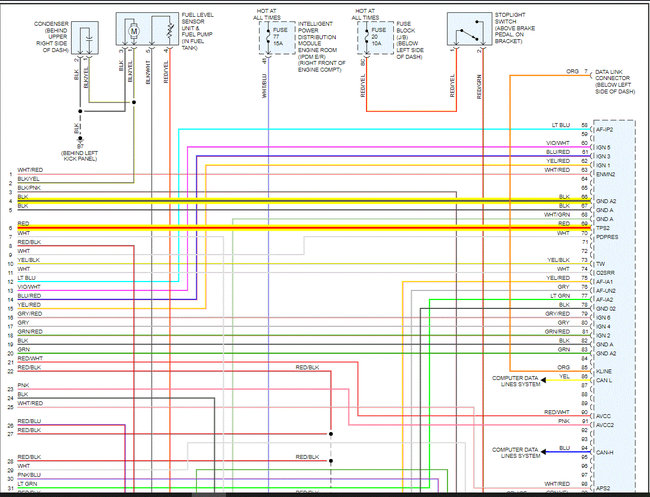

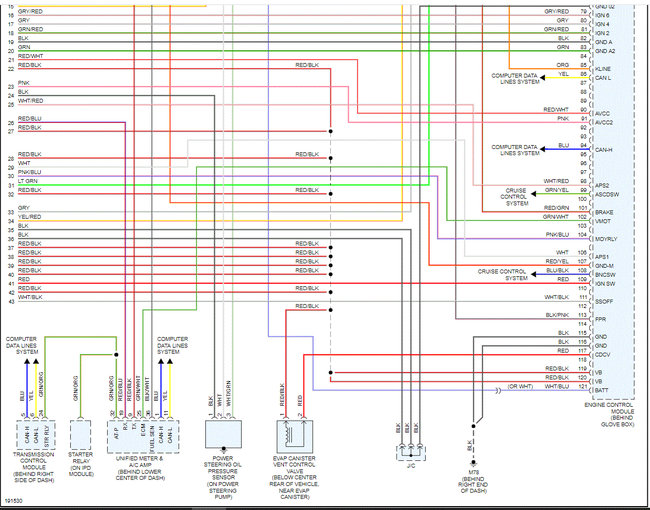

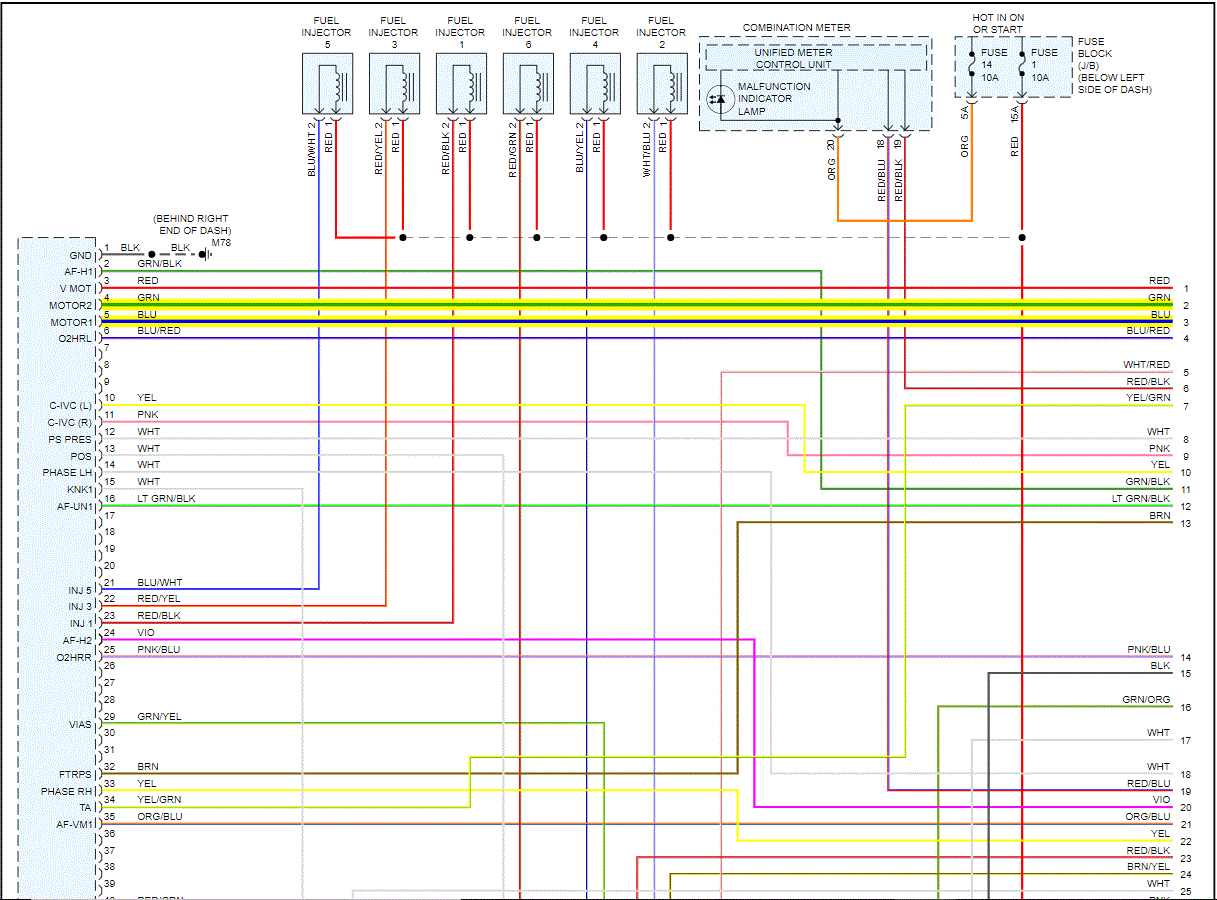

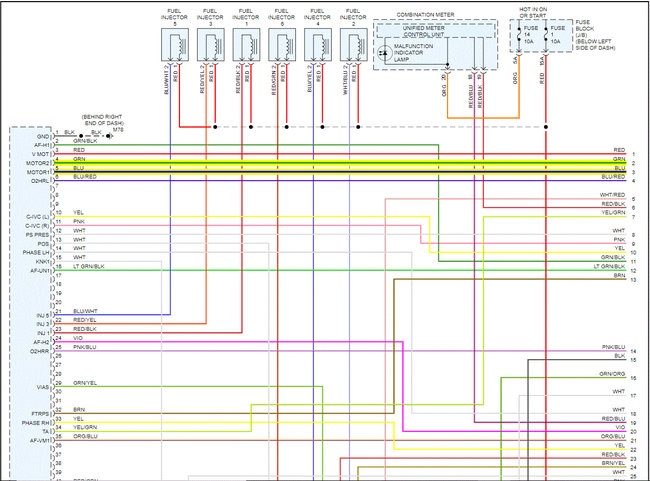

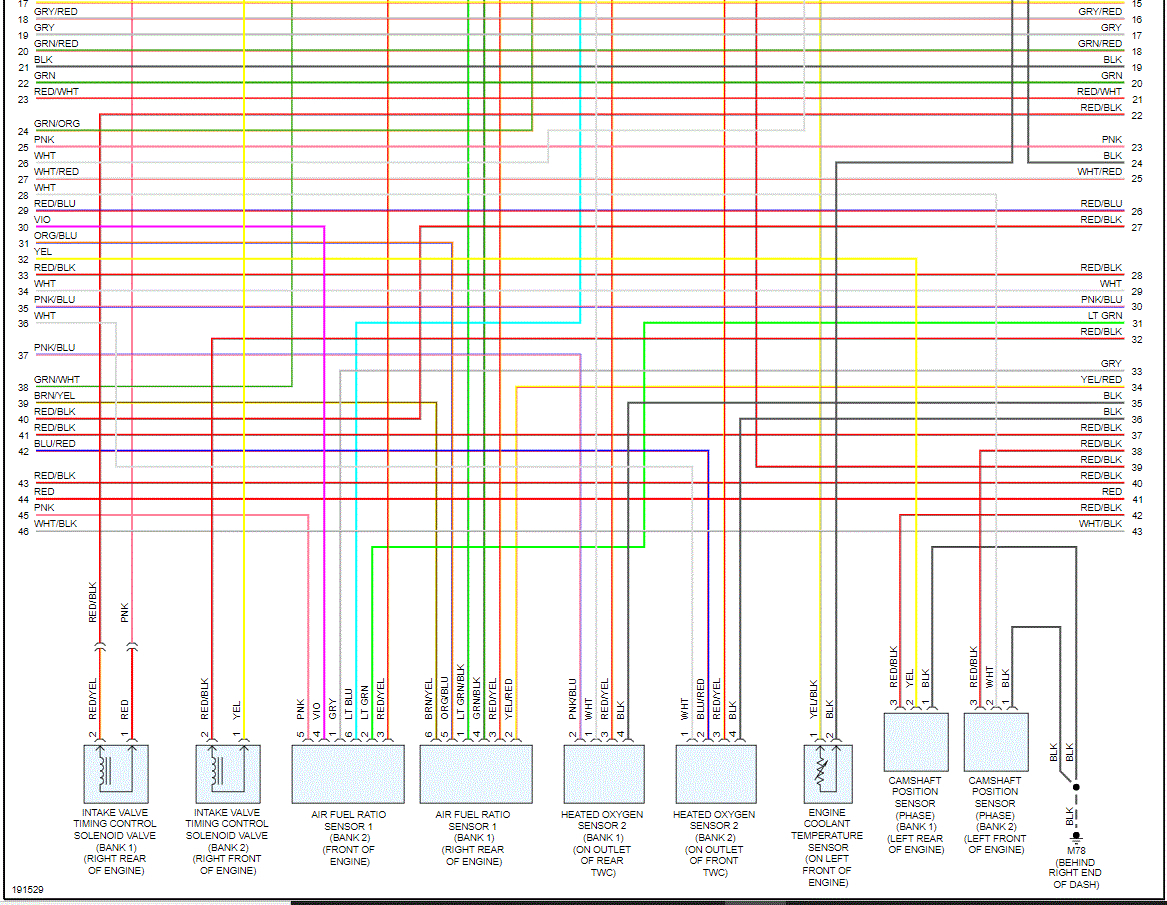

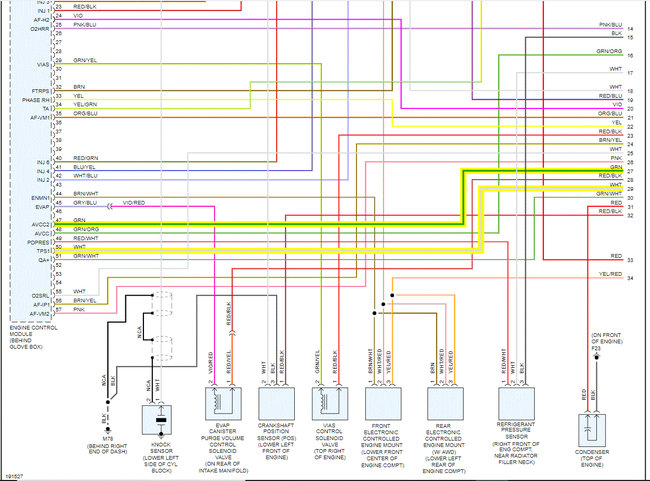

I attached the entire wiring schematic below for the powertrain control system. I had to cut the pics in half to make them readable, but I did overlap them so you can follow from one to the next.

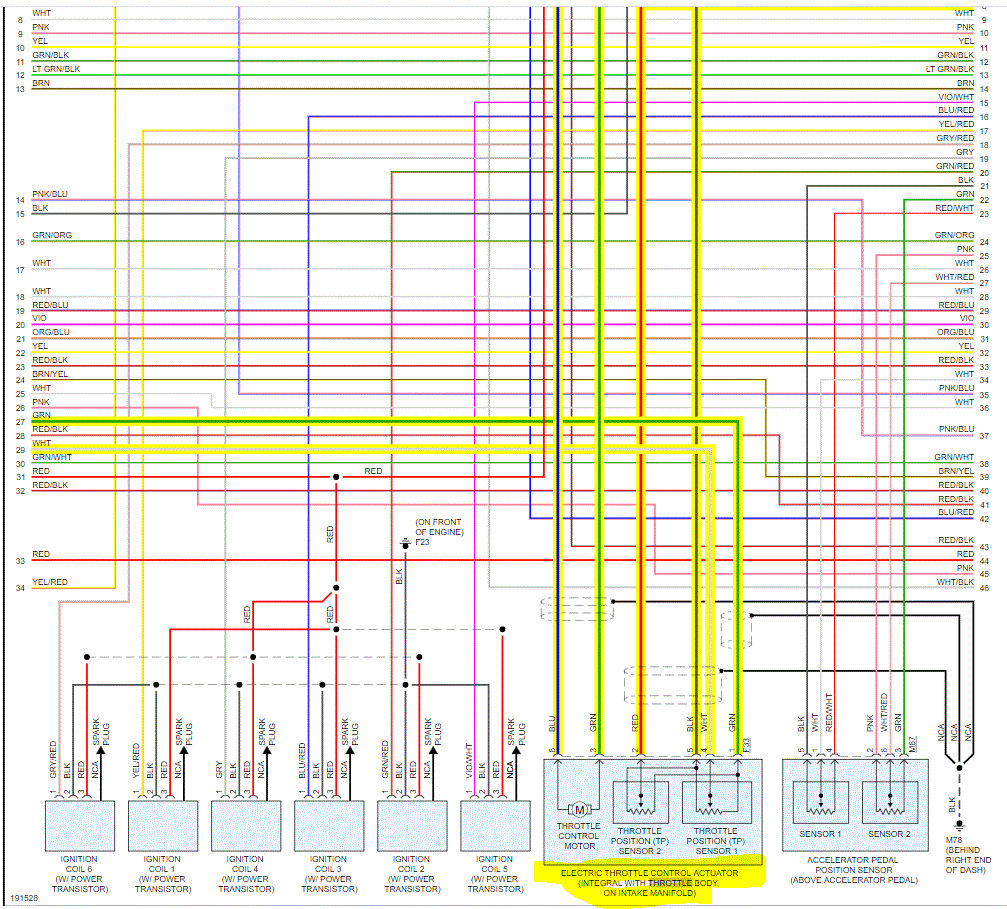

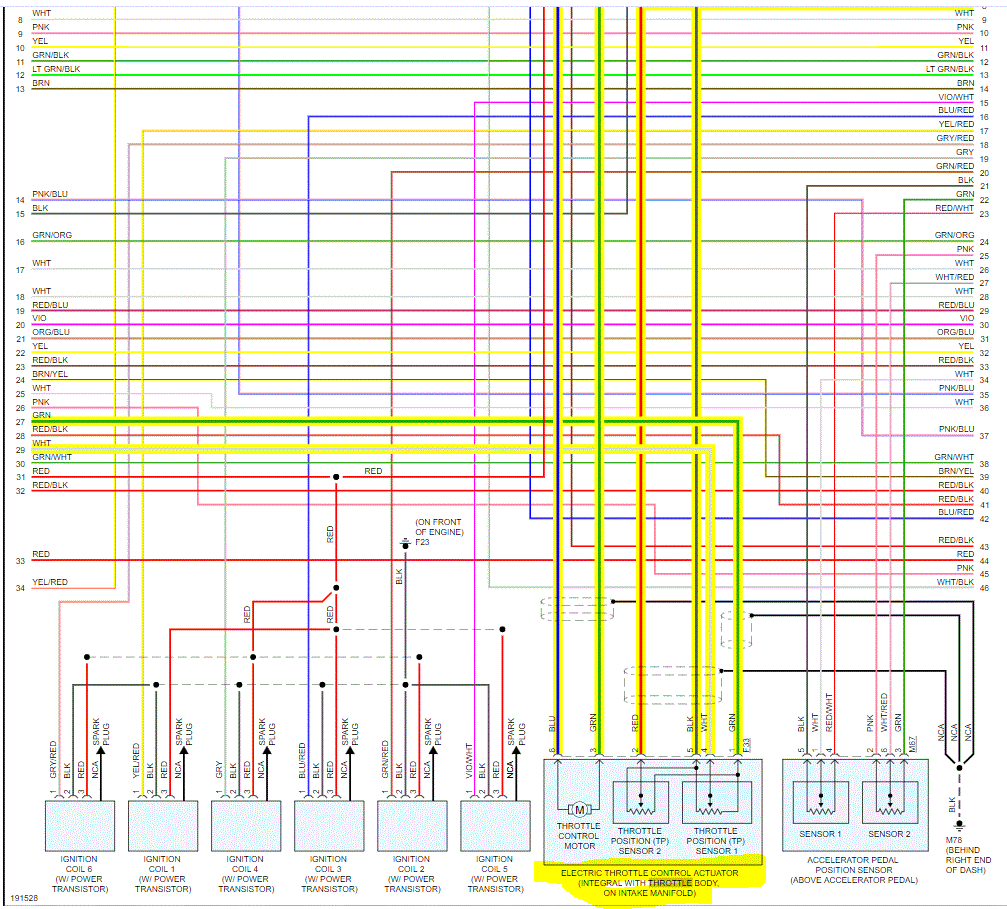

I highlighted all wires that are related to the throttle body.

The black wire is a ground supply for both TPS sensors. The red wire should provide a 5v reference to sensor 2 and the green and the white will provide the 5v to sensor 1.

The remaining wires are for the TPS motor. The voltage will be provided by throttle pressure and vary.

Here is a link you may find helpful:

https://www.2carpros.com/articles/how-to-check-wiring

Take care,

Joe

See pics below.
Jul 14, 2021 at 8:49 PM
