Engine vacuum routing diagram

1989 GMC S15
89,000 MILES • 4.3L • V6 • 4WD • AUTOMATIC
Avatar
BUDDY.HAYES
  • MEMBER
  • 3 POSTS
Vacuum routing diagram.
Sep 27, 2018 at 10:01 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

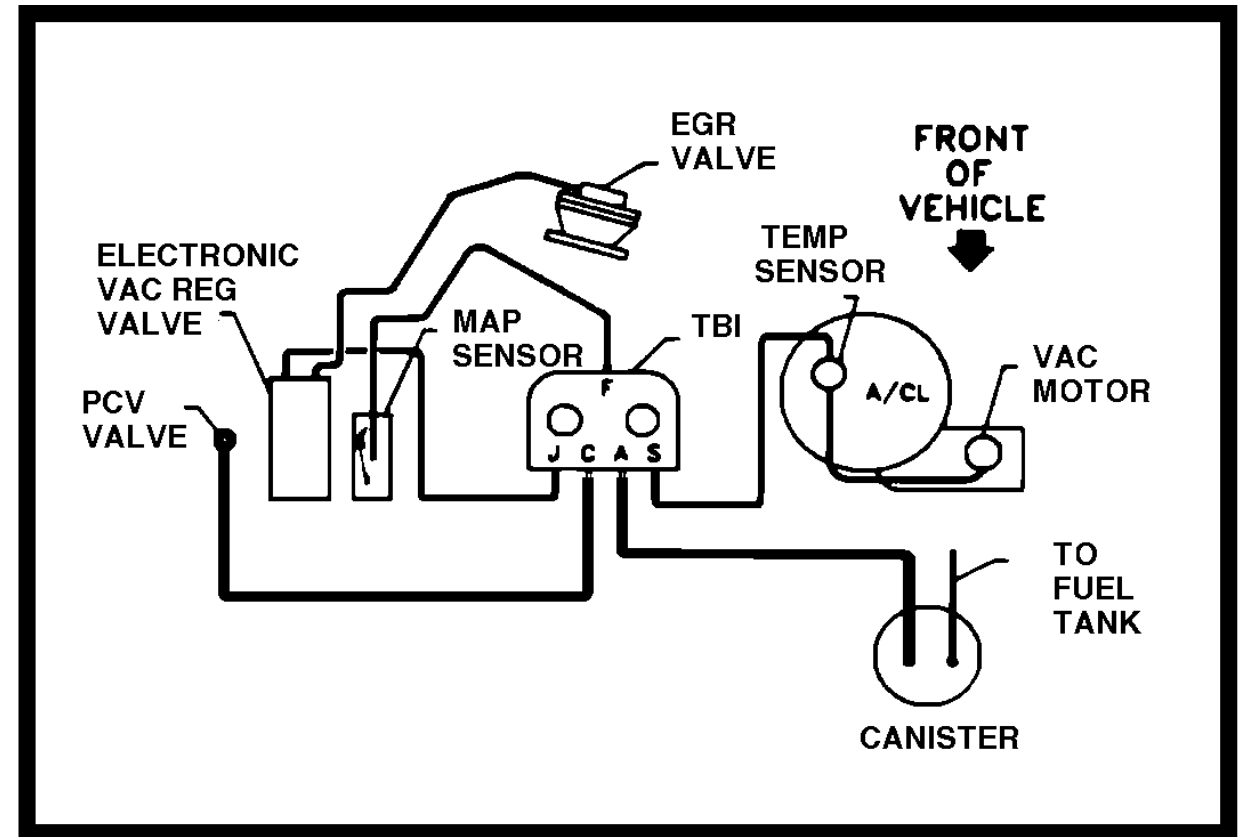

Here is the engine vacuum diagram you requested.

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Image (Click to enlarge)
Attached Media
Sep 29, 2018 at 12:18 PM
Avatar
BUDDY.HAYES
  • MEMBER
  • 3 POSTS
Thanks Ken.
Sep 30, 2018 at 12:22 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Use 2CarPros anytime, we are here to help. Please tell a friend.

Cheers, Ken
