Swirl and tumble, Code p2004 and p20014

2012 NISSAN SENTRA
100,000 MILES • 2.0L • 4 CYL
Avatar
JERRYF3RD
  • MEMBER
  • 2 POSTS
Where can I find the swirl control valve and tumble control valve on the car listed above? Getting code p2004 and p20014. Looked but do not know were they are located.
Jan 7, 2019 at 2:01 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi and thanks for using 2CarPros.

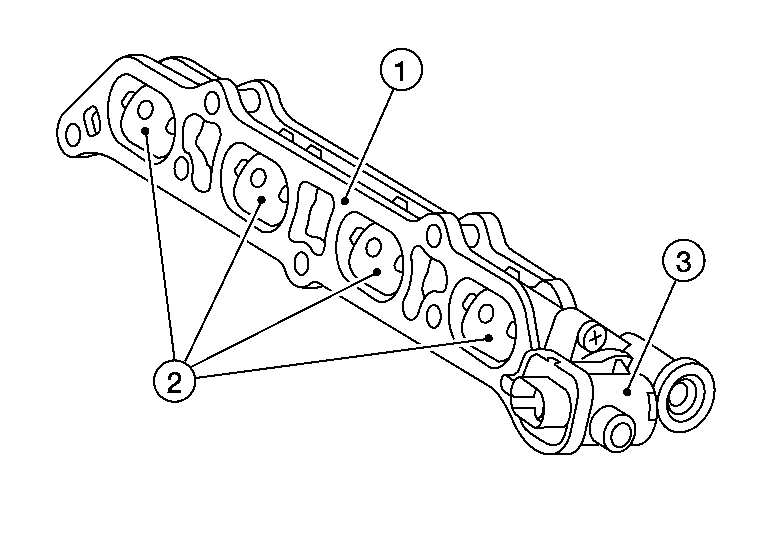

The swirl valve is mounted in the intake manifold adapter. The actuator is at the end of the adapter. See picture 1. Number 3 is the actuator, number 2 is the is the control valve, and three is the adapter. Often times, the ground fails, so check that first. Picture 2 shows the ground location.

I attached a picture to help you locate it. Loosen it, clean, and re-tighten it.

Let me know if this helps.

Take care,
Joe

Images (Click to enlarge)
Attached Media
Attached Media
Jan 7, 2019 at 6:06 PM
Avatar
JERRYF3RD
  • MEMBER
  • 2 POSTS
Okay, thanks very much. I'll get to it soon as I can.
Jan 8, 2019 at 1:01 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
I hope it helped. Let me know if you need help or just have a question.

Take care,
Joe
