Stereo wiring diagram needed to install aftermarket stereo

2004 DODGE RAM
200,000 MILES • 5.7L • V8 • TURBO • 2WD • AUTOMATIC
Avatar
DTREE WHIPPLE
  • MEMBER
  • 1 POST
I'm trying to put in a aftermarket stereo but the clip from the truck was cut so it is just wires hanging there. i need to know which wire is which.
Oct 12, 2020 at 3:17 AM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS

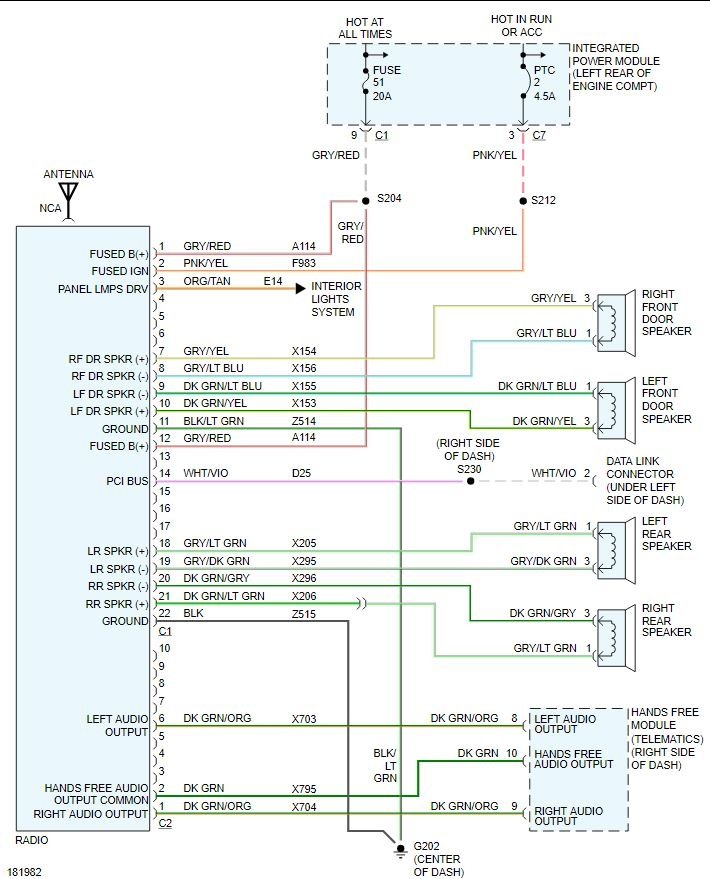

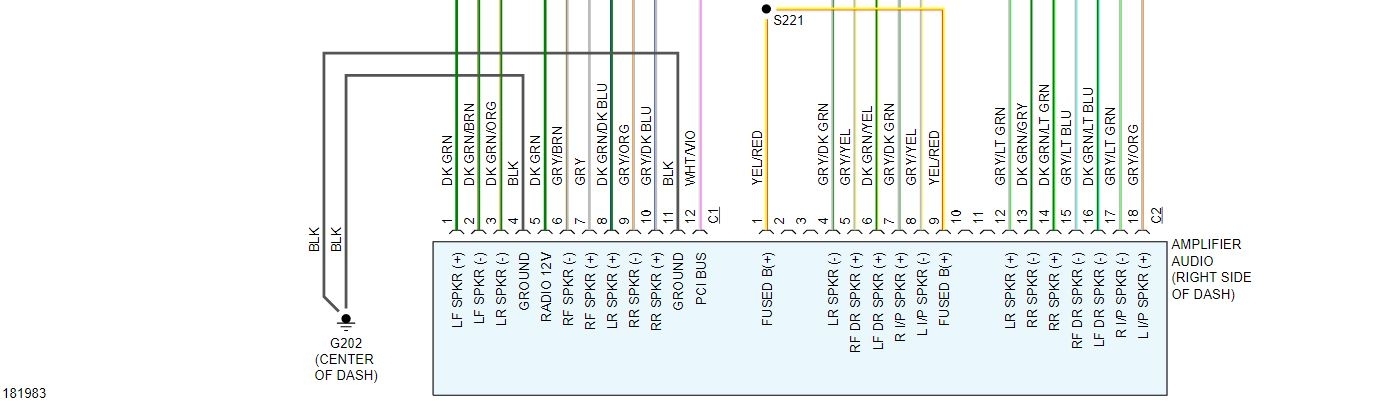

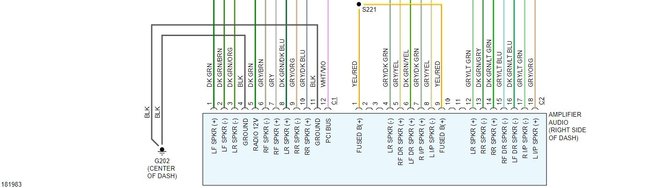

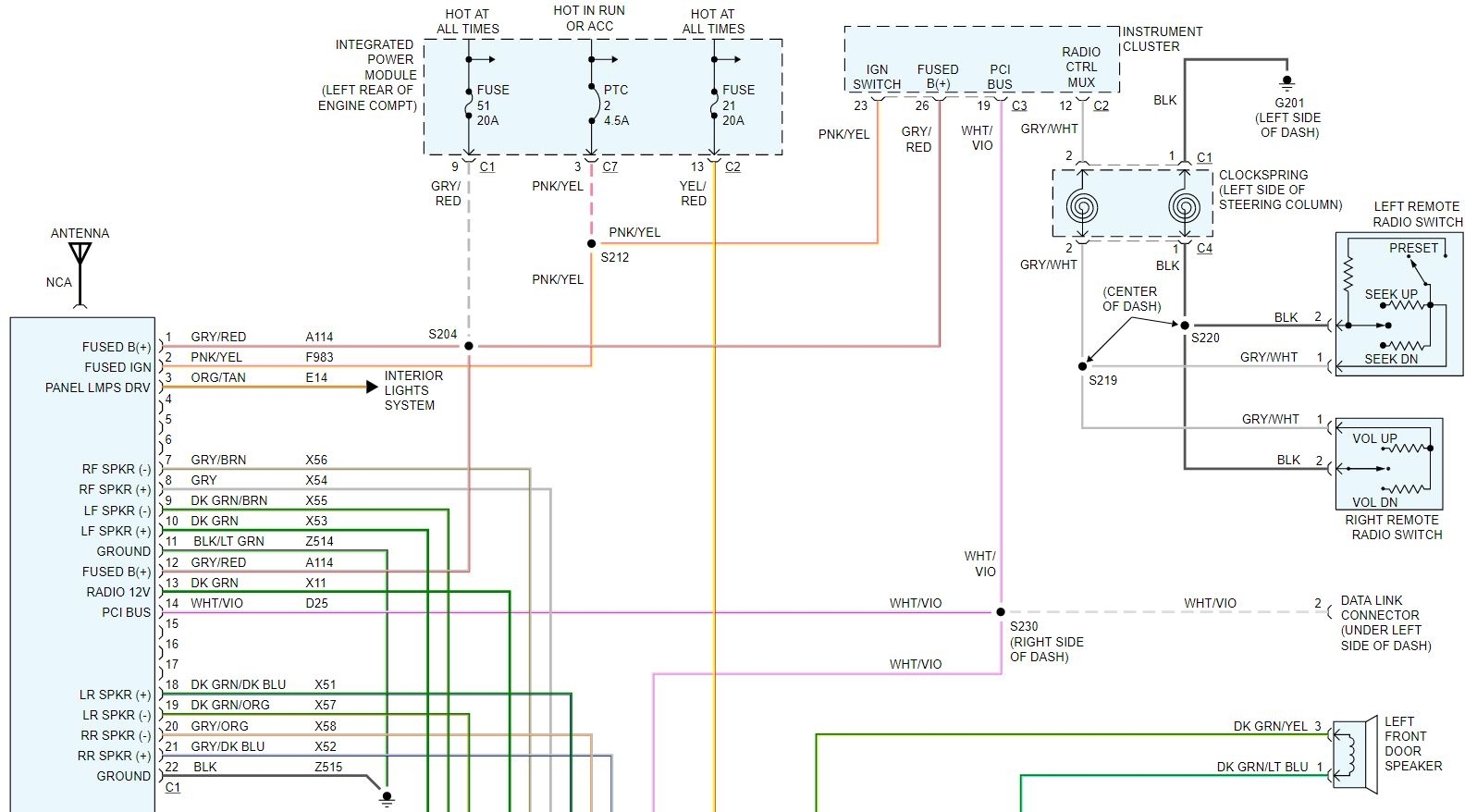

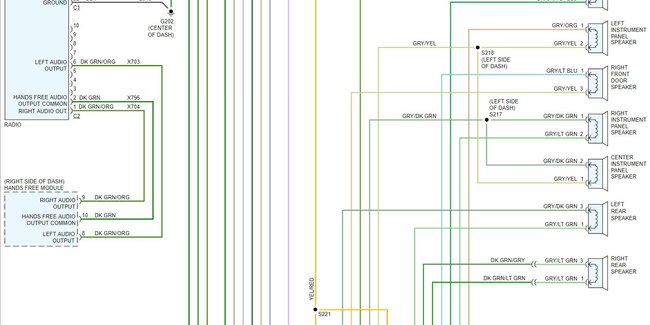

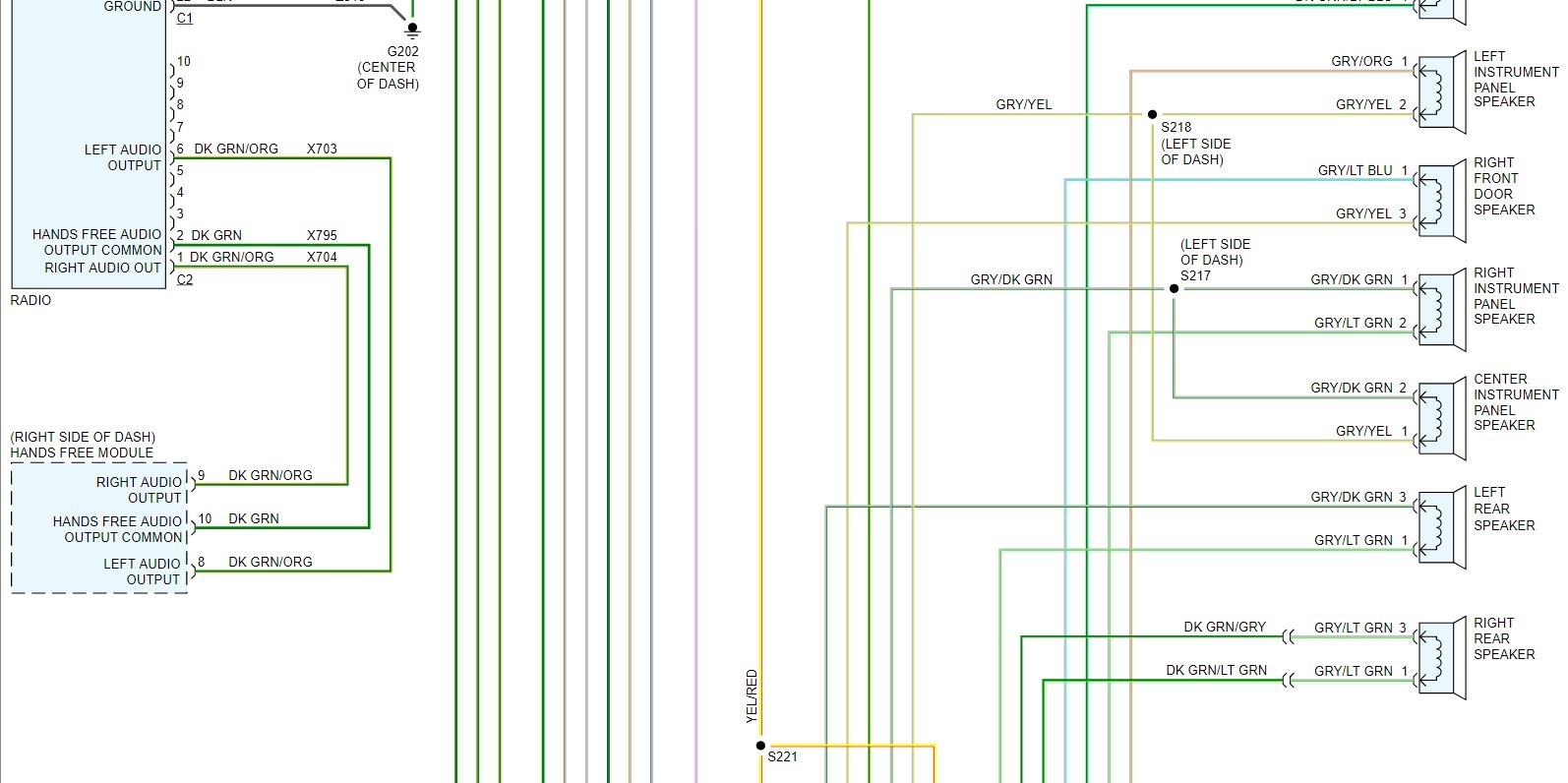

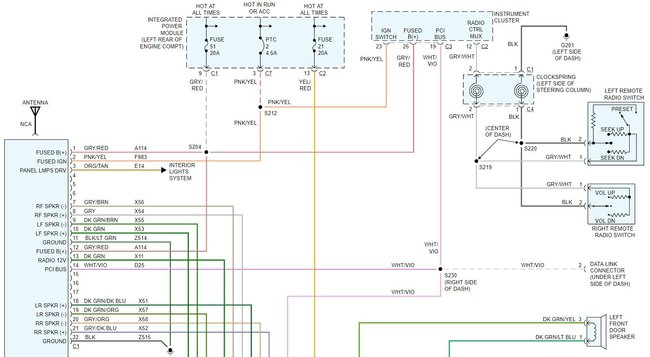

These are the diagrams for the base system and the premium unit. Easy way to tell which you have is if it has controls on the steering wheel for the premium system. If it has the premium unit you will need to remove the amplifier if it is still installed and use the speaker wire colors for it. That is because the OEM unit uses a signal on the data bus to tell it to turn on and off as well as have the speed adjusted volume functional.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Oct 12, 2020 at 7:00 AM
