Trying to install replacement stereo but can’t find wiring diagram or color codes
Mar 29, 2020 at 5:22 PM
Advertisement
KASEKENNY
CERTIFIED EXPERT
18,907 POSTS
Please see the attachment. There are a number of options. Can you let us know which radio group you have and I will provide the complete diagram for it.
Thanks
Mar 29, 2020 at 5:42 PM
CHRIS3004
MEMBER
3 POSTS
Where can I find the radio group?
Mar 29, 2020 at 5:57 PM
Advertisement
KASEKENNY
CERTIFIED EXPERT
18,907 POSTS

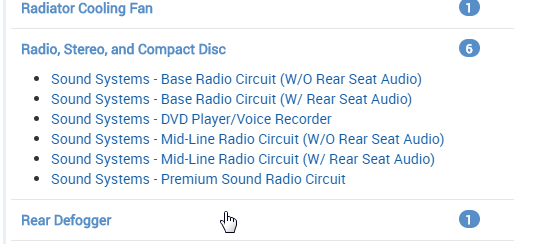

I am sorry. I did not attach the options. Take a look at these and see if any match what you have.
Image (Click to enlarge)
Mar 29, 2020 at 6:02 PM
CHRIS3004
MEMBER
3 POSTS
Base radio circuit with rear seat audio.
Mar 29, 2020 at 6:10 PM
DANNY L
CERTIFIED EXPERT
5,648 POSTS
Hello, I'm Danny.

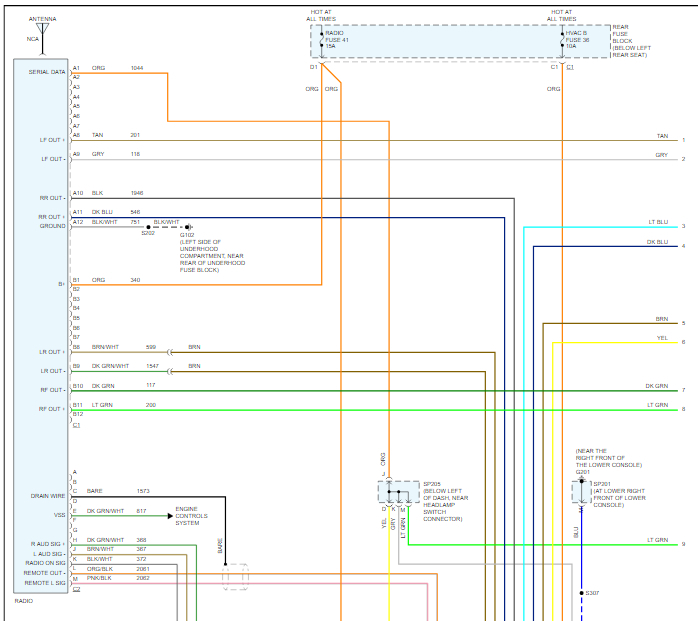

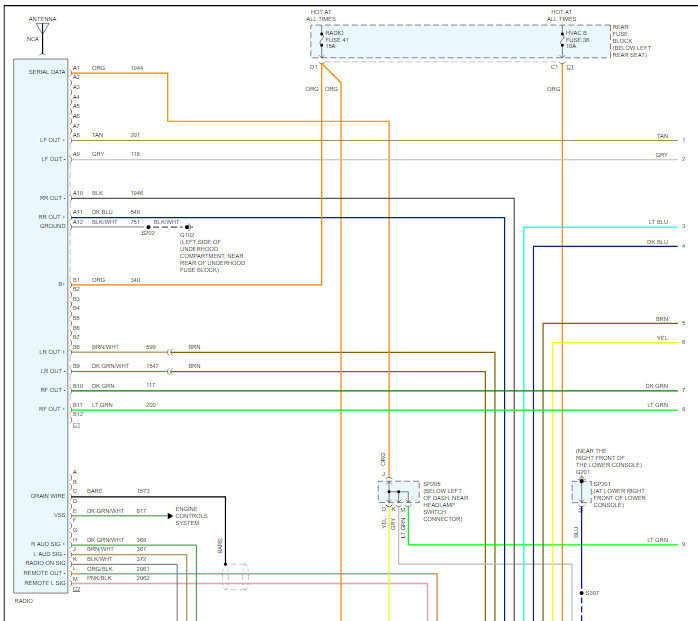

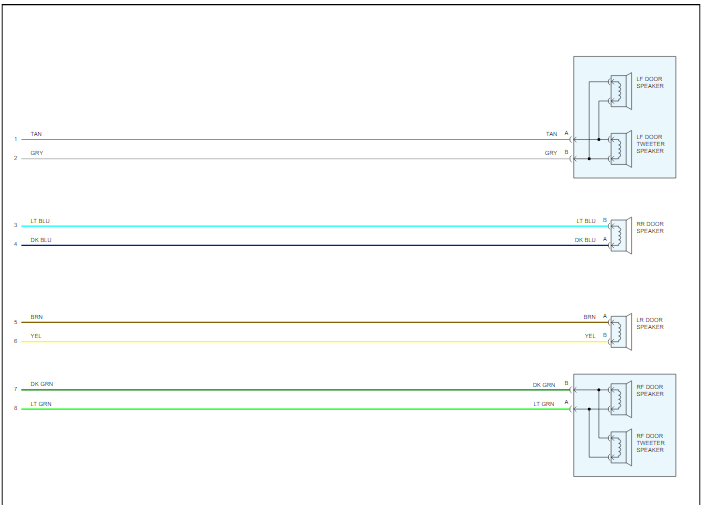

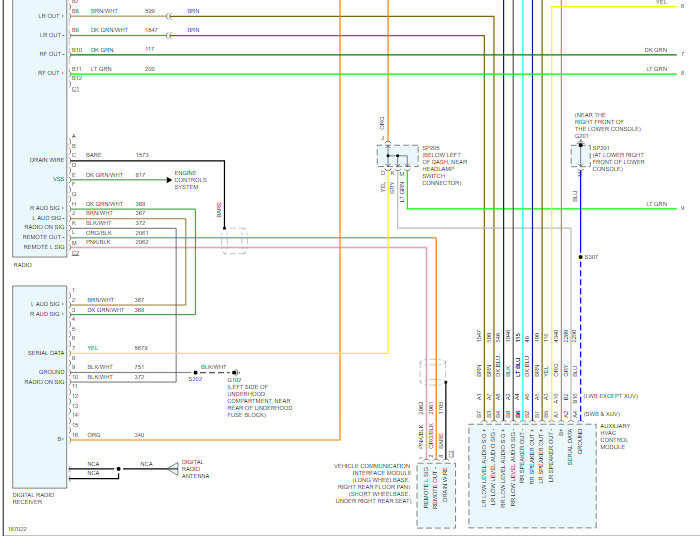

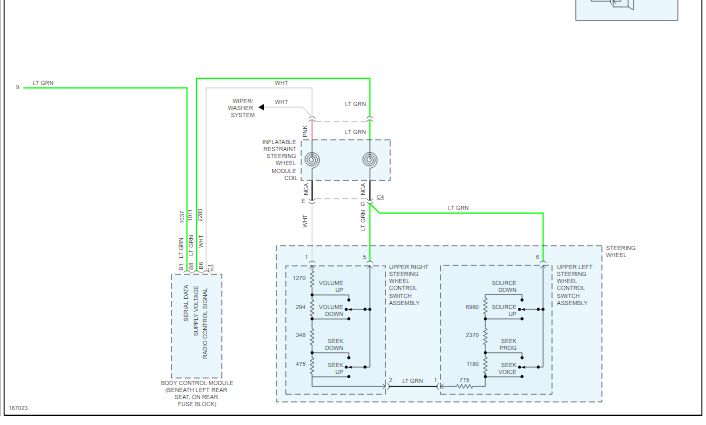

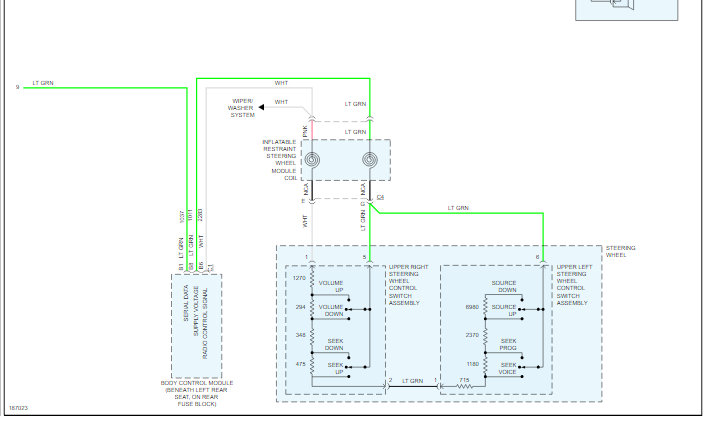

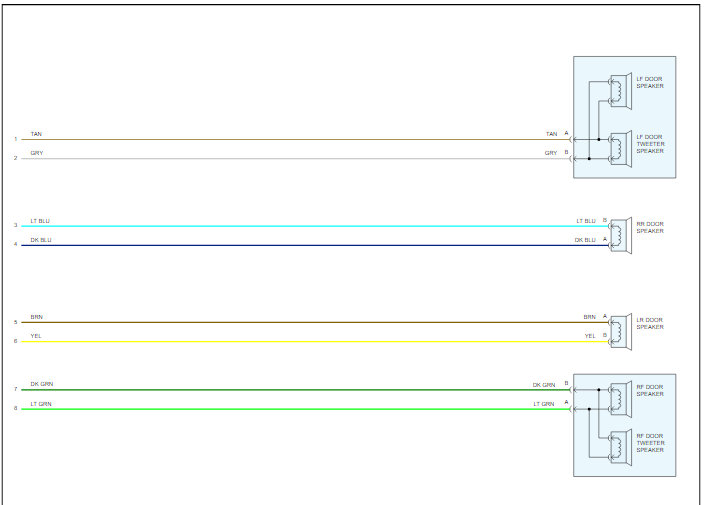

Here is the stereo wiring diagram you requested. I've cut the 2 pictures in half so they can be viewed larger..Hope helps and thanks again for using 2CarPros.
