I hear the starter free spinning, sometimes just clicks?

2004 TOYOTA COROLLA

220,000 MILES • 1.8L • 4 CYL • 2WD • MANUAL

YAZAMMAR23

MEMBER
1 POST
FOLLOW

After several attempts the car starts. Sometimes I hear the starter free spinning. Sometimes it just clicks. Sometimes I hear the engine turn over at the beginning but at the end the starter free spin. Please can you send me a wiring diagram of the starting system for my car because i know there is a starter relay and a clutch safety switch.

Thank you.

Mar 6, 2023 at 6:02 AM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

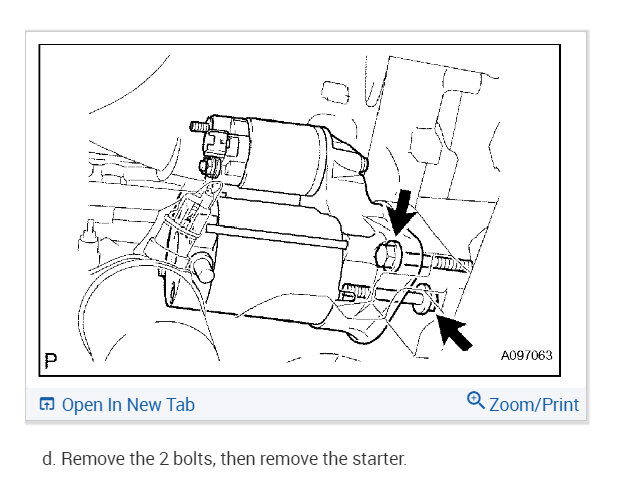

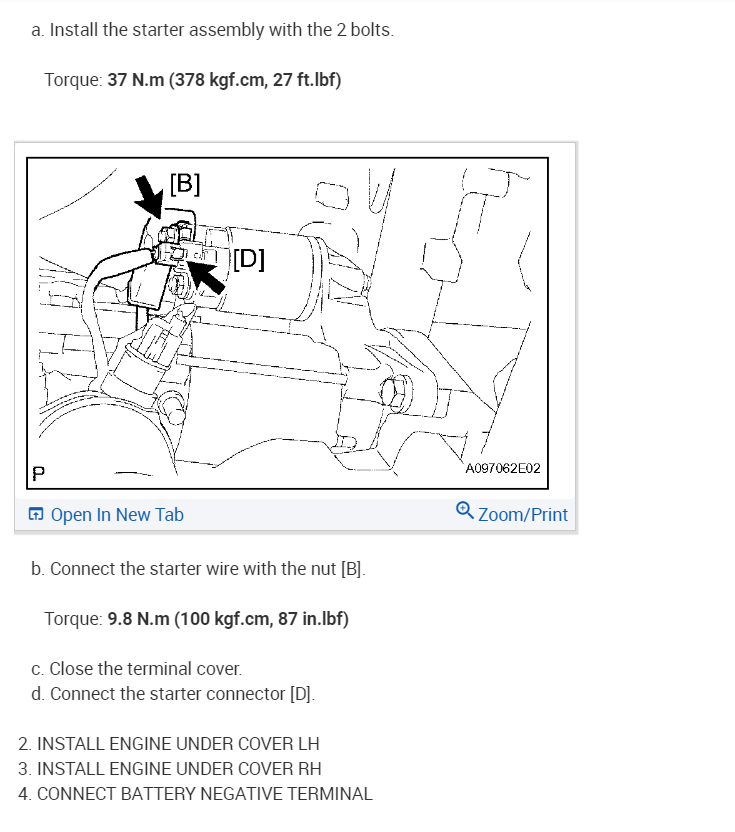

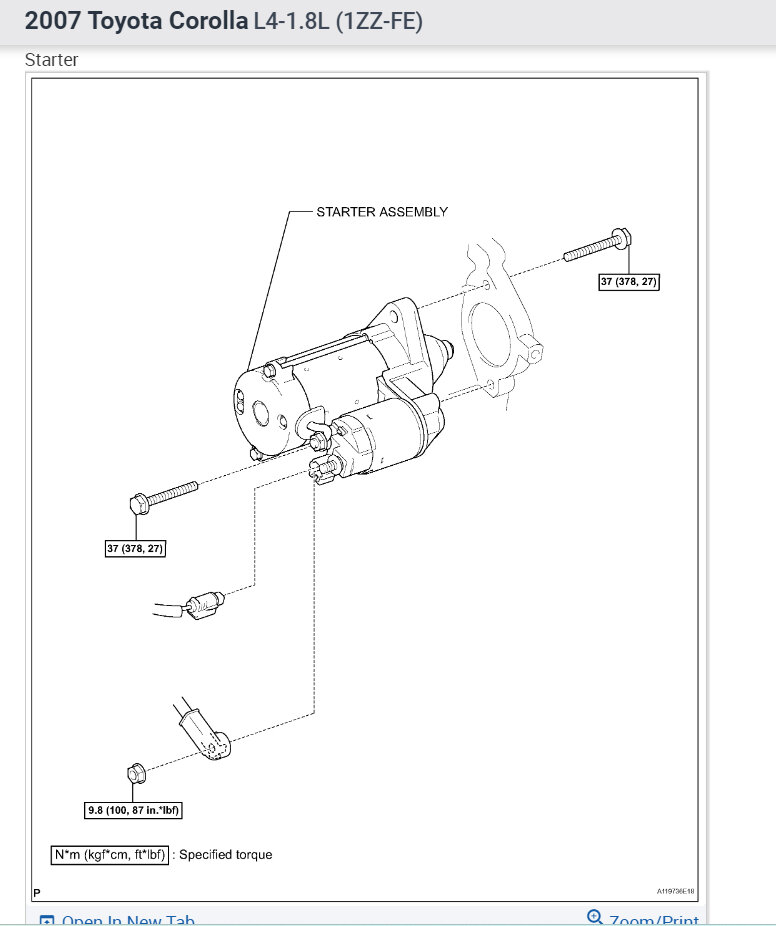

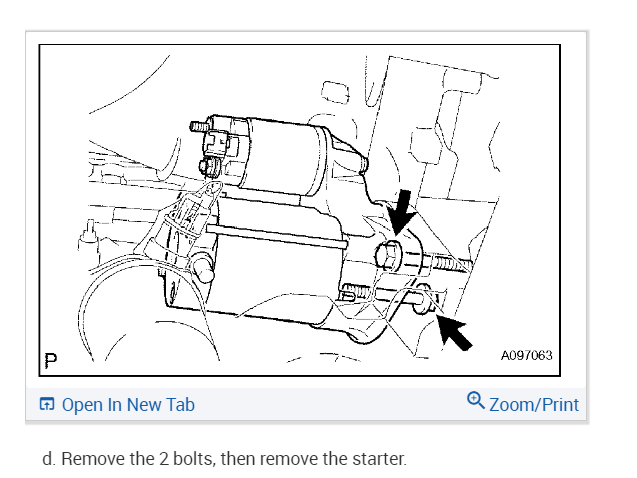

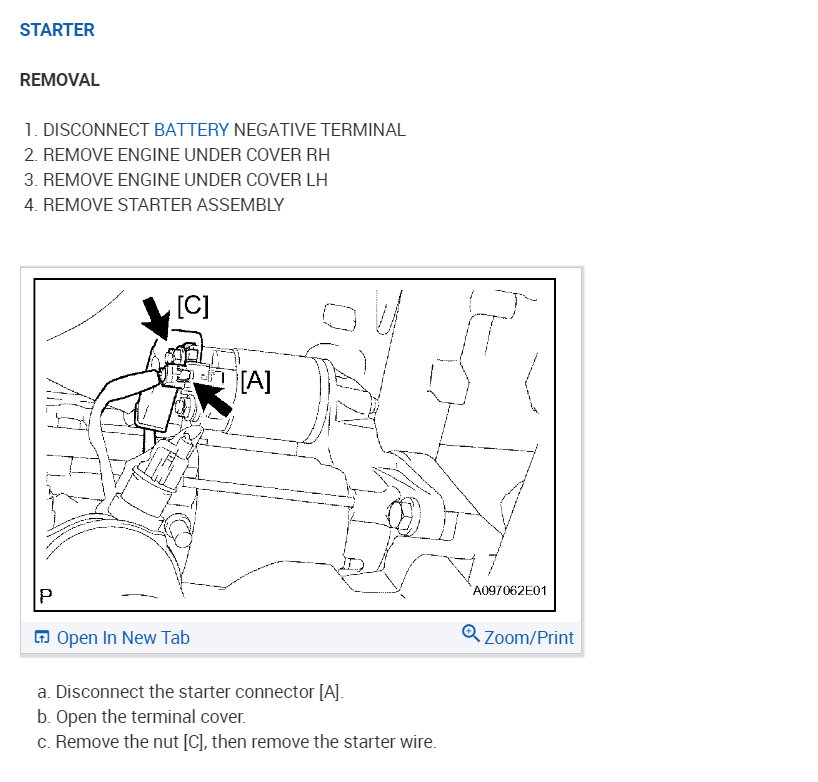

If your battery is in good shape and the cables are clean from corrosion, I would say the starter motor is bad. Here is a guide to help you change out the starter step by step with instructions in the images below to help you change it out in your car:

https://www.2carpros.com/articles/how-to-replace-a-starter-motor

This guide can help as well:

https://www.2carpros.com/articles/7-common-symptoms-of-a-bad-automotive-starter

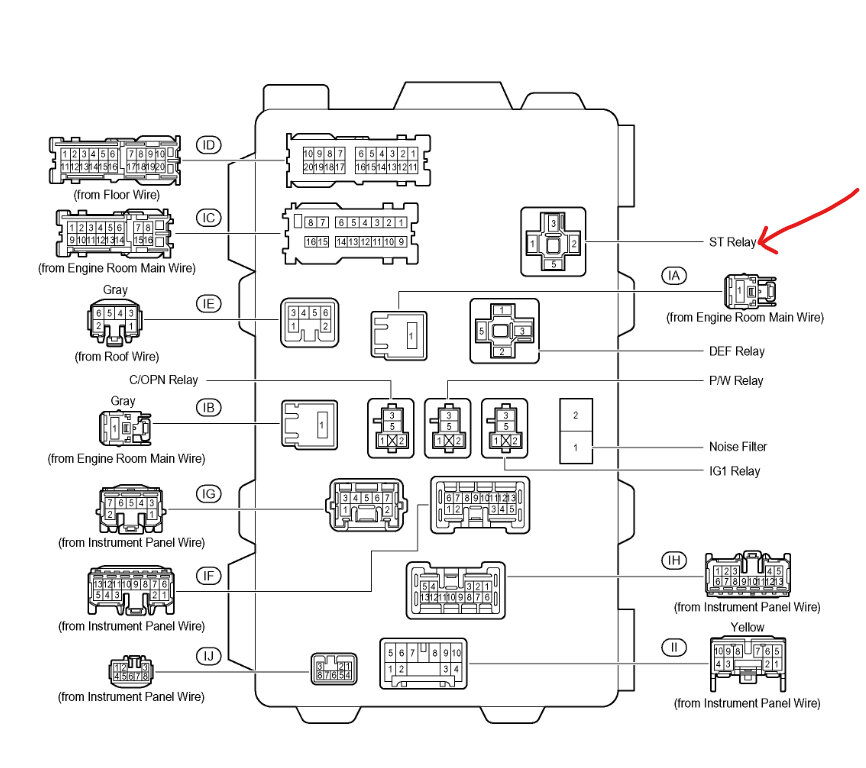

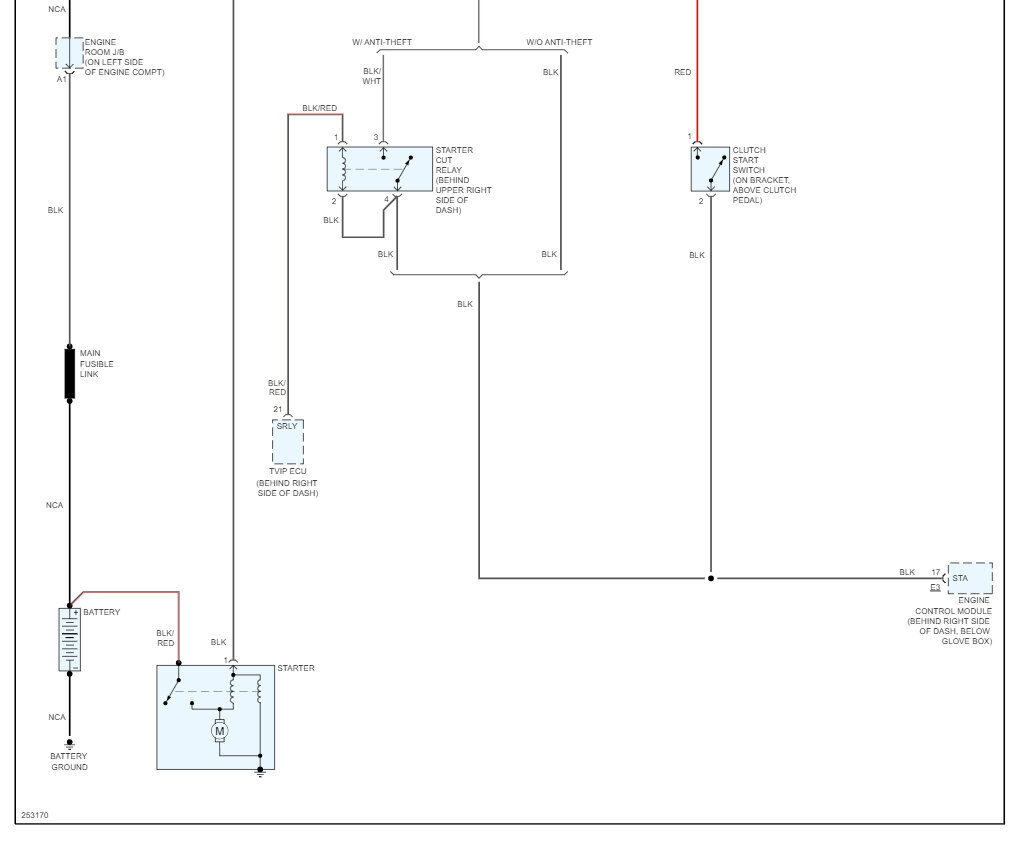

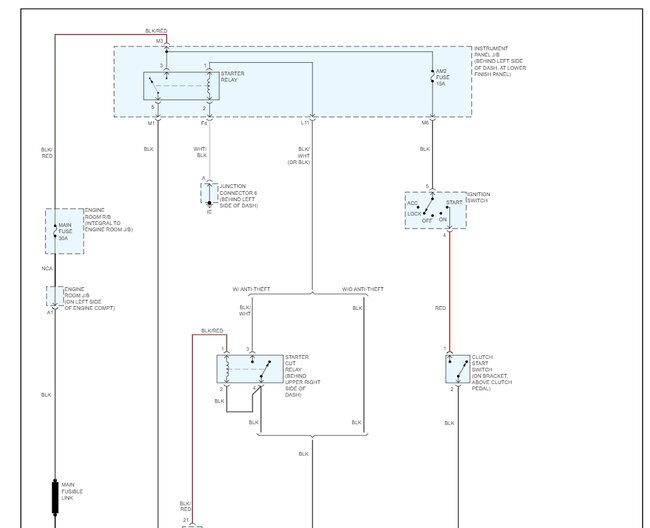

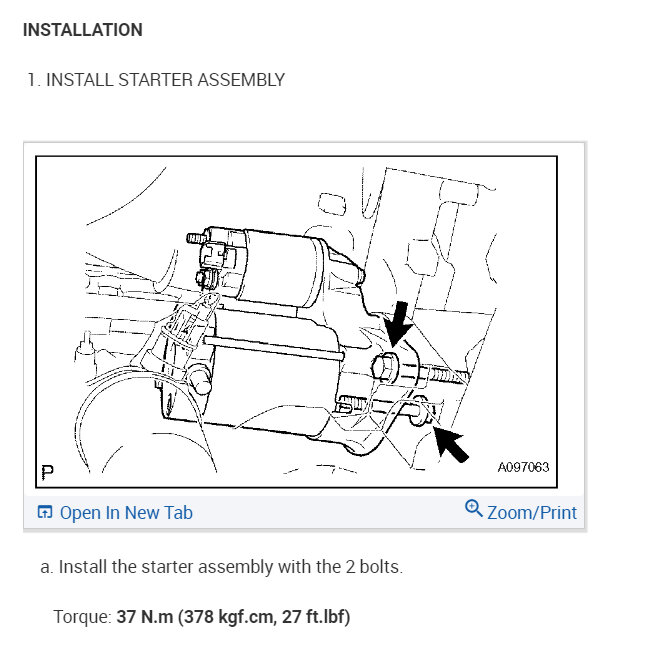

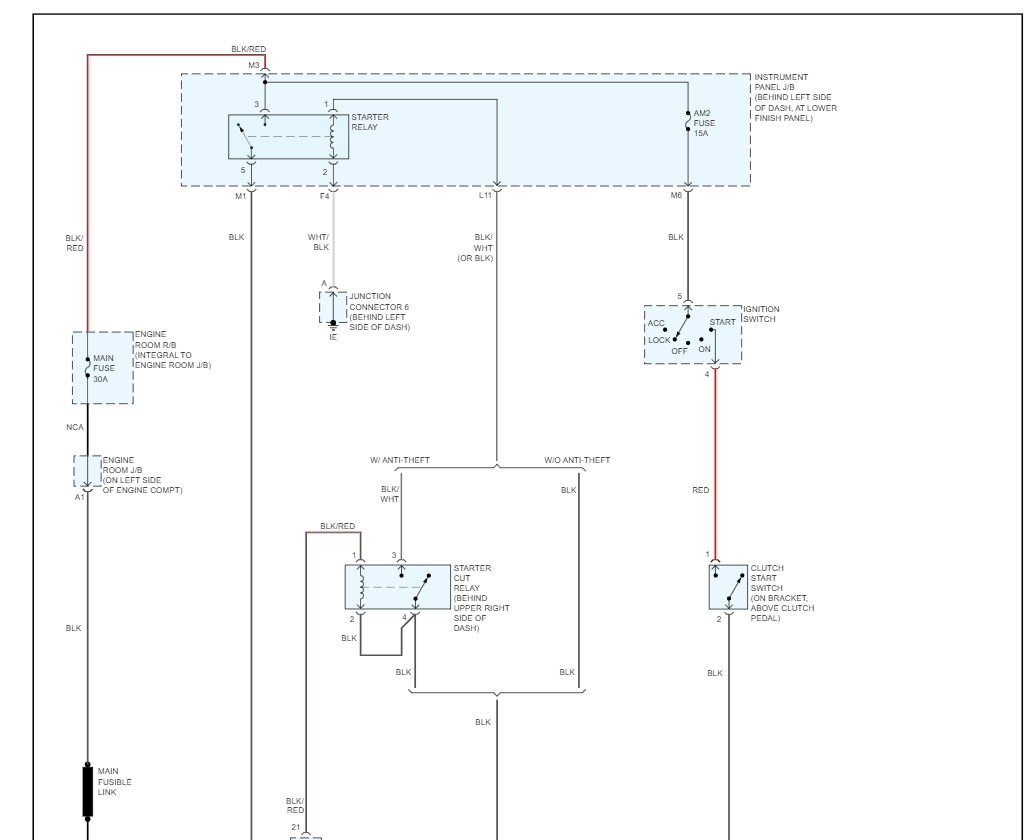

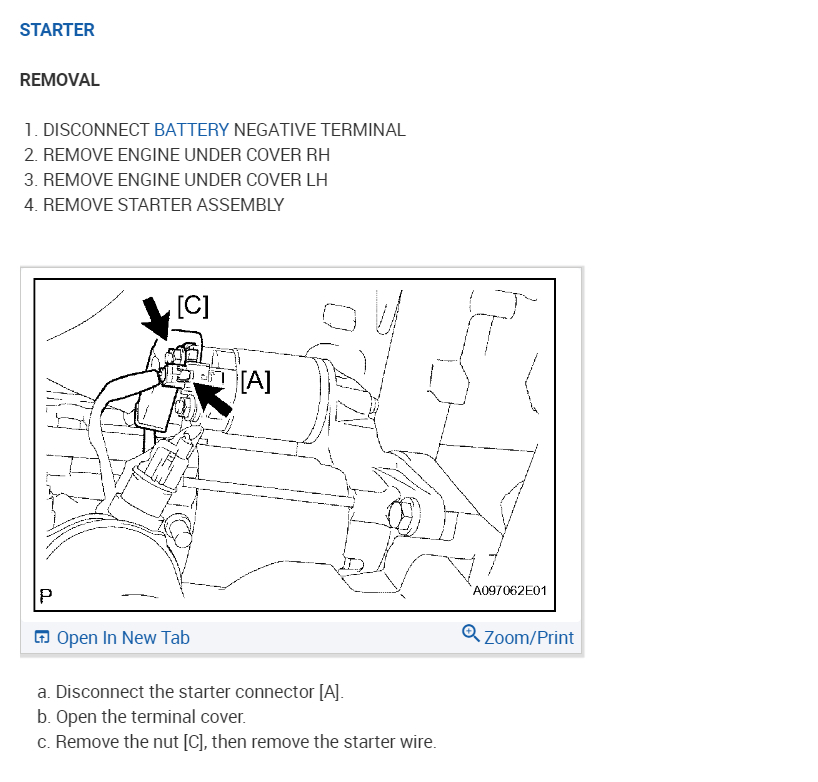

Here are the starter wiring diagrams and the starter relay location as well as the starter. Check out the images (below). Please let us know what happens.

Images (Click to enlarge)

Mar 6, 2023 at 12:15 PM
